BI15-CP40-VP4X2/S100-S10 datasheet, PDF

Datasheet> All Categories > The sensor> Sensor/transducer> BI15-CP40-VP4X2/S100-S10

BI15-CP40-VP4X2/S100-S10: DescriptionInductive Sensor,; CategoryThe sensor Sensor/transducer; File Size310KB，3 Pages; ManufacturerTURCK Inc.; Websitehttps://www.turck.us/

Download Datasheet Parametric View All

BI15-CP40-VP4X2/S100-S10 Overview

Inductive Sensor,

BI15-CP40-VP4X2/S100-S10 Parametric

Parameter Name	Attribute value
Maker	TURCK Inc.
Reach Compliance Code	unknown
Other features	IP67; SHORT CIRCUIT PROTECTION; REVERSE POLARITY PROTECTION
body width	40 mm
body height	40 mm
Body length or diameter	114 mm
shell	PLASTIC
Installation features	FLUSH MOUNTING
Maximum working current	200 mA
Maximum operating temperature	100 °C
Minimum operating temperature	-25 °C
Output interface type	4-WIRE INTERFACE
Output type	PNP
Package Shape/Form	RECTANGULAR
Sensor/Transducer Type	PROXIMITY SENSOR,INDUCTIVE
Maximum supply voltage	65 V
Minimum supply voltage	10 V
surface mount	NO
Termination type	TERMINAL CHAMBER
Base Number Matches	1

Preview

Download Datasheet

View All

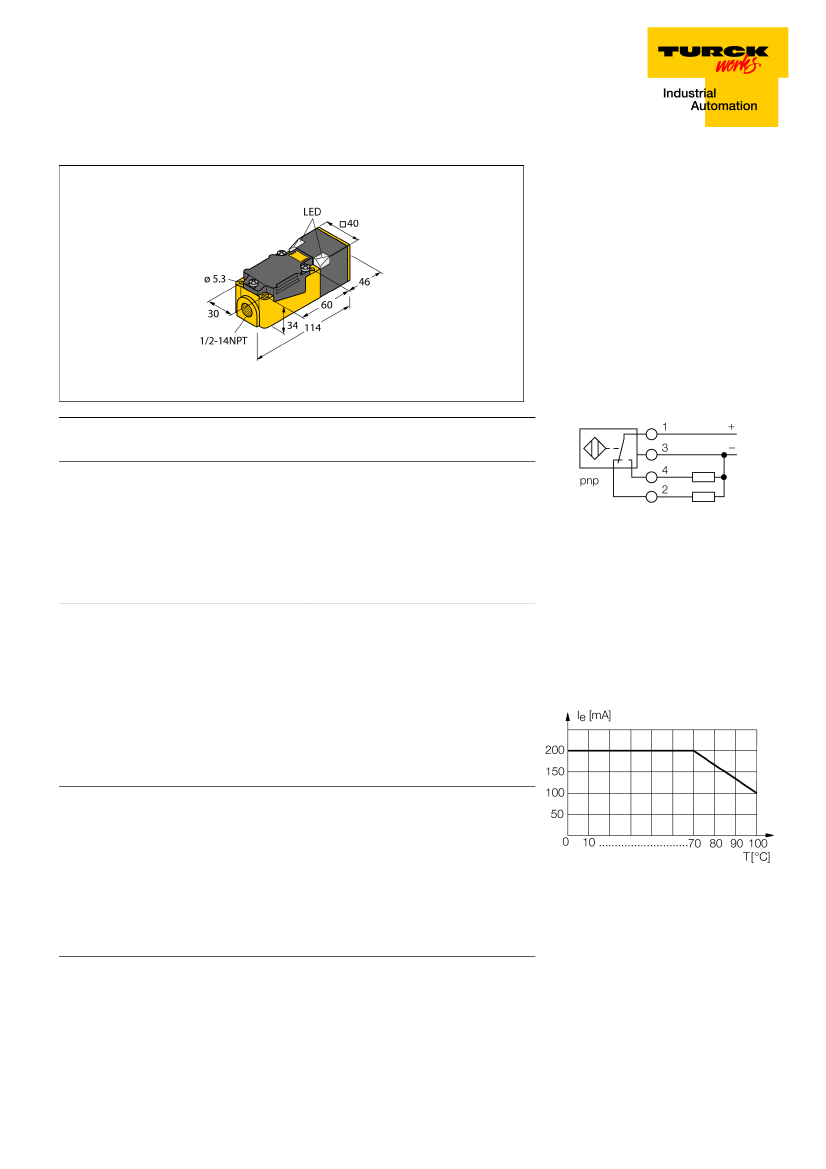

Inductive sensor

With extended temperature range

BI15-CP40-VP4X2/S100-S10

■

Rectangular, height 40 mm

■

Variable orientation of active face in 9

directions

■

Plastic, PBT-GF30-V0

■

High luminance corner LEDs

■

Optimum view on supply voltage and

switching state from any position

■

Temperatures up to +100 °C

■

DC 4-wire, 10…65 VDC

■

Changeover contact, PNP output

■

Terminal chamber

Wiring Diagram

Type designation

Ident-No.

Rated switching distance Sn

Mounting conditions

Secured operating distance

Correction factors

Repeat accuracy

Temperature drift

Hysteresis

Ambient temperature

Operating voltage

Residual ripple

DC rated operational current

Rated operational current

No-load current I

Residual current

Isolation test voltage

Short-circuit protection

Voltage drop at I

Wire breakage/Reverse polarity protection

Output function

Switching frequency

Design

Dimensions

Housing material

Active area material

Electrical connection

Clamping ability

Vibration resistance

Shock resistance

Protection class

MTTF

Packaging unit

Power-on indication

Switching state

Edition • 2018-05-19T19:03:15+02:00

BI15-CP40-VP4X2/S100-S10

15019

15 mm

Flush

(0,81 x Sn) mm

St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4

2 % of full scale

± 10 %

± 20 %,

+70 °C

3…15 %

-25…+100 °C

10…65 VDC

10 % U

200 mA

See derating curve

15 mA

0.1 mA

0.5 kV

yes

1.8 V

yes/ Complete

4-wire, Complementary contact, PNP

0.15 kHz

Rectangular,CP40

114 x 40 x 40 mm

Plastic, PBT-GF30-V0, Black

Plastic, PBT-GF30-V0, yellow

Terminal chamber

2.5 mm

55 Hz (1 mm)

30 g (11 ms)

IP67

2283 years acc. to SN 29500 (Ed. 99) 40 °C

Functional principle

Inductive sensors detect metal objects con-

tactless and wear-free. For this purpose they

use a high-frequency electromagnetic AC

field that interacts with the target. The sensors

hosting a ferrite core coil generate the AC field

through an LC resonant circuit.

Special versions are available for ambient

temperatures between -60°C and +250°C.

Derating Curve

2 × LEDs,Green

2 × LEDs,Yellow

1/3

TURCK Inc.

3000 Campus Drive Minneapolis, MN 55441-2656

Phone: 763-553-7300

Application Support: 1-800-544-7769

Fax 763-553-0708

www.turck.com
