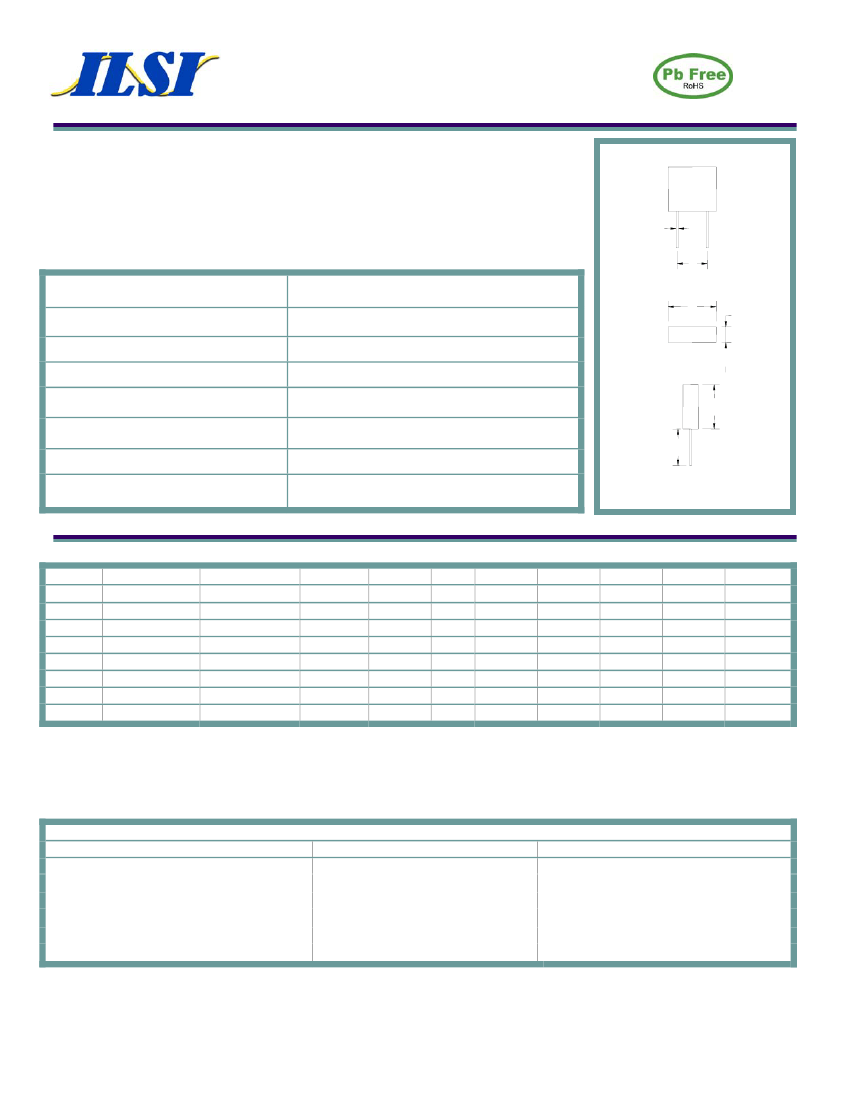

2 Lead Plastic Package
Product Features:
Low Cost
Compatible with Leadfree Processing
ZTB Series
Applications:
Storage Media
Home Appliance
Microprocessors
Office Automation
0.91
E
Frequency
ESR (Equivalent Series Resistance)
Frequency Tolerance @ 25° C
Frequency Stability over Temperature
Aging
Temperature
190 kHz to 1600 kHz
A
See Table Below
±0.3%
±0.3%
±0.3%
Max. for 10 Years
C
B
D
Operating
Storage
-40° C to +85° C
Dimension Units: mm
-40° C to +85° C Standard
Part
Code
ZTB-A
ZTB-B
ZTB-C
ZTB-D
ZTB-E
ZTB-F
ZTB-G
Frequency
(KHz)
190 to 249
250 to 374
375 to 429
430 to 519
520 to 699
700 to 999
1000 to 1600
Tolerance
±1
kHz
±1
kHz
±2
kHz
±2
kHz
±2
kHz
±0.5%
±0.5%
ESR
(Ω Max.)
20
20
20
20
30
30
50
C1
(pF)
330*
220*
120*
100*
100*
100*
100*
C2
(pF)
470*
470*
470*
100*
100*
100*
100*
"A" *
(mm)
13.5
11.0
7.9
7.0
7.0
5.2
5.2
"B" *
(mm)
3.8
3.8
3.6
3.5
3.5
2.8
2.8
"C" *
(mm)
14.7
9.3
9.3
9.0
9.0
6.8
6.8
"D" *
(mm)
8.0
7.0
7.0
**
**
3.5
3.5
"E" *
(mm)
10.0
7.7
5.0
5.0
5.0
2.5
2.5
* Recommended external C1 and C2 values.
** 4.0 mm or 6.0 mm, contact ILSI America.
The terminations of the ZTB series ceramic resonator are Pb free. Pb may be contained in the ceramic resonator element of this device and is
exempted via item 7 of the RoHS annex. This ceramic resonator series is considered RoHS compliant.
Part Number Guide
Part Series
Sample Part Number:
ZTB - G - 1000
Part Code
A
B
C
D
E
F
G
Frequency
ZTB -
- 1000 kHz
ILSI
America
Phone: 775-851-8880 • Fax: 775-851-8882• e-mail: e-mail@ilsiamerica.com • www.ilsiamerica.com
06/09_A
Specifications subject to change without notice
Page 1
2 Lead Plastic Package

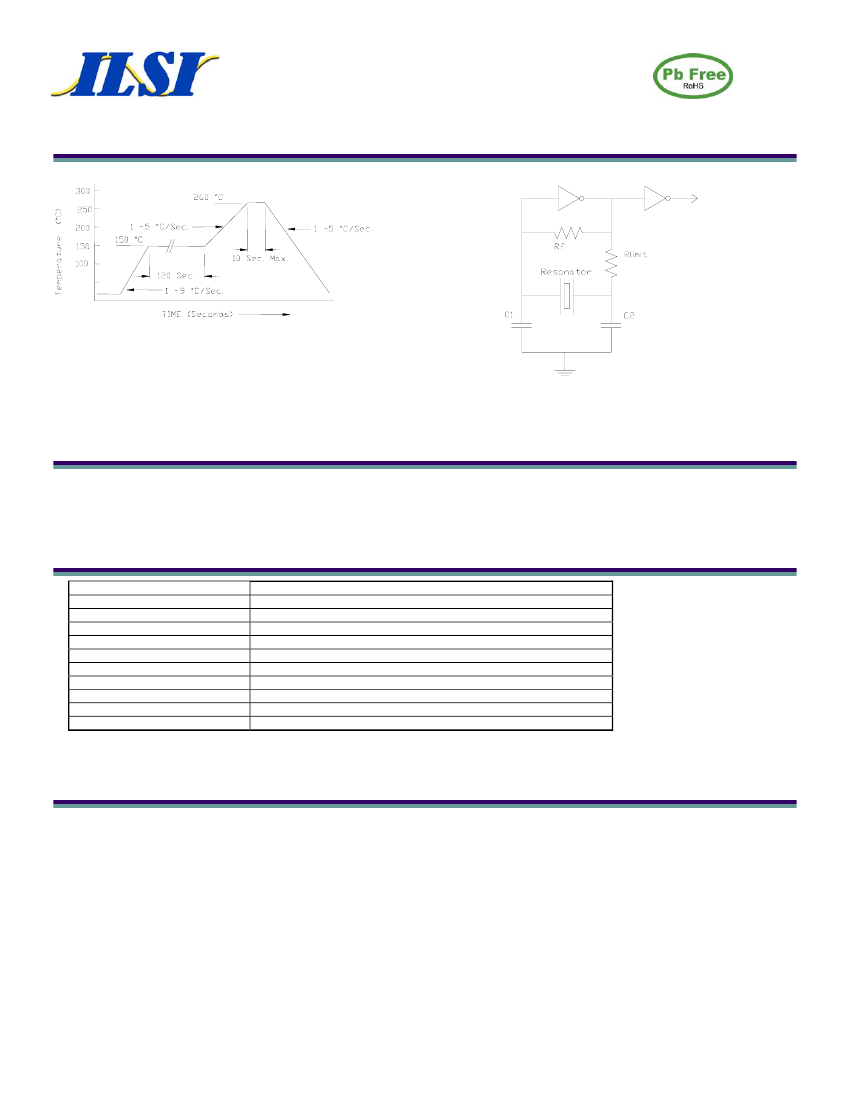

Pb Free Solder Reflow Profile:
Typical Circuit:
ZTB Series
*Units are backward compatible with 240C reflow processes
Package Information:
MSL = 1
Termination = e1 (Sn / Cu / Ag).
Environmental Specifications
Thermal Shock
Moisture Resistance
Mechanical Shock
Mechanical Vibration
Resistance to Soldering Heat
Hazardous Substance
Solderability
Terminal Strength
Gross Leak
Fine Leak
Solvent Resistance
MIL-STD-883, Method 1011, Condition A
MIL-STD-883, Method 1004
MIL-STD-883, Method 2002, Condition B
MIL-STD-883, Method 2007, Condition A
J-STD-020C, Table 5-2 Pb-free devices (except 2 cycles max)
Pb-Free / RoHS / Green Compliant
JESD22-B102-D Method 2 (Preconditioning E)
MIL-STD-883, Method 2004, Test Condition D
MIL-STD-883, Method 1014, Condition C
MIL-STD-883, Method 1014, Condition A2, R1=2x10-8 atm cc/s
MIL-STD-202, Method 215
Marking
Line 1: ILSI
Line 2: Frequency
ILSI
America
Phone: 775-851-8880 • Fax: 775-851-8882• e-mail: e-mail@ilsiamerica.com • www.ilsiamerica.com
06/09_A
Specifications subject to change without notice
Page 2
