111MB252B1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 111MB252B1

111MB252B1: DescriptionRESISTOR, WIRE WOUND, 0.05 W, 0.005; 0.01; 0.05; 0.1; 0.25 %, 10; 15; 30; 90 ppm, 0.05 ohm - 30000 ohm, THROUGH HOLE MOUNT; CategoryPassive components; File Size362KB，3 Pages; ManufacturerCTS [CTS Corporation]

Download Datasheet Parametric View All

111MB252B1 Overview

RESISTOR, WIRE WOUND, 0.05 W, 0.005; 0.01; 0.05; 0.1; 0.25 %, 10; 15; 30; 90 ppm, 0.05 ohm - 30000 ohm, THROUGH HOLE MOUNT

111MB252B1 Parametric

Parameter Name	Attribute value
Processing package description	AXIAL LEADED
state	CONSULT MFR
packaging shape	TUBULAR PACKAGE
Terminal shape	Wire
Installation features	Through hole mounting
Manufacturer Series	100
Resistor type	resistance
Operating Voltage	75 V

Preview

Download Datasheet

View All

Series 110

Commercial

" (19mm)

Diameter, 1

and 2

Watt Wirewound

Variable Resistors

Features

• Inexpensive design

• Open construction

• Four mounting styles

• Incorporated fixed resistor available

• Available with nylon knob

• Interchangeable mounting with

CTS Series 115 preset potentiometer

• RoHS compliant

Electrical and Mechanical Specifications

Resistance Range

1 ohm through 10K ohms (linear taper)

Resistance Tolerance

Standard:±20%

Special:±5% or 10%

Power Rating, Watts

2 watts @ 55°C derated to no load @ 105°C,

mounted on steel panel

1.5 watts @ 55°C derated to no load @ 105°C,

mounted on bakelite panel

Voltage Rating

Determined by resistance value and wattage rating

Resistance Taper

Standard:Linear taper only

Minimum Resistance

At ends of rotation: 1% or 1 ohm, whichever is greater

Resistance Taper

None

Incorporated Fixed Resistor

A fixed resistor can be incorporated in the Series 110

at the end of CW or CCW rotation to a minimum of 10%

of the total resistance. The rotation is shortened by an

amount proportional to the ratio of the fixed resistor to

the total resistance. Available at extra cost.

Angle of Rotation

246°±5°without fixed resistor stop

Resistor Adjustment

Standard Cross Slot: Provided in drive plate for screwdriver

adjustment.

Special Molded Knob: Available at extra cost secured to

drive plate cross slot.

Mounting Types Available

Type 110:

Solder or clinch-ear mounted

Type XPC - 110: Vertically mounted on printed circuit board

Type 111:

Snap-in mounting

Type 112:

Eyelet or rivet mounting

Rotational Torque

to 10 inch ounces (36 – 720 gf-cm)

Terminals

Terminals at end of CW or CCW rotation may be omitted.

Refer to terminals on all types by numbers 1 and 3 as

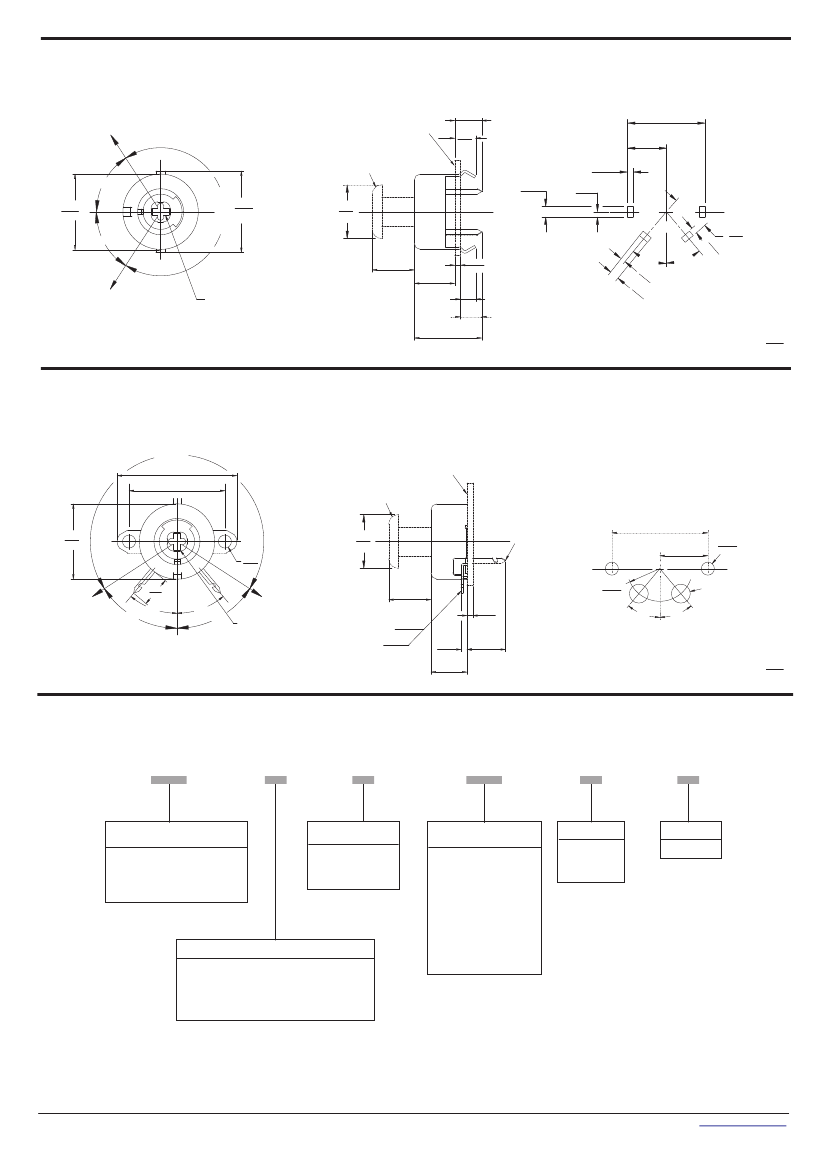

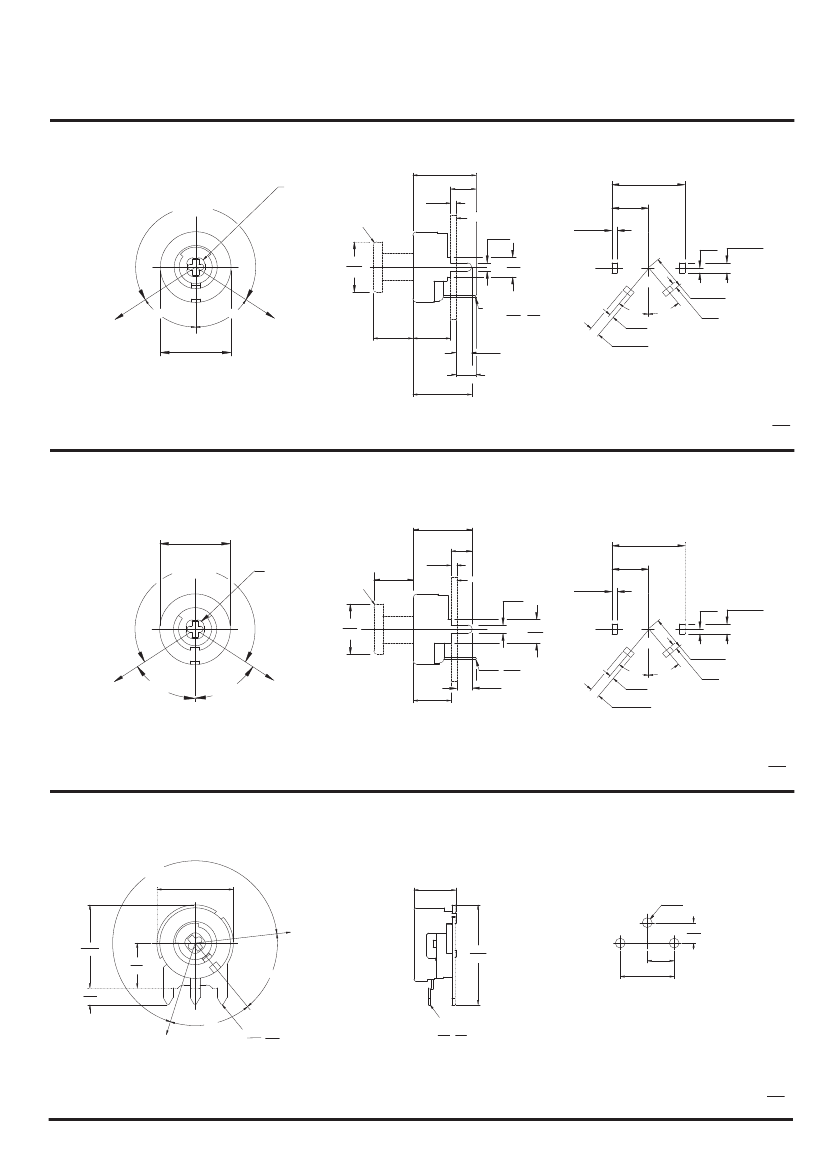

indicated on line drawings.

1-3

CTS Electronic Components

www.ctscorp.com

9/30/06
