705-C133714A96P(2) datasheet, PDF

705-C133714A96P(2): DescriptionBoard Euro Connector, 64 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size335KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

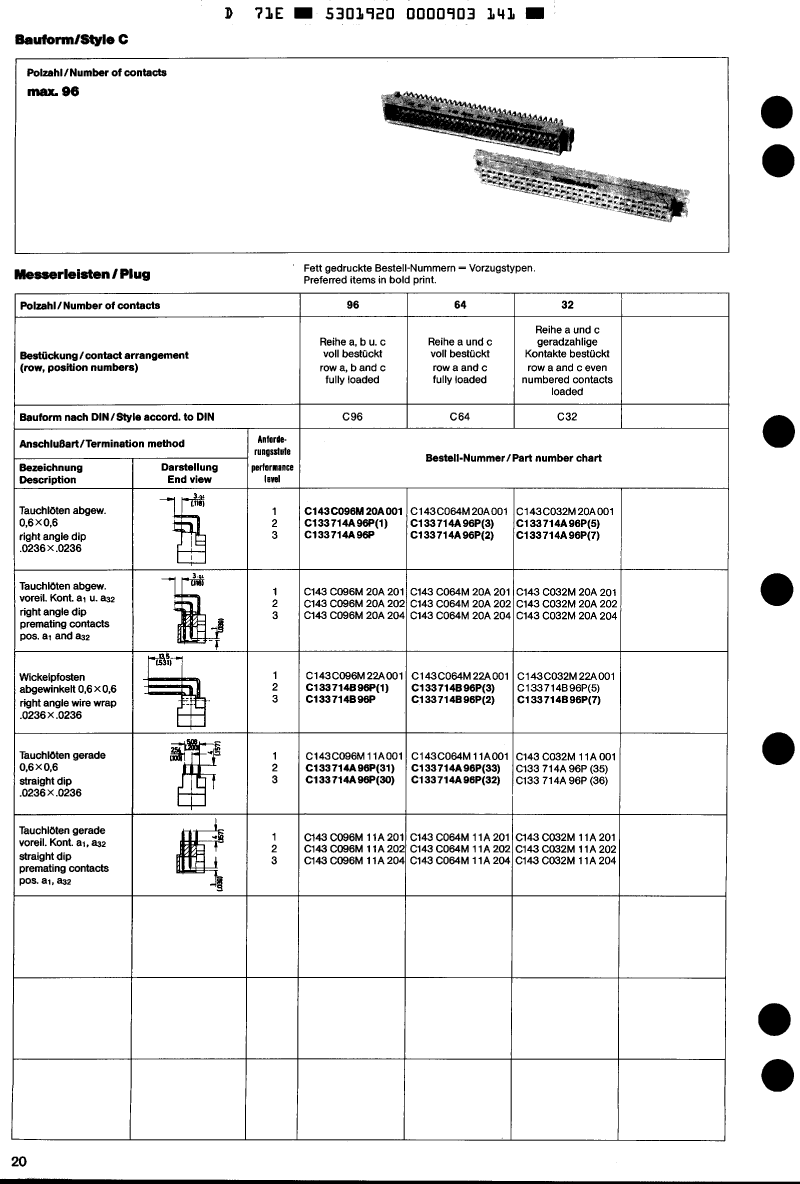

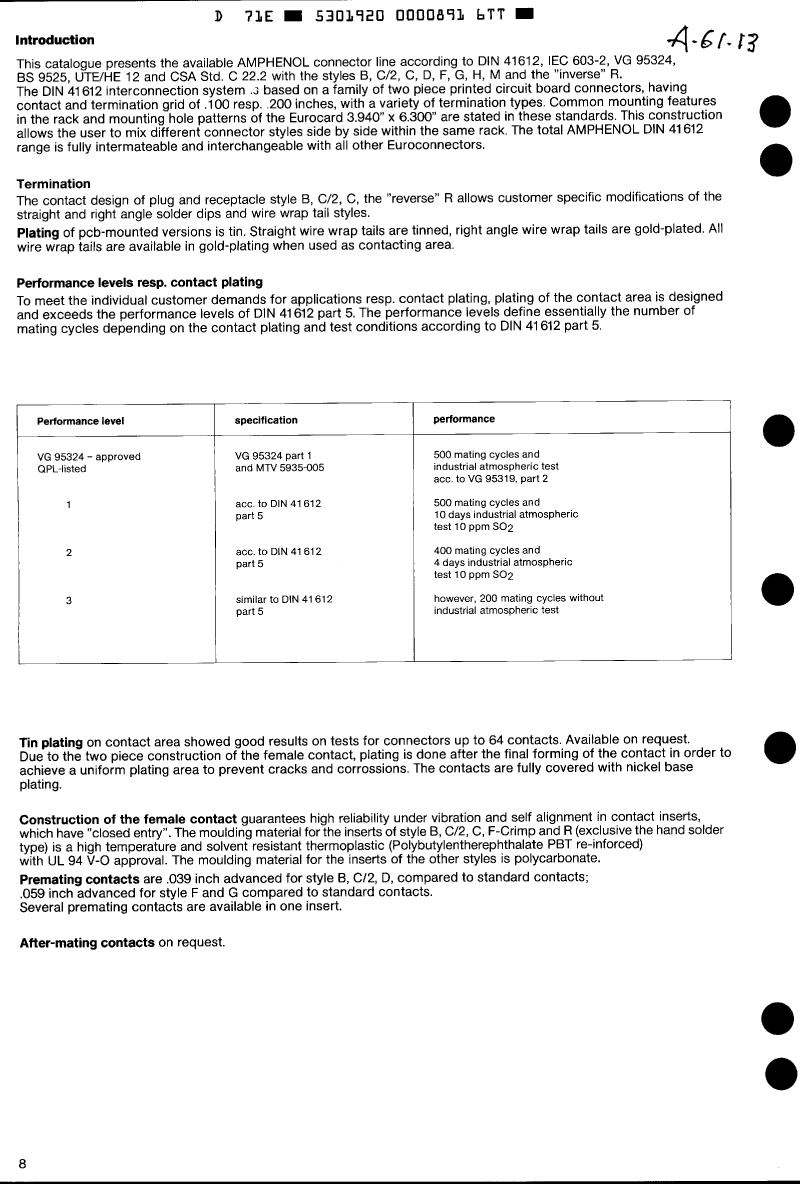

705-C133714A96P(2) Overview

Board Euro Connector, 64 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle

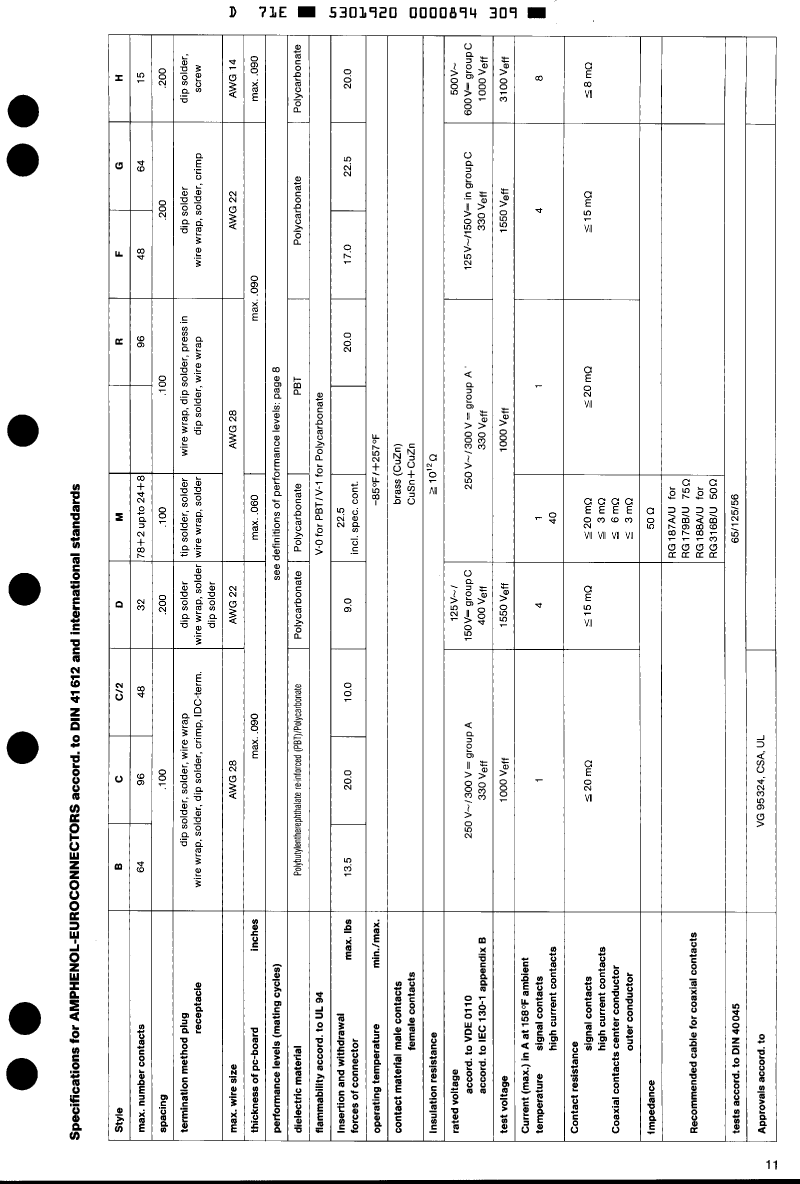

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown

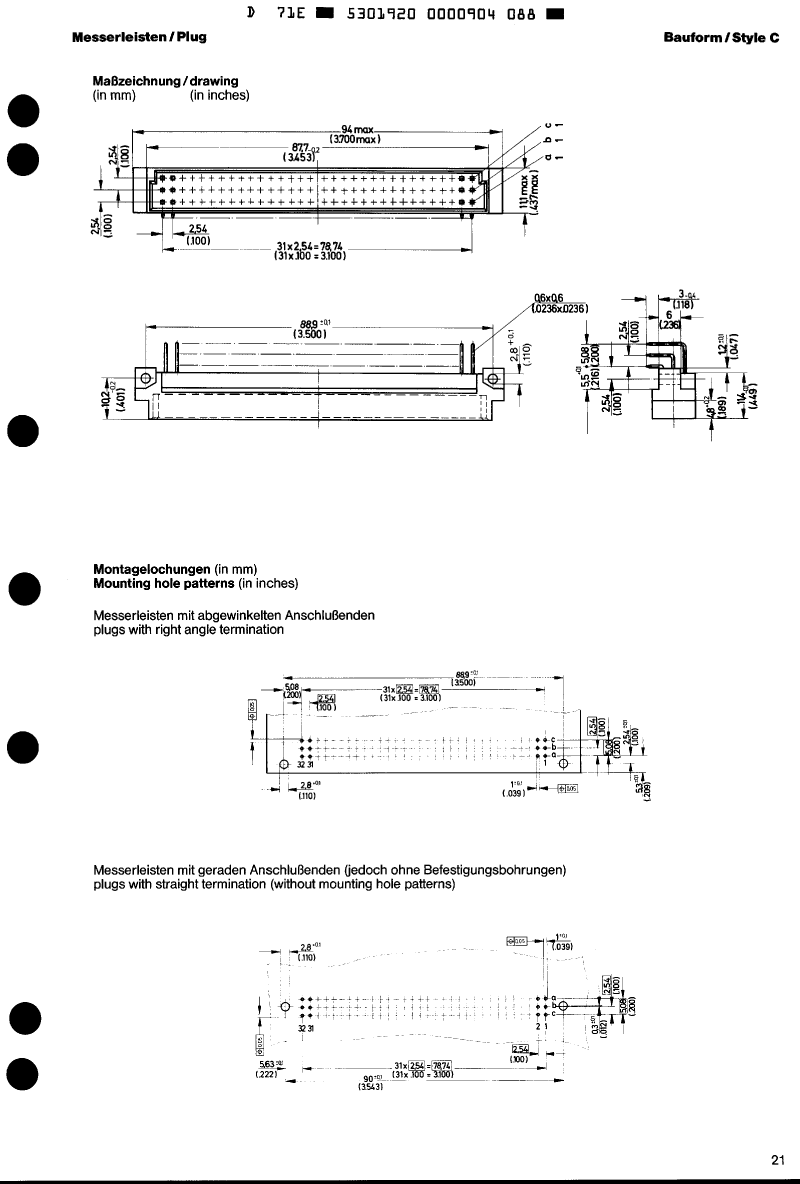

body width	0.437 inch
subject depth	0.696 inch
body length	3.7 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	200 Cycles
maximum insertion force	.9174 N
Insulation resistance	1000000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	C13
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-30 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
Evacuation force-minimum value	.9174 N
Base Number Matches	1
