L-42PCT130TWRG4 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L-42PCT130TWRG4

L-42PCT130TWRG4: DescriptionDual Color LED Array, High Efficiency Red/high Efficiency Green, Diffused White,; CategoryLED optoelectronic/LED photoelectric; File Size147KB，1 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my

Download Datasheet Parametric Compare View All

L-42PCT130TWRG4 Overview

Dual Color LED Array, High Efficiency Red/high Efficiency Green, Diffused White,

L-42PCT130TWRG4 Parametric

Parameter Name	Attribute value
Maker	LEDtronics
Reach Compliance Code	unknown
color	HIGH EFFICIENCY RED/HIGH EFFICIENCY GREEN
Configuration	8 BANKS, COMMON BIPOLAR TERMINAL, 2 ELEMENTS
Maximum forward current	0.03 A
Lens type	DIFFUSED WHITE
Nominal luminous intensity	10.0/20.0 mcd
Installation features	RADIAL MOUNT
Number of functions	8
Number of terminals	16
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	DUAL COLOR LED ARRAY
total height	20.3 mm
method of packing	BULK
peak wavelength	640/565 nm
shape	ROUND
surface mount	NO
Terminal pitch	2.54 mm
perspective	65 deg
Base Number Matches	1

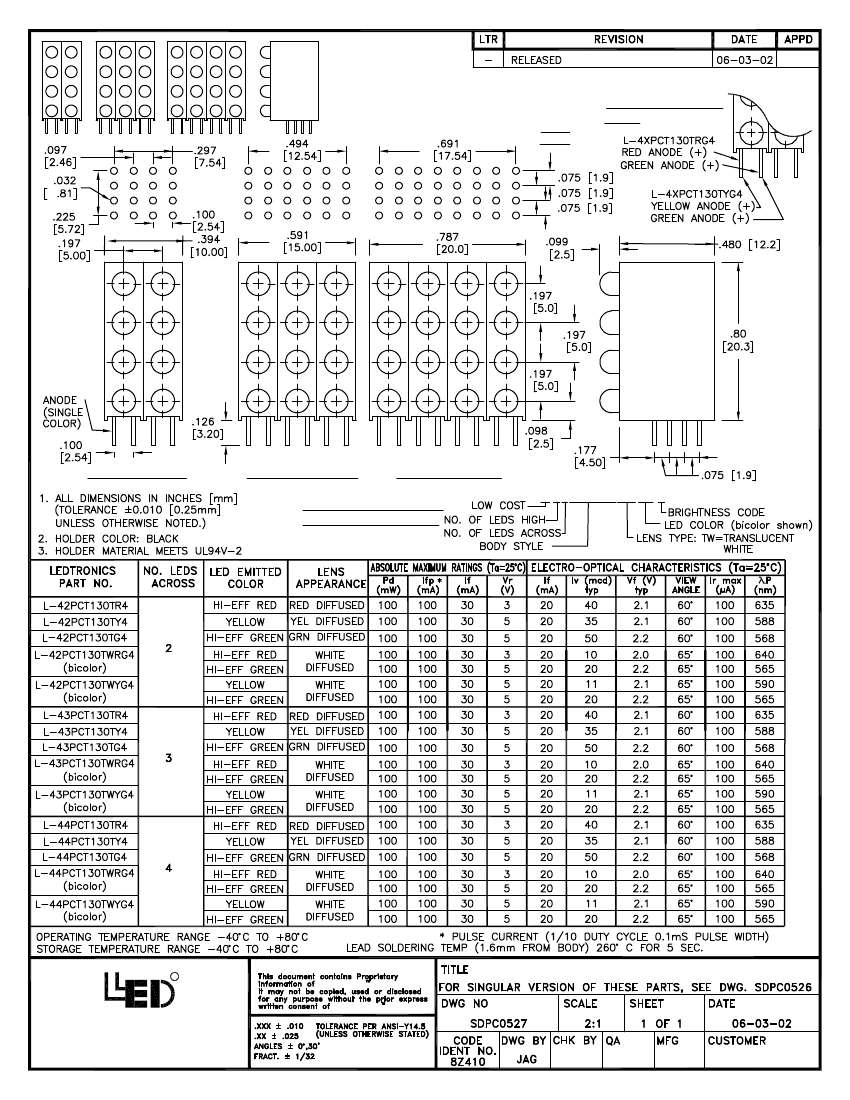

Preview

Download Datasheet

View All

Actual Size

BICOLOR POLARITY

(TYP.)

FOOT

∅

TWO LED ARRAY

THREE LED ARRAY

FOUR LED ARRAY

ALL LEDS ON THE PART

ARE THE SAME COLOR

L-42PCT130TWYG4

-PROPRIETARY-

LEDTRONICS, INC.

L-4XPCT130TXX -- MULTIPLE ARRAYS

LEDTRONICS, INC.

23105 KASHIWA COURT

TORRANCE, CA 90505

L-42PCT130TWRG4 Related Products

	L-42PCT130TWRG4	L-42PCT130TWYG4	L-44PCT130TWYG4	L-43PCT130TY4	L-42PCT130TR4	L-43PCT130TWYG4	L-42PCT130TG4
Description	Dual Color LED Array, High Efficiency Red/high Efficiency Green, Diffused White,	Dual Color LED Array, Yellow/high Efficiency Green, Diffused White,	Dual Color LED Array, Yellow/high Efficiency Green, Diffused White,	Single Color LED Array, Yellow, Diffused,	Single Color LED Array, High Efficiency Red, Diffused Red,	Dual Color LED Array, Yellow/high Efficiency Green, Diffused White,	Single Color LED Array, High Efficiency Green, Diffused Green,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	HIGH EFFICIENCY RED/HIGH EFFICIENCY GREEN	YELLOW/HIGH EFFICIENCY GREEN	YELLOW/HIGH EFFICIENCY GREEN	YELLOW	HIGH EFFICIENCY RED	YELLOW/HIGH EFFICIENCY GREEN	HIGH EFFICIENCY GREEN
Configuration	8 BANKS, COMMON BIPOLAR TERMINAL, 2 ELEMENTS	8 BANKS, COMMON BIPOLAR TERMINAL, 2 ELEMENTS	16 BANKS, COMMON BIPOLAR TERMINAL, 2 ELEMENTS	SEPARATE, 12 ELEMENTS	SEPARATE, 8 ELEMENTS	12 BANKS, COMMON BIPOLAR TERMINAL, 2 ELEMENTS	SEPARATE, 8 ELEMENTS
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Lens type	DIFFUSED WHITE	DIFFUSED WHITE	DIFFUSED WHITE	DIFFUSED	DIFFUSED RED	DIFFUSED WHITE	DIFFUSED GREEN
Nominal luminous intensity	10.0/20.0 mcd	11.0/20.0 mcd	11.0/20.0 mcd	35.0 mcd	40.0 mcd	11.0/20.0 mcd	50.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	8	8	16	12	8	12	8
Number of terminals	16	16	32	24	16	24	16
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	DUAL COLOR LED ARRAY	DUAL COLOR LED ARRAY	DUAL COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	DUAL COLOR LED ARRAY	SINGLE COLOR LED ARRAY
total height	20.3 mm	20.3 mm	20.3 mm	20.3 mm	20.3 mm	20.3 mm	20.3 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	640/565 nm	590/565 nm	590/565 nm	588 nm	635 nm	590/565 nm	568 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	65 deg	65 deg	65 deg	60 deg	60 deg	65 deg	60 deg
Maker	LEDtronics	-	-	LEDtronics	LEDtronics	LEDtronics	LEDtronics
Base Number Matches	1	1	1	1	1	1	-
