FYL-5483LUAC1A
A
PRODUCT SPECIFICATION
No.：FYL-548
Model No.
：
FYL-5483LUAC1A
Descriptions:
■Dice
material: AlGaInP.
■Emitting
Color: Super bright Amber.
■Device
Outline: Φ5*4 mm ellipse type.
■Lens
Type: Water clear.
CUSTOMER APPROVED
SIGNATURES
APPROVED BY
CHECKED BY
PREPARED BY
NINGBO FORYARD OPTOELECTRONICS CO.,LTD.
Add:NO.115
Qixin Road Ningbo Zhejiang China
Tel:
0086-574-87933652 87927870 87922206
Fax:
0086-574-87927917
E-mail:
Sales@foryard.com
（General）
Http://www.foryard.com
Http://www.foryard.com
Zip:315051
Model. No.
Rev.
FYL-5483LUAC1A
A
Features
1.
2.
3.
4.
5.
Low power consumption.
High efficiency.
General purpose leads.
High intensity.
RoHs compliant.

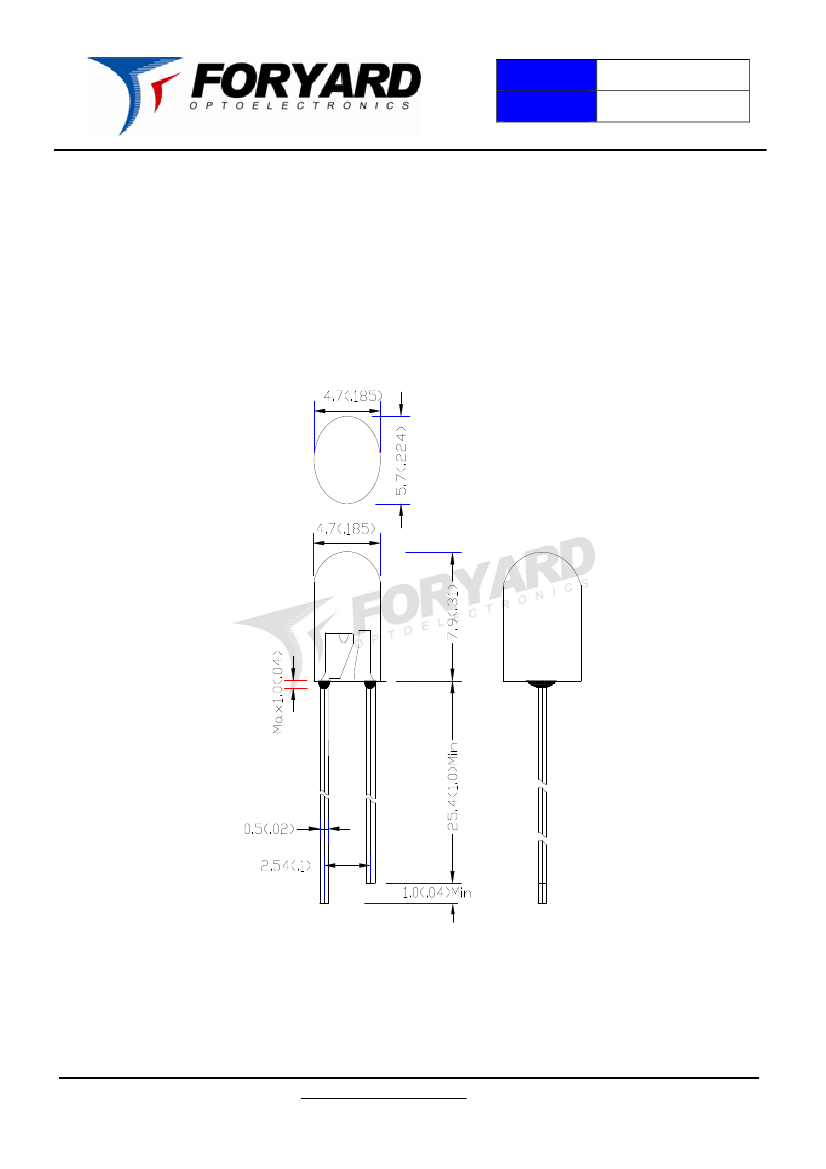

Package configuration
Notes:
1. All dimensions are millimeters (inches)
2. Tolerance is ±0.25mm(.010”) unless otherwise noted.
3. The specifications, characteristics and technical data described in the datasheet are subject to
change without prior notice.
Http://www.foryard.com
CATHODE
Model. No.
Rev.
FYL-5483LUAC1A
A
Absolute maximum ratings(Ta=25
゜
с)
Parameter
Power Dissipation
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)
Continuous Forward Current
Derating Linear From 50℃
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature[4mm(.157”) From Body]
MAX.
75
100
30
0.4
5
Unit
mW
mA
mA
mA/
℃
V
-40℃ to +85℃
-40℃ to +100℃
260
℃
for 5 Seconds
Electrical and optical characteristics(Ta=25
゜
с)
Parameter
Luminous Intensity
Viewing Angle
Peak Emission Wavelength
Dominant Wavelength
Spectral Line Half-Width
Forward Voltage
Reverse Current
Symbol
I
V
X
2θ
1/2
Y
λp
λd
△λ
Min.
--
--
Typ.
2000
45
70
Max.
--
--
Unit
mcd
Deg
Test Condition
--
600
--
1.7
610
605
20
2.0
--
610
--
2.5
10
nm
nm
nm
V
µA
I
F
=20mA
V
F
I
R
V
R
=5V
Http://www.foryard.com
Model. No.
Rev.
FYL-5483LUAC1A
A

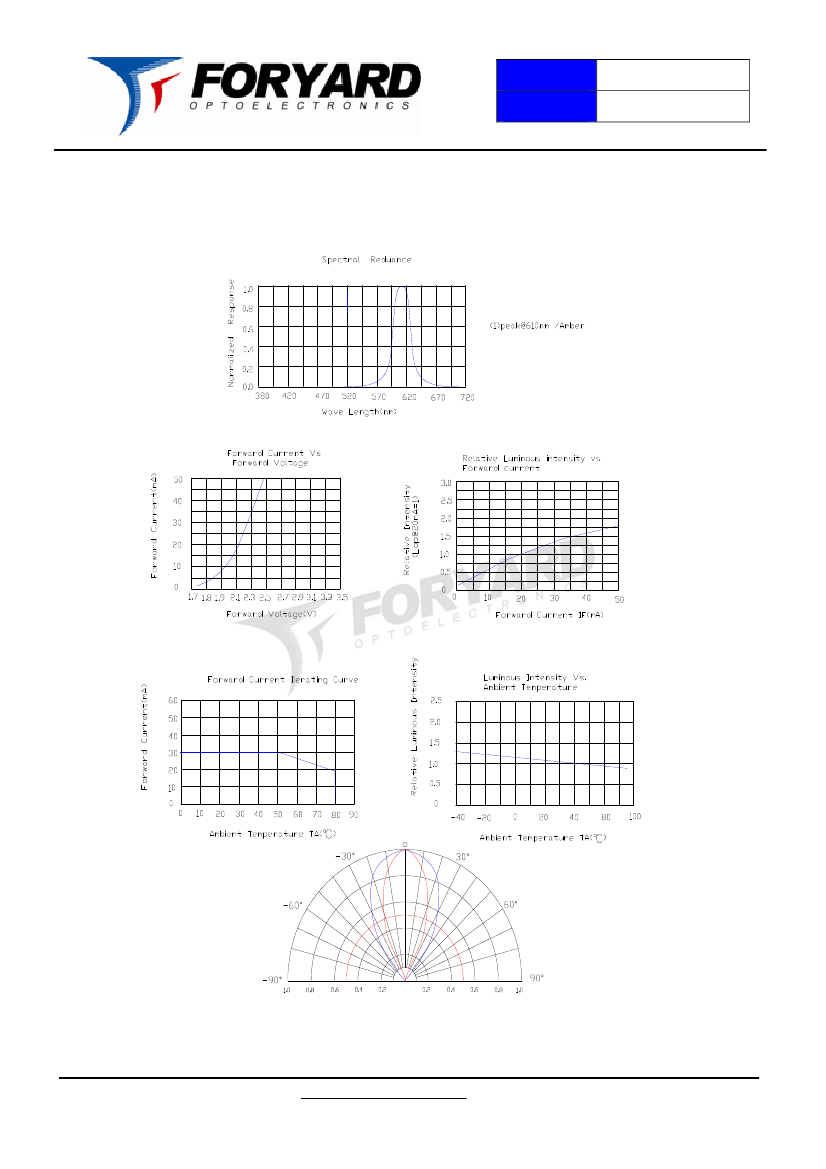

Typical Electrical Characteristics Curves
(25゜
(25
゜
с Ambient Temperature Unless Otherwise Noted)
( 1 )
G a P
o r
A l G a I n P
Radiation
Radiation pattern.
Relative Lumionous Intensity(LOP @max=1)
Http://www.foryard.com
Model. No.
Rev.
FYL-5483LUAC1A
A

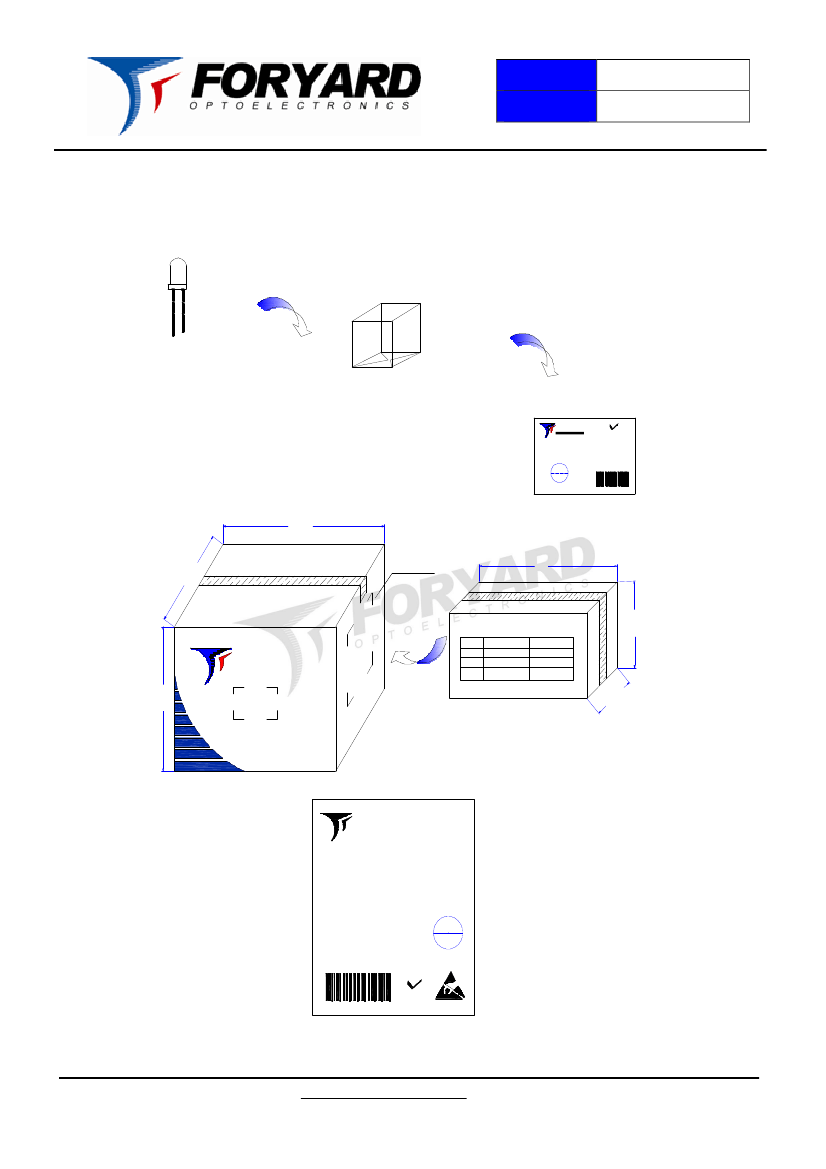

LAMP PACKING.
FORYARD
RoHS
Part NO: FYL-XXXXXX
Quantity: XXXPCS
VF: XXX-XXX
WD:XXX-XXX
IV:XXXX-XXXX
QC:
PASS
QC
xxxx/xx/xx
xxxxxxxxxx
39.0
OUTSIDE LABEL
32
.0
30
18.5
FORYARD
OPTOELECTRONICS
38.0
.5
11
www.foryard.com
FORYARD
OPTOELECTRONICS
LED
PN:FYL-xxxxxxxx-xx
Qty:XXXXX PCS
Date:xxxx/xx/xx
GW: xx
NW: xx
KG
KG
PASS
QC:
QC
RoHS
xxxxxxxxxx
OUTSIDE LABEL
ATTENTION
Http://www.foryard.com
