MOSPEC
Switchmode
Full Plastic Dual Fast Recovery Power Rectifiers
Designed for use in switching power supplies. inverters and as free
wheeling diodes. These state-of-the-art devices have the following features:
＊Glass
Passivated chip junctions
＊Low
Reverse Leakage Current
＊Fast
Switching for High Efficiency
＊150℃
Operating Junction Temperature
＊Low
Forward Voltage , High Current Capability
＊Plastic
Material used Carries Underwriters Laboratory
FRF1205 Thru FRF1220
FAST RECOVERY
RECTIFIERS
12 AMPERES
50-200 VOLTS
Flammability Classification 94V-O
Plating pb free is indicated by box
MAXIMUM RATINGS
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectifier Forward Current
Per Leg
T
C
=125℃
Per Total Device
Peak Repetitive Forward Current
(Rate V
R
, Square Wave, 20kHz,T
C
=125℃)
ITO-220AB
Symbol
05
V
RRM
V
RWM
V
R
V
R(RMS)
50
10
100
FRF12
15
150
20
200
V
Unit
35
70
105
140
V
I
F(AV)
6.0
12
12
A
DIM
MILLIMETERS
MIN
MAX
15.05
15.15
13.35
13.45
10.00
10.10
6.55
6.65
2.65
2.75
1.55
1.65
1.15
1.25
0.55
0.65
2.50
2.60
3.00
3.20
1.10
1.20
0.55
0.65
4.40
4.60
1.15
1.25
2.65
2.75
3.35
3.45
3.15
3.25
I
FM
A
Non-Repetitive Peak Surge Current
(Surge applied at rate load conditions
halfware, single phase, 60Hz)
Operating and Storage Junction
Temperature Range
I
FSM
100
A
T
J
, T
stg
-65 to +125
℃
ELECTRIAL CHARACTERISTICS
Characteristic
Maximum Instantaneous Forward Voltage
( I
F
=6.0 Amp T
C
= 25℃)
Maximum Instantaneous Reverse Current
( Rated DC Voltage, T
C
= 25℃)
( Rated DC Voltage, T
C
= 125℃)
Reverse Recovery Time
( I
F
= 0.5 A, I
R
=1.0 , I
rr
=0.25 A )
Typical Junction Capacitance
(Reverse Voltage of 4 volts & f=1 MHz)
Symbol
05
V
F
10
1.3
FRF12
15
20
V
Unit
A
B
C
D
E
F
G
H
I
J
K
L
M
N
P
O
Q
I
R
5.0
100
150
55
uA
T
rr
C
P
ns
P
F
FRF1205 Thru FRF1220

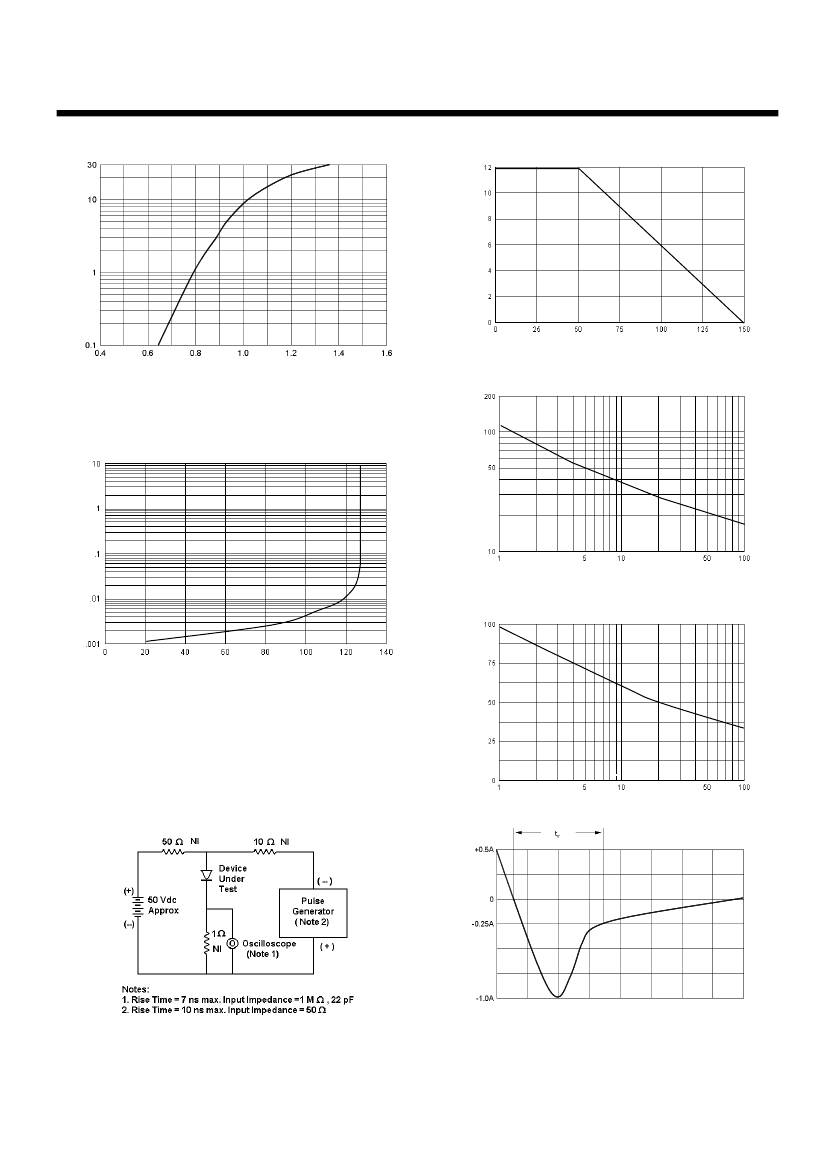

FIG-1 TYPICAL FORWARD CHARACTERISITICS
AVERAGE FORWARD RECTIFIED CURRENT (Amp.)
AVERAGE FORWARD RECTIFIED CURRENT (Amp.)
FIG-3 FORWARD CURRENT DERATING CURVE
LEAD TEMPERATURE (℃)
FIG-4TYPICAL JUNCTION CAPACITANCE
FORWARD VOLTAGE (Volts)
FIG-2 TYPICAL REVERSE CHARACTERISTICS
INSTANTANEOUS REVERSE CURRENT (Amp.)
JUNCTION CAPACITANCE (
P
F)
REVERSE VOLTAGE (Volts.)
FIG-5PEAK FORWARD SURGE CURRENT
PEAK FORWARD SURGE CURRENT (Amp.)
PERCENT OF PEAK REVERSE VOLTAGE (﹪)
NUMBER OF CYCLES AT 60 Hz
Set time base for 20/50 ns/cm
FIG-6 Reverse Recovery Time Characteristic and Test Circuit Diagram
