HMTSW-108-23-T-S-135-RA datasheet, PDF

Datasheet> All Categories > The connector> The connector> HMTSW-108-23-T-S-135-RA

HMTSW-108-23-T-S-135-RA: DescriptionBoard Stacking Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size257KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HMTSW-108-23-T-S-135-RA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HMTSW-108-23-T-S-135-RA	-	-	View	Buy Now

HMTSW-108-23-T-S-135-RA Overview

Board Stacking Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,

HMTSW-108-23-T-S-135-RA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

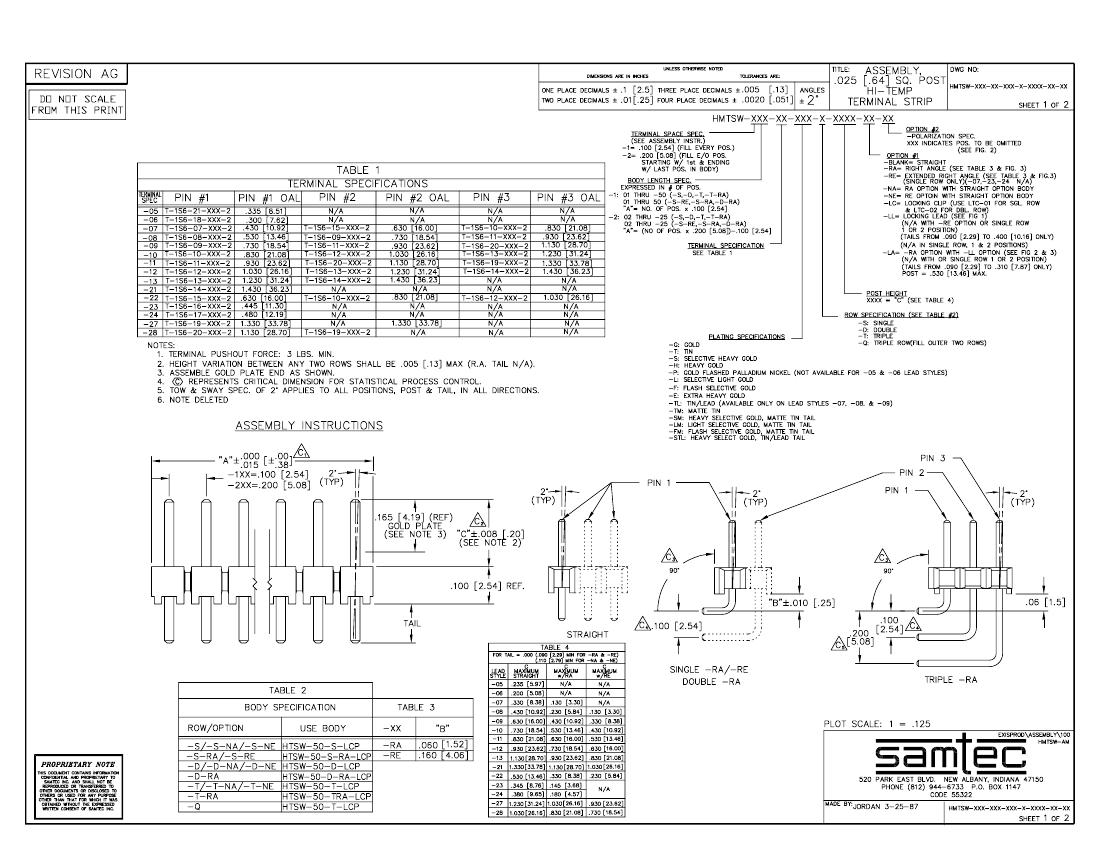

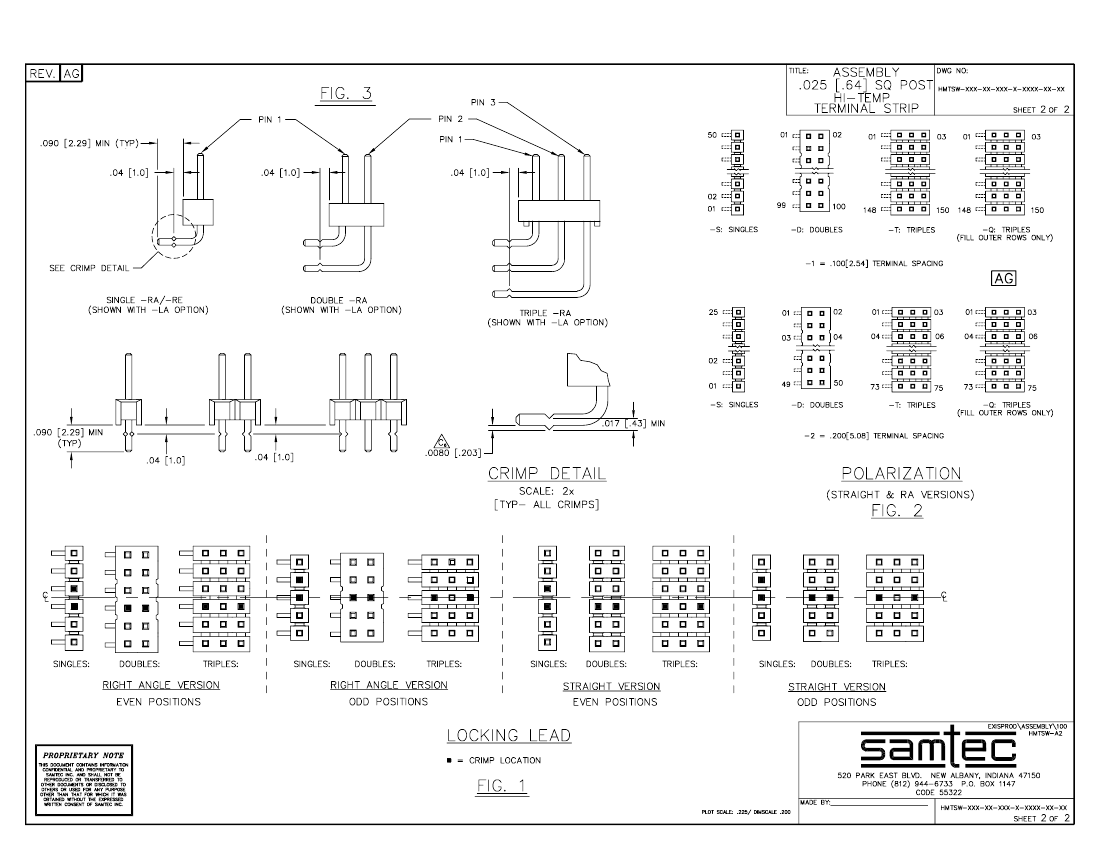

Preview

Download Datasheet

View All

HMTSW-108-23-T-S-135-RA Related Products

	HMTSW-108-23-T-S-135-RA	HMTSW-102-23-G-S-240	HMTSW-102-24-T-S-230	HMTSW-107-08-T-S-140-RA
Description	Board Stacking Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Stacking Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Stacking Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Stacking Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	SAMTEC	SAMTEC	SAMTEC	SAMTEC
Reach Compliance Code	compliant	compliant	compliant	compliant
Factory Lead Time	2 weeks	2 weeks	2 weeks	2 weeks
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	MATTE TIN OVER NICKEL (50)	MATTE TIN OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e3	e4	e3	e3
MIL compliance	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	STRAIGHT	STRAIGHT	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	2	2	7
Base Number Matches	1	1	1	1
