53621-S34-2R datasheet, PDF - EEWORLD Datasheet

53621-S34-2R: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,34 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,LATCH & EJECT,BLUE; CategoryThe connector The connector; File Size113KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

53621-S34-2R Overview

HEADER CONNECTOR,PCB MNT,RECEPT,34 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,LATCH & EJECT,BLUE

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	TUBE PACKAGING
body width	0.339 inch
subject depth	0.683 inch
body length	2.46 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	100 Cycles
maximum insertion force	2.224 N
Insulation resistance	10000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	53621
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	34
Evacuation force-minimum value	.2502 N
Base Number Matches	1

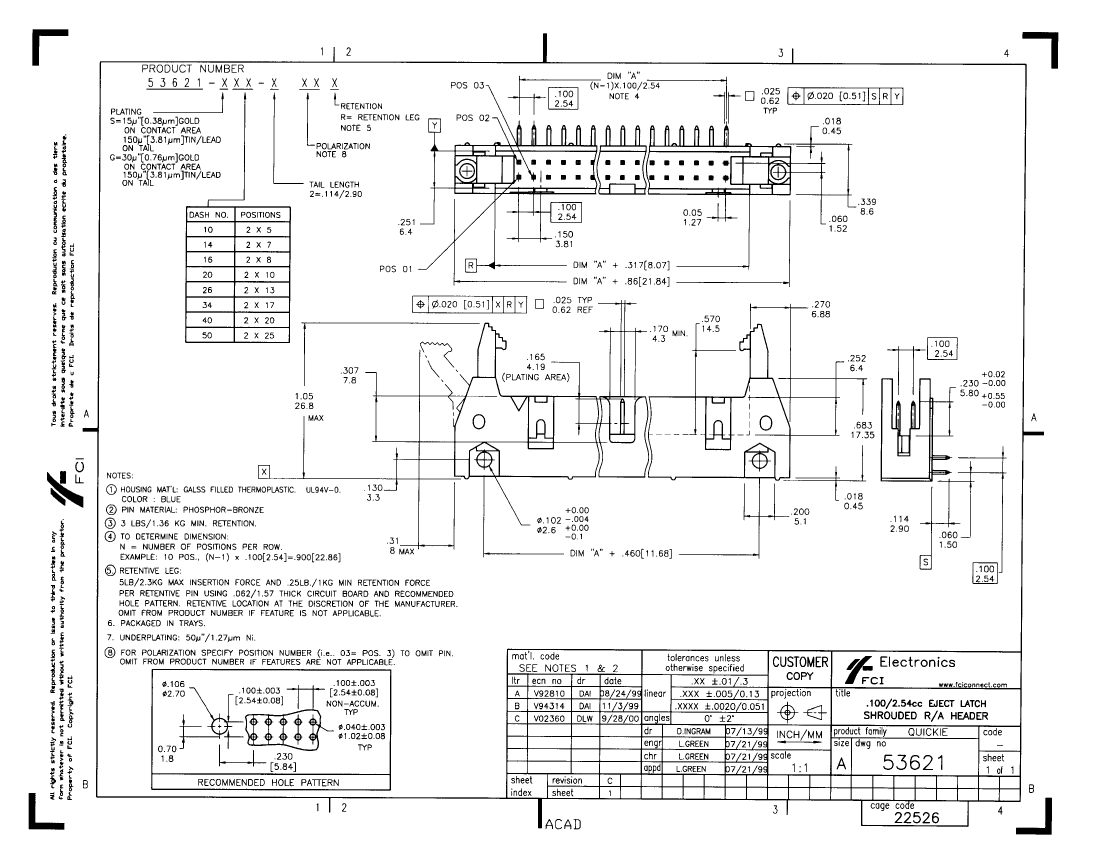

PDM: Rev:C

STATUS:

Released

Printed: Aug 02, 2002
