Industrial 15/16 inch (24mm) Diameter, 5-Watt, Wirewound Variable Resistors

Preview

Download Datasheet

View All

Series 026

Industrial 15/16"

(24mm) Diameter,

5-Watt, Wirewound

Variable Resistors

Features

•

Dust-proof construction

•

Water splash proof construction available

•

5-watt power rating

•

Superior resistance stability in temperature

and environment change

•

Tandem constructions available

•

Bushing or twist tab mounting

power switches

•

Excellent linearity performance

• RoHS compliant

•

Available with pull-push and rotary

Electrical and Mechanical Specifications

Resistance Range

Linear : 1 ohm through 25K ohms

Audio : 20 ohms through 10K ohms

Resistance Tolerance

Standard : ± 10%

Special : Tighter tolerance available in most

resistance values

Power Rating

5 watts @25°C, 4 watts @ 55°C, derated to

no load at 105°C, linear taper

(Derating required on two section countols.)

Voltage Rating

Bushing to Terminals:

High pot test, one minute -- 1,000 VAC

Operating maximum -- 500 VDC

Across End Terminals:

350 VDC maximum, load not to exceed

wattage rating.

Resistance Tapers

Standard: Linear or 20% audio

Special: Consult CTS

Linearity

Standard: 3% linearity

Special: Consult CTS

Power Switches

Rotary Pole-SPST, DPST & SPDT

Pull-Push Pole-SPST (Pull-ON, Push-OFF)

Rotational Angle

Mechanical Rotation:

Without switch: 300°±5°

With switch:

300°±5°

Effective Rotation:

Without switch: 280°±5°

With switch:

265°±5°

Rotational Torque:

Standard: 3/4 to 6 in. oz (54 - 432 gf-cm)

Special: higher torque models available, consult CTS

Operating Temperature

-30°C to +85°C

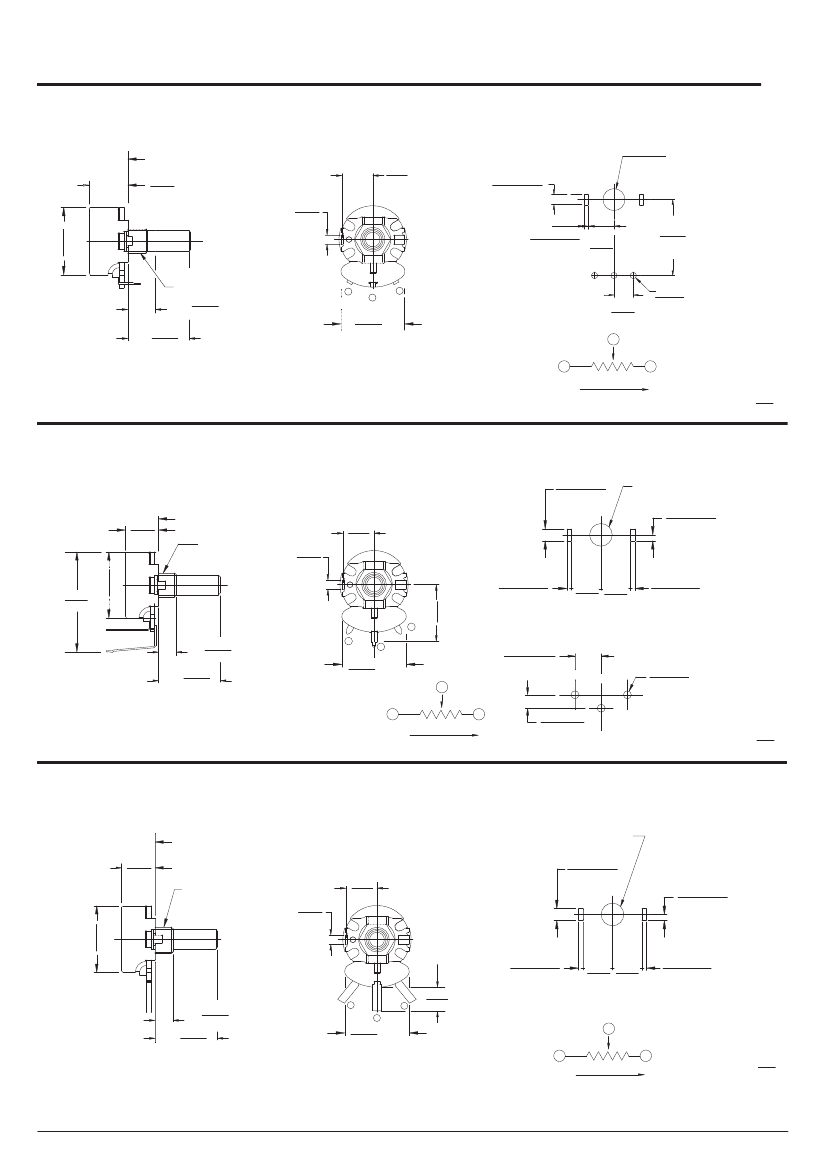

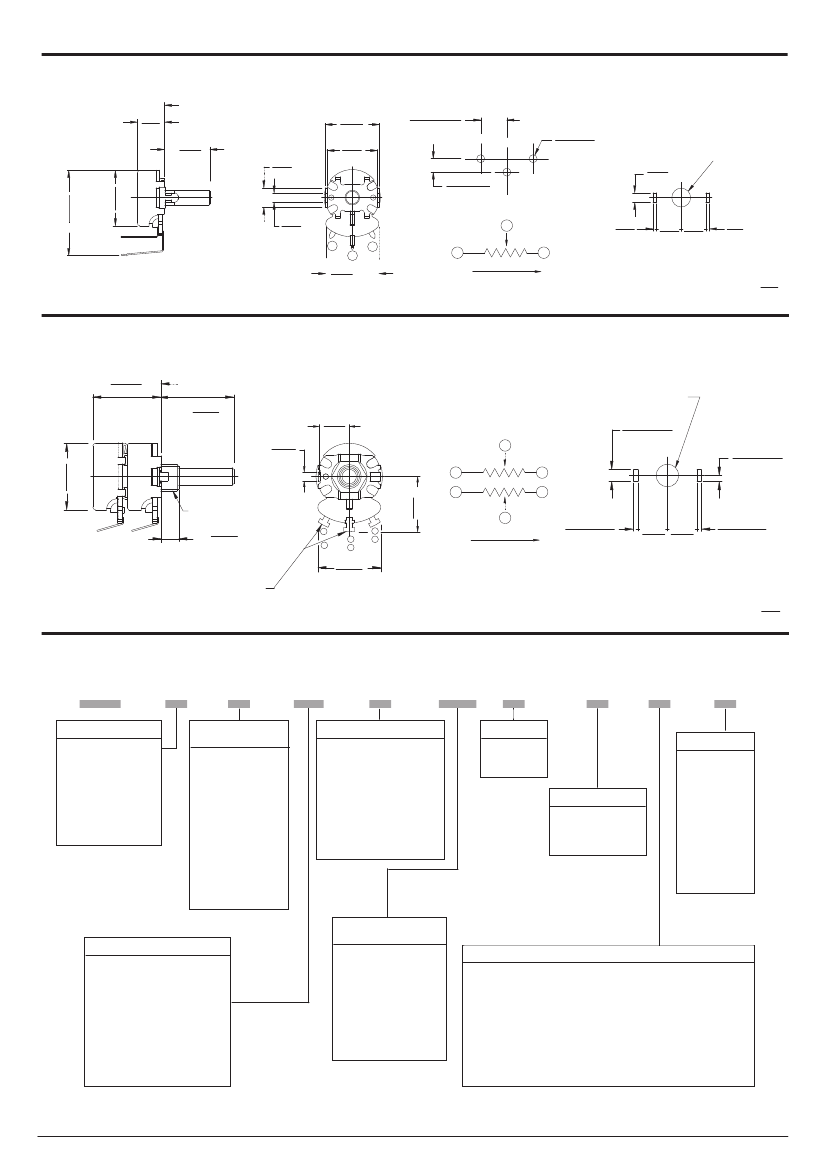

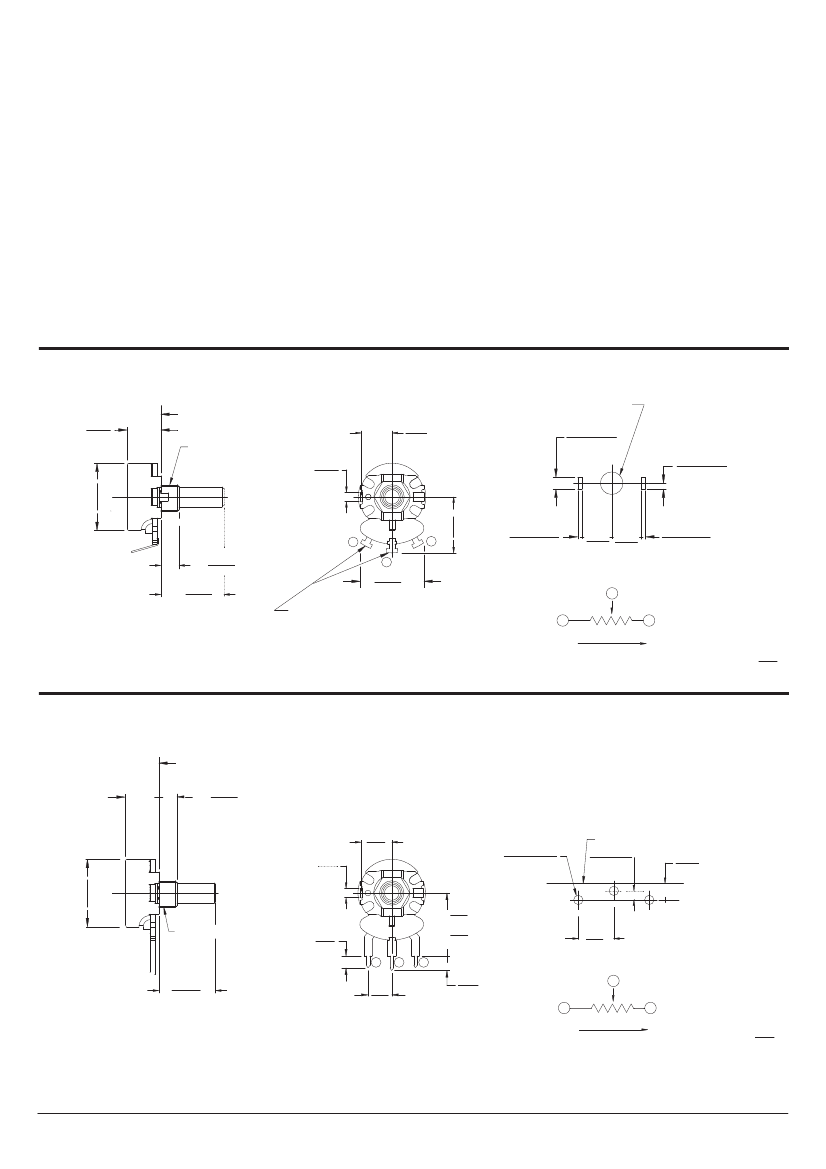

(continued on next page)

1-4

CTS Electronic Components

www.ctscorp.com

10/15/06
