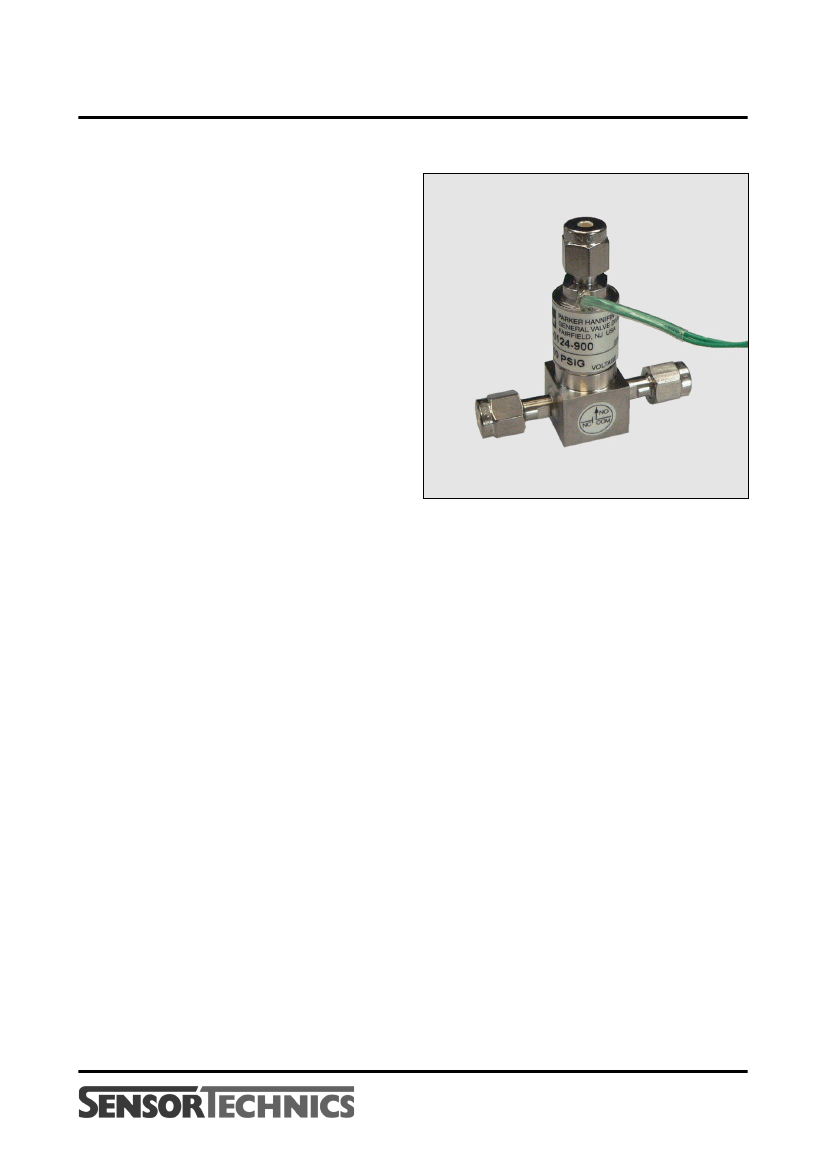

Series 9
High-performance media resistant soleniod valves
FEATURES
· 2-way and 3-way configurations
· Performs at high speed
(opening response time
≤
5 ms)
· Leak-tight to 1 x 10
-7
cm
3
/s/atm Helium
· Configurable up to 1250 psi
· Offers repeatability and consistency
· Constructed of non-corrosive
stainless steel
· Available with a variety of ports, seals
and voltages
MEDIA COMPATIBILITY
Liquids and gases
PHYSICAL PROPERTIES
Operating environment
Weight (e.g. 3-way, 1/8" NPT body)
4 to 105 °C
88 g
WETTED MATERIALS
Materials contacting media:
PTFE, stainless steel, body, seals
Body:
316L stainless steel
Seals:
FKM & Vespel, FKM
Porting
1/4"-28 threaded ports;
1/8" NPT (female);
A-Lok compression fittings
various
Internal volume
ELECTRICAL
Power
Voltage
12 W
12, 24 V
DC
Current/Resistance (Ω ±5% @ 21 °C)
12 V
DC
1000 mA/12
Ω
24 V
DC
500 mA/48
Ω
January 2007 / 268
1/5
www.sensortechnics.com
Series 9
High-performance media resistant soleniod valves
PERFORMANCE CHARACTERISTICS
Part no.
Pressure
Vacuum...86 bar (1250 psi)
Orifice siz es
0.030" (0.76 mm)
0.060" (1.52 mm)
Leak rate
*
See Ordering
Information
Vacuum...17 bar (250 psi)
Vacuum...7 bar (100 psi)
0.116" (2.99 mm)
1 x 10
-7
cm
3
/s/atm
Helium
* Not rated for continuous duty at maximum temperature.

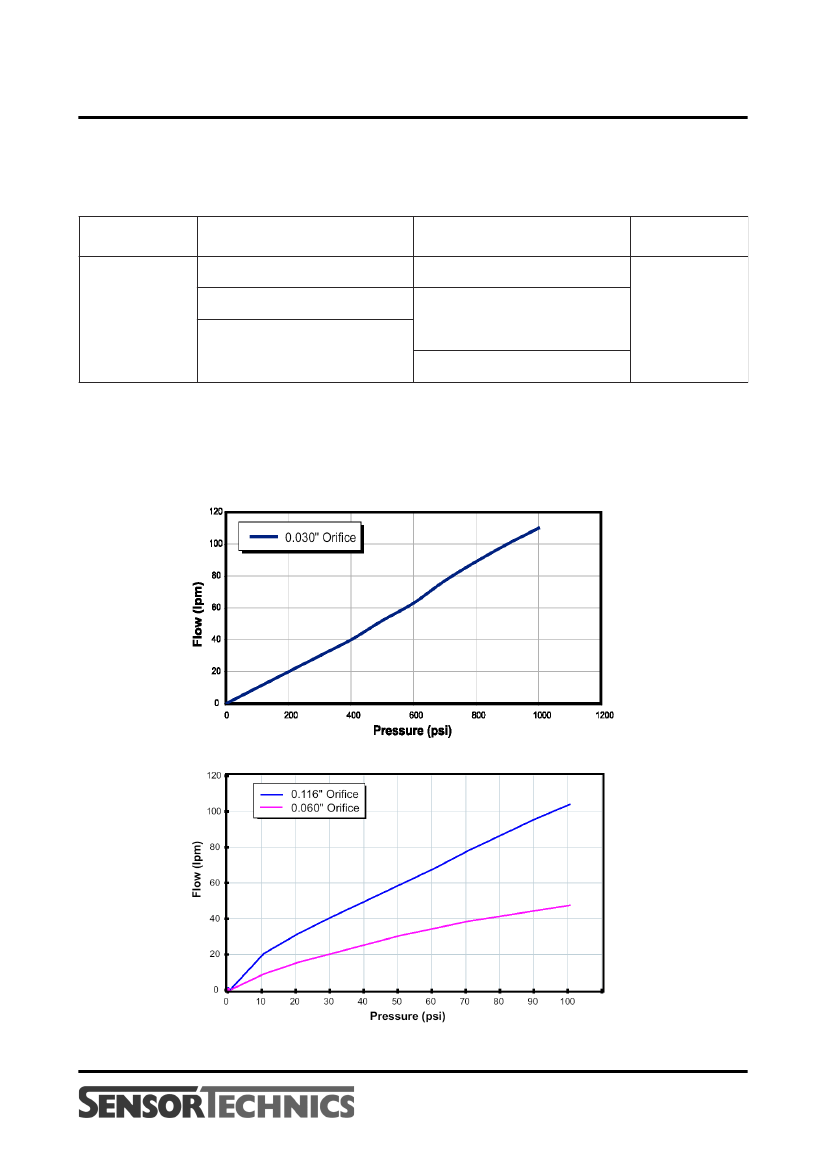

FLOW CURVES (typical air flow)
January 2007 / 268
2/5
www.sensortechnics.com
Series 9
High-performance media resistant soleniod valves

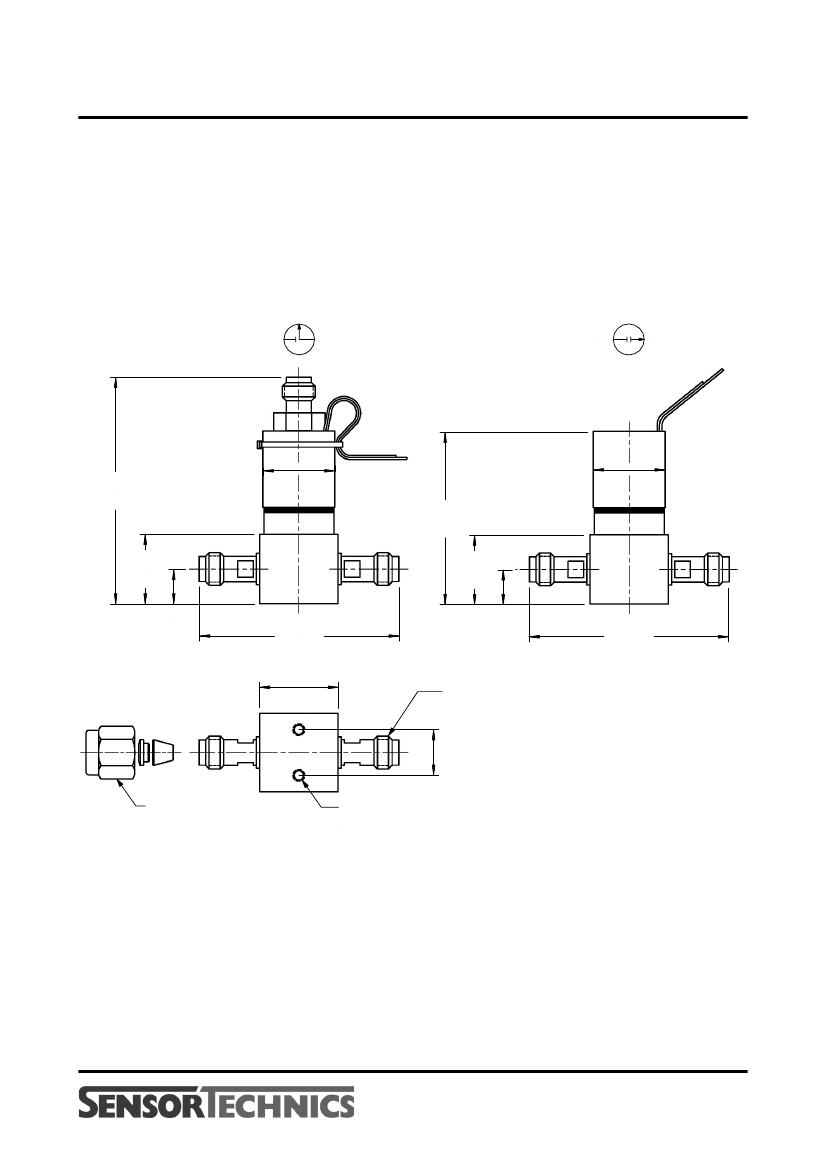

OUTLINE DRAWING
Part No. 009-0269-900 (3-way),
009-0270-900 (2-way NC)
N.O.
N.C.
COM
N.C.
COM
2.16
(54.8)
Ø 0.69
(17.4)
1.64
(41.7)
0.66
(16.8)
0.33
(8.4)
Ø 0.69
(17.4)
0.66
(16.8)
0.33
(8.4)
1.91
(48.5)
0.75
(19.1) SQR
1.91
(48.5)
1/8" A-Lok fittings
0.44
(11.1)
Nuts and ferrules
supplied
#4-40 UNC-2B x 0.20" (5.1 mm) min DP (three-way)
#4-40 UNC x 0.25" (6.4 mm) min DP (two-way)
dimensions in inches (mm)
January 2007 / 268
3/5
www.sensortechnics.com
Series 9
High-performance media resistant soleniod valves

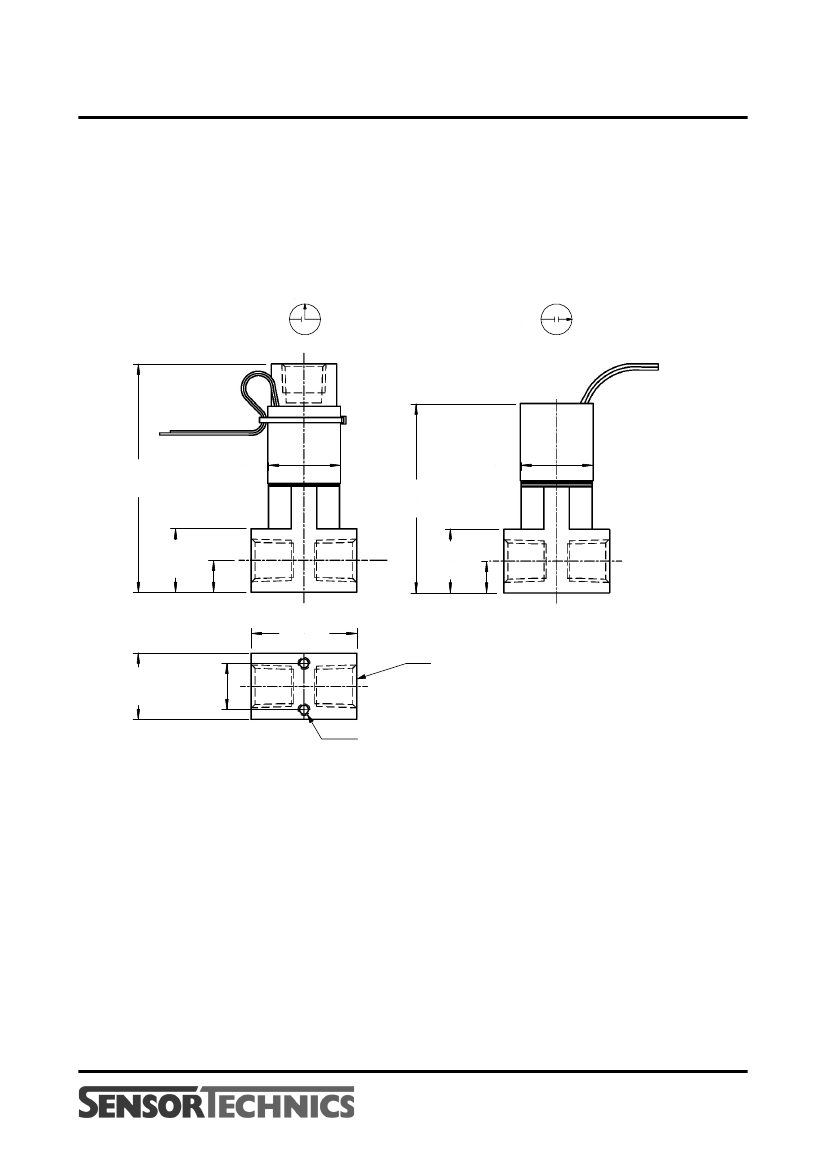

OUTLINE DRAWING (cont.)
Part No. 009-0933-900 (3-way),
009-0089-900 (2-way NC)
N.O.
N.C.
COM
N.C.
COM
2.16
(54.8)
Ø 0.69
(17.4)
1.79
(45.5)
0.60
(15.2)
0.30
(7.6)
0.60
(15.2)
Ø 0.69
(17.4)
1.00
(25.4)
0.30
(7.6)
1/8"-27 FNPT ports
0.63
(15.9)
0.44
(11.1)
#4-40 UNC-2B x 0.21" (5.3 mm) min DP (three-way)
#4-40 UNC x 0.25" (6.4 mm) min DP (two-way)
dimensions in inches (mm)
January 2007 / 268
4/5
www.sensortechnics.com
Series 9
High-performance media resistant soleniod valves
ORDERING INFORMATION
Operating
Pressure
Vac...86 bar
(1250 psi)
2-way NC
Vac...17 bar
(250 psi)
1.52 mm
(0.060")
3-way
2-way NC
3-way
Vac...7 bar
(100 psi)
2.99 mm
(0.116")
12 V
D C
24 V
D C
12 V
D C
1/8" FNPT
24 V
D C
Part No.
009-0100-900
009-0172-900
009-0272-900
009-0270-900
009-0631-900
009-0269-900
091-0094-900
009-0933-900
009-0089-900
009-0143-900
009-0207-900
Type
Orifice
Voltage
12 V
D C
Porting
1/16" A-Lok
1/4"-28
1/8" A-Lok
1/8" FNPT
1/8" A-Lok
Seals
0.76 mm
(0.030")
Vespel &
FK M
FK M
Sensortechnics reserves the right to make changes to any products herein. Sensortechnics does not assume any liability arising out of the
application or use of any product or circuit described herein, neither does it convey any license under its patent rights nor the rights of others.
January 2007 / 268
5/5
www.sensortechnics.com
