DAMO15P400N datasheet, PDF - EEWORLD Datasheet

DAMO15P400N: DescriptionD Subminiature Connector, 15 Contact(s), Male, 0.109 inch Pitch, Wire Wrap Terminal, Locking; CategoryThe connector The connector; File Size267KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

DAMO15P400N Overview

D Subminiature Connector, 15 Contact(s), Male, 0.109 inch Pitch, Wire Wrap Terminal, Locking

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	7.3 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	THERMOSET
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	DM
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	7.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	CADMIUM
Shell material	STEEL
Housing size	2/A
Terminal length	0.492 inch
Terminal pitch	2.7686 mm
Termination type	WIRE WRAP
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1

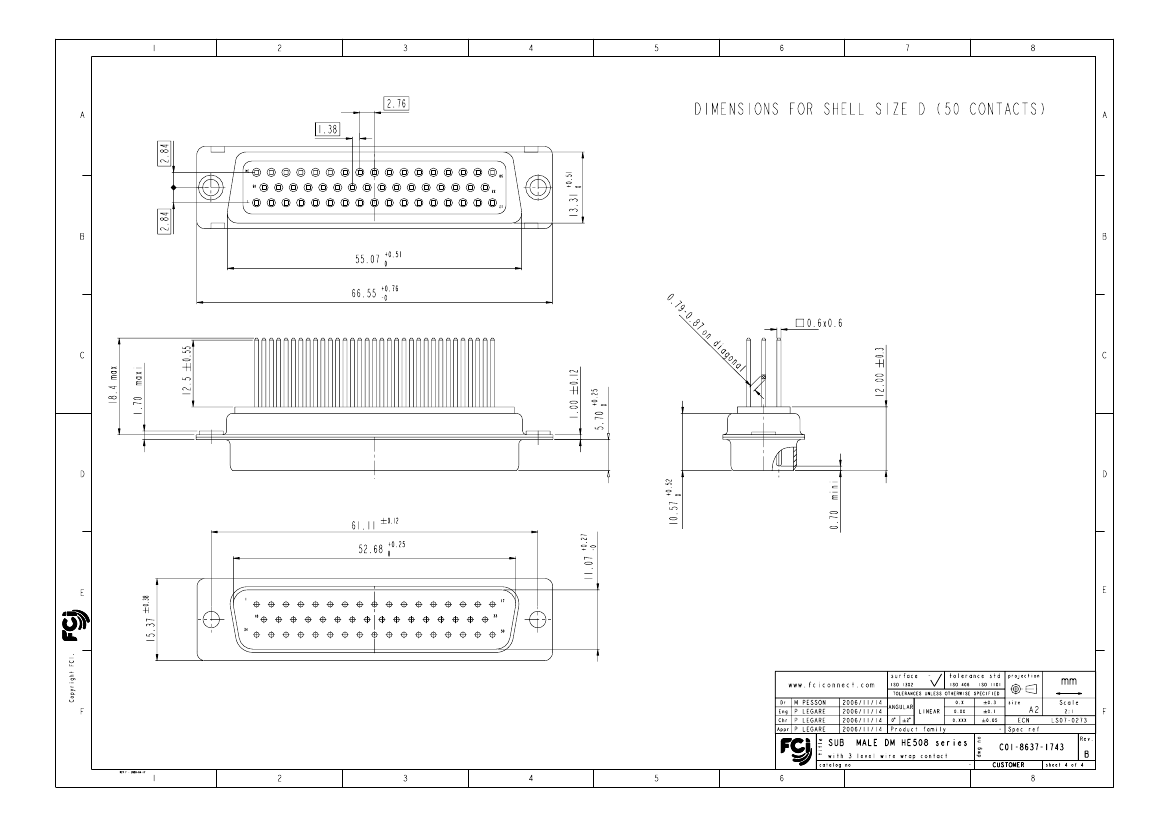

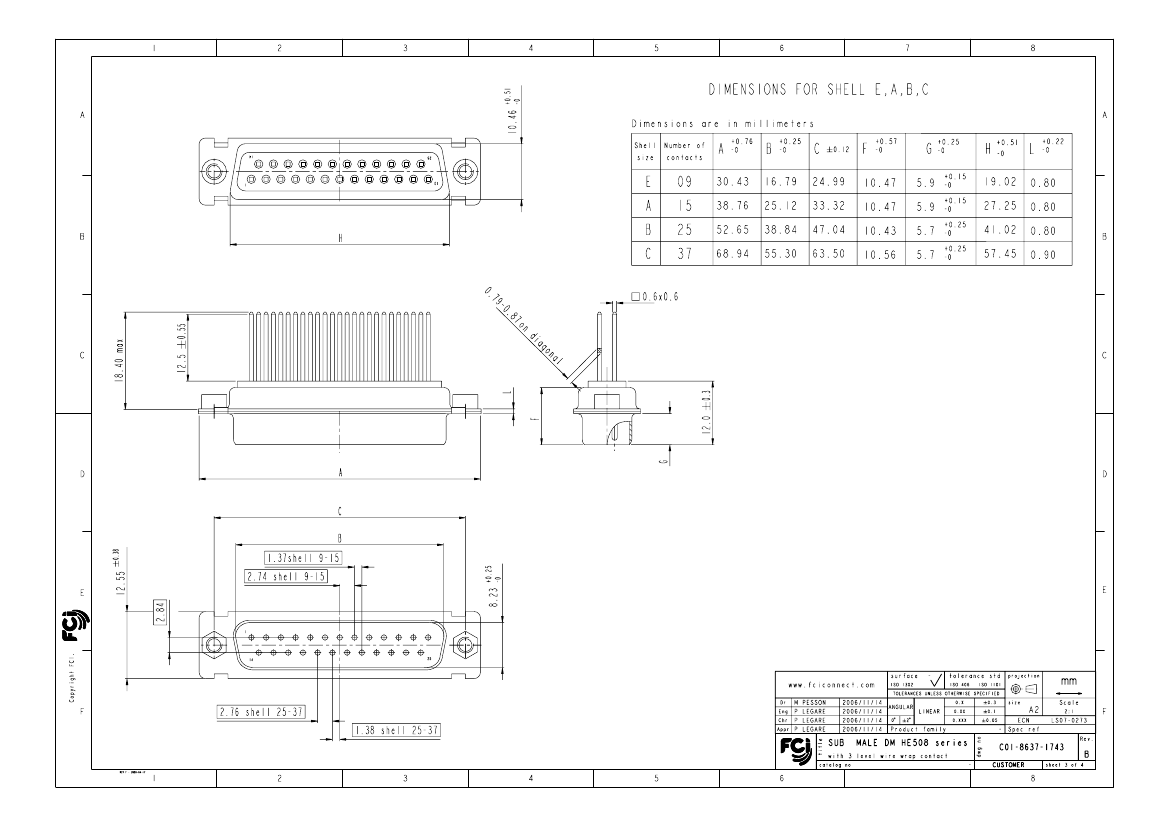

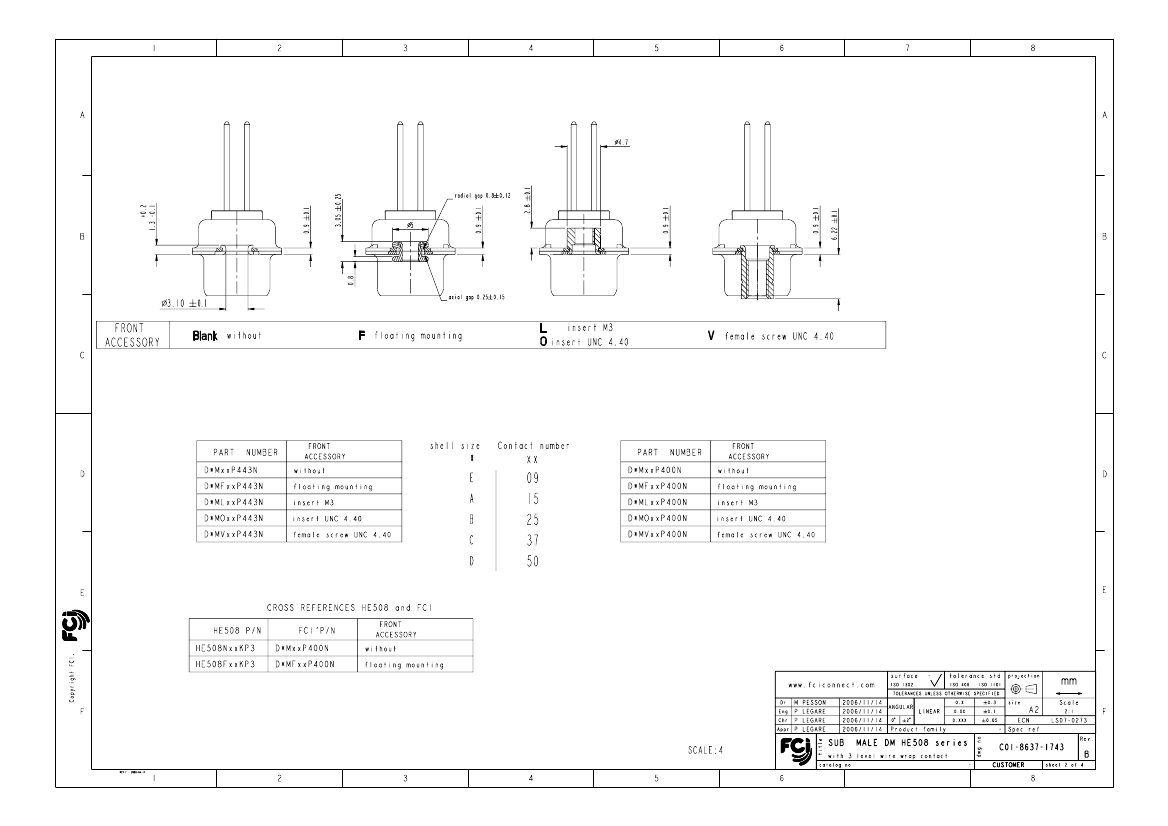

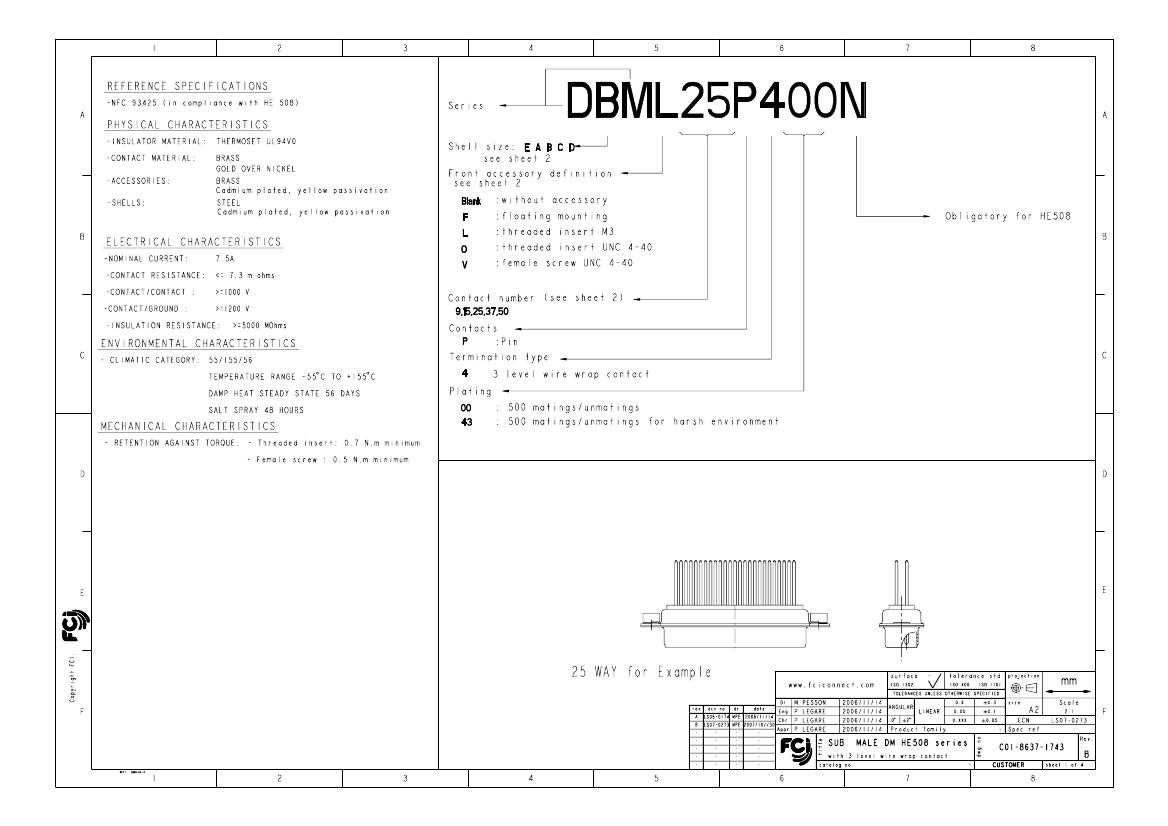

PDM:

PDS: Rev :B

Rev:B

STATUS:Released

Printed: Jun 17,

Jun 18, 2015

Printed:

2015

STATUS:

Released
