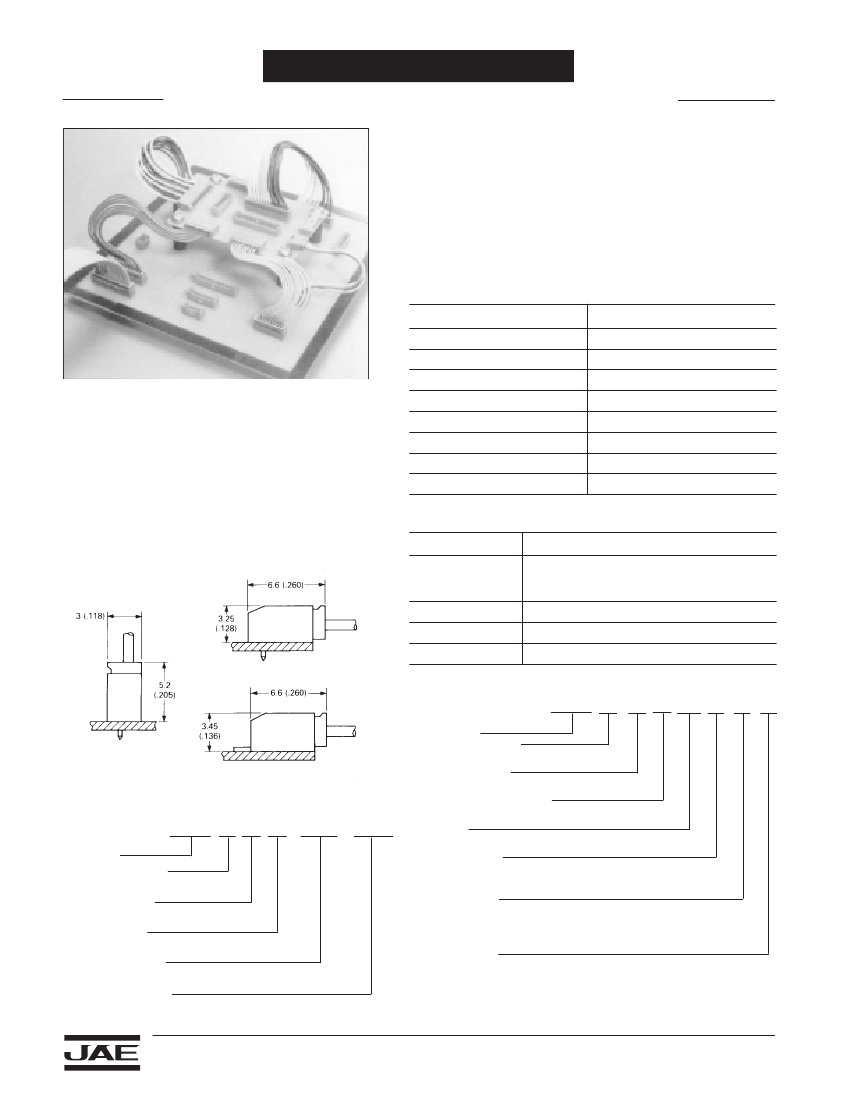

IL-Z SERIES CONNECTORS
1.25mm (.049") Contact Spacing, PCB-to-Cable (Crimp Type) Connectors
• • • • • • • • • • • • • •
IL-Z Series connectors are designed for board-to-cable applica-
tions. High-density 1.25mm (.049") contact spacing (single row),
5.2mm (.205") high when mated vertically. Low-profile design
includes board-mounted pin headers (straight and right-angle) and
wire-terminated socket housings (with crimp socket contacts).
The IL-Z Series has a wide variety of applications, including
commercial and household appliances, VTR's, television, office
automation equipment and measuring instruments.
GENERAL SPECIFICATIONS
Number of Contacts
Contact Spacing
Current Rating
Dielectric Withstanding Voltage
2 to 15
1.25mm (.049"), single row
1 Amp
500 VAC r.m.s. (for one minute)
100 megohams min.
20 milliohms max.
-40°C to +70°C
0.6 to 1.2mm (.024 to .047")
#32 to #28 AWG (stranded)
FEATURES
Insulation Resistance
Contact Resistance
Operating Temperature Range
Applicable PCB Thickness
Applicable Wire
• Crimp type for efficient wire termination
• High reliability socket contacts
• High-density packaging and automatic mounting
• SMT and through hole pin headers available
• Boxed pin header design prevents mismating
MATERIALS AND FINISHES
Description
Materials/Finishes
Through hole pin header and socket housing:
6-6 Nylon (UL94V-0, Light Brown)
SMT pin header: PPS (UL94V-0, Light Gray)
Brass/Tin plating over Nickel
Phosphor Bronze/Tin plating
Phosphor Bronze/Tin plating (SMT only)
• Anti-wicking feature
Connector Profile (Ref.)
Insulator
Pin Contact
Socket Contact
Hold-down
PIN HEADER
(THROUGH HOLE TYPE)

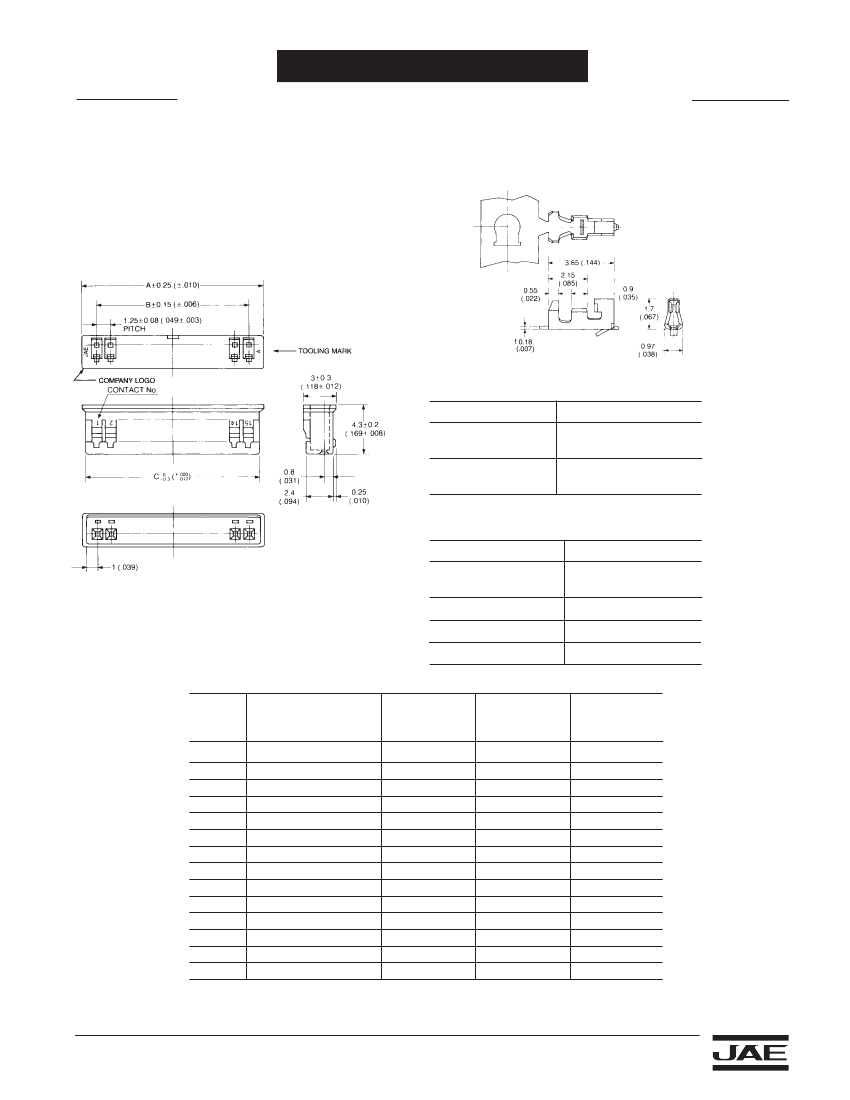

SOCKET HOUSING
IL - Z
**
*
S
125
*
3
*
ORDERING INFORMATION
PIN HEADER (SMT TYPE)
IL - Z – **
Series
No. of Contacts
2 to 15
Contact Type
P – Pin
Termination
L – Right Angle
Mounting Type
Surface Mount Type
Embossed Tape
1,500 pcs/reel
P
L – SMTY – E1500
Series
No. of Contacts
2 to 15
Contact Type
P – Pin
S – Socket
Contact Arrangement
S – Single Row
Pitch
1.25mm (.049")
Termination
T – Straight Through Hole
C – Crimp Contact
L – Right Angle Through Hole
Pin Header
PCB Thickness: 0.6mm (.024") – 1.2mm (.047")
Socket
Applicable Wire: AWG #28, #30, #32
Pin Header
Solder Post Length:
E – 1.7mm (.067")
Dimensions in without notice.
Dimensions and specifications subject to changemm (inches).
IL-Z SERIES CONNECTORS
1.25mm (.049") Contact Spacing, PCB-to-Cable (Crimp Type) Connectors

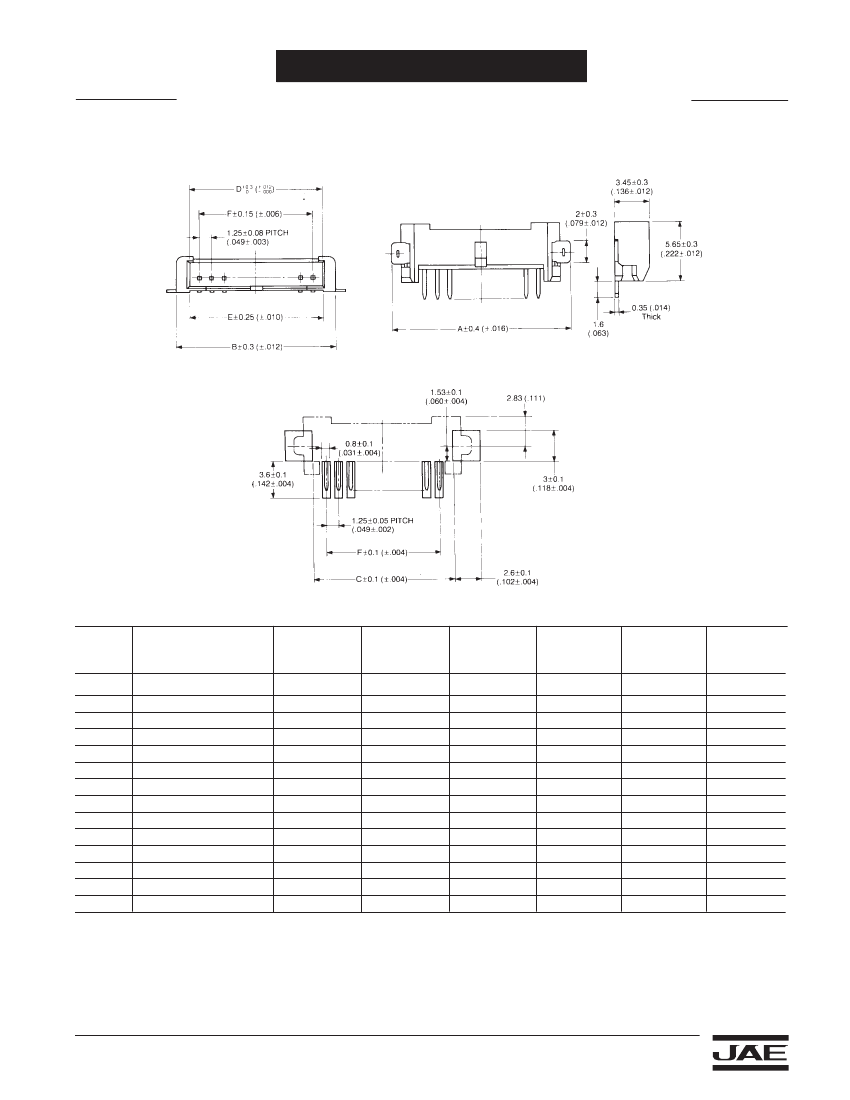

PIN HEADER (SMT TYPE)
Right Angle
PCB Layout (Ref.)
No. of
Contacts
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Part Number
(See note.1)
A
±
0.4
(± .016)
7.65 (.301)
8.90 (.350)
10.15 (.400)
11.40 (.449)
12.65 (.498)
13.90 (.547)
15.15 (.596)
16.40 (.646)
17.65 (.695)
18.90 (.744)
20.15 (.793)
21.40 (.843)
22.65 (.892)
23.90 (.941)
B
±
0.3
(± .012)
5.65 (.222)
6.90 (.272)
8.15 (.321)
9.40 (.370)
10.65 (.419)
11.90 (.468)
13.15 (.518)
14.40 (.567)
15.65 (.616)
16.90 (.665)
18.15 (.714)
19.40 (.764)
20.65 (.813)
21.90 (.862)
C
±
0.1
(± .004)
4.45 (.175)
5.70 (.224)
6.95 (.274)
8.20 (.323)
9.45 (.372)
10.70 (.421)
11.95 (.470)
13.20 (.520)
14.45 (.569)
15.70 (.618)
16.95 (.667)
18.20 (.716)
19.45 (.766)
20.70 (.815)
D
+0.3 +.012
-0 -.000
(
)
E
±
0.25
F
(± .010)
3.15 (.124)
4.40 (.173)
5.65 (.222)
6.90 (.272)
8.15 (.321)
9.40 (.370)
10.65 (.419)
11.90 (.468)
13.15 (.518)
14.40 (.567)
15.65 (.616)
16.90 (.665)
18.15 (.714)
19.40 (.764)
1.25 (.049)
2.50 (.098)
3.75 (.148)
5.00 (.197)
6.25 (.246)
7.50 (.295)
8.75 (.344)
10.00 (.394)
11.25 (.443)
12.50 (.492)
13.75 (.541)
15.00 (.590)
16.25 (.640)
17.50 (.689)
IL-Z- 2PL-SMTY-E1500
IL-Z- 3PL-SMTY-E1500
IL-Z- 4PL-SMTY-E1500
IL-Z- 5PL-SMTY-E1500
IL-Z- 6PL-SMTY-E1500
IL-Z- 7PL-SMTY-E1500
IL-Z- 8PL-SMTY-E1500
IL-Z- 9PL-SMTY-E1500
IL-Z-10PL-SMTY-E1500
IL-Z-11PL-SMTY-E1500
IL-Z-12PL-SMTY-E1500
IL-Z-13PL-SMTY-E1500
IL-Z-14PL-SMTY-E1500
IL-Z-15PL-SMTY-E1500
3.25 (.128)
4.50 (.177)
5.75 (.226)
7.00 (.276)
8.25 (.325)
9.50 (.374)
10.75 (.423)
12.00 (.472)
13.25 (.522)
14.50 (.571)
15.75 (.620)
17.00 (.669)
18.25 (.718)
19.50 (.768)
Note 1: Supplied in embossed-tape reels.
Suffix “-E1500” of the part number indicates that 1,500 pcs. of “IL-Z-*PL-SMTY” connectors are supplied per reel.
Please consult JAE for embossed tape specifications.
Dimensions in mm (inches).
