LR3965L-AD-TQ5-R datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> LR3965L-AD-TQ5-R

LR3965L-AD-TQ5-R: DescriptionAdjustable Positive LDO Regulator, 0.8V Min, 6V Max, CMOS, PSSO5, LEAD FREE, TO-263, 5 PIN; CategoryPower/power management The power supply circuit; File Size388KB，10 Pages; ManufacturerUNISONIC TECHNOLOGIES CO.,LTD; Websitehttp://www.unisonic.com.tw/; Environmental Compliance

Download Datasheet Parametric Compare View All

LR3965L-AD-TQ5-R Overview

Adjustable Positive LDO Regulator, 0.8V Min, 6V Max, CMOS, PSSO5, LEAD FREE, TO-263, 5 PIN

LR3965L-AD-TQ5-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	UNISONIC TECHNOLOGIES CO.,LTD
Parts packaging code	D2PAK
package instruction	LEAD FREE, TO-263, 5 PIN
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-30 code	R-PSSO-G5
length	10.095 mm
Number of functions	1
Number of terminals	5
Working temperatureTJ-Max	125 °C
Maximum output current 1	1.5 A
Maximum output voltage 1	6 V
Minimum output voltage 1	0.8 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-263
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	5.13 mm
surface mount	YES
technology	CMOS
Terminal form	GULL WING
Terminal pitch	1.7 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.925 mm
Base Number Matches	1

Preview

Download Datasheet

View All

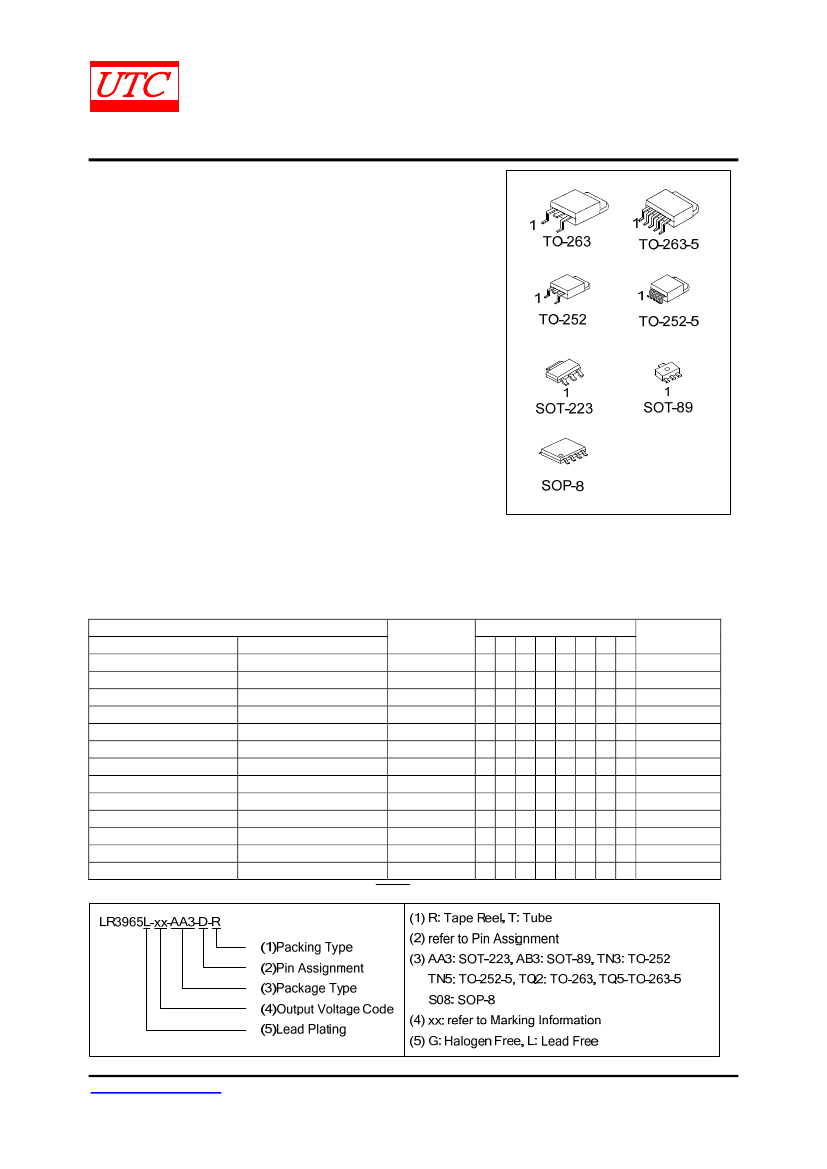

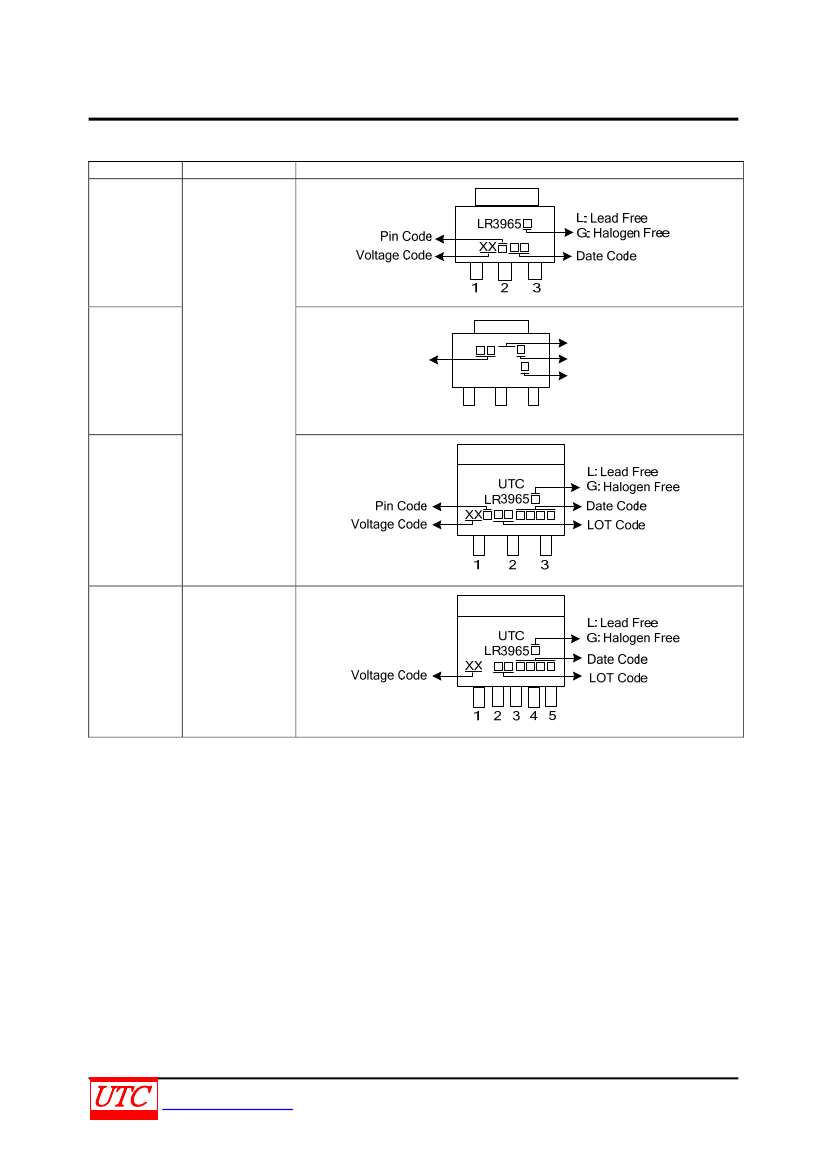

UNISONIC TECHNOLOGIES CO., LTD

LR3965

1.5A LOW DROPOUT LINEAR

REGULATOR

DESCRIPTION

The UTC

LR3965

belonged to low-noise, low-dropout, linear

regulators operate from 2.25V to 6V input and are guaranteed to

deliver 1.5A.

Wide range of preset output voltage options are

available. Built-in low on-resistance transistor provides low dropout

voltage and large output current.

The UTC

LR3965

is designed and

optimized for battery-powered systems to work with low noise.

The UTC

LR3965

consumes less than 0.01μA in shutdown

mode.

Other

features include ultra low dropout voltage, current

limiting protection, thermal shutdown protection and high ripple

rejection ratio.

CMOS IC

FEATURES

* 1.5A Guaranteed Output Current

* 0.01μA Shutdown Current

* 40mV Dropout at 150mA Load

* Low Temperature Coefficient

* Current Limiting Protection

* Thermal Shutdown Protection

* Excellent Line/Load Transient

* Sense Option Improves Load Regulation

ORDERING INFORMATION

Ordering Number

Lead Free

Halogen Free

LR3965L-xx-AB3-C-R

LR3965G-xx-AB3-C-R

LR3965L-xx-AA3-A-R

LR3965G-xx-AA3-A-R

LR3965L-xx-AA3-D-R

LR3965G-xx-AA3-D-R

LR3965L-xx-TN3-A-R

LR3965G-xx-TN3-A-R

LR3965L-xx-TN3-D-R

LR3965G-xx-TN3-D-R

LR3965L-xx-TQ2-A-R

LR3965G-xx-TQ2-A-R

LR3965L-xx-TQ2-A-T

LR3965G-xx-TQ2-A-T

LR3965L-xx-TQ2-D-R

LR3965G-xx-TQ2-D-R

LR3965L-xx-TQ2-D-T

LR3965G-xx-TQ2-D-T

LR3965L-xx-TN5-R

LR3965G-xx-TN5-R

LR3965L-xx-TQ5-R

LR3965G-xx-TQ5-R

LR3965L-xx-TQ5-T

LR3965G-xx-TQ5-T

LR3965L-xx-S08-R

LR3965G-xx-S08-R

Note: Pin Assignment: I:V

O:V

OUT

G:GND

Package

SOT-89

SOT-223

TO-252

TO-263

TO-252-5

TO-263-5

SOP-8

Pin Assignment

2 3 4 5 6 7 8

I O - - - - -

O I - - - - -

G O - - - - -

O I - - - - -

G O - - - - -

O I - - - - -

G O - - - - -

I G O A - - -

I O A G G G G

Packing

Tape Reel

Tube

Tape Reel

Tube

Tape Reel

Tube

Tape Reel

S: SHDN

A: ADJ/SENSE/SS/POK

www.unisonic.com.tw

1 of 10

QW-R102-037.M

LR3965L-AD-TQ5-R Related Products

	LR3965L-AD-TQ5-R	LR3965L-AD-TQ5-T	LR3965G-AD-TN5-R	LR3965G-AD-TQ5-R	LR3965G-AD-TQ5-T	LR3965L-AD-TN5-R
Description	Adjustable Positive LDO Regulator, 0.8V Min, 6V Max, CMOS, PSSO5, LEAD FREE, TO-263, 5 PIN	Adjustable Positive LDO Regulator, 0.8V Min, 6V Max, CMOS, PSSO5, LEAD FREE, TO-263, 5 PIN	Adjustable Positive LDO Regulator, 0.8V Min, 6V Max, CMOS, PSSO5, HALOGEN FREE, TO-252, 5 PIN	Adjustable Positive LDO Regulator, 0.8V Min, 6V Max, CMOS, PSSO5, HALOGEN FREE, TO-263, 5 PIN	Adjustable Positive LDO Regulator, 0.8V Min, 6V Max, CMOS, PSSO5, HALOGEN FREE, TO-263, 5 PIN	Adjustable Positive LDO Regulator, 0.8V Min, 6V Max, CMOS, PSSO5, LEAD FREE, TO-252, 5 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD
Parts packaging code	D2PAK	D2PAK	TO-252	D2PAK	D2PAK	TO-252
package instruction	LEAD FREE, TO-263, 5 PIN	LEAD FREE, TO-263, 5 PIN	HALOGEN FREE, TO-252, 5 PIN	HALOGEN FREE, TO-263, 5 PIN	HALOGEN FREE, TO-263, 5 PIN	LEAD FREE, TO-252, 5 PIN
Contacts	4	4	4	4	4	4
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-30 code	R-PSSO-G5	R-PSSO-G5	R-PSSO-G5	R-PSSO-G5	R-PSSO-G5	R-PSSO-G5
length	10.095 mm	10.095 mm	6.54 mm	10.095 mm	10.095 mm	6.54 mm
Number of functions	1	1	1	1	1	1
Number of terminals	5	5	5	5	5	5
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current 1	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Maximum output voltage 1	6 V	6 V	6 V	6 V	6 V	6 V
Minimum output voltage 1	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TO-263	TO-263	TO-252	TO-263	TO-263	TO-252
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	5.13 mm	5.13 mm	2.51 mm	5.13 mm	5.13 mm	2.51 mm
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.7 mm	1.7 mm	1.27 mm	1.7 mm	1.7 mm	1.27 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	8.925 mm	8.925 mm	5.485 mm	8.925 mm	8.925 mm	5.485 mm
Base Number Matches	1	1	1	1	1	-
