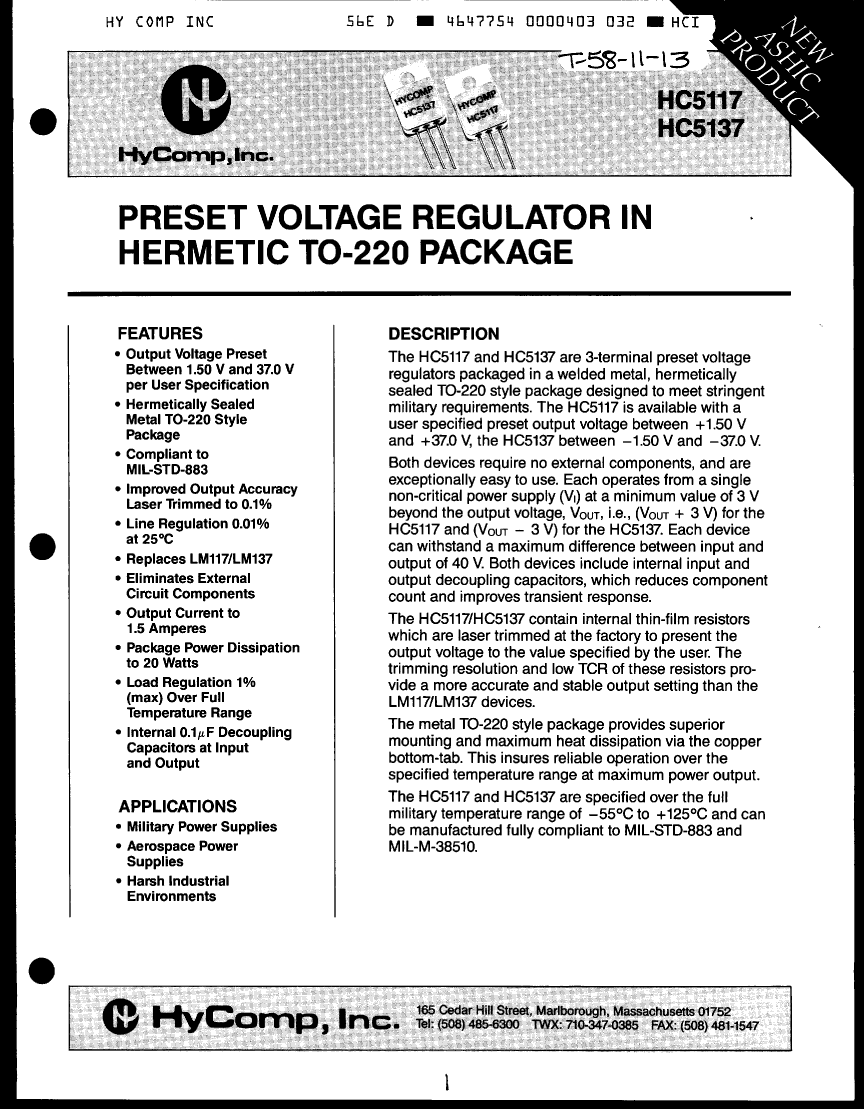

HC5137-355/883 Overview

Regulator, 1 Output, Hybrid,

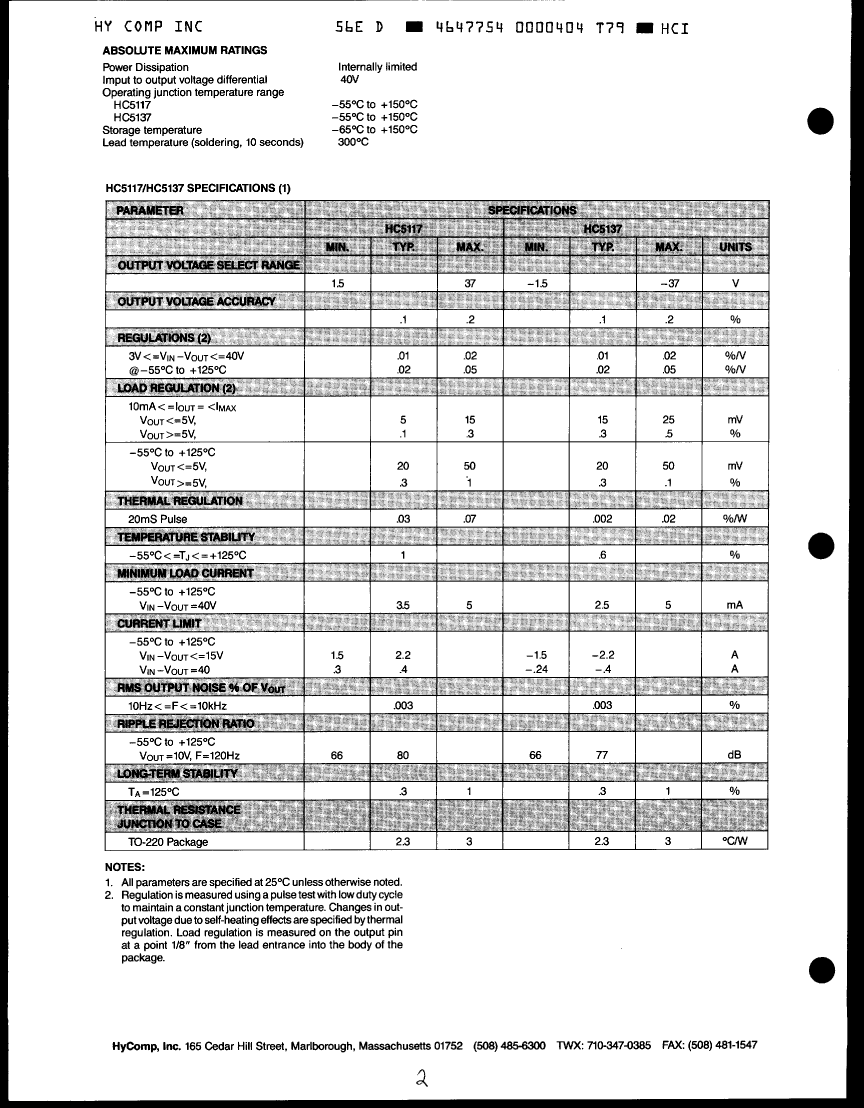

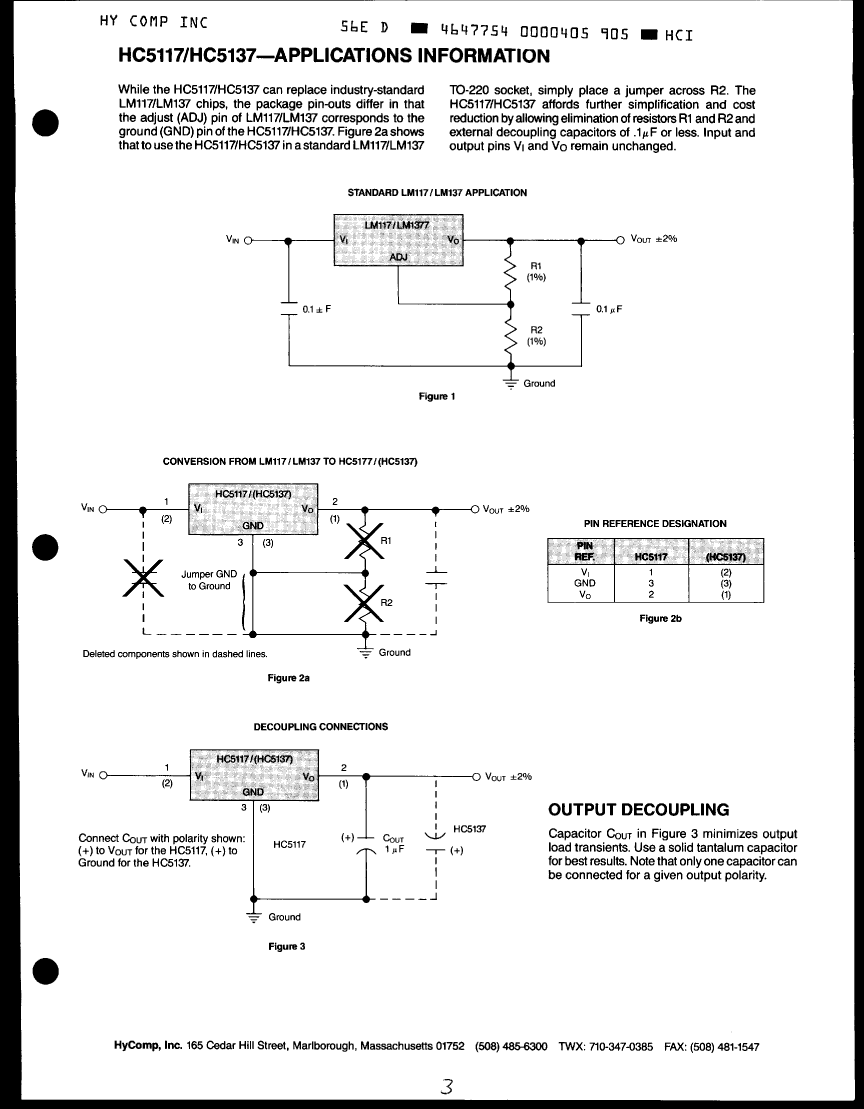

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Spectrum Microwave
package instruction	, SIP3,.1TB
Reach Compliance Code	unknown
Adjustability	FIXED
Nominal dropback voltage 1	3 V
Maximum absolute input voltage	40 V
JESD-609 code	e0
Maximum grid adjustment rate	0.05%
Maximum load regulation	0.05%
Output times	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current 1	1.2 A
Nominal output voltage 1	-34 V
Package body material	CERAMIC
Encapsulate equivalent code	SIP3,.1TB
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
surface mount	NO
technology	HYBRID
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum voltage tolerance	0.2%
Base Number Matches	1

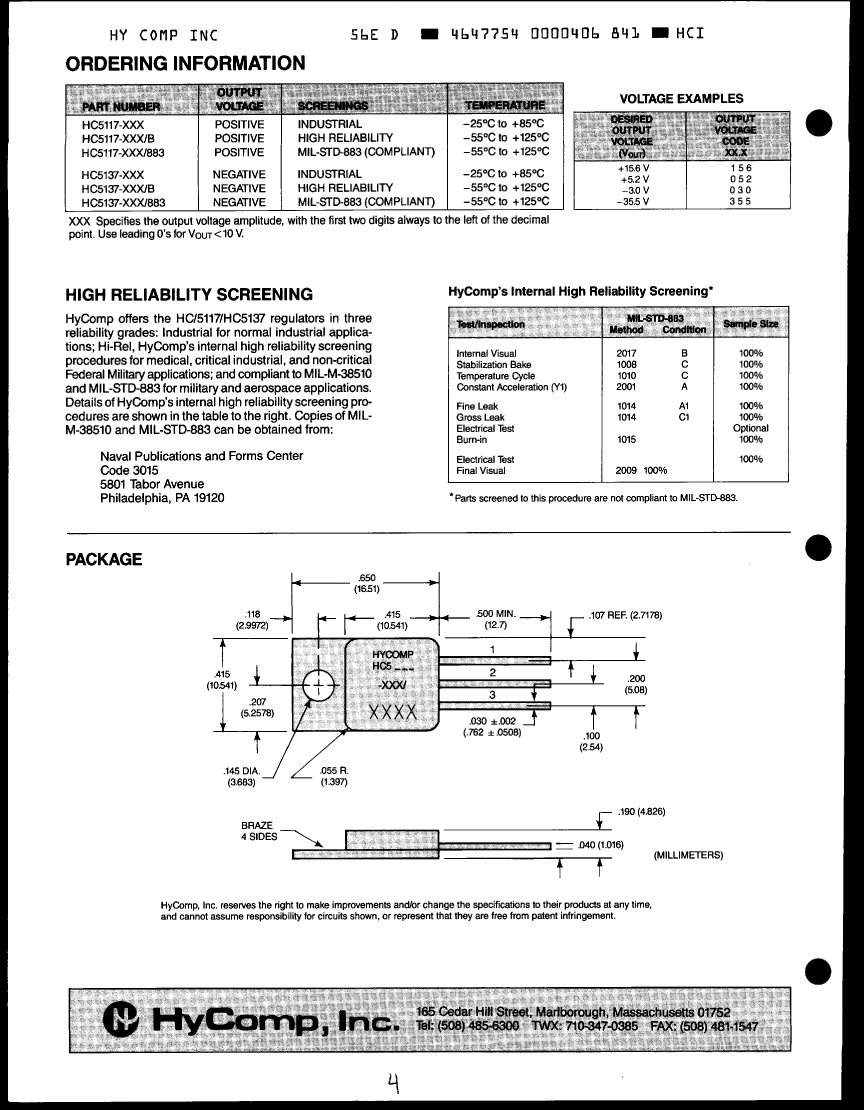

	HC5137-355/883	HC5117-052/B	HC5117-052
Description	Regulator, 1 Output, Hybrid,	Regulator, 1 Output, Hybrid,	Regulator, 1 Output, Hybrid,
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave
package instruction	, SIP3,.1TB	, SIP3,.1TB	, SIP3,.1TB
Reach Compliance Code	unknown	unknown	unknown
Adjustability	FIXED	FIXED	FIXED
Nominal dropback voltage 1	3 V	3 V	3 V
Maximum absolute input voltage	40 V	40 V	40 V
JESD-609 code	e0	e0	e0
Maximum load regulation	0.05%	0.05%	0.015%
Output times	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	125 °C	125 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-25 °C
Maximum output current 1	1.2 A	1.2 A	1.2 A
Nominal output voltage 1	-34 V	5.2 V	5.2 V
Package body material	CERAMIC	CERAMIC	CERAMIC
Encapsulate equivalent code	SIP3,.1TB	SIP3,.1TB	SIP3,.1TB
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	SINGLE	SINGLE	SINGLE
Maximum voltage tolerance	0.2%	0.2%	0.2%
Base Number Matches	1	1	1
Maximum grid adjustment rate	0.05%	0.05%	-
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-
Parts packaging code	-	SFM	SFM
Contacts	-	3	3
