MS27466T21F11P-CO datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MS27466T21F11P-CO

Preview

MS27466T21F11P-CO: DescriptionMIL Series Connector, 11 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerAero-Electric Connector; Websitehttps://www.aero-electric.com/index.html

Download Datasheet Parametric Compare View All

MS27466T21F11P-CO Overview

MIL Series Connector, 11 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,

MS27466T21F11P-CO Parametric

Parameter Name	Attribute value
Maker	Aero-Electric Connector
Reach Compliance Code	unknown
Other features	STANDARD: MIL-DTL-38999
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	YES
Environmental characteristics	CORROSION/ENVIRONMENT/FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	21
Termination type	CRIMP
Total number of contacts	11
Base Number Matches	1

Preview

Download Datasheet

View All

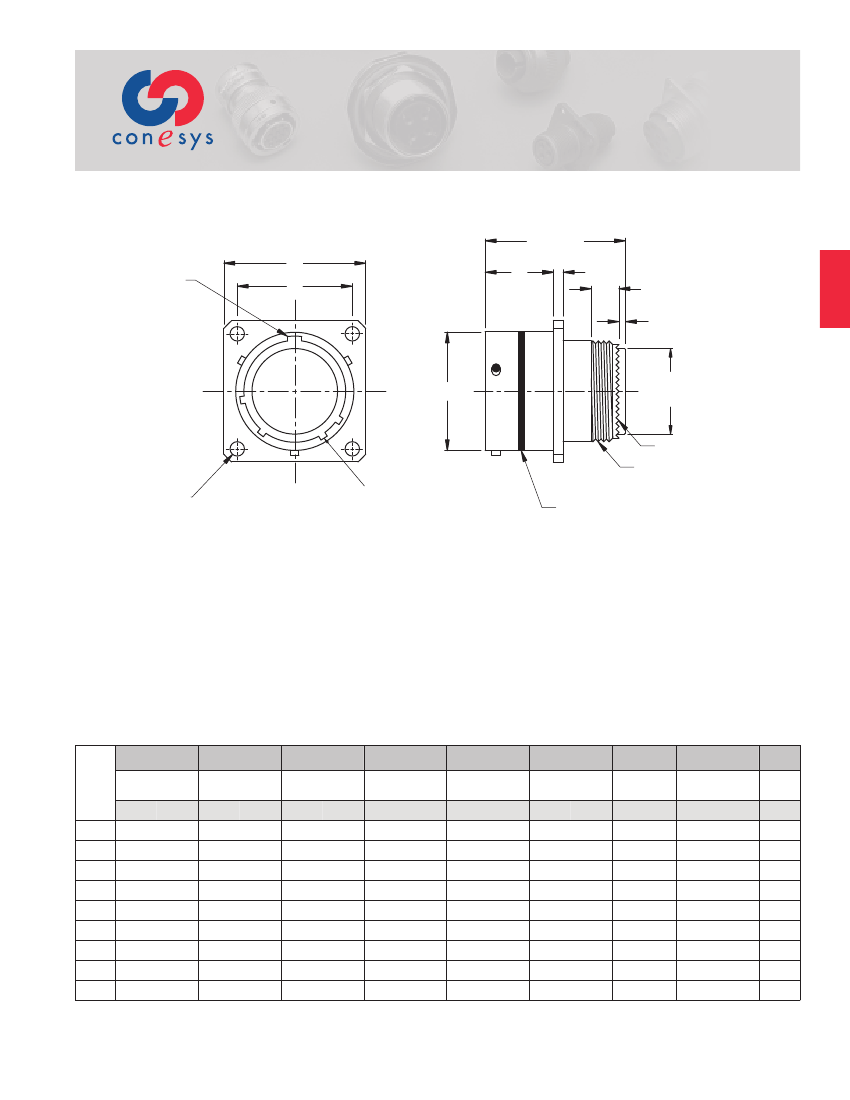

MS27466

Front, Wall Mounting Receptacle

AE166

MIL–DTL–

38999 S I

Bayonet Coupling, Crimp Removable, Rear Release, Scoop-Proof

1.323(33.60)

MAX

A

MASTER KEYWAY

D

F

.219(5.56)

MIN. FULL THREAD

.060(1.52)

MAX GROMMET EXTENSION

B

H

E

MAX

GROMMET

J

ACCESSORY TEETH

G

ACCESSORY THREAD

4X MINOR KEYWAYS

4x

C

BLUE COLOR BAND

Page 4

Page 13

Pages 17–19

Page 3

Pages 15, 16

Page 11

Completed Part Number

Contacts, Sealing Plugs and Tools

Insert Arrangements

Performance Speciﬁcations

Insert Availability and Contact Information

Polarization

A

Shell

Size

9

11

13

15

17

19

21

23

25

±.020

inch

.938

1.031

1.125

1.219

1.312

1.438

1.562

1.688

1.812

±.51

mm

23.83

26.19

28.58

30.96

33.32

36.53

39.67

42.88

46.02

inch

.719

.812

.906

.969

1.062

1.156

1.250

1.375

1.500

B

(TP)

mm

18.26

20.62

23.01

24.61

26.97

29.36

31.75

34.93

38.10

+.010

-.005

inch

.128

.147

C

+.25

-.13

mm

3.25

3.73

+.000

-.005

inch

.632

.602

D

+.00

-.13

mm

16.05

15.29

+.001

-.005

inch

.572

.700

.850

.975

1.100

1.207

1.332

1.457

1.582

E

+.03

-.13

mm

14.53

17.78

21.59

24.77

27.94

30.66

33.83

37.01

40.18

+.015

-.000

inch

.085

.115

F

+.38

-.00

mm

2.16

2.92

G

Accessory

Thread

UNEF-2A

7/16-28

9/16-24

11/16-24

13/16-20

15/16-20

1-1/16-18

1-3/16-18

1-5/16-18

1-7/16-18

H

Maximum

inch

.299

.427

.541

.666

.791

.897

1.022

1.147

1.272

mm

7.59

10.85

13.74

16.92

20.09

22.78

25.96

29.13

32.31

J

No. of

Teeth

12

16

20

24

28

32

36

40

44

www.conesys.com

– 5 –

sales

@

aero-electric.com

MS27466T21F11P-CO Related Products

	MS27466T21F11P-CO	MS27466T21F11P
Description	MIL Series Connector, 11 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,	MIL Series Connector, 11 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,
Maker	Aero-Electric Connector	Aero-Electric Connector
Reach Compliance Code	unknown	compliant
Other features	STANDARD: MIL-DTL-38999	STANDARD: MIL-DTL-38999
Back shell type	SOLID	SOLID
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR
Contact point gender	MALE	MALE
Coupling type	BAYONET	BAYONET
DIN compliance	NO	NO
empty shell	YES	YES
Environmental characteristics	CORROSION/ENVIRONMENT/FLUID RESISTANT	CORROSION/ENVIRONMENT/FLUID RESISTANT
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	YES	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation type	CABLE AND PANEL	CABLE AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL PLATED	NICKEL PLATED
Shell material	ALUMINUM ALLOY	ALUMINUM ALLOY
Housing size	21	21
Termination type	CRIMP	CRIMP
Total number of contacts	11	11
Base Number Matches	1	1
