M83723/98N-20-28P7 datasheet, PDF

Datasheet> All Categories > The connector> The connector> M83723/98N-20-28P7

M83723/98N-20-28P7: DescriptionMIL Series Connector, 28 Contact(s), Steel, Male, Solder Terminal, Plug; CategoryThe connector The connector; File Size65KB，1 Pages; ManufacturerHiRel Connectors Inc; Websitehttps://hirelco.net

Download Datasheet Parametric View All

M83723/98N-20-28P7 Overview

MIL Series Connector, 28 Contact(s), Steel, Male, Solder Terminal, Plug

M83723/98N-20-28P7 Parametric

Parameter Name	Attribute value
Maker	HiRel Connectors Inc
Reach Compliance Code	unknown
Other features	STANDARD: MIL-DTL-83723, EMI SHIELDED
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT; ENVIRONMENT RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	M83723/98
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	STEEL
Housing size	20
Termination type	SOLDER
Total number of contacts	28
Base Number Matches	1

Preview

Download Datasheet

View All

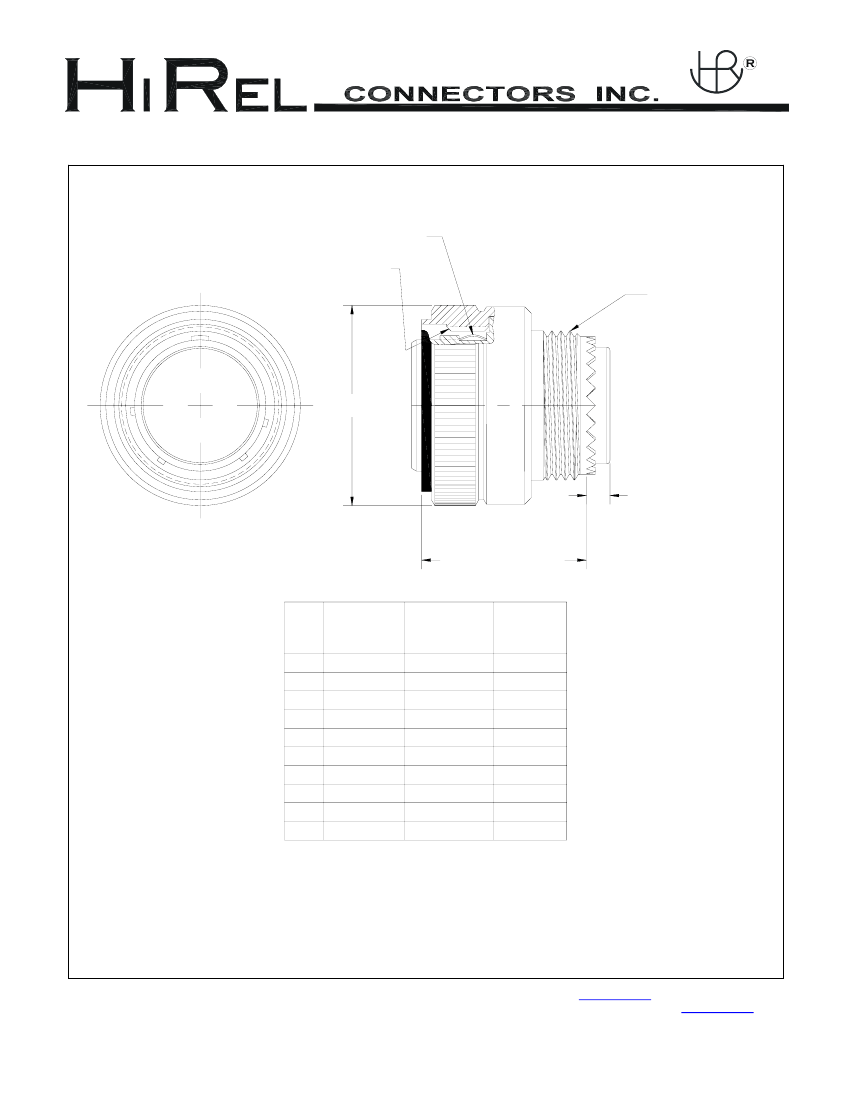

M83723/98

Environment Resisting Plug with RFI Spring Fingers (Pin)

MIL-DTL-83723

Series III – Threaded Coupling

GROUND SPRING

A Thd

<1>

Acc Thd

ØM

.160/.010 [4.06/0.25]

1.280 [32.51] MAX

SHELL

SIZE

<2>

A Thd Acc Thd

CLASS 2B

.562-24 UNEF

.688-24 UNEF

.875-20 UNEF

.938-20 UNEF

1.062-18 UNEF

1.188-18 UNEF

1.312-18 UNEF

1.438-18 UNEF

1.562-18 UNEF

1.812-16 UN

CLASS 2A

.500-20 UNF

.625-24 UNEF

.750-20 UNEF

.875-20 UNEF

1.000-20 UNEF

1.062-18 UNEF

1.188-18 UNEF

1.312-18 UNEF

1.438-18 UNEF

1.750-18 UNS

MAX

.967 [24.56]

1.093 [27.76]

1.170 [29.71]

1.310 [33.27]

1.500 [38.10]

1.562 [39.67]

1.710 [43.43]

1.812 [46.02]

1.948 [49.48]

2.175 [55.24]

<1> HIRELCO HAS INCORPORATED A PATENTED SELF-LOCKING MECHANISM INTO OUR

PLUGS THAT HAVE PROVEN TO STAY LOCKED UNDER EXTREME VIBRATION

<2> CONNECTOR SIZE NOT PER M83723

DIMENSIONS ARE IN INCHES [MILLIMETERS], TOLERANCE UNLESS OTHERWISE NOTED IS ±.005 [0.13]

United States

– 760 W. Wharton Drive, Claremont CA. 91711

▪

Ph: 909-626-1820

▪

FAX: 909-399-0626

▪

Web:

www.HIRELCO.com

Europe

– 5 Rue Des Longues Raies, Z.I. Des Garennes, 78440; Gargenville, France

▪

Ph: 33(0) 1-309-38999 or U.K. 44(0)1-980-843887

▪

FAX 33(0) 1-309-38913

▪

Web:

www.HIRELCO.com

J-20
