3M
™

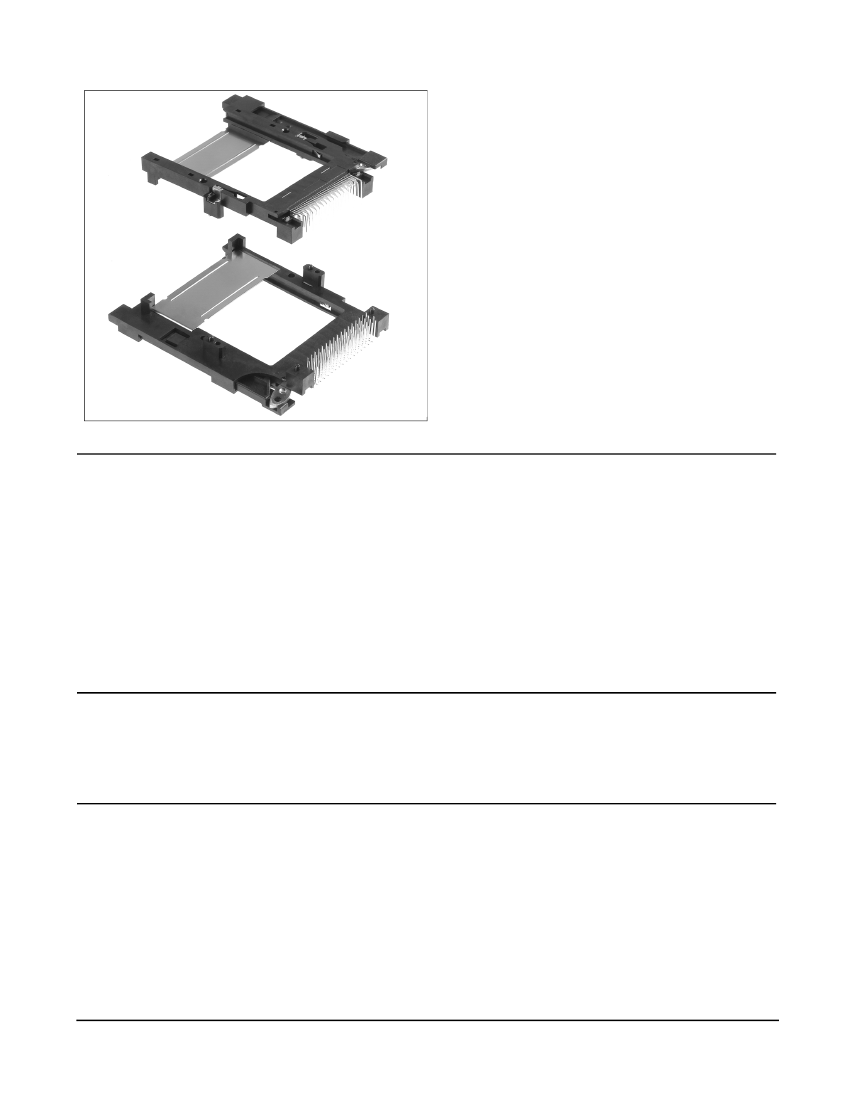

PC Card Header
Single Slot, Integrated Ejector
•
•
•
•
•
•
MCH Series
Meets PCMCIA specifications
Tapered header pins provide easy insertion
High temperature plastic insulator
Left or right ejector option
Stand-off height options
Solder retention clips option for secure
hold-down
• ESD Clips available
• See Regulatory Information Appendix (RIA)
for chemical compliance information
Date Modified:
August 8, 2008
ED
TS-1109-C
Sheet 1 of 3
Physical
Insulation Material:
Insulation Flammability:
Insulation Color:
Contact Material:
Plating Wiping Area:
Plating Solder Tails:
Mechanical:
Insulation Resistance:
> 5
×
10
9
Ω
at 500 V
DC
Withstanding Voltage:
500 V
RMS
for 1 Minute
Environmental
Temperature Rating:
Operating Environment:
-20°C to +60°C
,
95% RH Non-condensing
Process Temperature:
260°C (per J-STD-020C)
UL File No.: E68080
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
D
Electrical
Current Rating:
0.5 A
IS
Durability-Office Environment: 10,000 cycles minimum
Insertion Force: 8.8 lbs. ( 39.2 N ) maximum
Extraction Force: 1.5 lbs. ( 6.67 N ) minimum and 8.8 lbs. ( 39.2 N ) maximum
C
O
LCP
UL 94V-0
Black
Copper Alloy
Gold flash over 27
μ″
[ 0.68
μm
] PdNi
100
μ″
[ 2.54
μm
] Tin/Lead or Reflowed Tin (See Ordering Information)
N
TI
N
U
3M
™
PC Card Header
Single Slot, Integrated Ejector

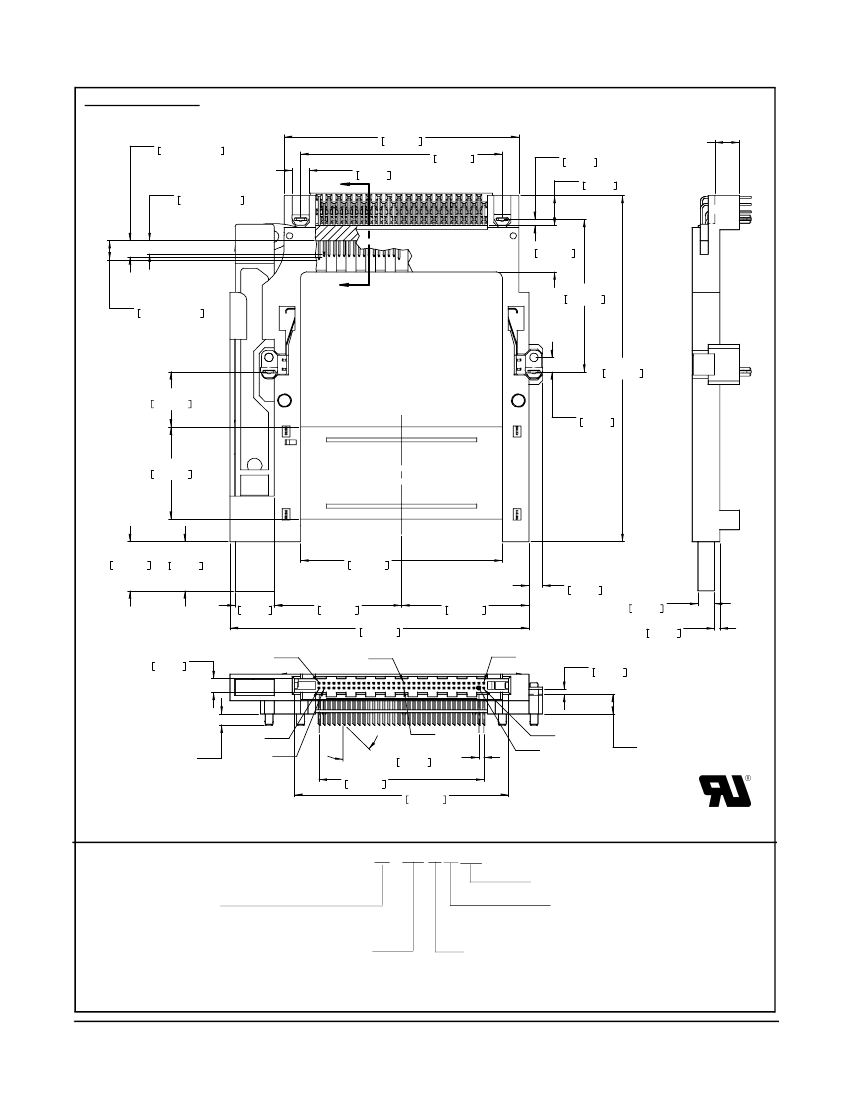

Left Ejector Option
.1 6 7 ± .0 0 4
4 .2 4 ± 0 .1 0
G E N E R A L U S E P IN S
.1 3 7 ± .0 0 4
3 .4 8 ± 0 .1 0
D E T E C T P IN S
2 .3 5 0
5 9 .6 9
.1 7 0
4 .3 2
TYP
"A " T Y P
HARDW ARE REF
2 PLACES
MCH Series
2 .0 1 8
5 1 .2 6
W
.0 6 4
1 .6 2
.3 1 0
7 .8 7
.4 8 2
1 2 .2 4
W
.1 9 7 ± .0 0 4
5 .0 0 ± 0 .1 0
P O W E R P IN S
1 .5 7 5
4 0 .0 1
3 .5 7 4
9 0 .7 8
.5 6 8
1 4 .4 3
C OF CARD
L
.9 5 0
2 4 .1 3
N
.5 0 4
1 2 .8 1
C A R D IN
.2 7 7
7 .0 3
CARD OUT
.3 9 0
9 .9 1
1 .2 7 4
3 2 .3 6
2 .0 2 0
5 1 .3 0
TI
1 .2 7 4
3 2 .3 6
.1 3 6
3 .4 6
.1 6 5
4 .1 9
.0 5 5
1 .4 0
.0 5 0
1 .2 7
P IN 3 4
P IN 5 1
.0 5 0
1 .2 7
TYP
P IN 6 8
P IN 6 7
"A " T Y P
HARDW ARE REF
2 PLACES
2 .1 3 9
5 4 .3 3
Plating Suffix:
TR30 = PdNi w/ Au Flash and Sn-Pb Solder Tails
(RIA E3 & C2 apply)
LL = PdNi w/ Au Flash and Sn Solder Tails
(RIA E1 & C1 apply)
Keying
Blank = 5.0 volt
3 = 3.3 volt
ESD/Solder Retention Clips
A = No ESD, No Solder Retention Clips
B = No ESD, Solder Retention Clips
C = ESD, No Solder Retention Clips
D = ESD, Solder Retention Clips
D
P IN 3 5
IS
.1 3 8
3 .5 1
P IN 1
SO LD E R R E TE N T
(O P T I O N A L )
P IN 3 6
Ordering Information
MCH - 068TAX - XX X X-XX
Ejector Option
L = Left Ejector, Standard Button
R = Right Ejector, Standard Button
Insulator Body Style
01 = No Standoff
03 = 7.0 mm Standoff
05 = 2.5 mm Standoff
06 = 5.5 mm Standoff
C
O
2 .9 9 2
7 5 .9 9
P IN 1 7
45° ± 5°
1 .6 5 0
4 1.9 1
N
U
ED
.1 5 0
3 .8 2
TS-1109-B
Sheet 2 of 3
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
PC Card Header
Single Slot, Integrated Ejector
.158
4.01
C
L
MCH Series
STANDOFF HEIGHT
(OPTIONAL)
.065
PC BOARD
1.65
TO CENTER LINE
.215
5.46
TOTAL
COMPONENT HEIGHT
.118 ±.010 TYP
3.00 ±0.25
.140
3.56
.290
7.37
SECTION W-W
O
C
.354
8.99
PIN 1
PIN 2
.050
1.27
N
TYP.
TI
2.350
59.69
2.018
51.26
1.650
41.91
C
L
PIN 33
PIN 34
.075
1.90
TYP
-B-
PIN 67
PIN 68
.316
8.01
.589
14.96
PIN 17
.225
5.72
TYP
.307
7.81
D
.989
25.13
.039 ±.002 TYP
0.99 ±0.05
PLATED THRU HOLE
l O
.002 [0.05]
M
A
M
B
IS
.044
1.12
PIN 35
O
.086 ±.002 TYP (4X)
2.18 ±0.05
PLATED THRU HOLE
l O
.002 [0.05]
M
A
M
B
O
N
U
MCH-068TAX01X-XX
MCH-068TAX03X-XX
MCH-068TAX05X-XX
MCH-068TAX06X-XX
MCH-068TAX07X-XX
.000 [0.00]
.276 [7.00]
.098 [2.50]
.217 [5.50]
.197 [5.00]
.157 [4.00]
.433 [11.00]
.256 [6.50]
.374 [9.50]
.354 [9.00]
ED
Part Description
Stand-off
Height
PC Board To
Center Line
Total
Component
Height
.276 [7.00]
.551 [14.00]
.374 [9.50]
.492 [12.5]
.472 [12.0]
Dim "A" PCB
To Hardware
Seating Plane
.051 [1.30]
.345 [8.76]
.167 [4.24]
.286 [7.26]
.266 [6.76]
Retent (Ref.)
.110 [2.70]
.074 [1.88]
.077 [1.96]
.068 [1.73]
.068 [1.73]
.413
10.49
.316
8.03
2.474
62.84
.170
4.32
.200
5.08
.264
6.71
2.020
51.31

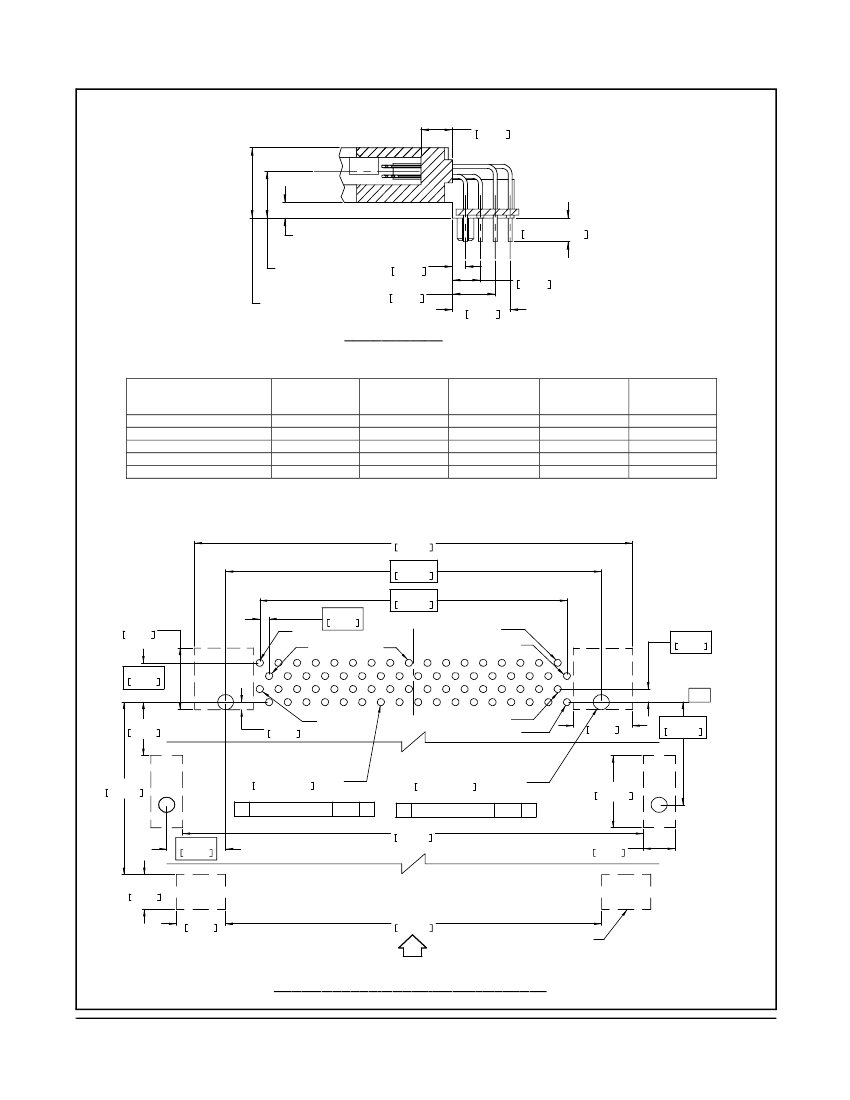

STANDOFF FOOTPRINT
NO COMPONENTS
INSERT CARD
RECOMMENDED MOUNTING HOLE LAYOUT
TS-1109-B
Sheet 3 of 3
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Regulatory Information Appendix
3M Electronic Solutions Division/Interconnect
EUROPE
Appendix E1: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product is RoHS Compliant 2005/95/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in
excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/
EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this
information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E2: European Union RoHS
Appendix E4: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains decaBDE in the insulating material in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/17/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in
excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision
2005/618/EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in
writing, this information represents 3M’s best knowledge and belief based upon information provided by third party
suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
D
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
IS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as
amended by Commission Decision 2005/618/EC.
This product contains lead in the solder tail area in excess of the maximum concentration value allowed.
Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon
information provided by third party suppliers to 3M.
C
O
Appendix E3: European Union RoHS
N
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
TI
N
U
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/747/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in
excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/
EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this
information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
ED
RIA-2217-A
CHINA
Appendix C1: China RoHS
Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits
for Certain Hazardous Substances in Electronic Information Products.
This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006,
means that the product or part
does not
contain any of the following substances in excess of the following maximum
concentration values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium,
polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise
stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information provided by
third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix C2: China RoHS
20
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the
accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended
application. You assume all risks and liability associated with such use. Any statements related to the product which are not contained in 3M’s
current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly agreed upon, in
writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of ninety (90) days from the time of purchase.
3M MAKES NO
OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M’s
option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except where prohibited by law, 3M will not be liable for
any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of the legal theory asserted.
3
Electronic Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
800/225-5373
www.3M.com/interconnects
RIA-2217-A
© 3M 2007
D
IS
C
O

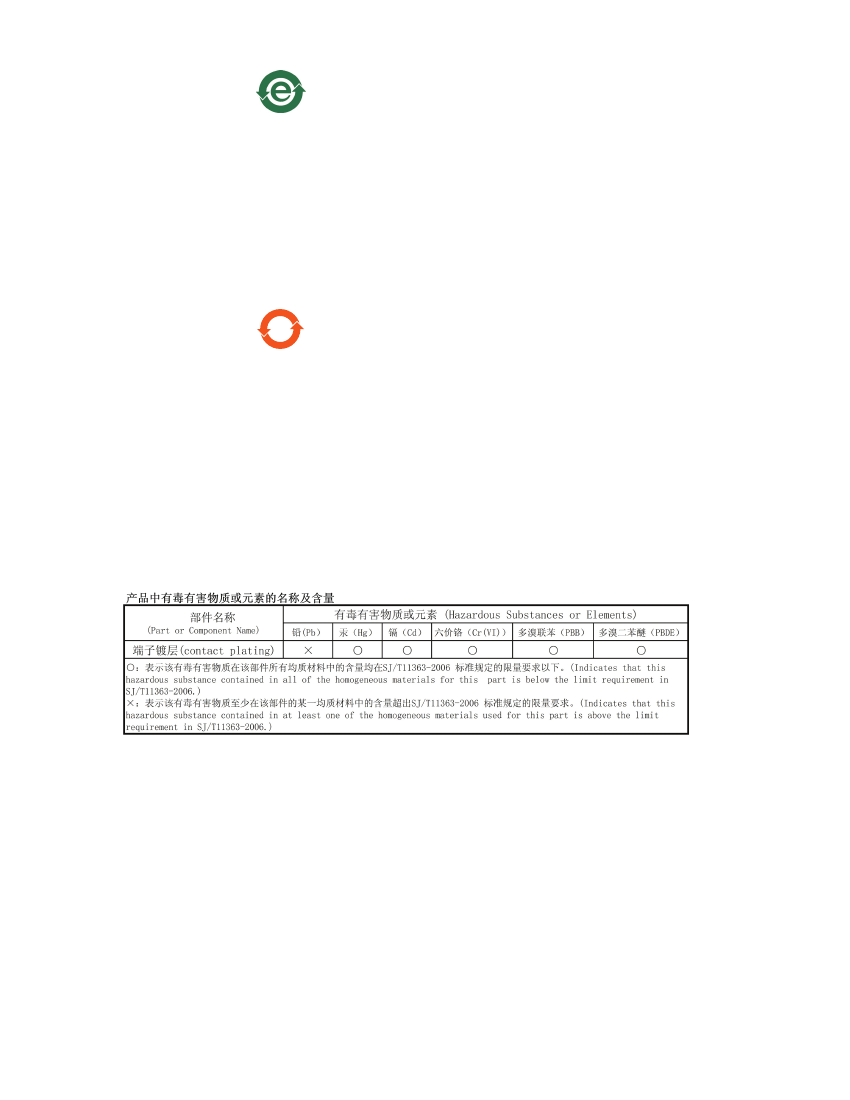

Name and Content of Hazardous Substances or Elements
