R316421B02RFX

Description
RF BNC Connector
CategoryThe connector    The connector
File Size101KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

R316421B02RFX Overview

RF BNC Connector

R316421B02RFX Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codeunknown
Connector typeRF BNC CONNECTOR
Manufacturer's serial numberR316421B02R
Base Number Matches1
Amphenol
RF Interconnects
Reverse Polarity BNC and TNC
Materials
Body/Finish
– Brass/Nickel
Contact
Centre MALE
– Brass
Centre FEMALE
Phosphor Bronze
Centre Finish
– Gold 30µ”
Insulator
– Delron/PBT
Gasket
– Silicone Rubber
Crimp Ferrules
Annealed Copper
Durability
500 Cycles
Electrical
Impedance
– 50 ohm
Frequency range
Semi Rigid cable – 0-4 GHz
Voltage
– 500 VRMS
Dielectric withstand – 1500 VRMS
VSWR Straight
– 1.3 max
R/A
– 1.5 max
Resistance Centre – 3 Milliohms max
Outer
– 2 Milliohms max
Insulator
– 5000 Megaohms min
Environmental
Temp. range
Shock
Vibration
Corrosion
Moisture
Altitude
– -65°C thru 165°C
– Consult Representative
– Consult Representative
– Consult Representative
– Consult Representative
– Consult Representative
– Page
W-1
– Page
U-35~U-38
– Page
U-38

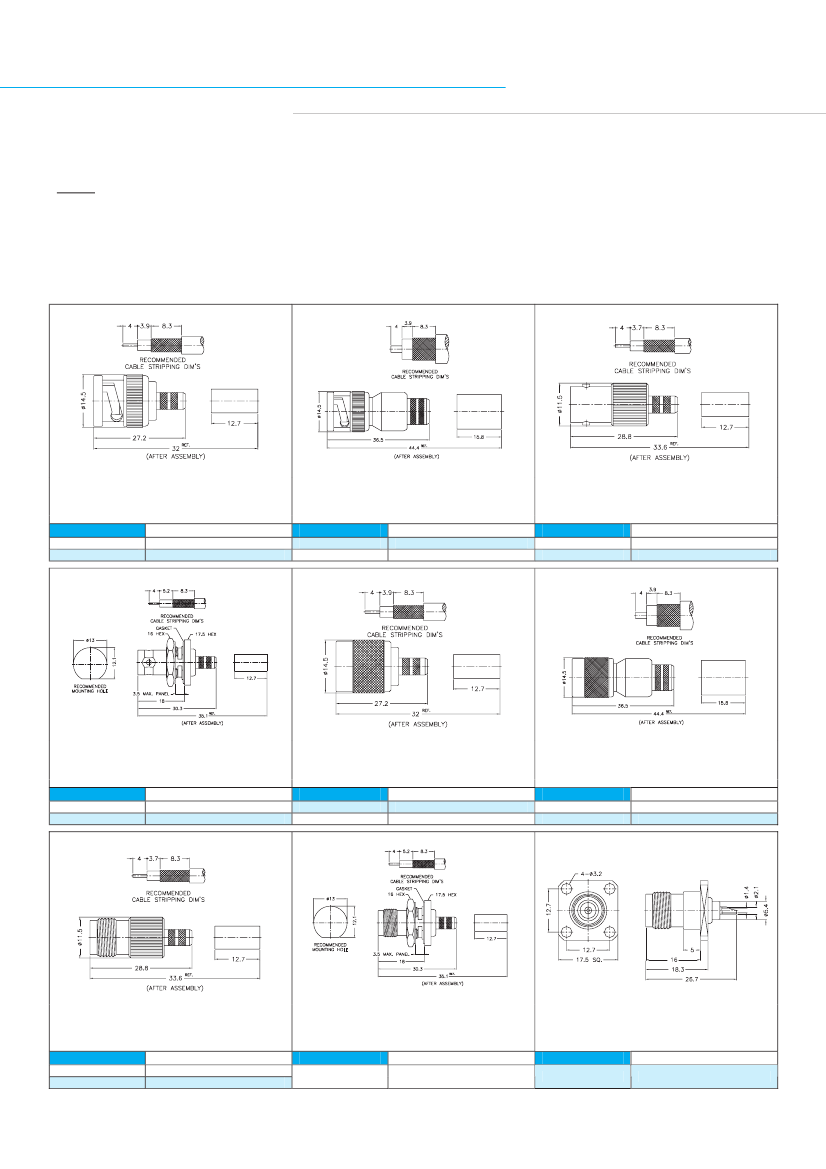

Related Information
Hand Tools
Termination Instr.
Terminology
BNC
Crimp/Crimp Straight Plug
Termination Instruction
E
RB1121A1NT3Gxx50
BNC
Crimp/Crimp Straight Plug
Termination Instruction
E
RB1121A6NT3Gxxx50
BNC
Crimp/Crimp Straight Jack
Termination Instruction
E
RB6121A1NT3Gxxx50
Part Number:
R311121B01RFX
R311121B02RFX
Cable
RG/U 58
RG58C/U
Part Number:
R311121B03RFX
R311121B04RFX
Cable
RG/U 213
B9913
Part Number:
R316121B01RFX
R316121B02RFX
Cable
RG/U 58
RG58C/U
BNC
Crimp/Crimp Straight Bulkhead Jack
Termination Instruction
E
RB6421A1NT3Gxxx50
TNC
Crimp/Crimp Straight Plug
Termination Instruction
E
RT1121A1NT3Gxxx50
TNC
Crimp/Crimp Straight Plug
Termination Instruction
E
RT1121A6NT3Gxxx50
Part Number:
R316421B01RFX
R316421B02RFX
Cable
RG/U 58
RG58C/U
Part Number:
R311121T01RFX
R311121T02RFX
Cable
RG/U 58
RG58C/U
Part Number:
R311121T03RFX
R311121T04RFX
Cable
RG/U 213
B9913
TNC
Crimp/Crimp Straight Jack
Termination Instruction
E
RT6121A1NT3Gxxx50
TNC
Crimp/Crimp Straight Bulkhead Jack
Termination Instruction
E
RT6421A1NT3Gxxx50
TNC
Solder-Cup Straight Panel Mount Jack
RT6551A1NT3G50
Part Number:
R316121T01RFX
R316121T02RFX
ARFA/RF
Cable
RG/U 58
RG58C/U
Part Number:
R316421T01RFX
Cable
RG/U 58
Part Number:
R316551T01RFX
Description
4-Hole
U-21
