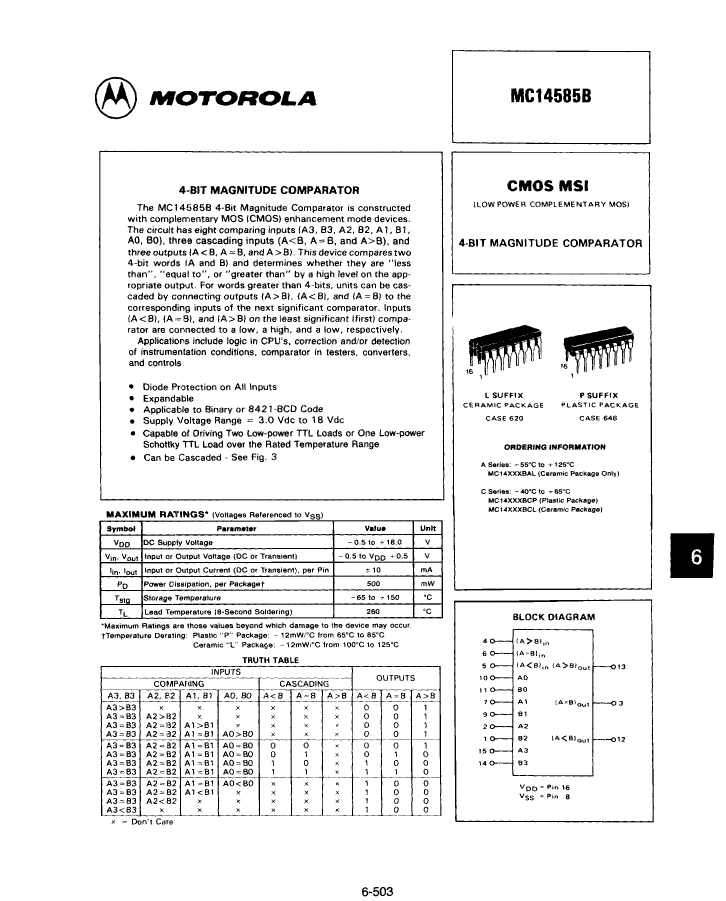

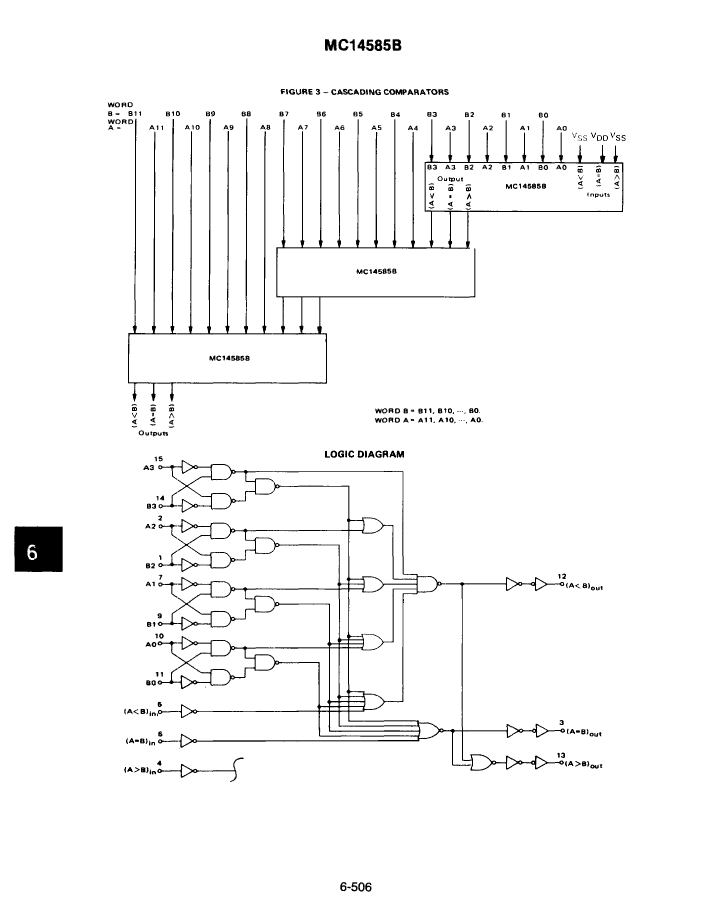

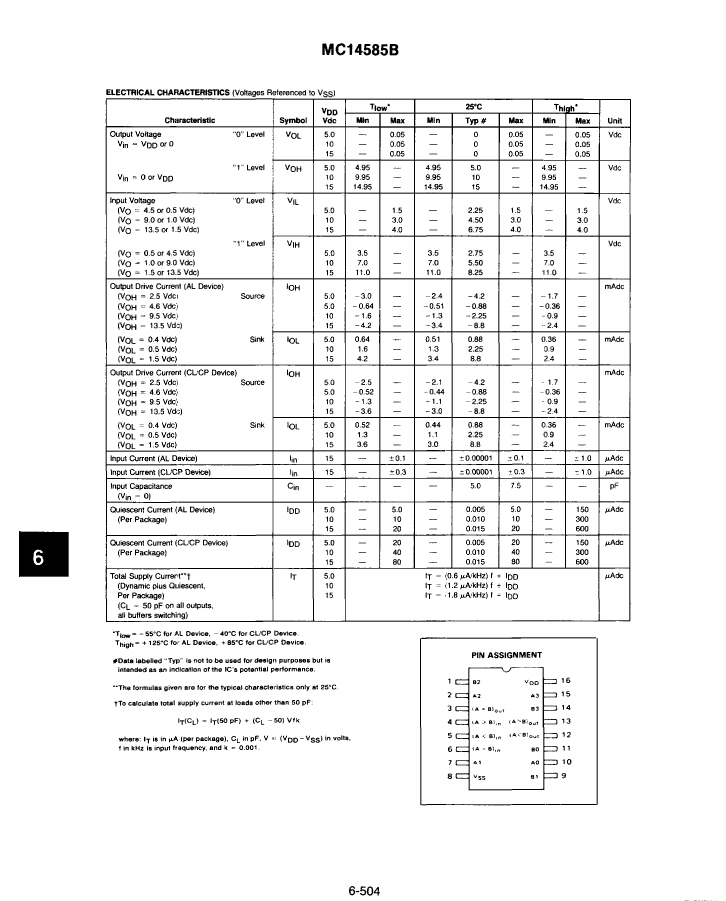

4000/14000/40000 SERIES, 4-BIT MAGNITUDE COMPARATOR, TRUE OUTPUT, PDIP16, 648-06

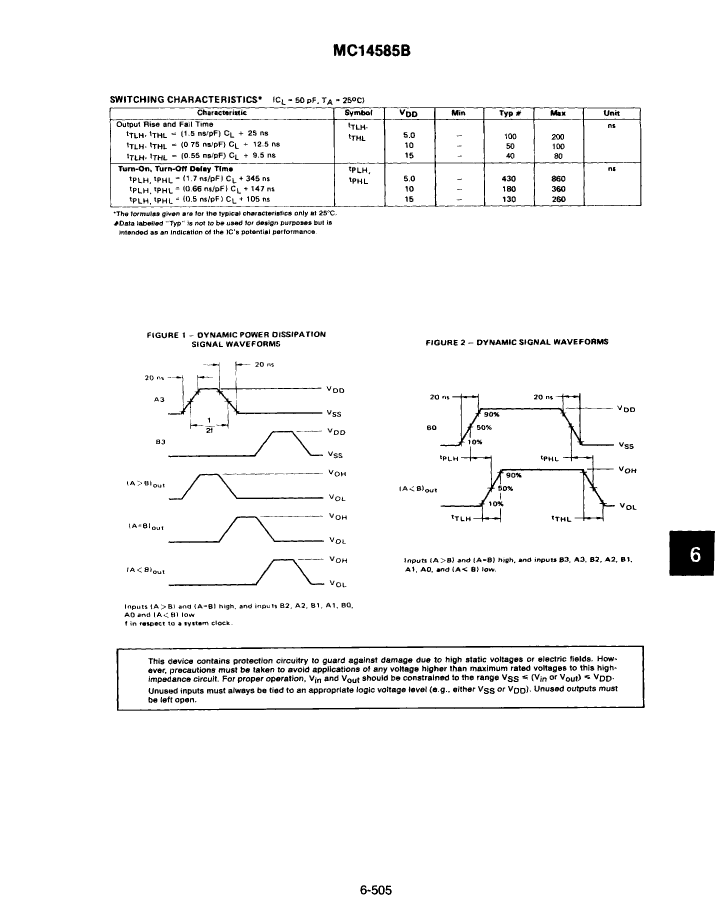

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Motorola ( NXP ) |
| Parts packaging code | DIP |
| package instruction | DIP, DIP16,.3 |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| Other features | CASCADABLE |
| series | 4000/14000/40000 |
| JESD-30 code | R-PDIP-T16 |
| JESD-609 code | e0 |
| length | 20.07 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | MAGNITUDE COMPARATOR |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5/15 V |
| propagation delay (tpd) | 860 ns |
| Certification status | Not Qualified |
| Maximum seat height | 4.69 mm |
| Maximum supply voltage (Vsup) | 18 V |
| Minimum supply voltage (Vsup) | 3 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 7.62 mm |
| Base Number Matches | 1 |
| MC14585BCPDS | MC14585BAL | MC14585BALDS | MC14585BCLDS | |
|---|---|---|---|---|
| Description | 4000/14000/40000 SERIES, 4-BIT MAGNITUDE COMPARATOR, TRUE OUTPUT, PDIP16, 648-06 | Magnitude Comparator, 4000/14000/40000 Series, 4-Bit, True Output, CMOS, CDIP16, 620-09 | 4000/14000/40000 SERIES, 4-BIT MAGNITUDE COMPARATOR, TRUE OUTPUT, CDIP16, 620-09 | 4000/14000/40000 SERIES, 4-BIT MAGNITUDE COMPARATOR, TRUE OUTPUT, CDIP16, 620-09 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| package instruction | DIP, DIP16,.3 | DIP, | DIP, DIP16,.3 | DIP, DIP16,.3 |
| Reach Compliance Code | unknown | unknown | unknown | unknow |
| Other features | CASCADABLE | CASCADABLE | CASCADABLE | CASCADABLE |
| series | 4000/14000/40000 | 4000/14000/40000 | 4000/14000/40000 | 4000/14000/40000 |
| JESD-30 code | R-PDIP-T16 | R-GDIP-T16 | R-GDIP-T16 | R-GDIP-T16 |
| JESD-609 code | e0 | e0 | e0 | e0 |
| length | 20.07 mm | 19.3 mm | 19.3 mm | 19.3 mm |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | MAGNITUDE COMPARATOR | MAGNITUDE COMPARATOR | MAGNITUDE COMPARATOR | MAGNITUDE COMPARATOR |
| Number of digits | 4 | 4 | 4 | 4 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 85 °C | 125 °C | 125 °C | 85 °C |
| Minimum operating temperature | -40 °C | -55 °C | -55 °C | -40 °C |
| Output polarity | TRUE | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | DIP | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| propagation delay (tpd) | 860 ns | 860 ns | 860 ns | 860 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 4.69 mm | 4.19 mm | 4.19 mm | 4.19 mm |
| Maximum supply voltage (Vsup) | 18 V | 18 V | 18 V | 18 V |
| Minimum supply voltage (Vsup) | 3 V | 3 V | 3 V | 3 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | MILITARY | MILITARY | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm |
| Parts packaging code | DIP | - | DIP | DIP |
| Contacts | 16 | - | 16 | 16 |
| Encapsulate equivalent code | DIP16,.3 | - | DIP16,.3 | DIP16,.3 |
| power supply | 5/15 V | - | 5/15 V | 5/15 V |
| Base Number Matches | 1 | 1 | 1 | - |
