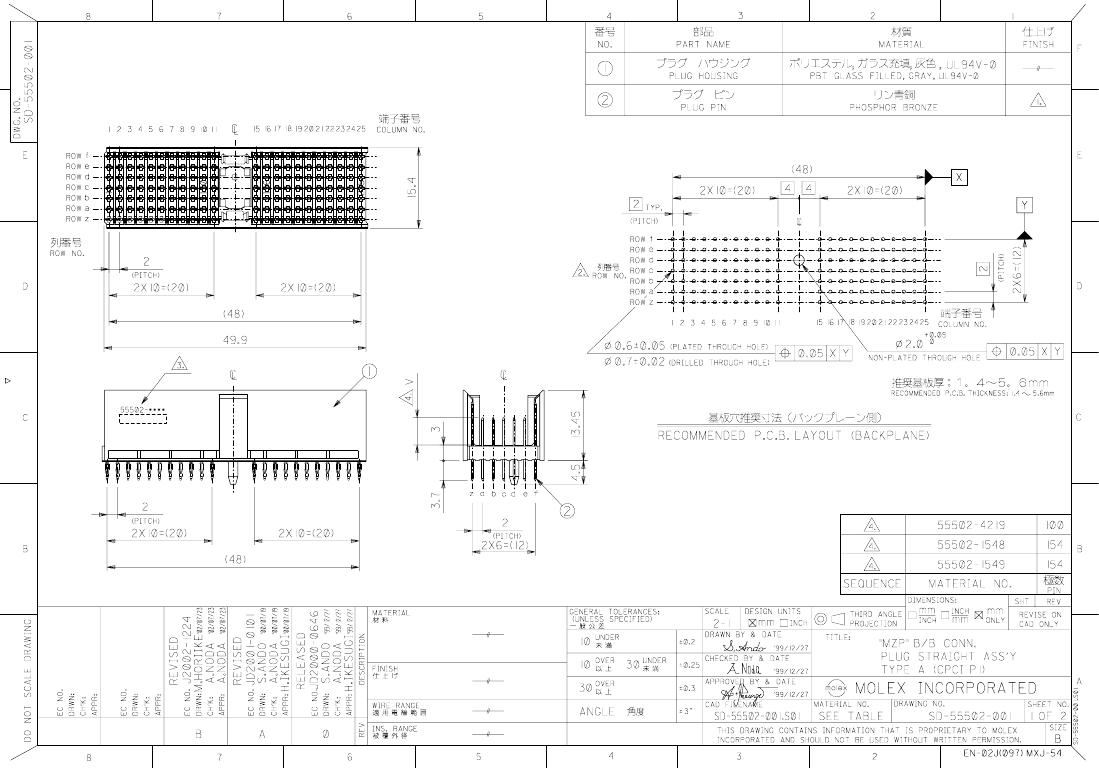

Board Connector, 100 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, Plug

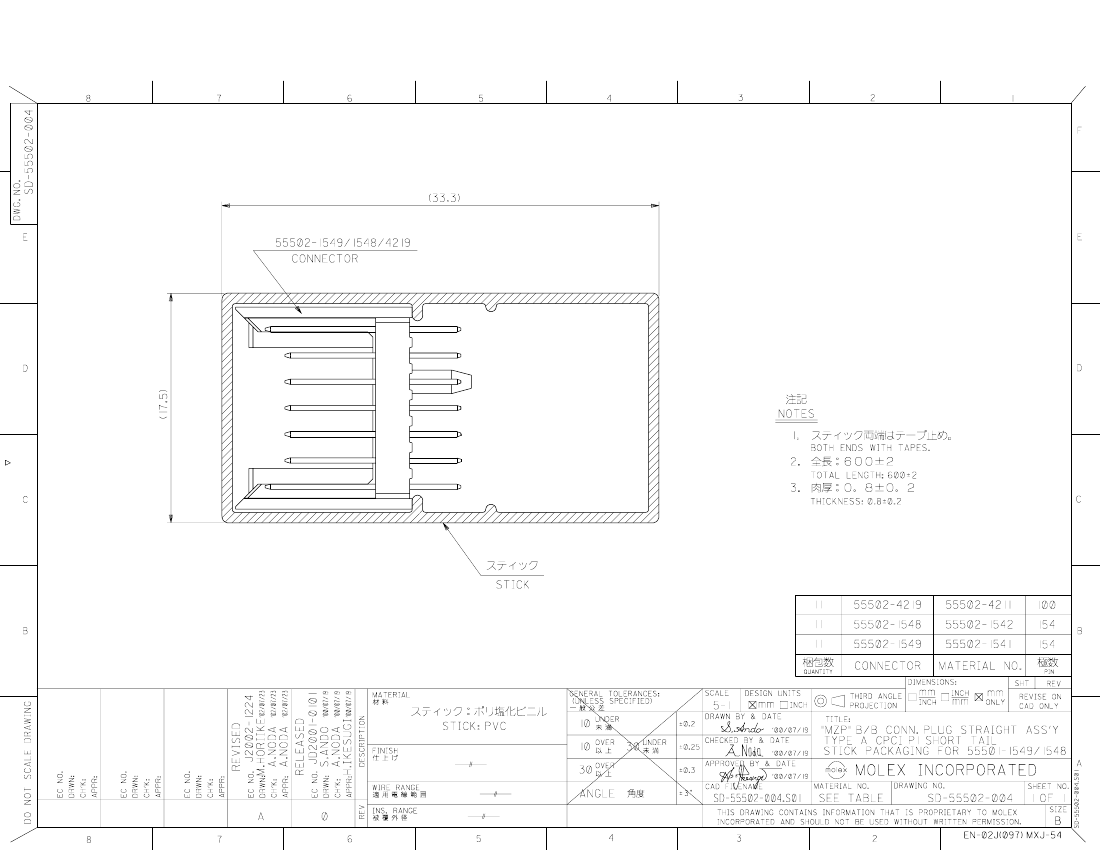

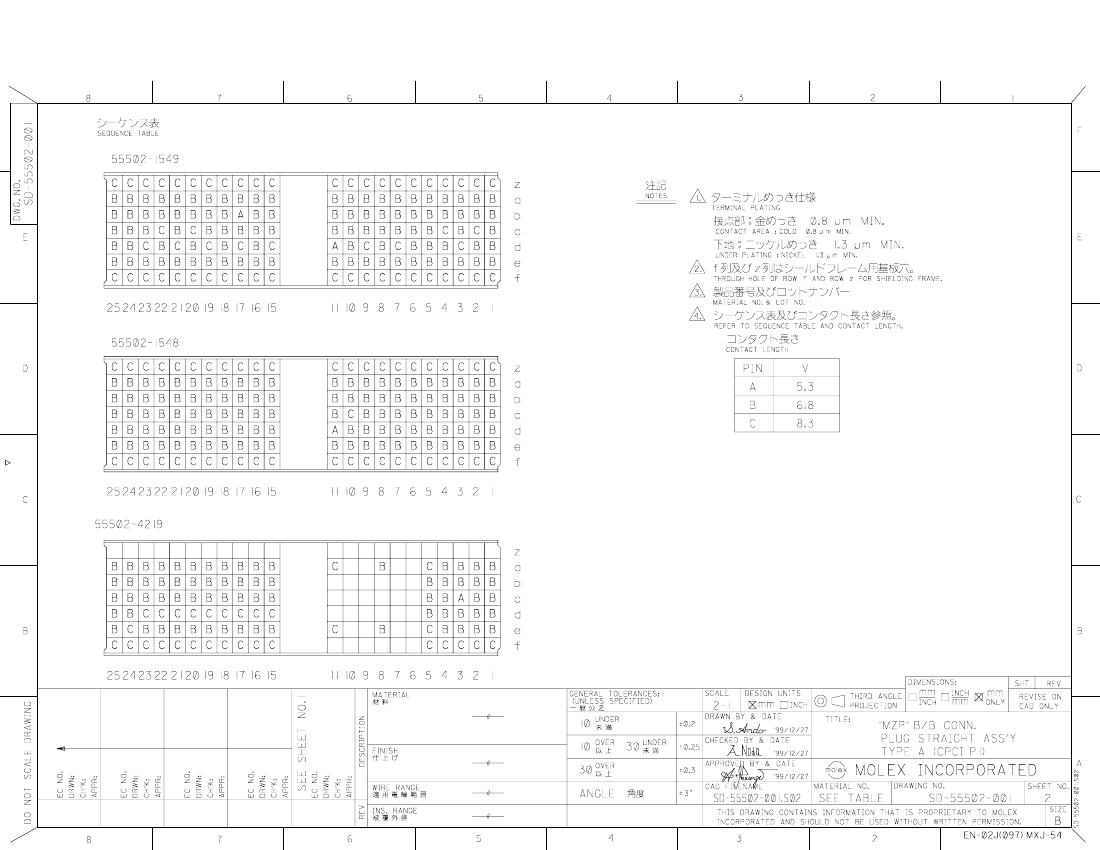

| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| Other features | 44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact point gender | MALE |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| MIL compliance | NO |
| Manufacturer's serial number | 55502 |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of rows loaded | 6 |
| Options | GENERAL PURPOSE |
| Terminal pitch | 2 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 100 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 55502-4211 | 55502-1542 | 55502-1548 | 55502-1549 | 55502-4219 | |
|---|---|---|---|---|---|
| Description | Board Connector, 100 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, Plug | Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Gray Insulator, Plug, | Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Plug, | Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Plug, | Board Connector, 100 Contact(s), 6 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Plug, |
| Reach Compliance Code | unknown | compliant | unknown | unknown | unknown |
| Other features | 44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE | 44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE | 44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE | 44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE | 16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE |
| Body/casing type | PLUG | PLUG | PLUG | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact point gender | MALE | MALE | MALE | MALE | MALE |
| DIN compliance | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO |
| MIL compliance | NO | NO | NO | NO | NO |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 6 | 7 | 7 | 7 | 6 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm |
| Termination type | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT |
| Total number of contacts | 100 | 154 | 154 | 154 | 100 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| Maker | Molex | - | Molex | Molex | Molex |
| Manufacturer's serial number | 55502 | 55502 | - | 55502 | 55502 |
| ECCN code | - | EAR99 | EAR99 | EAR99 | EAR99 |
| body width | - | 0.606 inch | 0.606 inch | 0.606 inch | 0.606 inch |
| subject depth | - | 0.53 inch | 0.53 inch | 0.53 inch | 0.53 inch |
| body length | - | 1.965 inch | 1.965 inch | 1.965 inch | 1.965 inch |
| Contact to complete cooperation | - | GOLD | AU ON NI | AU ON NI | AU ON NI |
| Contact completed and terminated | - | GOLD | GOLD OVER NICKEL | GOLD OVER NICKEL | GOLD OVER NICKEL |
| Contact material | - | NOT SPECIFIED | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | - | 30 mΩ | 30 mΩ | 30 mΩ | 30 mΩ |
| Contact style | - | CENTRONIC | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| Durability | - | 125 Cycles | 125 Cycles | 125 Cycles | 125 Cycles |
| maximum insertion force | - | .7506 N | .9452 N | .9452 N | .9452 N |
| Insulation resistance | - | 10000000000 Ω | 10000000000 Ω | 10000000000 Ω | 10000000000 Ω |
| Insulator color | - | GRAY | GRAY | GRAY | GRAY |
| insulator material | - | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE |
| Plug contact pitch | - | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Match contact row spacing | - | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Number of connectors | - | ONE | ONE | ONE | ONE |
| PCB row number | - | 7 | 7 | 7 | 7 |
| Maximum operating temperature | - | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | - | -55 °C | -55 °C | -55 °C | -55 °C |
| PCB contact pattern | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | - | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm |
| Plating thickness | - | 31u inch | 31u inch | 31u inch | 31u inch |
| polarization key | - | POLARIZED HOUSING | POLARIZED RIB(S) | POLARIZED RIB(S) | POLARIZED RIB(S) |
| Rated current (signal) | - | 1 A | 1 A | 1 A | 1 A |
| Guideline | - | UL, CSA | UL, CSA | UL, CSA | UL, CSA |
| reliability | - | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | - | 0.146 inch | 0.177 inch | 0.177 inch | 0.177 inch |
| Evacuation force-minimum value | - | .139 N | .139 N | .139 N | .139 N |
| Board mount options | - | - | PEG | PEG | PEG |
| Dielectric withstand voltage | - | - | 750VAC V | 750VAC V | 750VAC V |
