5-175778-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-175778-1

5-175778-1: DescriptionHEADER CONNECTOR,CABLE MNT,RECEPT,11 CONTACTS,SKT,0.079 PITCH,CRIMP TERMINAL,LOCKING,BLACK; CategoryThe connector The connector; File Size450KB，7 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

5-175778-1 Overview

HEADER CONNECTOR,CABLE MNT,RECEPT,11 CONTACTS,SKT,0.079 PITCH,CRIMP TERMINAL,LOCKING,BLACK

5-175778-1 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	COMPATIBLE CONTACTS: 1-175102-1; 175161-1
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	175778
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Total number of contacts	11
UL Flammability Code	94V-0
Base Number Matches	1

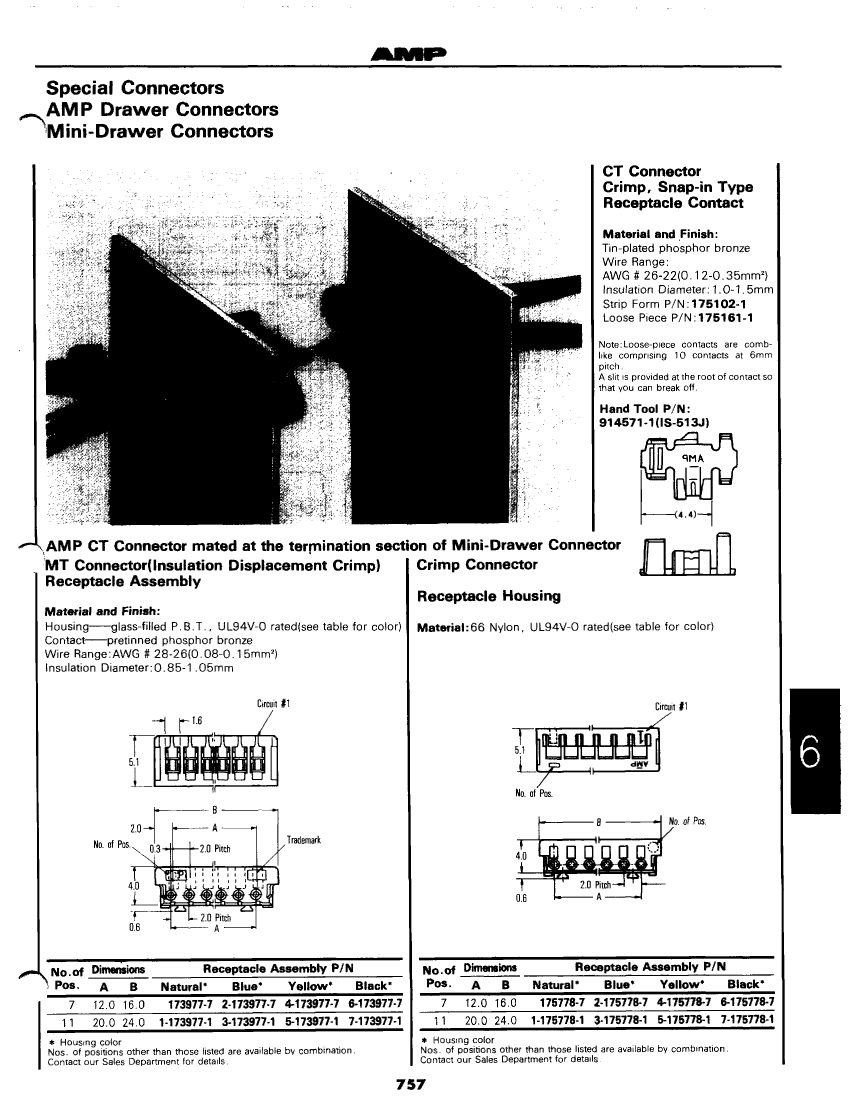

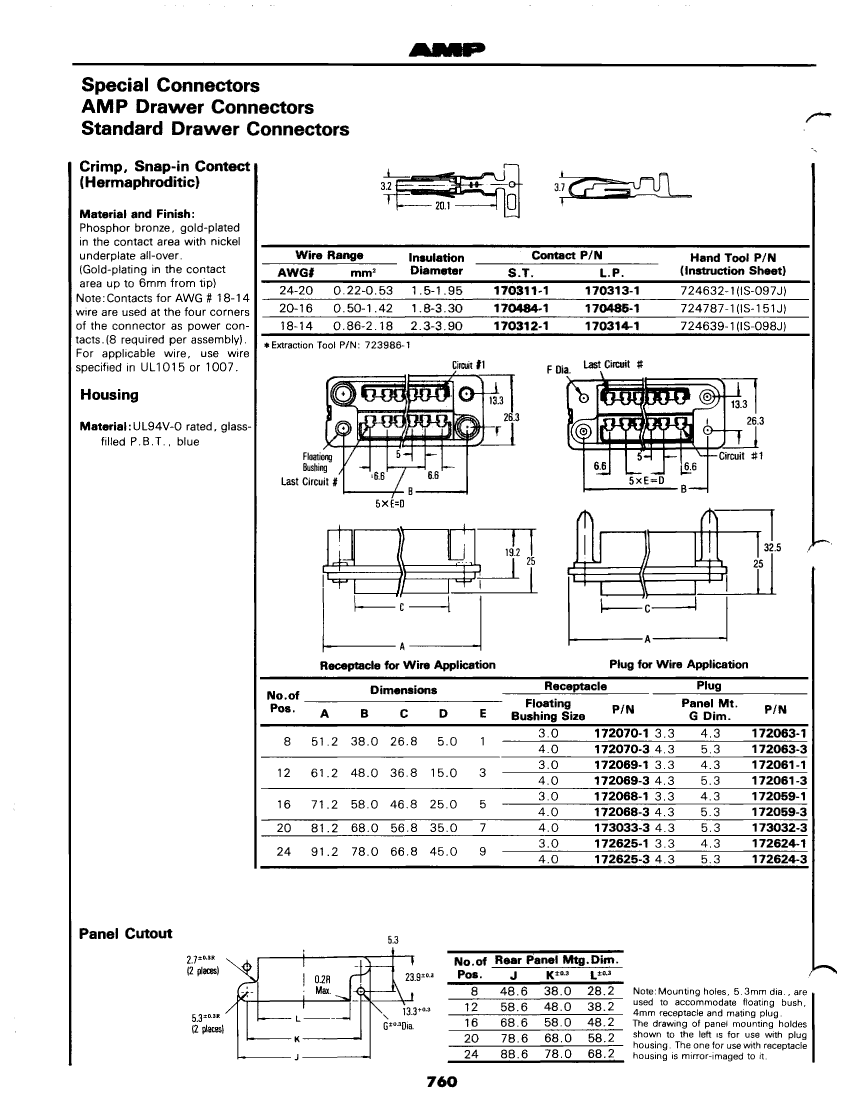

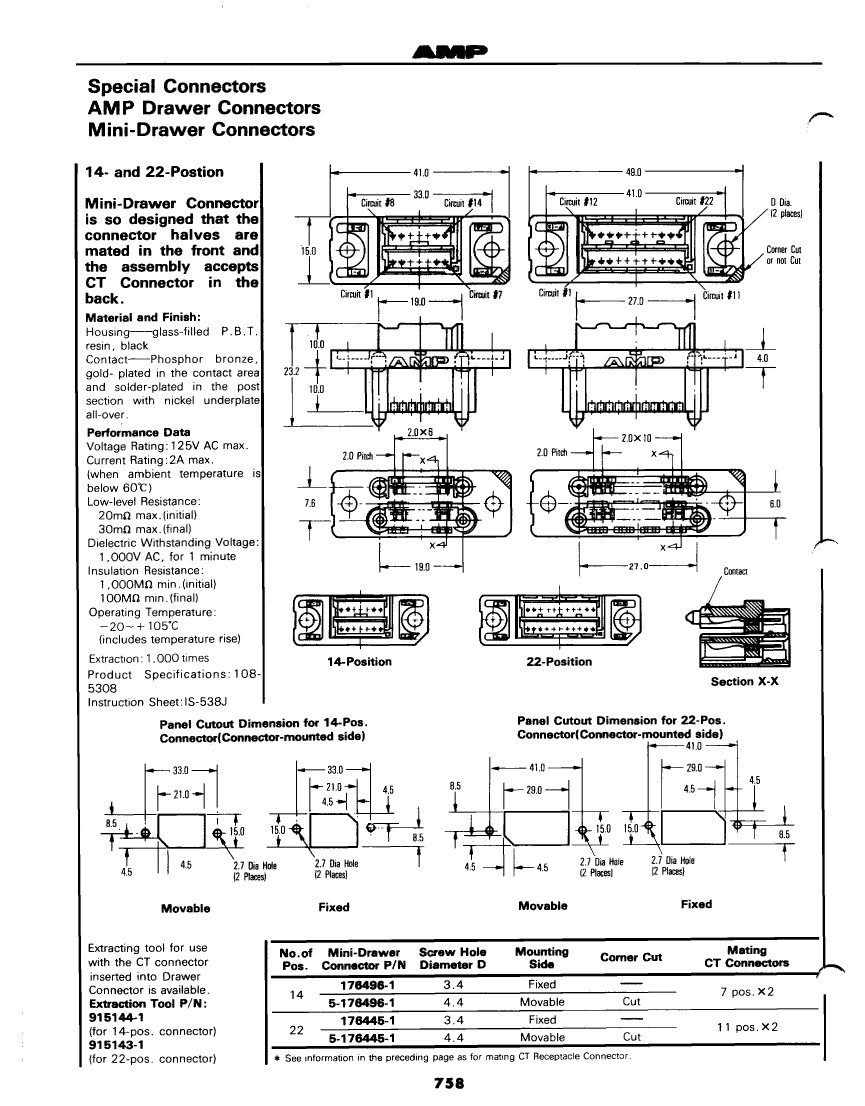

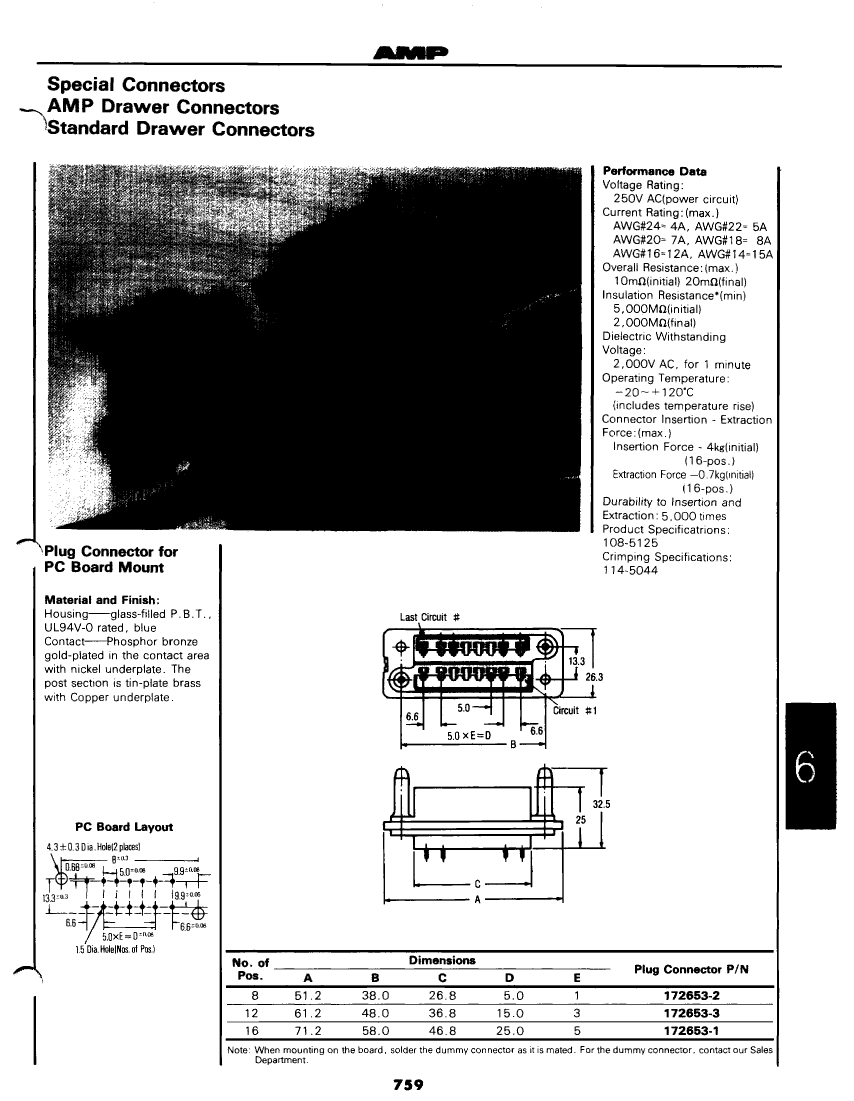

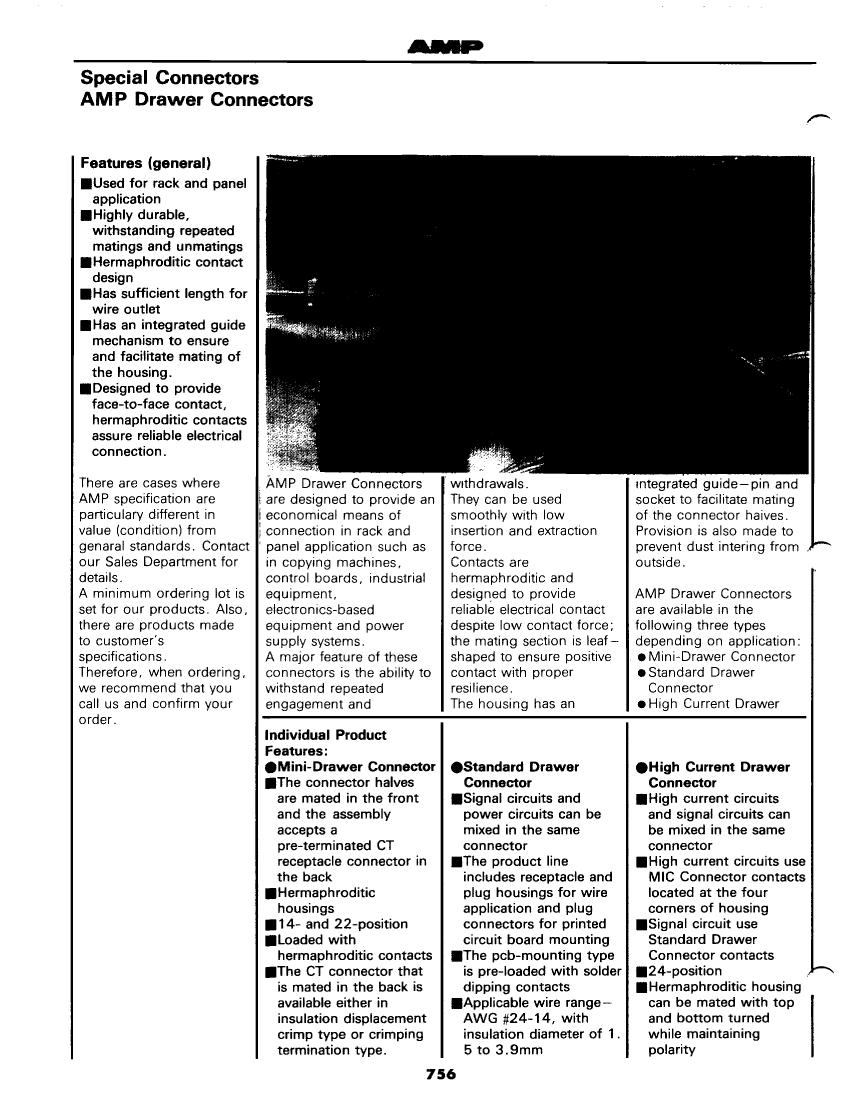

Preview

Download Datasheet

View All

5-175778-1 Related Products

	5-175778-1	4-175778-7	2-175778-7	EM8S3-19.2-1.0/0+50	NMC0201X7R271K50TRPF	176496-1	NRN11TS620J	NRN4LC620G50	7-175778-1
Description	HEADER CONNECTOR,CABLE MNT,RECEPT,11 CONTACTS,SKT,0.079 PITCH,CRIMP TERMINAL,LOCKING,BLACK	7 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR	7 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR	Clipped Sine Output Oscillator, 19.2MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, DIL-8/4	Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.00027uF, Surface Mount, 0201, CHIP, ROHS COMPLIANT	HEADER CONNECTOR,CABLE MNT,RECEPT,14 CONTACTS,PIN,0.079 PITCH,WIRE TERMINAL,HOLE .125-.137,BLACK	Array/Network Resistor, Dual Terminator, Cermet, 10W, 62ohm, 100V, 5% +/-Tol, -100,100ppm/Cel,	Array/Network Resistor, Ladder, Cermet, 10W, 62ohm, 100V, 2% +/-Tol, -100,100ppm/Cel, 4010,	HEADER CONNECTOR,CABLE MNT,RECEPT,11 CONTACTS,SKT,0.079 PITCH,CRIMP TERMINAL,LOCKING,BLACK
Reach Compliance Code	unknown	compli	compli	compliant	compliant	compliant	unknown	unknown	unknown
Other features	COMPATIBLE CONTACTS: 1-175102-1; 175161-1	COMPATIBLE CONTACTS: 1-175102-1; 175161-1	COMPATIBLE CONTACTS: 1-175102-1; 175161-1	-	-	FIXED MOUNTING SIDE	-	-	COMPATIBLE CONTACTS: 1-175102-1; 175161-1
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	-	BOARD CONNECTOR	-	-	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	-	-	MALE	-	-	FEMALE
Manufacturer's serial number	175778	175778	175778	-	-	176496	-	-	175778
Installation type	CABLE	CABLE	CABLE	-	-	CABLE	-	-	CABLE
Number of rows loaded	1	1	1	-	-	2	-	-	1
Total number of contacts	11	7	7	-	-	14	-	-	11
Is it Rohs certified?	-	conform to	conform to	conform to	conform to	incompatible	incompatible	incompatible	-
ECCN code	-	EAR99	EAR99	-	EAR99	-	EAR99	EAR99	-
Maximum operating temperature	-	105 °C	105 °C	50 °C	125 °C	120 °C	125 °C	125 °C	-
Minimum operating temperature	-	-30 °C	-30 °C	-	-55 °C	-20 °C	-55 °C	-55 °C	-
Objectid	-	-	-	2000742172	1696197509	-	839243406	818496689	1425174016
