SFM210-LPPE-S02-ST-BK datasheet, PDF

Datasheet> All Categories > The connector> The connector> SFM210-LPPE-S02-ST-BK

SFM210-LPPE-S02-ST-BK: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size128KB，2 Pages; ManufacturerSullins Connector Solutions

Download Datasheet Parametric Compare View All

SFM210-LPPE-S02-ST-BK Overview

Board Connector, 2 Contact(s), 1 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Locking, Black Insulator

SFM210-LPPE-S02-ST-BK Parametric

Parameter Name	Attribute value
Maker	Sullins Connector Solutions
Reach Compliance Code	compliant
body width	0.059 inch
subject depth	0.083 inch
body length	0.095 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	SFM210
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.094 inch
Terminal pitch	0.9906 mm
Termination type	SOLDER
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

Sullins Headers

1.00 mm [.039”] Female Headers, Straight & SMT

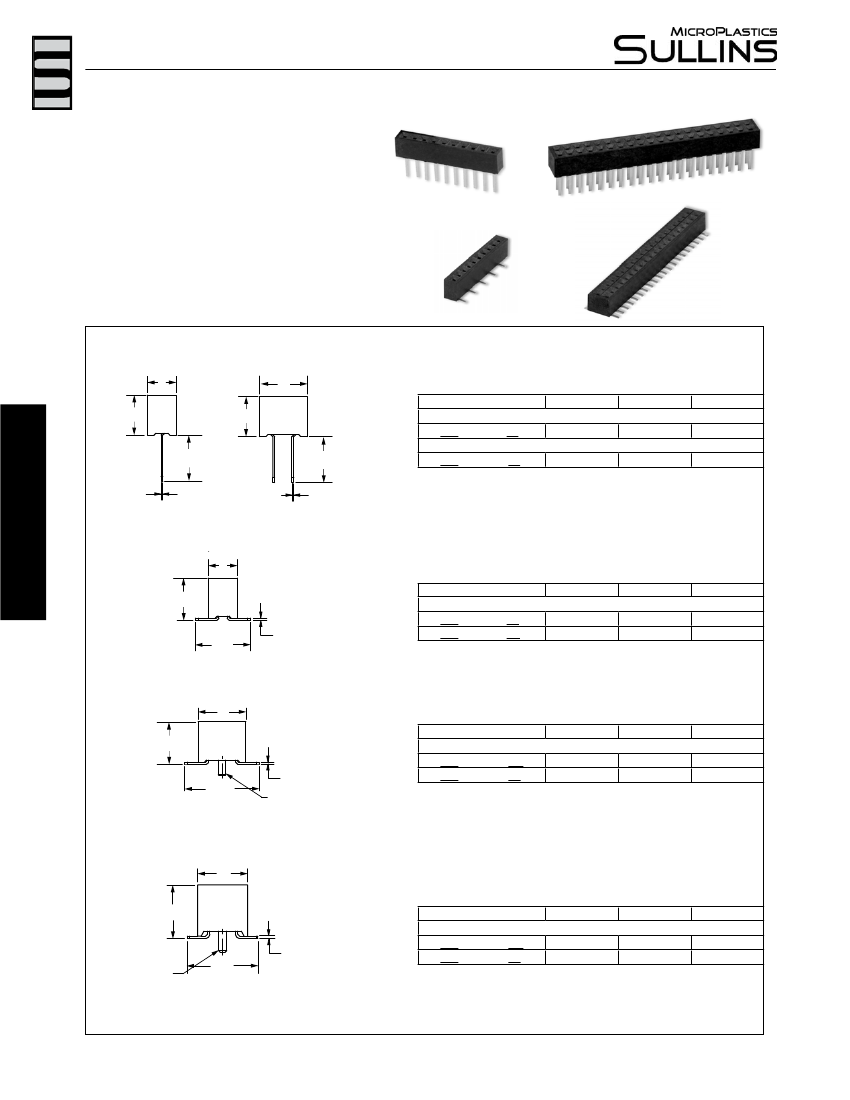

SPECIFICATIONS

• 1 amp current rating

• UL Flammability Rating: 94V-0

• Insulator Material: Black LCP

• Contact Material: Phosphor Bronze

• Contact Resistance: 20 Milli OHMS Max.

• Operating Temperature: -40

C to +125

• Processing Temperature: 260

C for 10 seconds Max.

• Mates with Male SMH series

TERMINATION TYPE

SFM210-LPPE-S10-ST-BK

EXAMPLE P/N

STRAIGHT

SINGLE ROW

2.10 [.083”]

1.50 [.059”]

DUAL ROW

2.10 [.083”]

2.50 [.098”]

TAIL

2.40 [.094”]

Sullins Headers

TAIL

0.10[.004"]

Single Row,

Straight, (ST)

TAIL

0.10[.004"]

Dual Row,

Straight, (ST)

SFM210-LPPE-D10-ST-BK

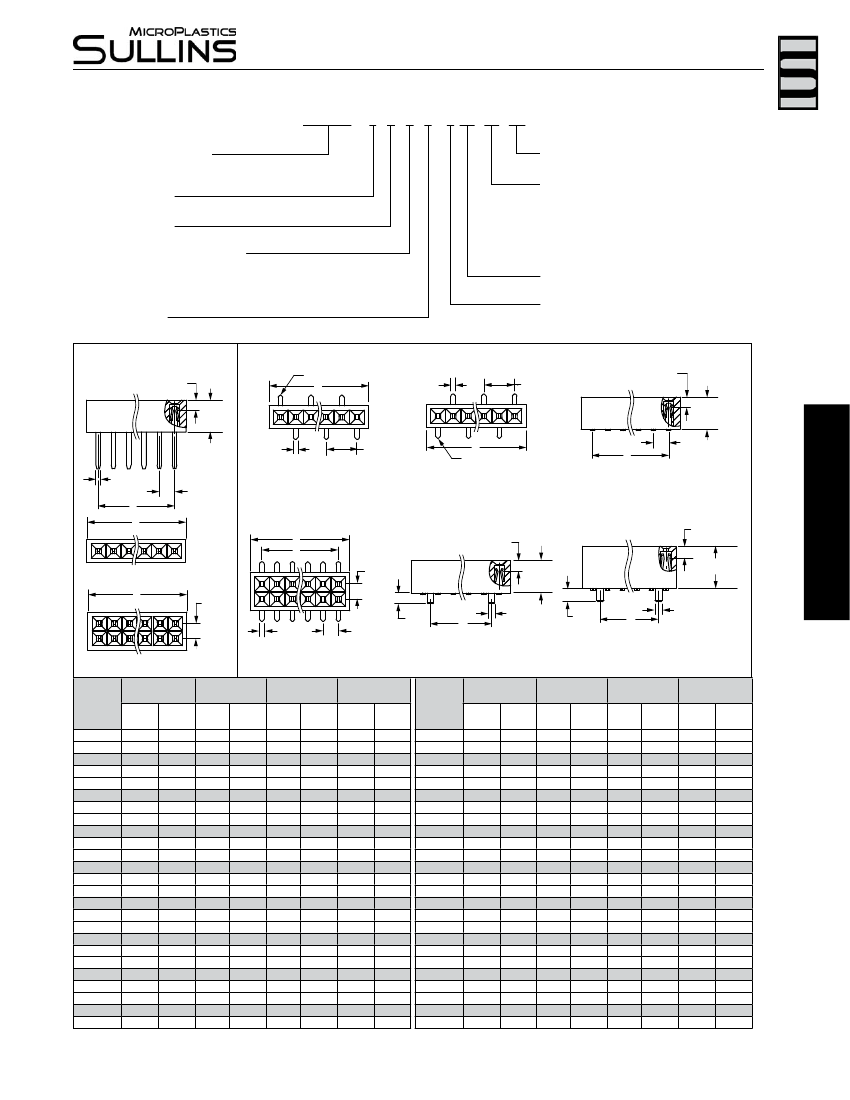

SURFACE MOUNT

EXAMPLE P/N

SFM210-LPPE-S10-SC-BK

SFM210-LPPE-S10-SD-BK

SINGLE ROW

2.20 [.087”]

1.50 [.059”]

2.20 [.087”]

1.50 [.059”]

TAIL

2.90 [.114”]

0.10[.004"]

TAIL

Single Row,

SMT, Pin 1 Left (SC) or

SMT, Pin 1 Right (SD)

SURFACE MOUNT

EXAMPLE P/N

SFM210-LPPE-D10-SM-BK

SFM210-LPPE-D10-SP-BK

DUAL ROW

2.20 [.087”]

2.50 [.098”]

TAIL

3.90 [.154”]

0.10[.004"]

TAIL

Optional

SFM210-, Dual Row,

SMT Without Guide Posts (SM)

or SMT With Guide Posts (SP)

SURFACE MOUNT

EXAMPLE P/N

SFM315-LPPE-D10-SM-BK

SFM315-LPPE-D10-SP-BK

DUAL ROW

3.30 [.130”]

3.07 [.121”]

TAIL

4.34 [.171”]

0.15[.006"]

Optional

TAIL

SFM315-, Dual Row,

SMT Without Guide Posts (SM)

or SMT With Guide Posts (SP)

www.sullinscorp.com

760-744-0125

toll-free 888-774-3100

fax 760-744-6081

info@sullinscorp.com

SFM210-LPPE-S02-ST-BK Related Products

	SFM210-LPPE-S02-ST-BK	SFM210-LPPE-S04-ST-BK	SFM210-LPPE-S06-ST-BK	SFM210-LPSE-S06-ST-BK
Description	Board Connector, 2 Contact(s), 1 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Locking, Black Insulator	Board Connector, 4 Contact(s), 1 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Locking, Black Insulator	Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Locking, Black Insulator	Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Locking, Black Insulator
Maker	Sullins Connector Solutions	Sullins Connector Solutions	Sullins Connector Solutions	Sullins Connector Solutions
Reach Compliance Code	compliant	compliant	compliant	compliant
body width	0.059 inch	0.059 inch	0.059 inch	0.059 inch
subject depth	0.083 inch	0.083 inch	0.083 inch	0.083 inch
body length	0.095 inch	0.173 inch	0.252 inch	0.252 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	SFM210	SFM210	SFM210	SFM210
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1
Number of rows loaded	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	FLASH inch	FLASH inch	FLASH inch	10u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.094 inch	0.094 inch	0.094 inch	0.094 inch
Terminal pitch	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	2	4	6	6
Base Number Matches	1	1	1	1
