ASSR-1411-001E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> ASSR-1411-001E

ASSR-1411-001E: DescriptionTRANSISTOR OUTPUT SOLID STATE RELAY, 3750V ISOLATION-MAX, ROHS COMPLIANT, PLASTIC, DIP-6; CategoryLED optoelectronic/LED photoelectric; File Size387KB，15 Pages; ManufacturerAVAGO; Websitehttp://www.avagotech.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ASSR-1411-001E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ASSR-1411-001E	-	-	View	Buy Now

ASSR-1411-001E Overview

TRANSISTOR OUTPUT SOLID STATE RELAY, 3750V ISOLATION-MAX, ROHS COMPLIANT, PLASTIC, DIP-6

ASSR-1411-001E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVAGO
package instruction	ROHS COMPLIANT, PLASTIC, DIP-6
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	17 weeks
Other features	CMOS COMPATIBLE
Configuration	SINGLE
control current	0.003 A
Maximum forward current	0.02 A
input type	DC
Maximum insulation voltage	3750 V
JESD-609 code	e3
Number of components	1
Maximum on-state resistance	0.5 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR
Output circuit type	MOSFET
total height	4.7 mm
total length	9.4 mm
Terminal surface	Tin (Sn)
Base Number Matches	1

Preview

Download Datasheet

View All

ASSR-1410, ASSR-1411 and ASSR-1420

General Purpose, Form A, Solid State Relay (Photo MOSFET)

(60V/0.6A/1Ω)

Data Sheet

Lead (Pb) Free

RoHS 6 fully

compliant

RoHS 6 fully compliant options available;

-xxxE denotes a lead-free product

Description

The ASSR-14XX Series consists of an AlGaAs infrared

light-emitting diode (LED) input stage optically cou-

pled to a high-voltage output detector circuit. The

detector consists of a high-speed photovoltaic diode

array and driver circuitry to switch on/off two discrete

high voltage MOSFETs. The relay turns on (contact

closes) with a minimum input current of 3mA through

the input LED. The relay turns off (contact opens) with

an input voltage of 0.8V or less.

The single channel configurations, ASSR-1410 and

ASSR-1411, are equivalent to 1 Form A Electromechani-

cal Relays (EMR), and the dual channel configuration,

ASSR-1420, is equivalent to 2 Form A EMR. They are

available in 4-pin SO, 6-pin DIP, 8-pin DIP and Gull

Wing Surface Mount for DIP packages. Their electrical

and switching characteristics are specified over the

temperature range of -40°C to +85°C. They are used for

general purpose switching of signals and low power

AC/DC loads.

ASSR-1411 enables AC/DC and DC-only output connec-

tions. For DC-only connection, the output current, Io,

increases to 1.2A and the on-resistance, R

(ON)

reduces

to 0.5Ω.

Features

•

Compact Solid-State Bi-directional Signal Switch

•

Single and Dual Channel Normally-off Single-Pole-

Single-Throw (SPST) Relay

•

60V Output Withstand Voltage

•

0.6A or 1.2A Current Rating

(See Schematic for ASSR-1411 Connection A and B)

•

Low Input Current: CMOS Compatibility

•

Low On-Resistance:

0.2

Ω

Typical for DC-only,

0.7

Ω

Typical for AC/DC

•

Very High Output Off-state Impedance:

10 Teraohms Typical

•

High Speed Switching:

0.1ms (Ton), 0.02ms (Toff ) Typical

•

High Transient Immunity: >1kV/µs

•

High Input-to-Output Insulation Voltage

(Safety and Regulatory Approvals)

- 3750 Vrms for 1 min per UL1577

- CSA Component Acceptance

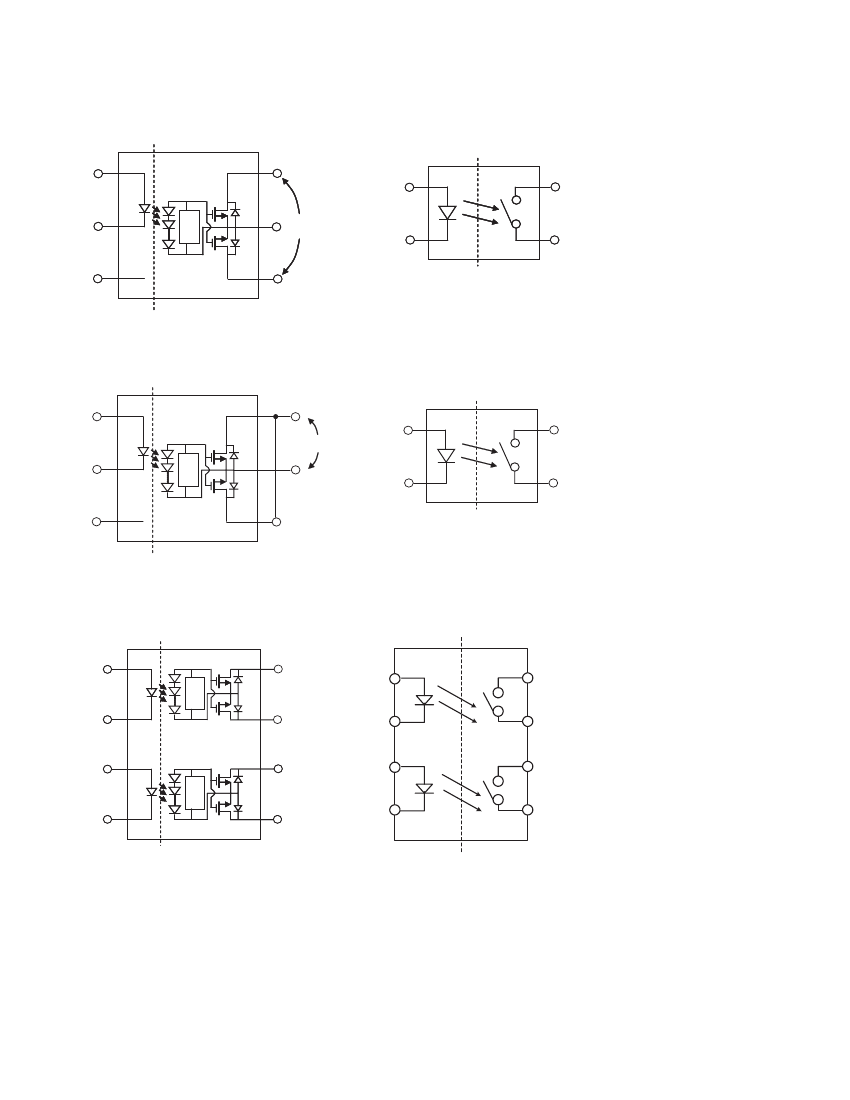

Functional Diagram

Opto-isolation

Applications

•

Telecommunication Switching

•

Data Communications

Turn-off

Circuit

Truth Table

LED

Off

Output

Open

•

Industrial Controls

•

Medical

•

Security

•

EMR / Reed Relay Replacement

Single Channel, SPST Relay,

1 Form A in 4-Pin SO Package

CAUTION: It is advised that normal static precautions be taken in handling and assembly

of this component to prevent damage and/or degradation which may be induced by ESD.

ASSR-1411-001E Related Products

	ASSR-1411-001E	ASSR-1420-002E
Description	TRANSISTOR OUTPUT SOLID STATE RELAY, 3750V ISOLATION-MAX, ROHS COMPLIANT, PLASTIC, DIP-6	DUAL TRANSISTOR OUTPUT SOLID STATE RELAY, 3750V ISOLATION-MAX, ROHS COMPLIANT, PLASTIC, DIP-8
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT, PLASTIC, DIP-6	ROHS COMPLIANT, PLASTIC, DIP-8
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Factory Lead Time	17 weeks	17 weeks
Other features	CMOS COMPATIBLE	CMOS COMPATIBLE
Configuration	SINGLE	COMPLEX
control current	0.003 A	0.003 A
Maximum forward current	0.02 A	0.02 A
input type	DC	DC
Maximum insulation voltage	3750 V	3750 V
JESD-609 code	e3	e3
Number of components	1	2
Maximum on-state resistance	0.5 Ω	1 Ω
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR
Output circuit type	MOSFET	MOSFET
total height	4.7 mm	3.56 mm
total length	9.4 mm	9.65 mm
Terminal surface	Tin (Sn)	Tin (Sn)
Base Number Matches	1	1
