75110PCQM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> 75110PCQM

75110PCQM: DescriptionLine Driver/Receiver, 2 Driver, BIPolar, PDIP14,; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size250KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

75110PCQM Overview

Line Driver/Receiver, 2 Driver, BIPolar, PDIP14,

75110PCQM Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP14,.3
Reach Compliance Code	compliant
ECCN code	EAR99
Differential output	YES
Number of drives	2
High level input current maximum value	0.00004 A
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
Humidity sensitivity level	2A
Nominal negative supply voltage	-5 V
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	CONSTANT-CURRENT
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	250
power supply	+-5 V
Certification status	Not Qualified
Maximum receive delay
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
maximum transmission delay	15 ns
Base Number Matches	1

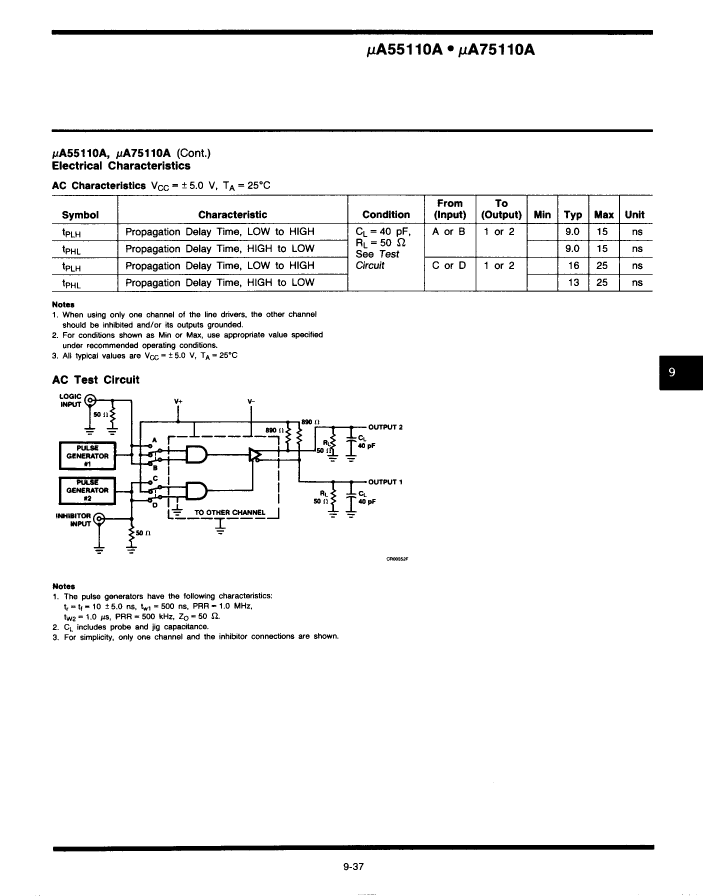

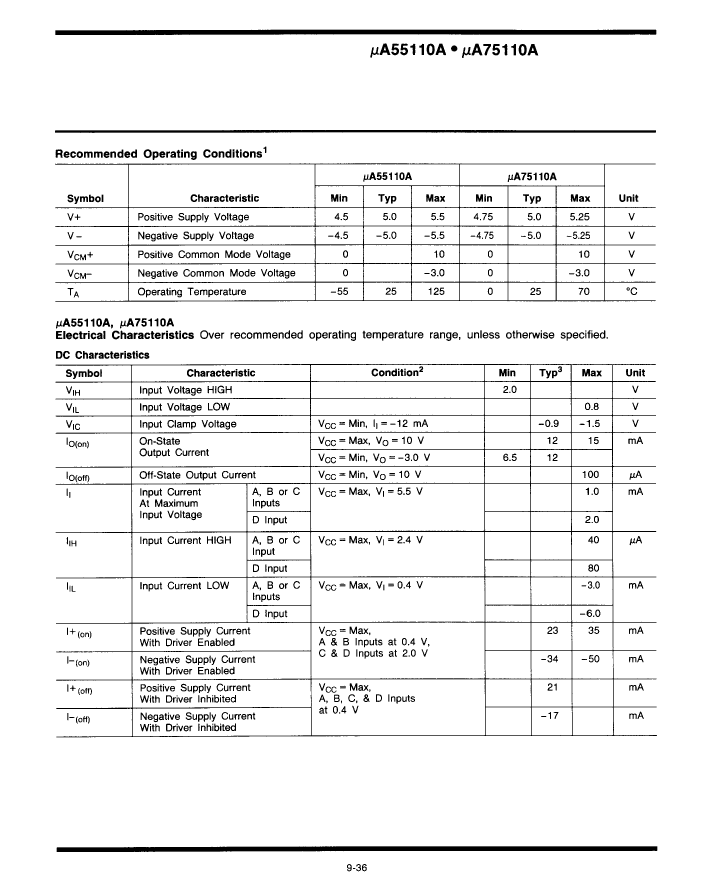

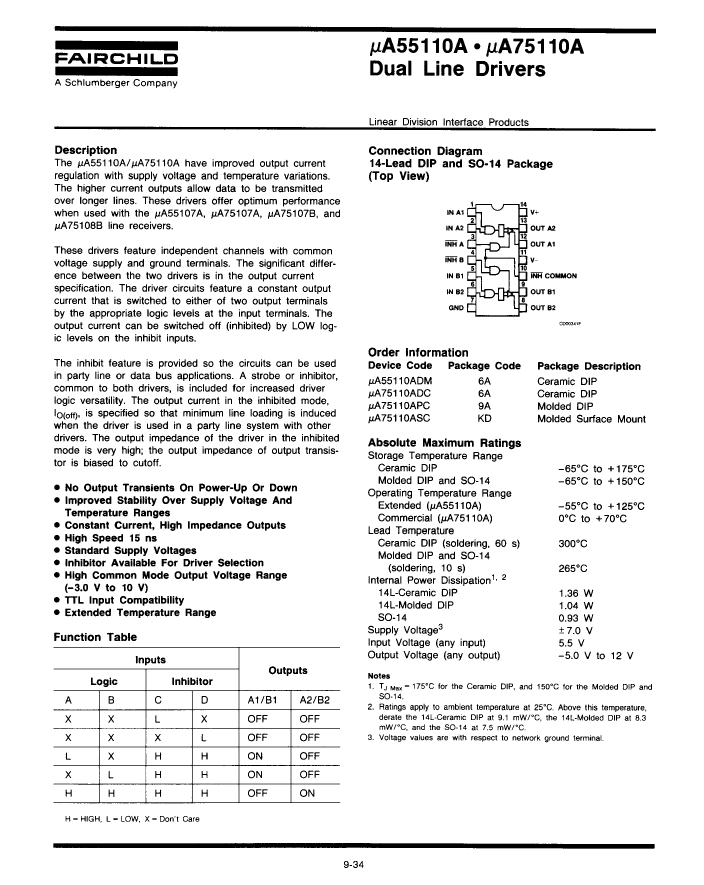

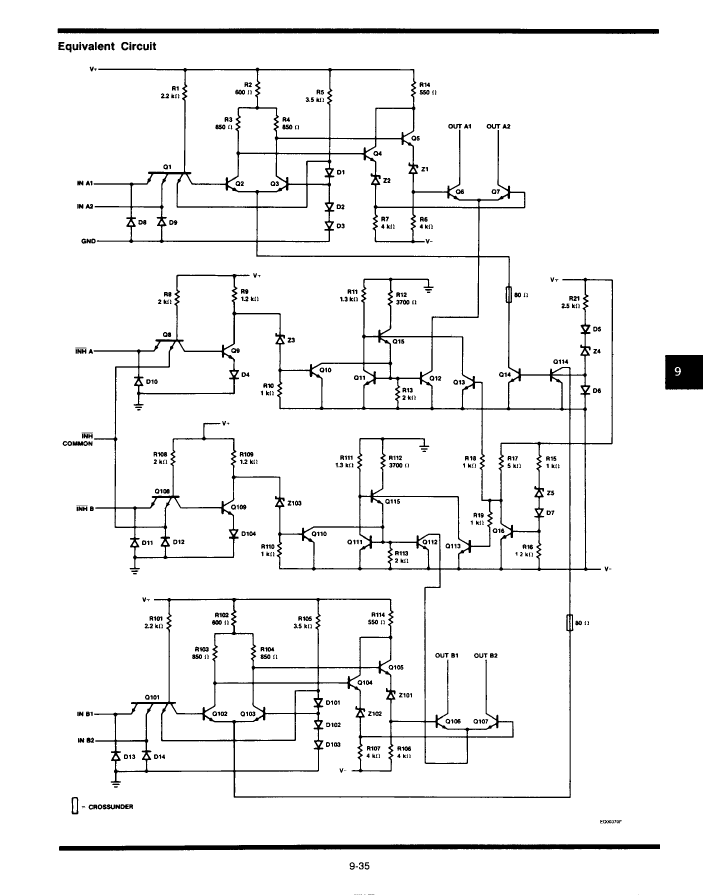

Preview

Download Datasheet

View All

75110PCQM Related Products

	75110PCQM	75112PCQM	75112PCQR	75110ADCQR	75110PC	75110PCQR	5962-01-112-5674
Description	Line Driver/Receiver, 2 Driver, BIPolar, PDIP14,	Line Driver/Receiver, 2 Driver, BIPolar, PDIP14,	Line Driver/Receiver, 2 Driver, BIPolar, PDIP14,	Line Driver/Receiver, 2 Driver, BIPolar, CDIP14,	Line Driver/Receiver, 2 Driver, BIPolar, PDIP14,	Line Driver/Receiver, 2 Driver, BIPolar, PDIP14,	Line Driver/Receiver, 2 Driver, BIPolar, CDIP14,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Differential output	YES	YES	YES	YES	YES	YES	YES
Number of drives	2	2	2	2	2	2	2
High level input current maximum value	0.00004 A	0.00004 A	0.00004 A	0.00004 A	0.00004 A	0.00004 A	0.00004 A
JESD-30 code	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14	R-XDIP-T14	R-PDIP-T14	R-PDIP-T14	R-XDIP-T14
Humidity sensitivity level	2A	2A	2A	2A	2A	2A	2A
Nominal negative supply voltage	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Number of terminals	14	14	14	14	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	125 °C
Output characteristics	CONSTANT-CURRENT	CONSTANT-CURRENT	CONSTANT-CURRENT	CONSTANT-CURRENT	CONSTANT-CURRENT	CONSTANT-CURRENT	CONSTANT-CURRENT
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	250	250	250	250	250	250	250
power supply	+-5 V	+-5 V	+-5 V	+-5 V	+-5 V	+-5 V	+-5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30	30	30	30
maximum transmission delay	15 ns	15 ns	15 ns	15 ns	15 ns	15 ns	15 ns
JESD-609 code	e0	e0	e0	e0	e0	e0	-
Certification status	Not Qualified	Not Qualified	-	-	Not Qualified	-	Not Qualified
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Base Number Matches	1	1	1	1	1	1	-
