DSAZR2-452M

Description
Surge Protection Circuit, PSIP2, ROHS COMPLIANT, SIP-2
CategoryWireless rf/communication    Telecom circuit
File Size343KB,3 Pages
ManufacturerMitsubishi Materials Corporation
Environmental Compliance
Download Datasheet Parametric Compare View All

DSAZR2-452M Overview

Surge Protection Circuit, PSIP2, ROHS COMPLIANT, SIP-2

DSAZR2-452M Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMitsubishi Materials Corporation
package instructionSIP,
Reach Compliance Codeunknown
JESD-30 codeR-PSIP-P2
length21.5 mm
Number of functions1
Number of terminals2
Package body materialPLASTIC/EPOXY
encapsulated codeSIP
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum seat height29 mm
surface mountNO
Telecom integrated circuit typesSURGE PROTECTION CIRCUIT
Terminal formPIN/PEG
Terminal pitch12.5 mm
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
width8.5 mm
Base Number Matches1
Addresses
Contact Us
Products Conforming to RoHS Directive

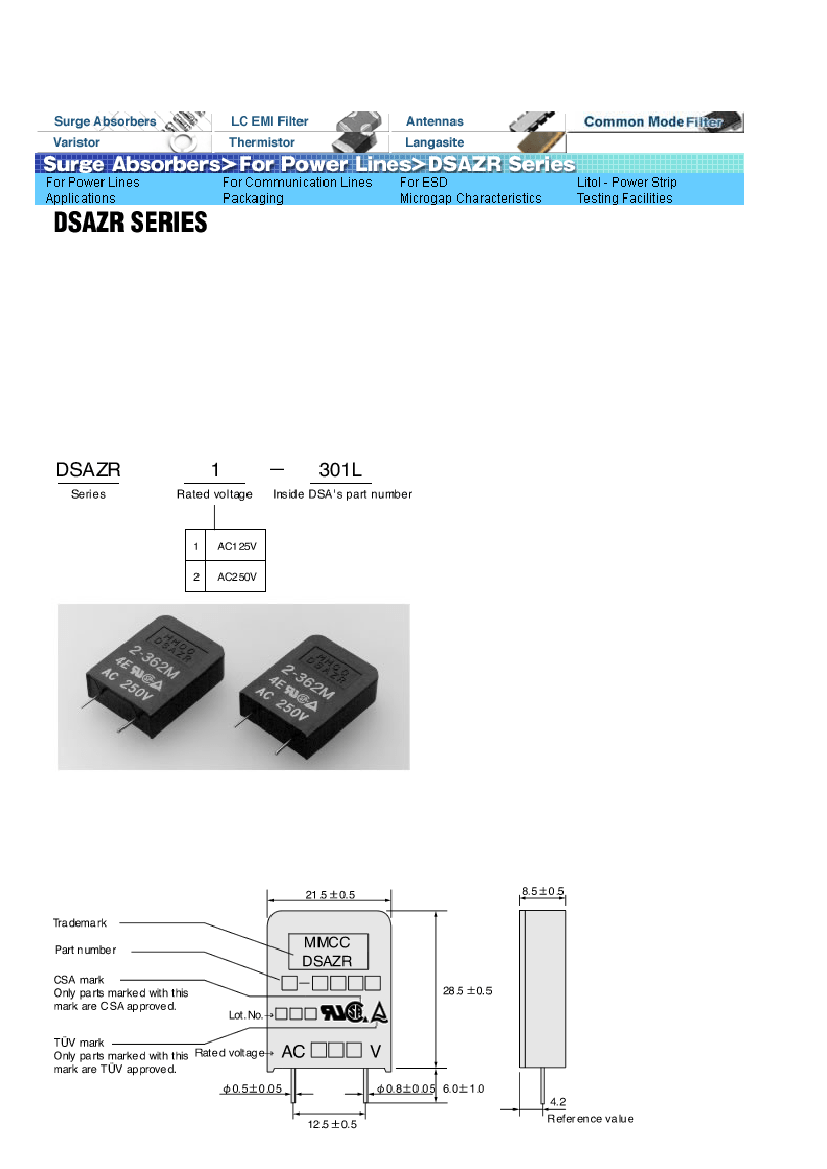

Features
.
Used to protect power supplies.
.
Excellent for protecting TV-tuner circuits.
.
Some models are recognized by UL, CSA and TÜV.
Part number system
Dimensions
