7229-1511-061: DescriptionRF SSMB Connector, Male, Panel Mount, Board Mount, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size83KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

7229-1511-061 Overview

RF SSMB Connector, Male, Panel Mount, Board Mount, Surface Mount Terminal, Receptacle

7229-1511-061 Parametric

Parameter Name	Attribute value
Maker	Radiall
Reach Compliance Code	unknown
Other features	STANDARD: MIL-PRF-39012, INSERTION LOSS MAX AT 1.5 GHZ
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF SSMB CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.3 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	SSMB
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	12.4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SURFACE MOUNT
Base Number Matches	1

Preview

Download Datasheet

View All

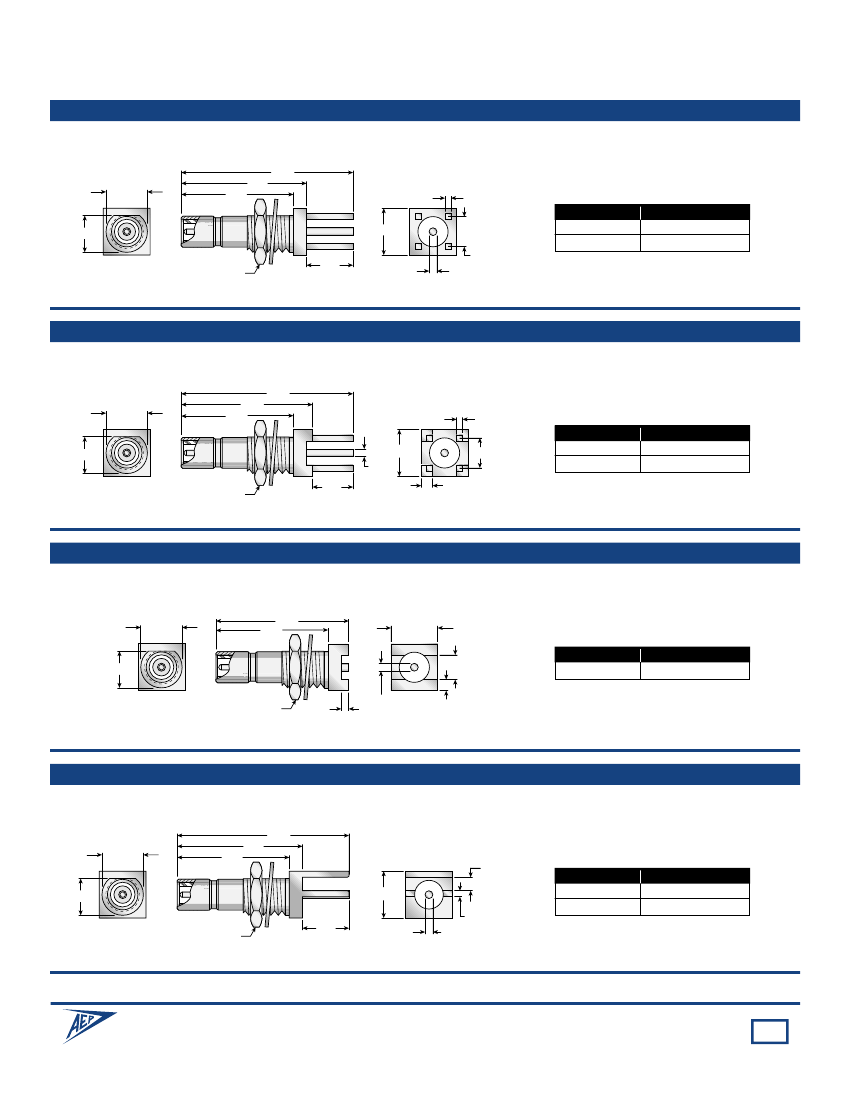

SSMB P.C. Board Receptacles

Straight Bulkhead Mounted P.C. Board Receptacle

Standard legs

(.125" max panel thickness)

.585

.140 dia.

§

.430

.386

.020 sq. (typ.)

.156 sq.

.155

.100 (typ.)

.026 dia.

.126

§

§ Recommended

3

mounting hole size,

Hex /16 A. F.

tolerance +.003, -.000

LEG FINISH

GOLD

PRETINNED

AEP P/N

7229-1511-000

7229-1511-012

Straight Bulkhead Mounted P.C. Board Receptacle

Standoff legs

(.125" max panel thickness)

.585

.140 dia.

§

.450

.386

.020 sq. (typ.)

.156 sq.

.026

dia.

.100 (typ.)

.038 sq. (typ.)

.126

§

§ Recommended

3

mounting hole size,

Hex /16 A. F.

tolerance +.003, -.000

LEG FINISH

GOLD

PRETINNED

AEP P/N

7229-1511-050

7229-1511-040

.135

Straight Bulkhead Mounted P.C. Board Receptacle—Surface

Mount

Top mount

(.125" max panel thickness)

.140 dia.

§

.455

.386

.156 sq.

.080

.126

§

§ Recommended

3

mounting hole size,

Hex /16 A. F.

tolerance +.003, -.000

LEG FINISH

GOLD

.025

.026 dia.

.038 (typ.)

AEP P/N

7229-1511-015

Straight Bulkhead Mounted P.C. Board Receptacle—Surface

Mount

Edge mount

(.125" max panel thickness)

.585

.140 dia.

§

.430

.386

.031

.126

§

§ Recommended

3

mounting hole size,

Hex /16 A. F.

tolerance +.003, -.000

(P.C. board

thickness)

.156 sq.

.155

.026 dia.

.020 (typ.)

LEG FINISH

GOLD

PRETINNED

AEP P/N

7229-1511-060

7229-1511-061

See page 1 for more information on P.C. board connectors with standoff legs, pretinned legs, and surface mount conﬁgurations.

APPLIED ENGINEERING PRODUCTS

(203) 776-2813 • FAX (203) 776-8294

www.aepconnectors.com • aepsales@aepconnectors.com

11
