MCSOHV/BJ125MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> MCSOHV/BJ125MHZ

MCSOHV/BJ125MHZ: DescriptionCMOS Output Clock Oscillator, 125MHz Nom, J-LEADED PACKAGE-4; CategoryPassive components oscillator; File Size61KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

MCSOHV/BJ125MHZ Overview

CMOS Output Clock Oscillator, 125MHz Nom, J-LEADED PACKAGE-4

MCSOHV/BJ125MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Golledge Electronics
Reach Compliance Code	compliant
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL; TRAY
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	MCSOHV
Installation features	SURFACE MOUNT
Nominal operating frequency	125 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
physical size	14.1mm x 9.3mm x 2.4mm
longest rise time	3 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %
Base Number Matches	1

Preview

Download Datasheet

View All

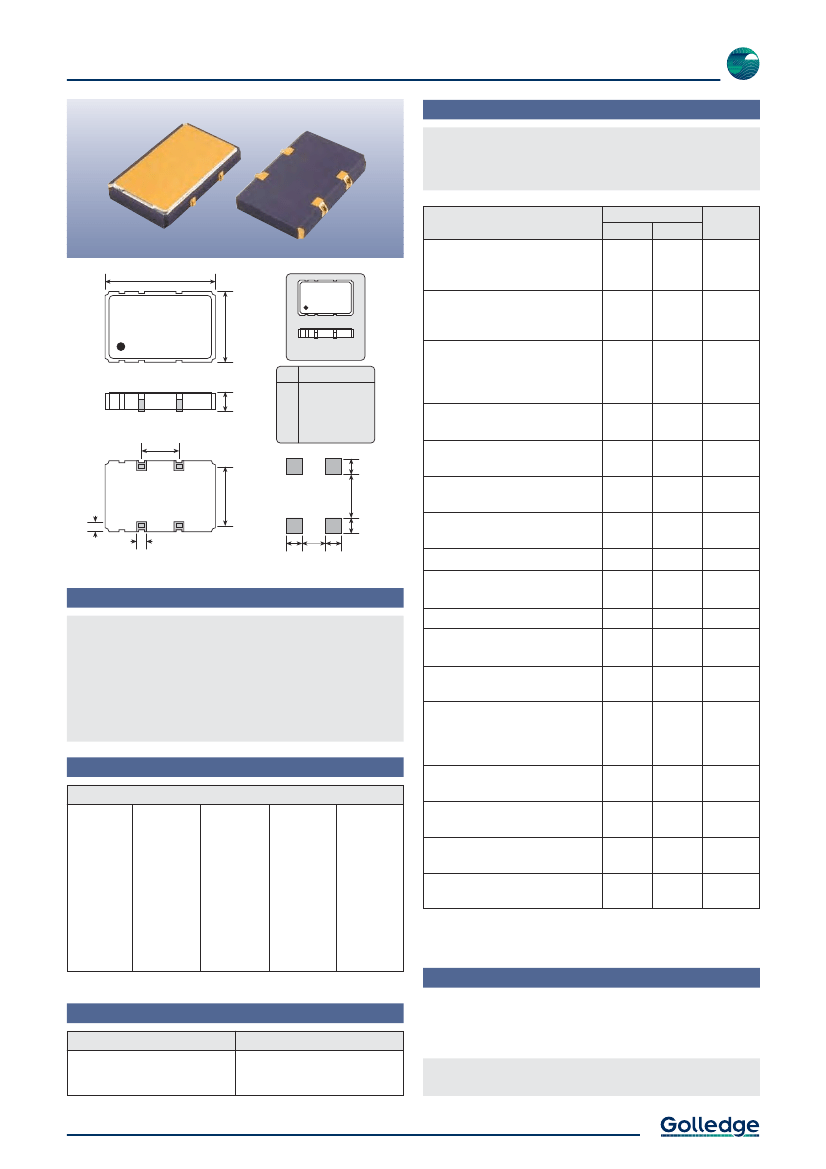

3.3V CMOS Oscillator Mil Temp

MCSOV & MCSOHV

Specifications

MCSOV: 10.0kHz ~ 20.0MHz

MCSOHV: 20.0 ~ 160MHz

Parameters

14.10

Product

MCSOV MCSOHV

Option

Codes

Frequency range:

10.0kHz ~ 20.0MHz

20.0 ~ 160MHz

Frequency stability*:

9.30

±100ppm

±50ppm

tighter stabilities on request

specify

ACTUAL SIZE

PAD

2.40

5.08

CONNECTION

Not connected or

Enable/Disable

Operating temperature range:

0 to +70°C

-40 to +85°C

-55 to +125°C

Operable temperature range:

-55 to +125°C

2.00

Ground

Output

Supply

Storage temperature range:

-65 to +125°C

Supply voltage (V

+3.3V (±10%)

Supply current (max):

Driving ability:

10mA

30mA

CMOS

1.30

7.30

5.62

2.00

1.30

2.00 3.08 2.00

TOP VIEW

Scale 2:1

Features

Logic levels:

‘0' level = +0.4V max

‘1' level = 90%V

min

Start up time:

5ms max

Military temperature range option

Excellent shock & vibration resistance

Enable / disable tristate option (> 500kHz)

J-leads option

Waveform symmetry:

40:60 max @ 50%V

Rise / fall times:

7ns max

3ns max

Standard Frequencies

Frequencies in MHz

10.00000*

10.15000*

10.23000*

10.24000*

11.05920*

12.00000*

12.28800*

12.80000*

13.00000*

14.74560*

16.00000*

16.38400*

18.43200*

19.20000*

19.66080*

20.00000*

40.00000

40.60000

40.96000

44.23680

48.00000

49.15200

50.00000

50.75000

51.15000

51.20000

52.00000

55.29600

58.98240

60.00000

60.90000

61.38000

61.44000

64.00000

65.00000

65.53600

66.35520

72.00000

73.72800

76.80000

78.00000

80.00000

81.20000

81.84000

81.92000

88.47360

90.00000

96.00000

98.30400

100.00000

102.40000

104.00000

108.00000

110.59200

117.96400

120.00000

125.00000

128.00000

131.07200

132.71040

144.00000

150.00000

160.00000

Enable / disable function:

None (pad 1 NC)

Tristate* (control via pad 1)

* not available under 500kHz

Terminations:

Stand-offs

J-leads (drawing on request)

Shock resistance:

5,000G, 0.3ms, ½ sine

Vibration resistance:

10G rms 10.0 ~ 2,000Hz

Soldering condition:

260°C, 10 sec max

Standard.

Optional - Please specify required code(s) when ordering

* Frequency stability is inclusive of calibration @ 25°C, operating temperature range, supply

voltage change, load change and ageing over 10 years.

* Binary divisions of the above frequencies also available.

Ordering Information

Product name + option codes (if any) + frequency

eg:

MCSOV/BE 16.0MHz

±100ppm -40 to +85°C Enable / disable

MCSOHV/TAJ 120MHz

±50ppm 0 to +70°C, J-leads

Option code X (eg MCSOV/X) denotes a custom specification.

Available on T&R (1k pcs/reel) or trays (50pcs/tray).

Refer to our website for T&R and soldering details.

Enable / Disable Function

Input (pad 1)

Open

‘1’ level

‘0’ level

Output (pad 3)

Enabled

High Impedance

Tel:

+44 1460 256 100

18 Oct 2004

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
