QS54FCT2534TZB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> QS54FCT2534TZB

QS54FCT2534TZB: DescriptionBus Driver, FCT Series, 1-Func, 8-Bit, Inverted Output, CMOS, PZIP20,; Categorylogic logic; File Size121KB，6 Pages; ManufacturerQuality Semiconductor Inc

Download Datasheet Parametric Compare View All

QS54FCT2534TZB Overview

Bus Driver, FCT Series, 1-Func, 8-Bit, Inverted Output, CMOS, PZIP20,

QS54FCT2534TZB Parametric

Parameter Name	Attribute value
Maker	Quality Semiconductor Inc
Reach Compliance Code	unknown
series	FCT
JESD-30 code	R-PZIP-T20
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	11 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	ZIG-ZAG
Base Number Matches	1

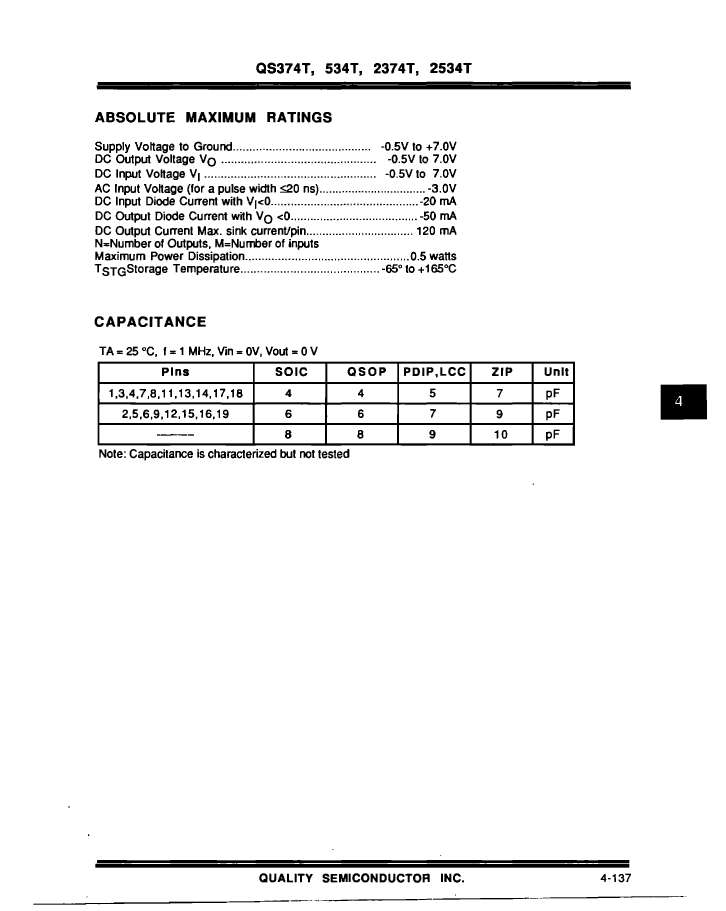

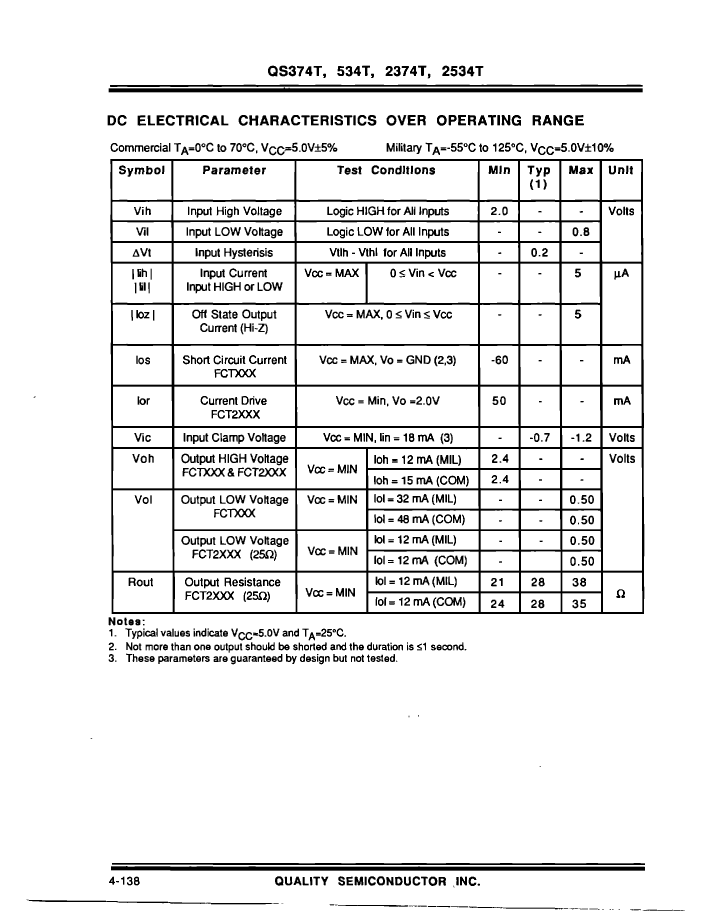

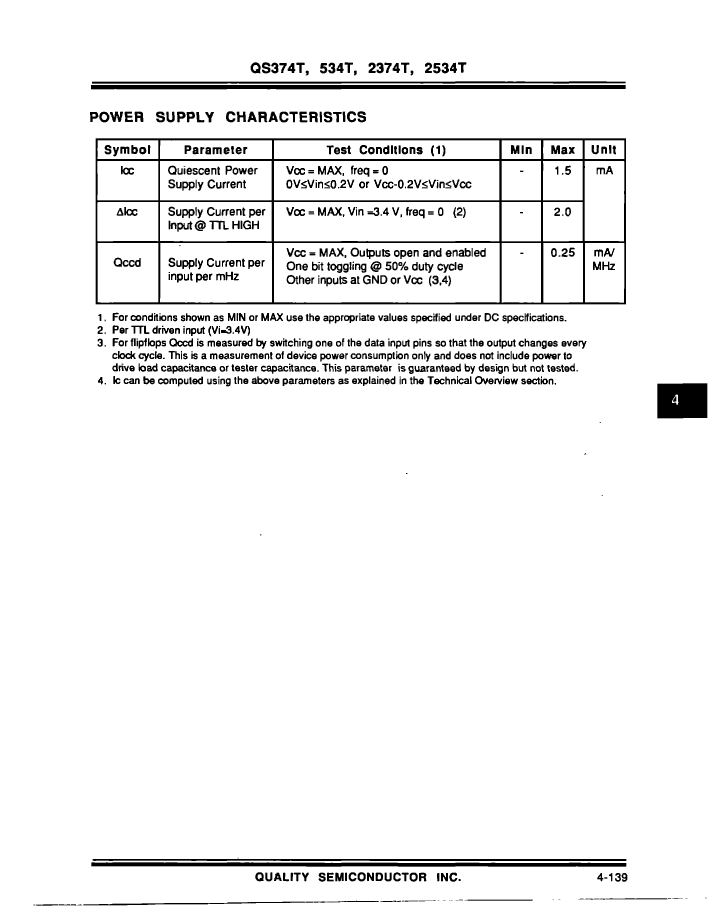

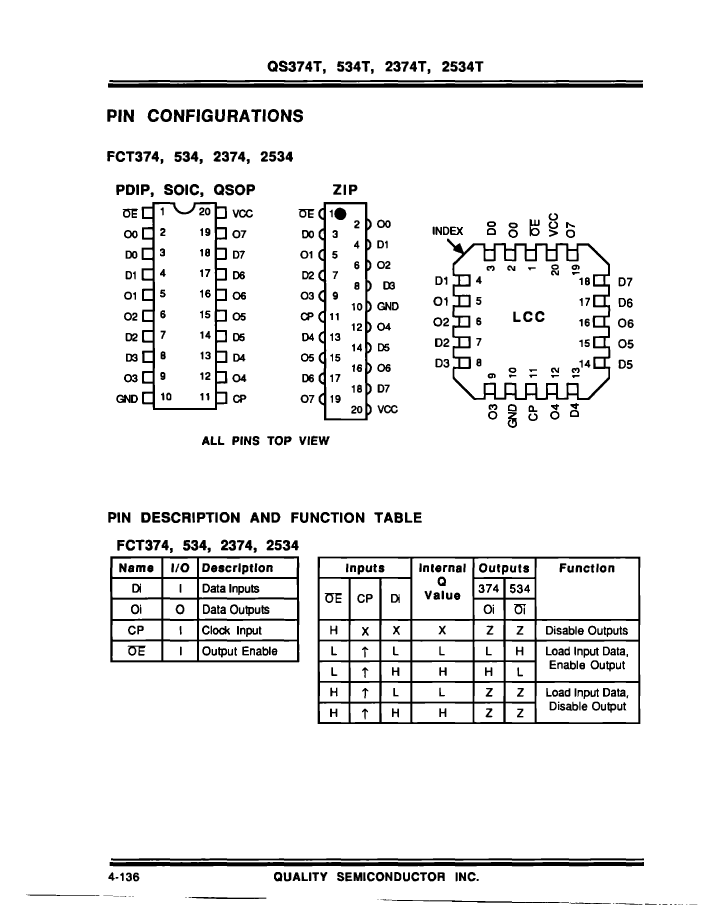

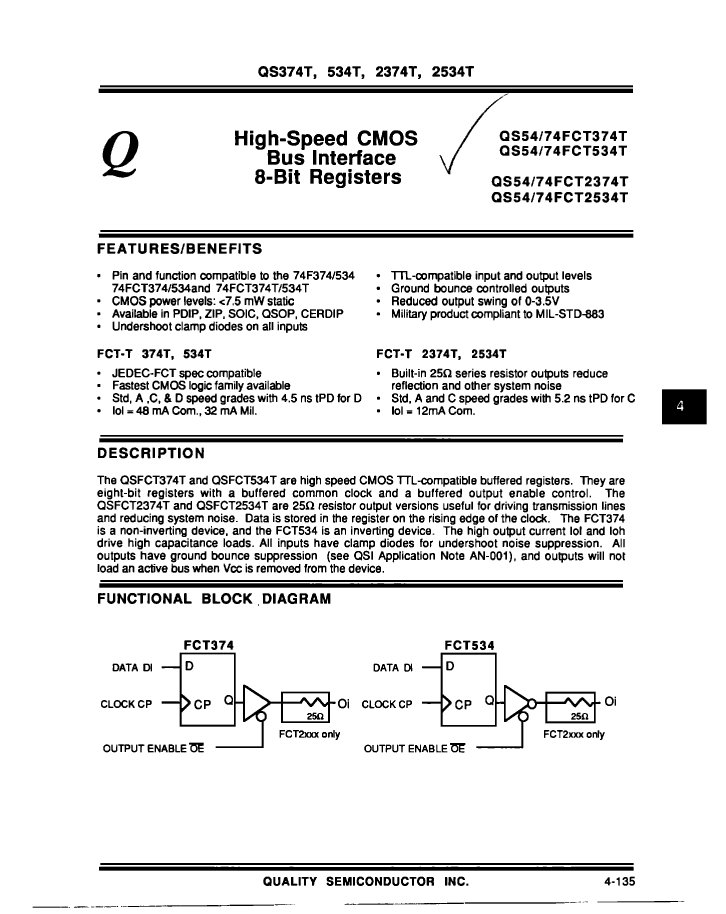

Preview

Download Datasheet

View All

QS54FCT2534TZB Related Products

	QS54FCT2534TZB	QS54FCT2534ATZB	QS54FCT534ATZB	QS54FCT534TZB
Description	Bus Driver, FCT Series, 1-Func, 8-Bit, Inverted Output, CMOS, PZIP20,	Bus Driver, FCT Series, 1-Func, 8-Bit, Inverted Output, CMOS, PZIP20,	Bus Driver, FCT Series, 1-Func, 8-Bit, Inverted Output, CMOS, PZIP20,	Bus Driver, FCT Series, 1-Func, 8-Bit, Inverted Output, CMOS, PZIP20,
Maker	Quality Semiconductor Inc	Quality Semiconductor Inc	Quality Semiconductor Inc	Quality Semiconductor Inc
Reach Compliance Code	unknown	unknown	unknown	unknown
series	FCT	FCT	FCT	FCT
JESD-30 code	R-PZIP-T20	R-PZIP-T20	R-PZIP-T20	R-PZIP-T20
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8	8
Number of functions	1	1	1	1
Number of ports	2	2	2	2
Number of terminals	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
propagation delay (tpd)	11 ns	7.2 ns	7.2 ns	11 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	ZIG-ZAG	ZIG-ZAG	ZIG-ZAG	ZIG-ZAG
