SVN2-31S-TG2-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> SVN2-31S-TG2-T

SVN2-31S-TG2-T: DescriptionD Nanominiature Connector, 31 Contact(s), Female, Surface Mount Terminal, Receptacle,; CategoryThe connector The connector; File Size370KB，4 Pages; ManufacturerCristek Interconnects Inc

Download Datasheet Parametric View All

SVN2-31S-TG2-T Overview

D Nanominiature Connector, 31 Contact(s), Female, Surface Mount Terminal, Receptacle,

SVN2-31S-TG2-T Parametric

Parameter Name	Attribute value
Maker	Cristek Interconnects Inc
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	RECEPTACLE
Connector type	D NANOMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER/POLYPHENYLENE SULFIDE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SVN2
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	GOLD
Shell material	ALUMINUM ALLOY
Termination type	SURFACE MOUNT
Total number of contacts	31
Base Number Matches	1

Preview

Download Datasheet

View All

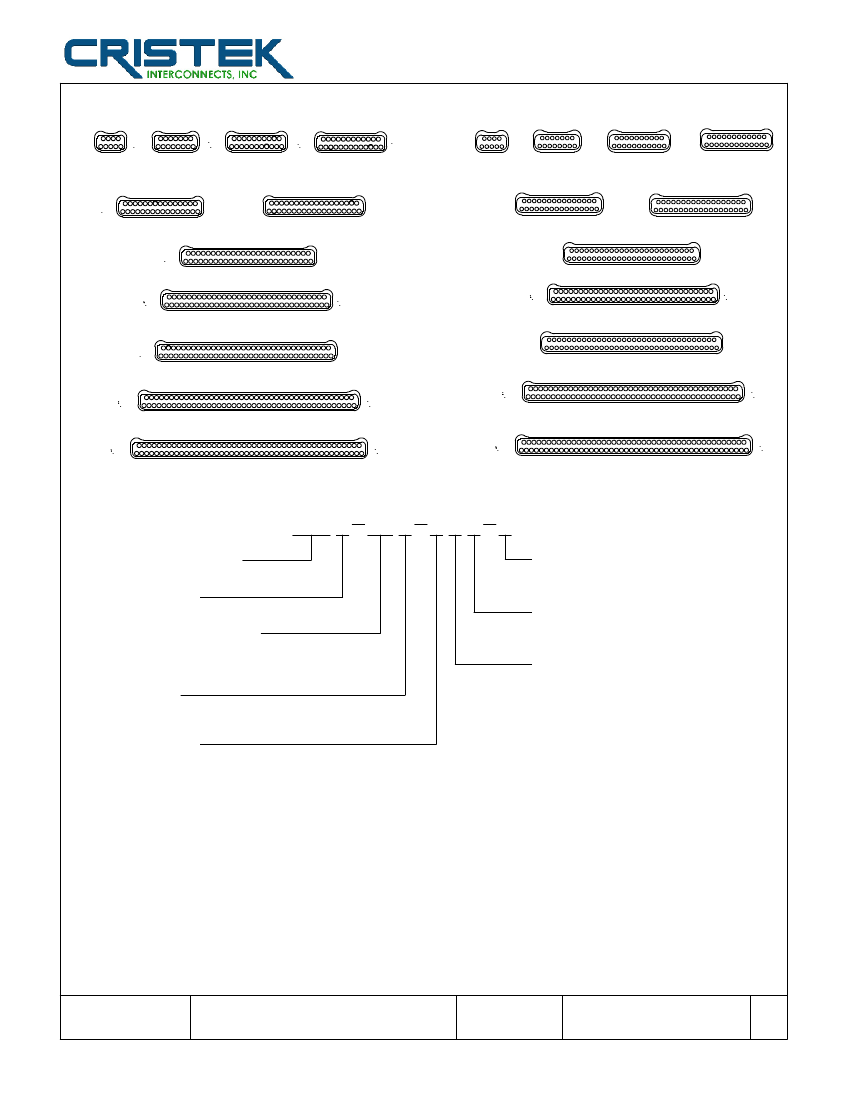

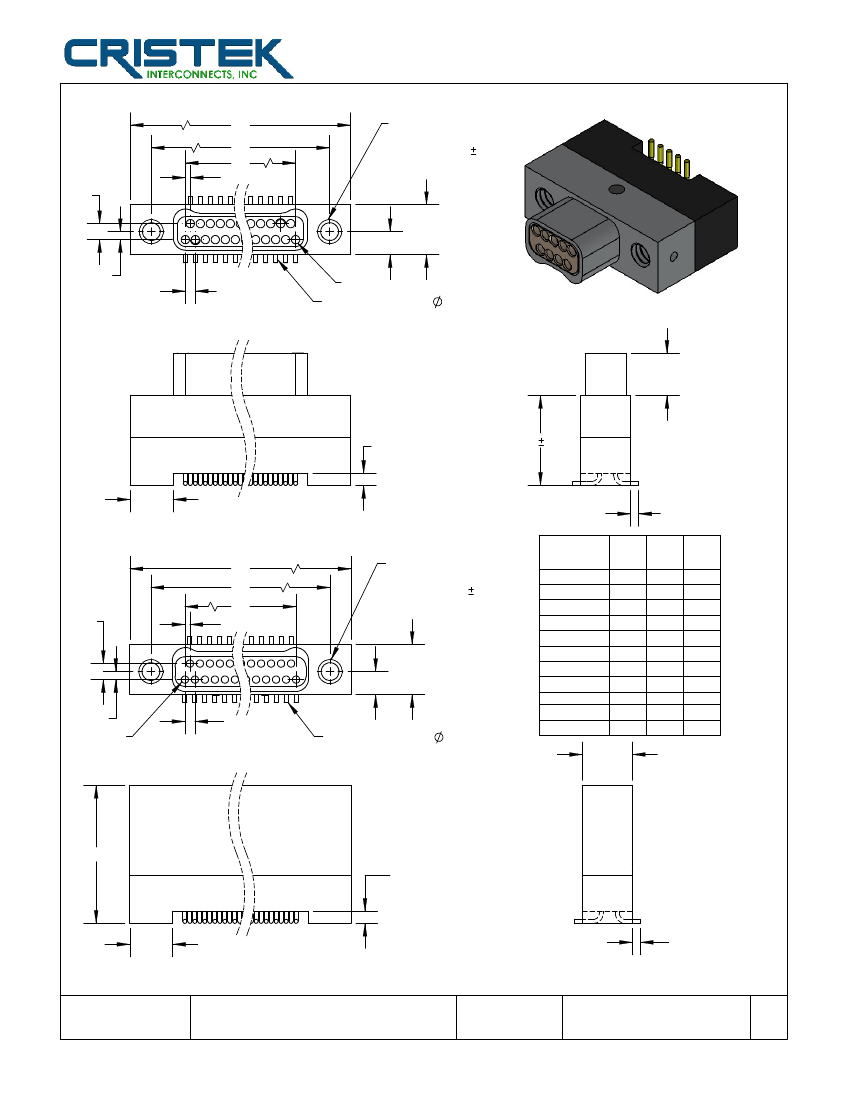

SERIES

SVN2

NANO METAL SHELL DUAL ROW

VERTICAL SURFACE MOUNT

.0125

.040

.125

.0575

.020

.025

POS 1

30 AWG SOLID WIRE (

.010 TYP)

2x #0-80 UNF-2B

THREADED HOLE

(OPTIONAL .070 .002

THRU HOLE)

.105

.030

.225 .010

.1075

PLUG

.040

.0125

2x #0-80 UNF-2B

THREADED HOLE

(OPTIONAL .070 .002

THRU HOLE)

NO. OF

CONTACTS

SEE TERMINATION

OPTIONS

.375

.450

.525

.575

.650

.725

.900

1.075

1.125

1.377

1.452

.270

.345

.420

.470

.545

.620

.795

.970

1.020

1.246

1.321

.100

.175

.250

.300

.375

.450

.625

.800

.850

1.050

1.125

.125

.0575

.020

POS 1

.025

30 AWG SOLID WIRE (

.010 TYP)

.125

.255

.030

.106

RECEPTACLE

TOLERANCE: .XXX ±.005

.XX ±.01

ANGLE ±1°

TITLE

SEE TERMINATION

OPTIONS

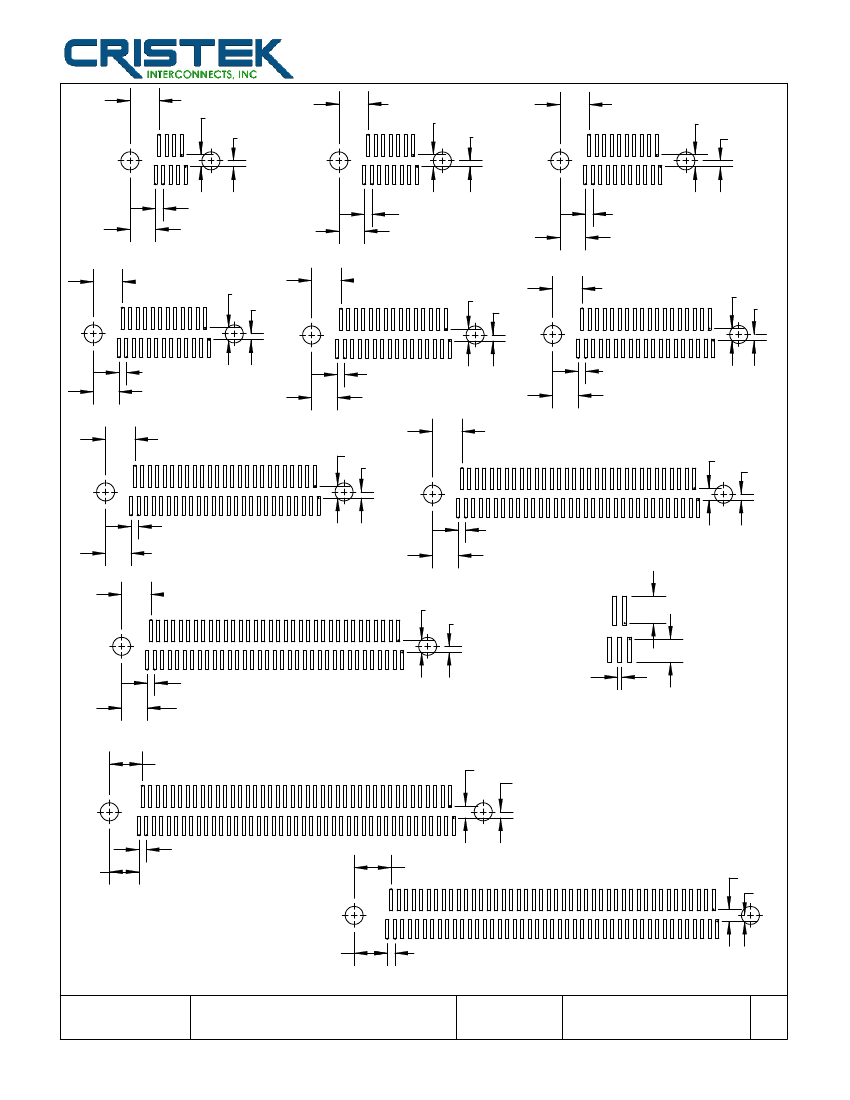

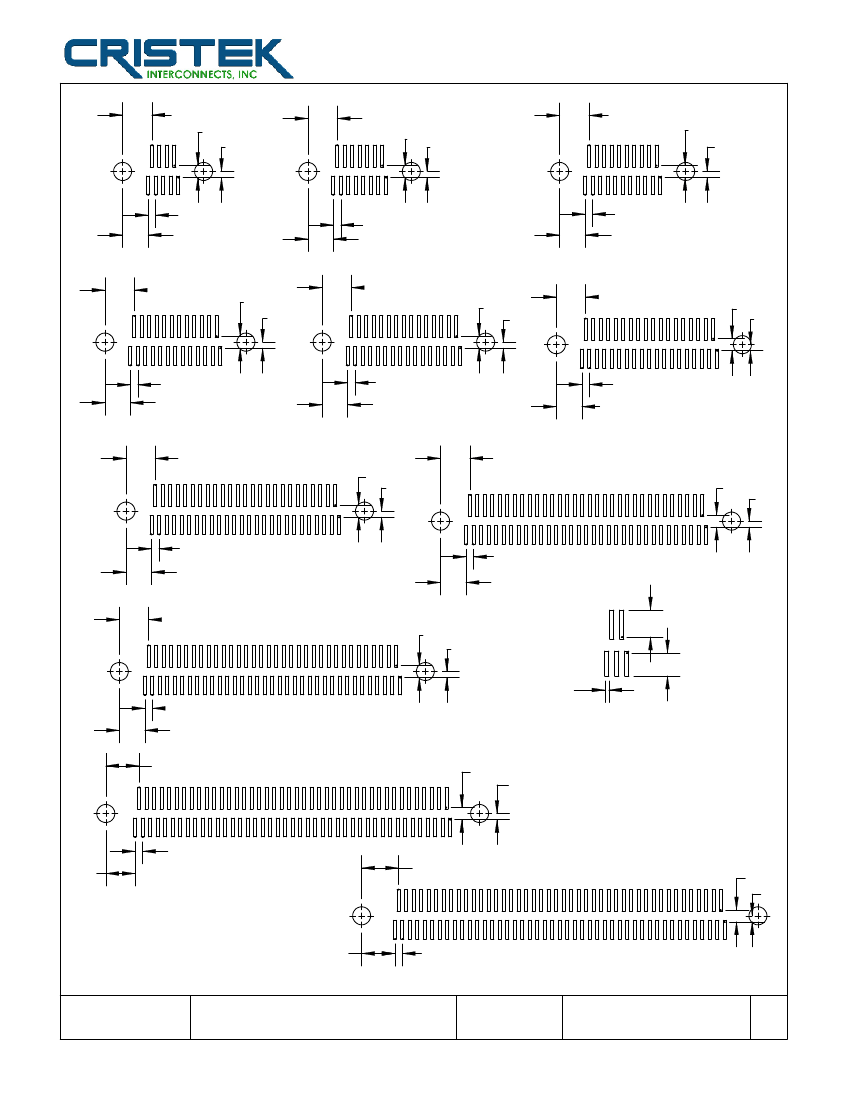

(FOR PLUG AND RECEPTACLE PCB CONTACT FOOTPRINTS, SEE SHEETS 3 AND 4)

NANO METAL SHELL

DUAL ROW VERTICAL

SURFACE MOUNT

DWG. NO.

SHT

REV

SVN2

888.265.9162

CRISTEK.COM
