MM1117XS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> MM1117XS

MM1117XS: DescriptionAudio/Video Switch, 1 Func, 3 Channel, BIPolar, PSIP8, SIP-8; CategoryAnalog mixed-signal IC The signal circuit; File Size226KB，10 Pages; ManufacturerMitsumi Electric Co., Ltd.

Download Datasheet Parametric View All

MM1117XS Overview

Audio/Video Switch, 1 Func, 3 Channel, BIPolar, PSIP8, SIP-8

MM1117XS Parametric

Parameter Name	Attribute value
Maker	Mitsumi Electric Co., Ltd.
Parts packaging code	SIP
package instruction	SIP, SIP8,.05
Contacts	8
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	AUDIO/VIDEO SWITCH
JESD-30 code	R-PSIP-T8
length	19.5 mm
Number of channels	3
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SIP
Encapsulate equivalent code	SIP8,.05
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum seat height	7.2 mm
Maximum supply voltage (Vsup)	13 V
Minimum supply voltage (Vsup)	4.6 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
width	2.8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

MITSUMI

2-Input 1-Output Video Switch / 3-Input 1-Output Video Switch MM1111~MM1118

2-Input 1-Output Video Switch / 3-Input 1-Output Video Switch

Monolithic IC MM1111~MM1118

Outline

These ICs are video switches for video / audio signal switching, with 2-input 1-output or 3-input 1-output. The

series includes those with and without built-in clamp and 6dB amp circuits.

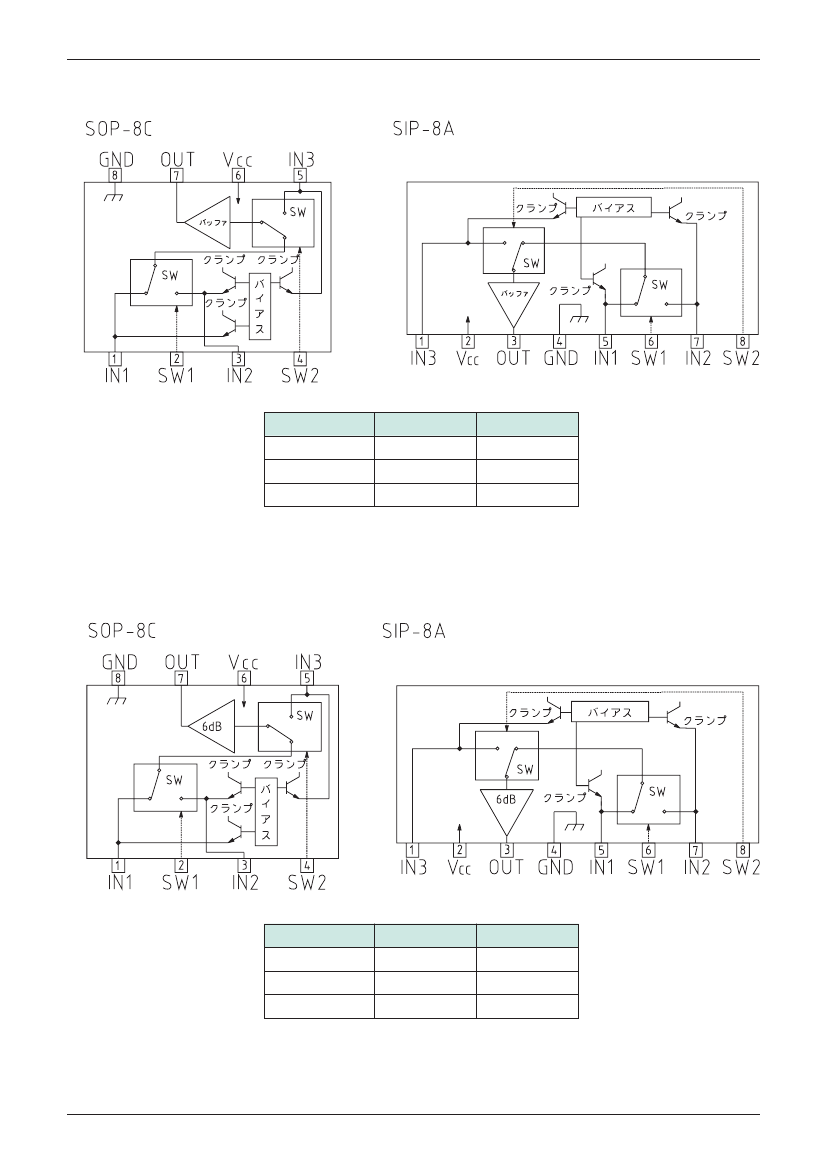

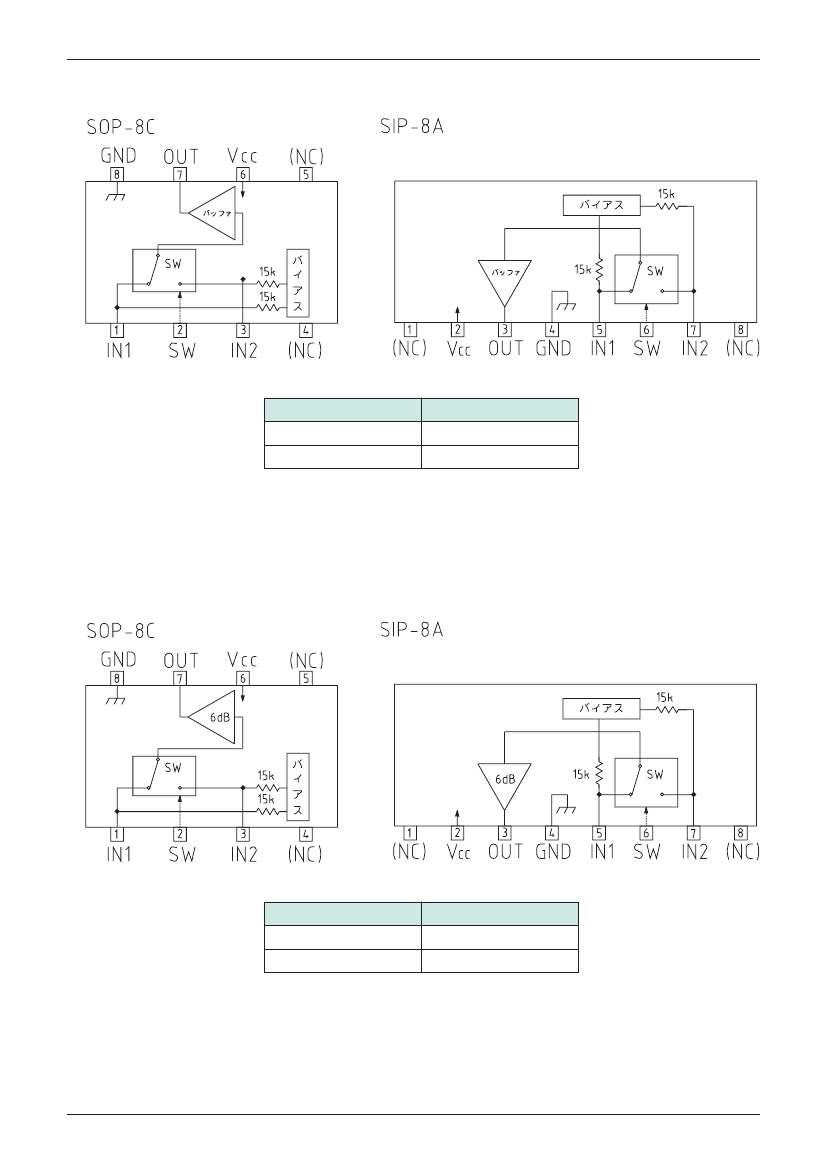

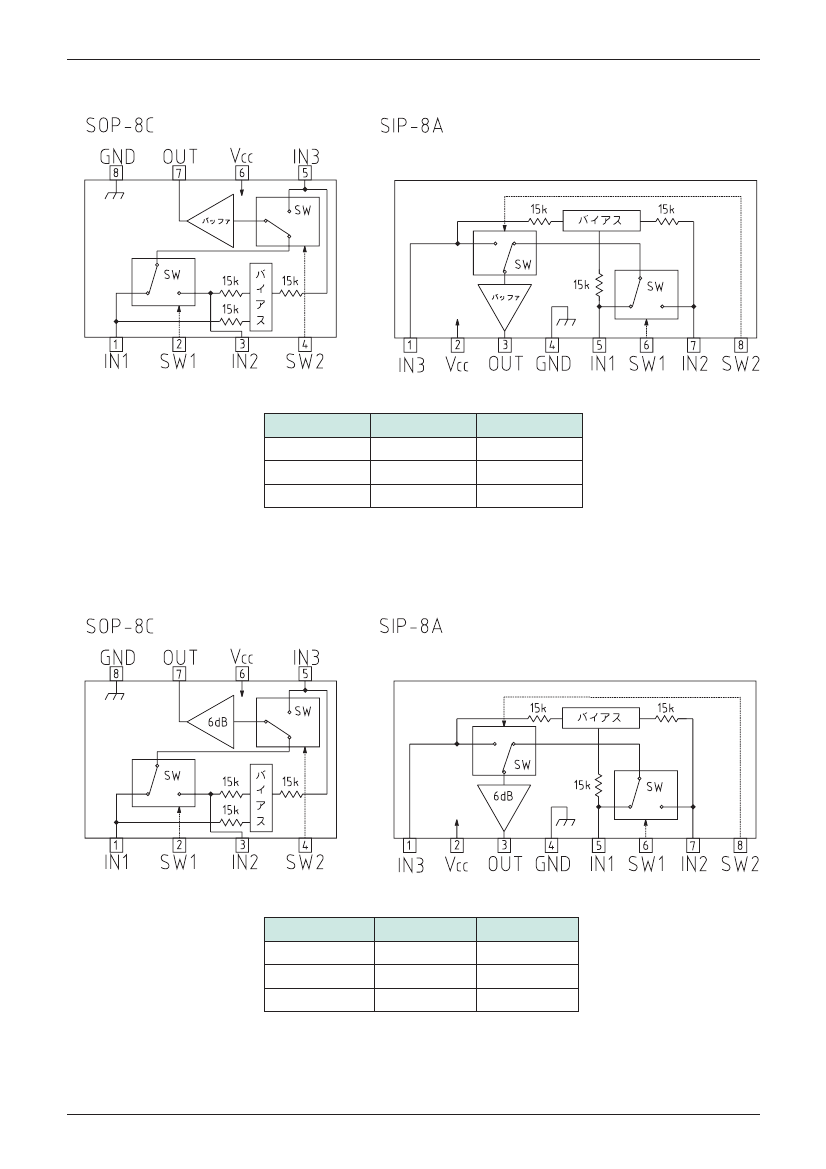

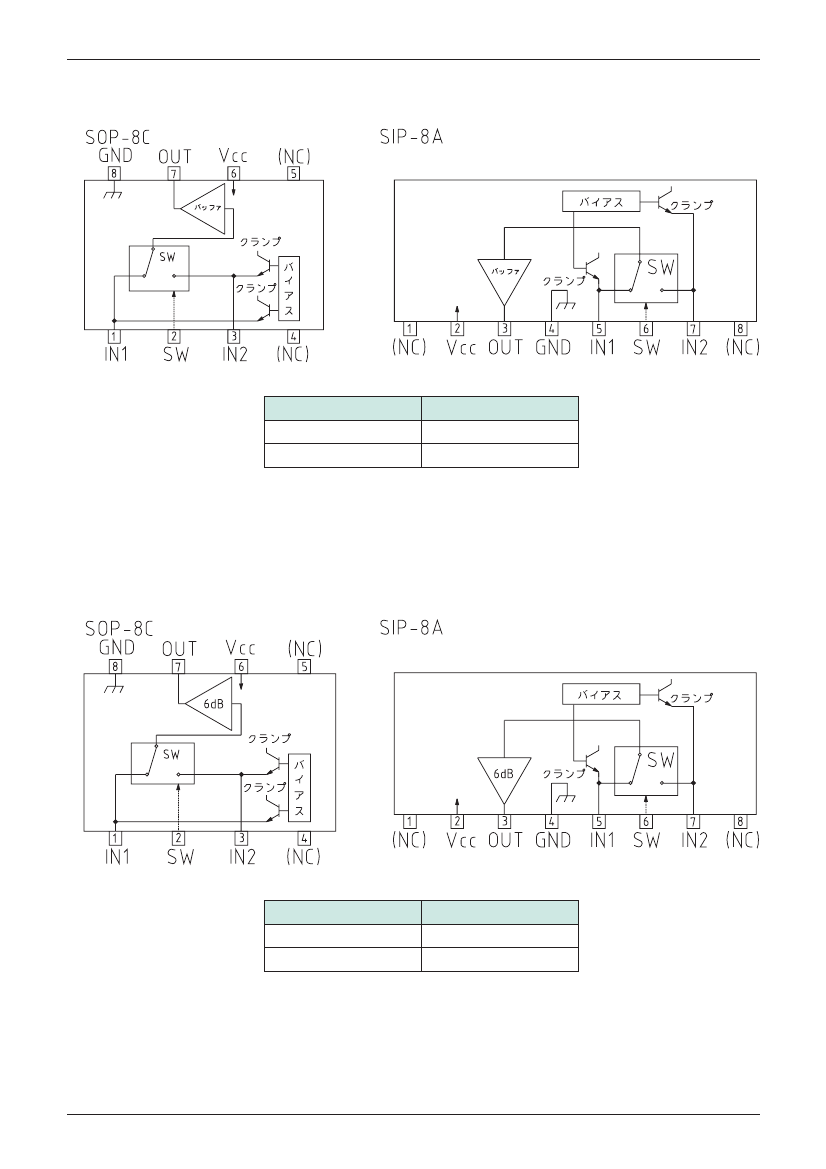

Circuit configuration tables and block diagrams are as follows.

MM1118 is used as the representative model in this description.

MM1111~MM1118 Series Circuit Configuration Table

Model name

MM1111

MM1112

MM1113

MM1114

MM1115

MM1116

MM1117

MM1118

# of Inputs

# of Outputs

6dB amplifier

Yes

Clamp circuit

Yes

Power supply voltage

4.6~13.0V

8.0~13.0V

4.6~13.0V

8.0~13.0V

4.6~13.0V

MM1111~MM1118 Input/Output Voltage Measurement Values (typ.)

Model name

Input / Output

voltage

Input voltage

Output voltage

Input voltage

Output voltage

Input voltage

Output voltage

Input voltage

Output voltage

Input voltage

Output voltage

Input voltage

Output voltage

Input voltage

Output voltage

Input voltage

Output voltage

1.35

0.59

1.29

1.06

1.35

0.59

1.29

1.06

2.77

2.01

Power supply voltage

2.77

2.01

5.02

4.26

4.06

4.30

5.02

4.26

4.06

4.30

2.40

1.65

2.30

1.76

2.40

1.65

2.30

1.76

12V

6.71

5.96

5.45

5.57

6.71

5.96

5.45

5.57

3.20

2.45

3.05

2.30

3.20

2.45

3.05

2.30

Unit

MM1111

MM1112

MM1113

MM1114

MM1115

MM1116

MM1117

MM1118
