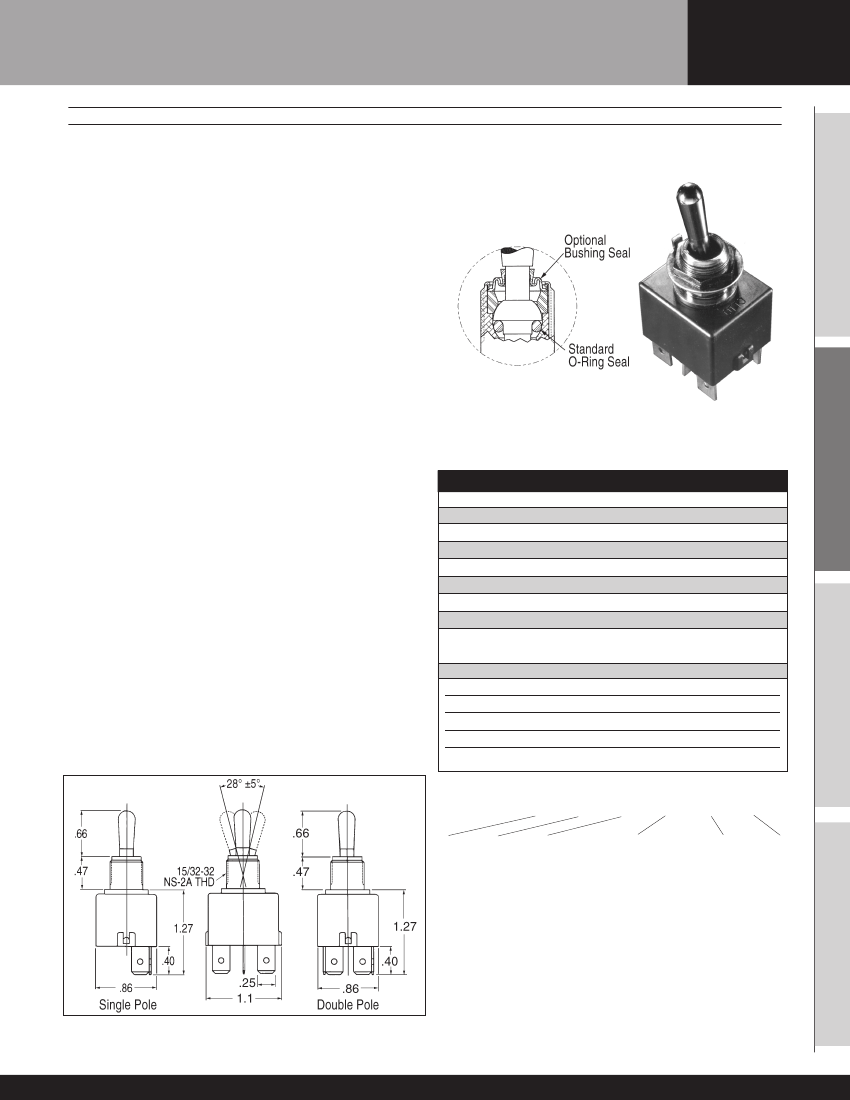

T7
SEALED TOGGLE SWITCHES
LOW COST TOGGLE FOR WET & DUSTY ENVIRONMENTS
These toggle switches are rugged, high performance sealed switches
designed for use under severe conditions found in heavy equipment,
industrial control, marine and appliance applications. They are totally
sealed so the switch can withstand direct water spray and submersion,
even during operation. They are designed to meet the international
submersion specification level IP68. OTTO's front panel seal is
accomplished with an O-ring under the bat handle. However, now a
secondary visible bushing seal is offered as an option.
T7 series toggles are offered in single and double pole configurations. A
choice of models are offered to handle power levels to 16 amperes, 1/2HP
and low level electronic switching applications.
These toggles feature positive detent action for safe switching operation.
In conjunction with the unique OTTO snap-action switch mechanism, the
T7 series offers non-teasible contact transfer.
High contact pressure and superior contact wiping action of the OTTO
design makes the T7 series an excellent choice for switching loads from
logic level up to 16 amperes.
Mounting hardware provided includes two hex nuts, one lockwasher and
one keyway washer. An optional panel gasket is also available.
SEALED
TOGGLES
TOGGLE SWITCHES
Standard Characteristics/Ratings:
OPERATIONAL:
Mechanical Life:
Seal:
100,000 cycles, minimum
Watertight, submersible to IP68
-30°C to +85°C
Precision machined or cast
Thermoplastic
Copper alloy
Fine Silver/Silver cad. oxide
Quality Features:
• Withstands direct water spray
• Submersible. Designed to meet IP68
• Switches up to 16 Amps
• Withstands extreme shock & vibration
• Positive detent, non-teasible contact transfer
• 2- & 3-position, momentary and maintained action
• Choice of terminal styles
• UL & CSA recognized
Temperature Range:
Bushing & Toggle Handle:
Case:
Terminals:
Contacts:
ELECTRICAL:
(at 28 VDC or 115 VAC, 60/400 Hz.)
Load
Resistive
Resistive
Inductive
Motor
Dielectric Withstand:
1050Vrms
Amperes
16A
10A
10A
1/2HP
Life (Min.)
25,000 cycles
50,000 cycles
25,000 cycles
25,000 cycles
T7 PART NUMBER CODE
T7-
X
X
X
X
X
Toggle Style
X
Button Color
Circuitry Terminal Style Contact Rating
Circuit Made with Actuator at:
Keyway
Center Opposite
Side
Keyway
A.
B.
C.
D.
E.
F.
G.
H.
J.
K.
ON
ON
MOM-ON
MOM-ON
MOM-ON
ON
MOM-ON
OFF
OFF
ON
None
None
None
None
OFF
OFF
OFF
None
None
OFF
OFF
ON
OFF
ON
MOM-ON
ON
ON
ON
MOM-ON
MOM-ON
1.
1 Pole
2.
2 Pole
1.
250" Q.C.
2.
Screw
3.
Solder
4.
PC Pin
(consult factory)
1.
Standard
2.
Low Level
1.
Bat Handle
2.
Lever Lockout
(consult factory)
1.
Red
2.
Black
8.
Gray
3.
Dome Button
4.
Rocker Button
5.
Bat Handle With
Bushing Seal
T7 Connector part number C801765.
Specifications Subject To Change Without Notice
www.ottoexcellence.com
