CTMC2220-472K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CTMC2220-472K

CTMC2220-472K: DescriptionGeneral Purpose Inductor, 4700uH, 10%, 1 Element, Ferrite-Core, SMD, CHIP, 2220; CategoryPassive components inductor; File Size96KB，1 Pages; ManufacturerCT [ Central Technologies ]

Download Datasheet Parametric View All

CTMC2220-472K Overview

General Purpose Inductor, 4700uH, 10%, 1 Element, Ferrite-Core, SMD, CHIP, 2220

CTMC2220-472K Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	CT [ Central Technologies ]
Reach Compliance Code	compliant
ECCN code	EAR99

Preview

Download Datasheet

View All

Wire-wound Chip Inductors - Molded

ctparts.com

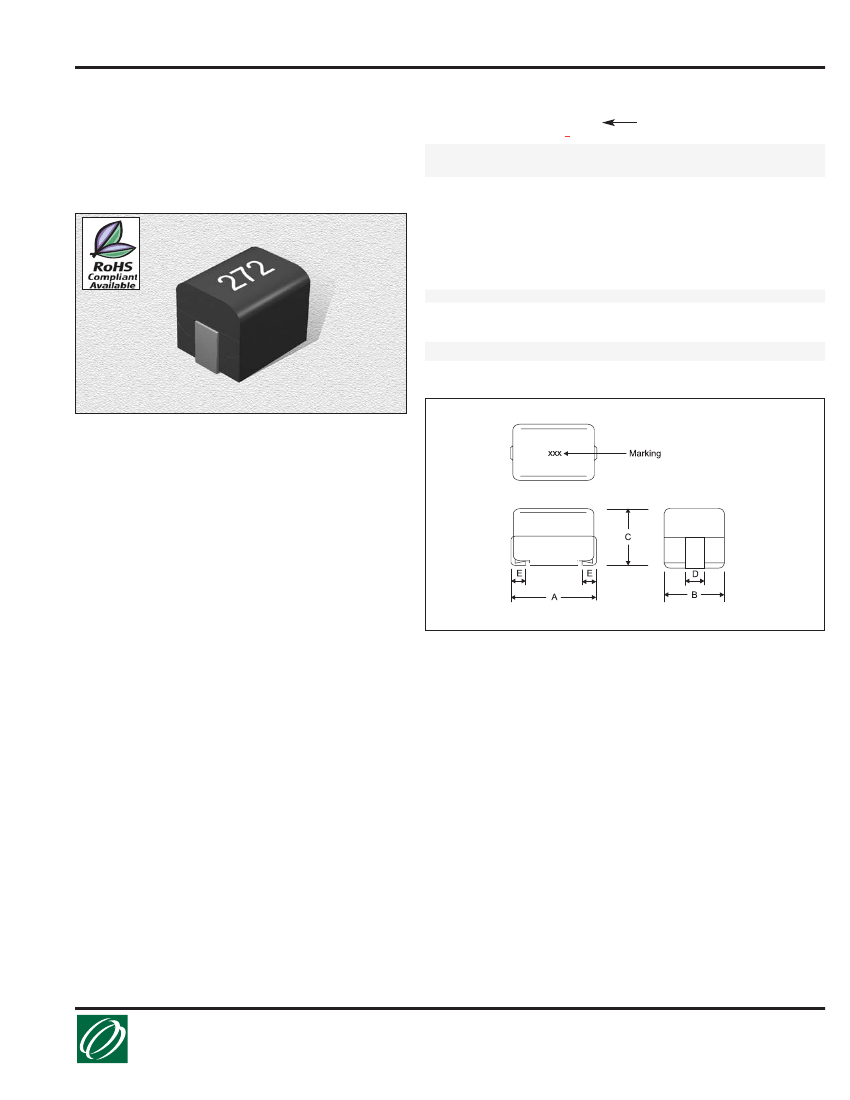

CTMC2220 Series

From 1,200 µH to 10,000 µH

Part

Number

CTMC2220_-122_

CTMC2220_-152_

CTMC2220_-182_

CTMC2220_-222_

CTMC2220_-272_

CTMC2220_-332_

CTMC2220_-392_

CTMC2220_-472_

CTMC2220_-562_

CTMC2220_-682_

CTMC2220_-822_

CTMC2220_-103_

Not shown at actual size.

SPECIFICATIONS

Please specify tolerance code when ordering.

CTMC2220-122_

J = ±5%, K = ±10%

CTMC2220F

Please specify “F” for RoHS compliant

Inductance

(µH)

1200

1500

1800

2200

2700

3300

3900

4700

5600

6800

8200

10000

L Test

Freq.

(MHz)

.252

.0796

Fact.

Min.

Q Test

Freq.

(MHz)

.252

.0796

SRF

Min.

(MHz)

1.5

1.4

1.3

1.2

1.1

1.0

0.9

0.8

0.7

0.6

0.5

DCR

Max.

(Ω)

110

125

150

Rated

(mA)

PHYSICAL DIMENSIONS

Size

inches

5.6±0.3

0.22±0.011

5±0.3

0.19±0.011

5±0.3

0.19±0.011

0.078

0.039

CHARACTERISTICS

Description:

Ferrite core, wire-wound molded chip inductor

Applications:

TV’s, VCR’s, disk drives, computer peripherals,

telecommunication devices and electronic control boards

for automobiles

Operating Temperature:

-25°C to +85°C

Inductance Tolerance:

±5%, ±10%

Testing:

Inductance and Q are tested on an HP4285A at

specified frequency

Packaging:

Tape & Reel

Part Marking:

Inductance code or inductance code plus

tolerance.

Miscellaneous:

RoHS Compliant available.

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

05.31.07

Technologies

Manufacturer of Passive and Discrete Semiconductor Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice
