LM20RA10Z-40/B datasheet, PDF - EEWORLD Datasheet

LM20RA10Z-40/B: DescriptionEE PLD, 40ns, CMOS, CQCC28; CategoryProgrammable logic devices Programmable logic; File Size364KB，13 Pages; ManufacturerLSC/CSI; Websitehttps://lsicsi.com

Download Datasheet Parametric Compare View All

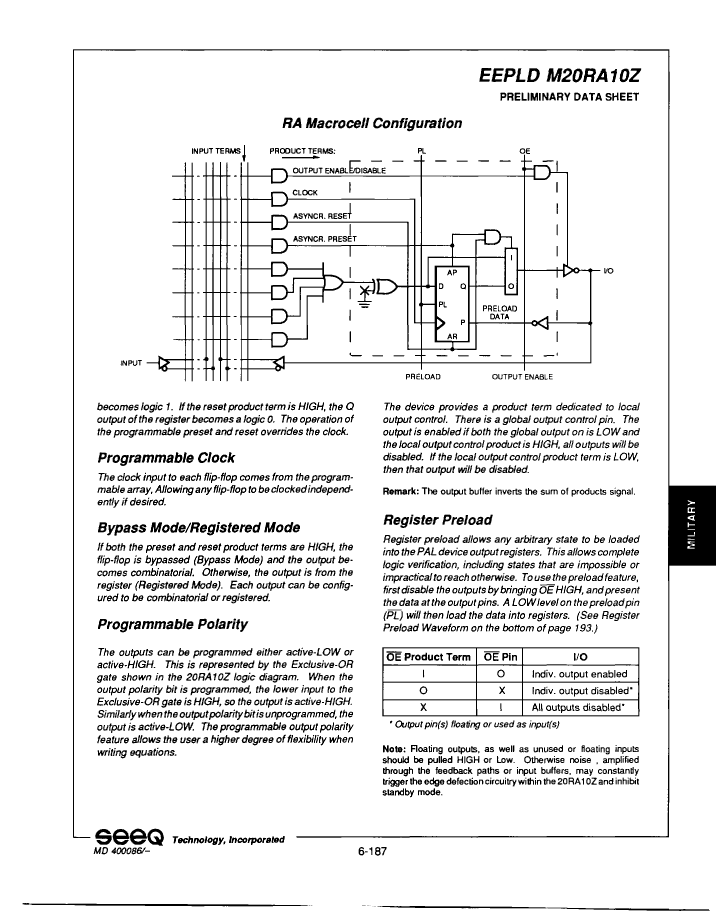

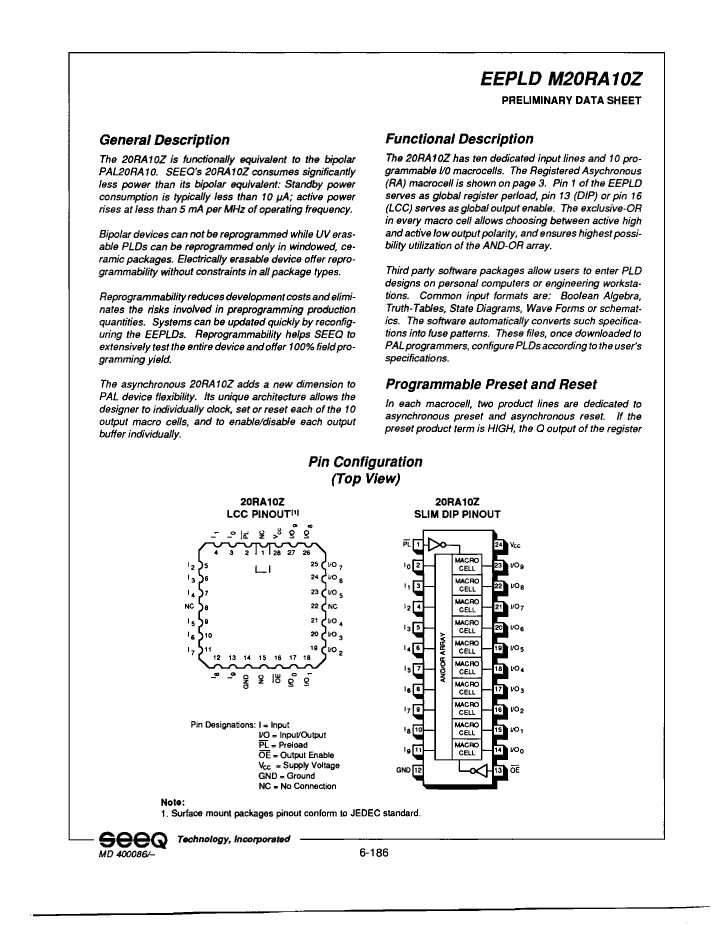

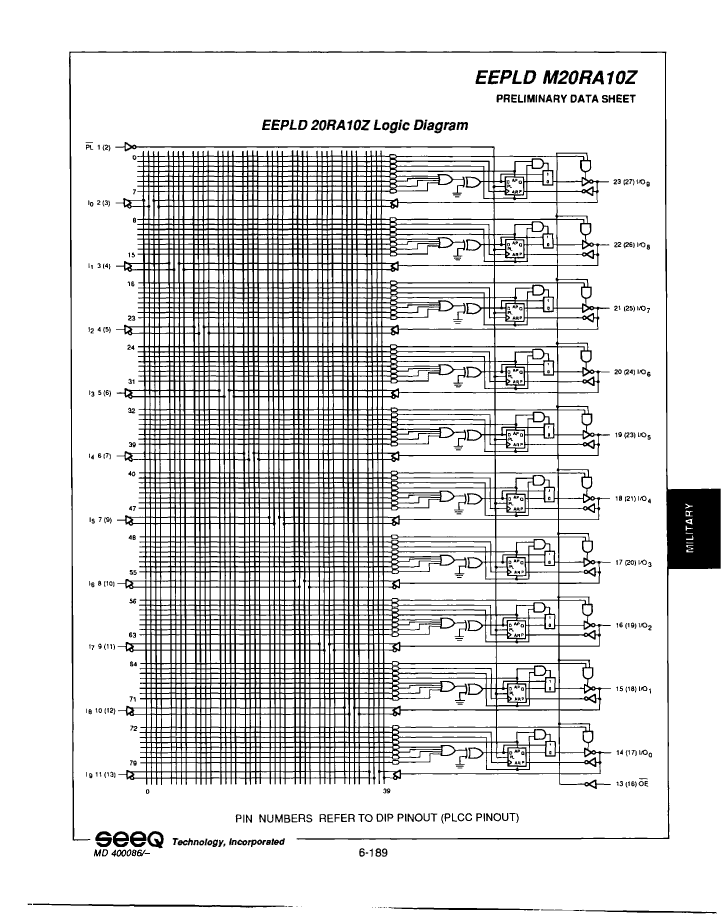

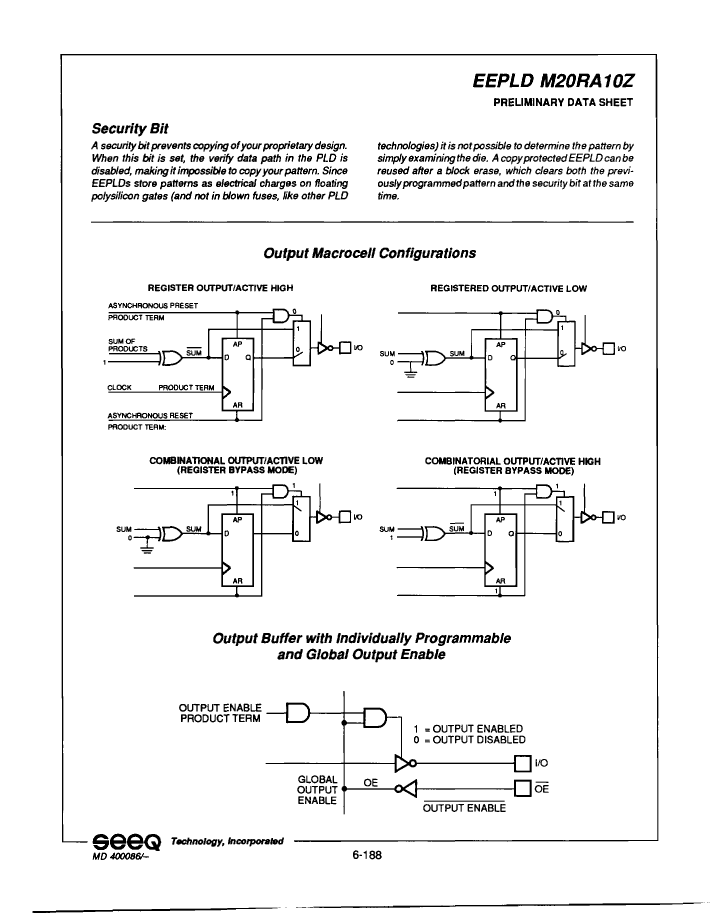

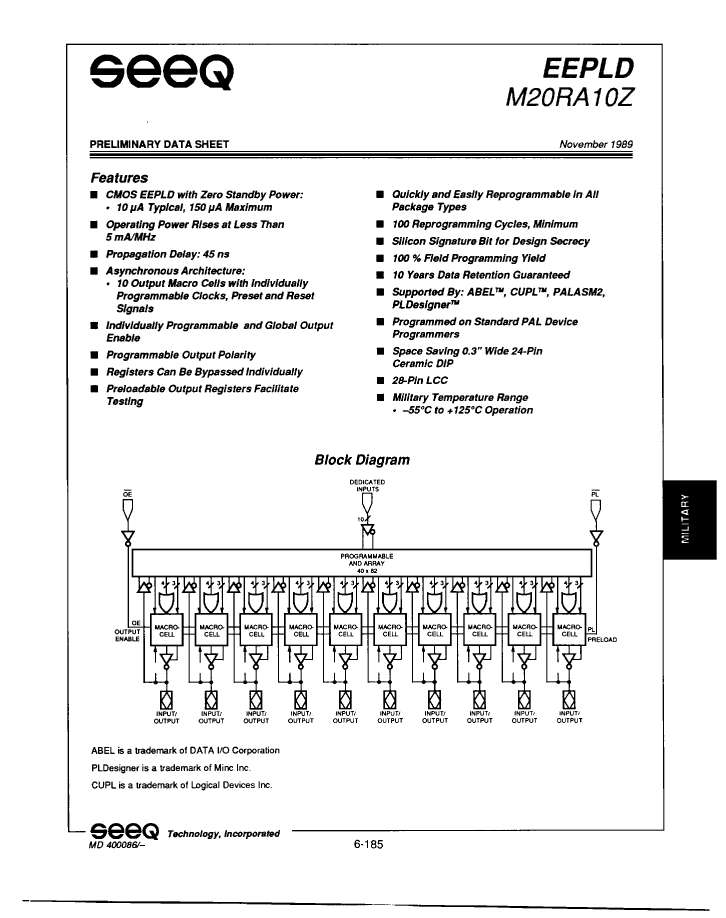

LM20RA10Z-40/B Overview

EE PLD, 40ns, CMOS, CQCC28

Parameter Name	Attribute value
Maker	LSC/CSI
package instruction	,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
maximum clock frequency	16.6 MHz
JESD-30 code	S-CQCC-N28
Dedicated input times	10
Number of I/O lines	10
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	10 DEDICATED INPUTS, 10 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	EE PLD
propagation delay	40 ns
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
Base Number Matches	1

	LM20RA10Z-40/B	LM20RA10Z-45/B	DM20RA10Z-40/B	DM20RA10Z-45/B
Description	EE PLD, 40ns, CMOS, CQCC28	EE PLD, 45ns, CMOS, CQCC28	EE PLD, 40ns, CMOS, CDIP24	EE PLD, 45ns, CMOS, CDIP24
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
maximum clock frequency	16.6 MHz	15.3 MHz	16.6 MHz	15.3 MHz
JESD-30 code	S-CQCC-N28	S-CQCC-N28	R-GDIP-T24	R-GDIP-T24
Dedicated input times	10	10	10	10
Number of I/O lines	10	10	10	10
Number of terminals	28	28	24	24
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
organize	10 DEDICATED INPUTS, 10 I/O	10 DEDICATED INPUTS, 10 I/O	10 DEDICATED INPUTS, 10 I/O	10 DEDICATED INPUTS, 10 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE
Programmable logic type	EE PLD	EE PLD	EE PLD	EE PLD
propagation delay	40 ns	45 ns	40 ns	45 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE
Terminal location	QUAD	QUAD	DUAL	DUAL
Base Number Matches	1	1	1	1
