S8GC thru S8MC
Taiwan Semiconductor
CREAT BY ART
FEATURES
- Low forward voltage drop
- Ideal for automated placement
- High surge current capability
- Moisture sensitivity: level 1, per J-STD-020
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition

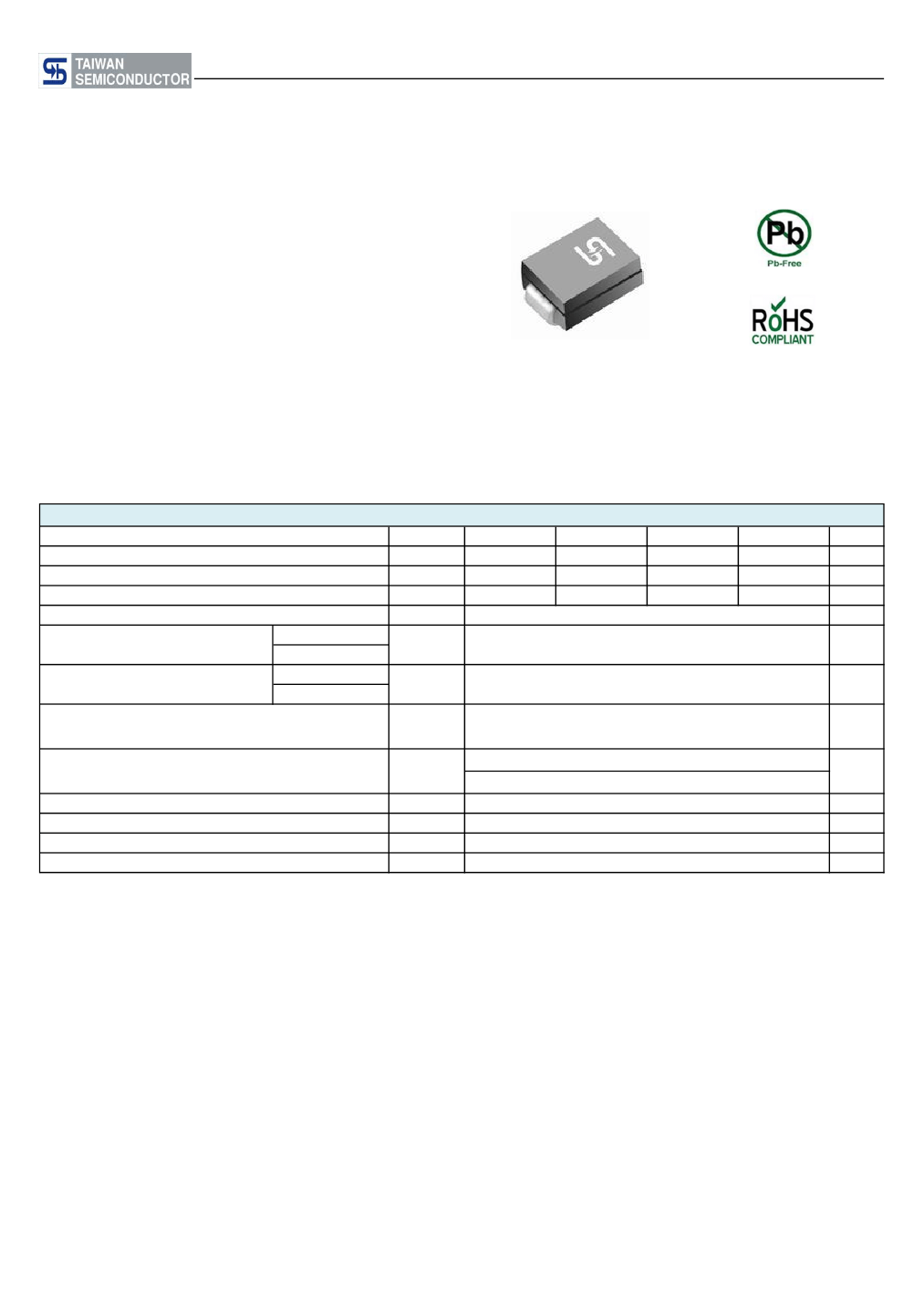

Surface Mount Glass Passivated Rectifier
MECHANICAL DATA
Case:
DO-214AB (SMC)
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
Polarity:
Indicated by cathode band
Weight:
0.27 g (approximately)

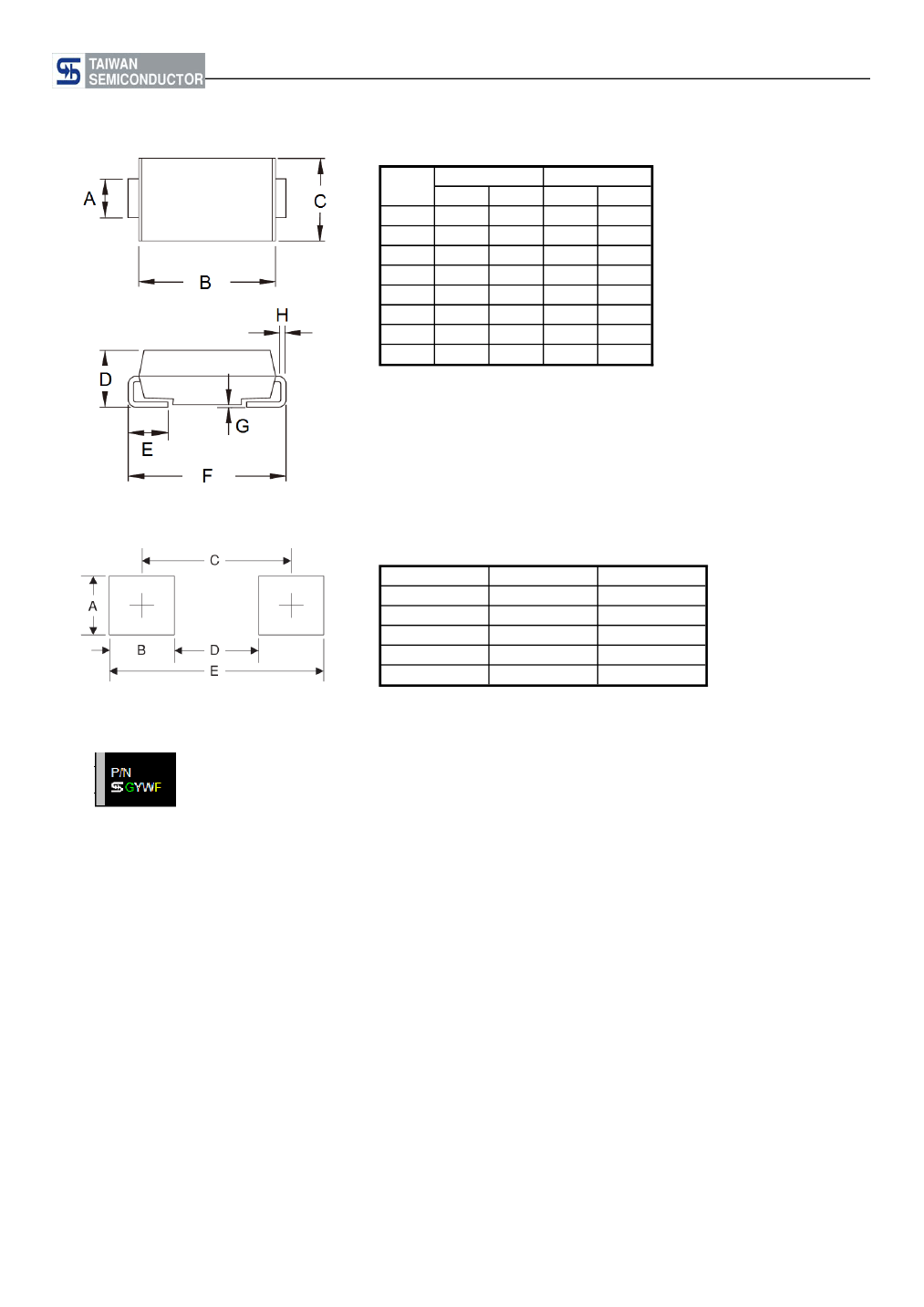

DO-214AB (SMC)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERSTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current
8.3 ms single half sine-wave
Peak forward surge current
1.0 ms single half sine-wave
T
J
=25℃
T
J
=125℃
T
J
=25℃
T
J
=125℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
FSM
V
F
I
R
C
J
R
θJA
T
J
T
STG
S8GC
400
280
400
S8JC
600
420
600
8
200
170
600
338
0.985
10
250
48
44
S8KC
800
560
800
S8MC
1000
700
1000
Unit
V
V
V
A
A
A
V
μA
pF
O
Maximum instantaneous forward voltage (Note 1)
IF= 8 A
Maximum reverse current @ rated VR
Typical Junction Capacitance (Note 2)
Typical thermal resistance (Note 3)
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
T
J
=25
℃
T
J
=125
℃
C/W
O
O
- 55 to +150
- 55 to +150
C
C
Note 2: Measured at 1.0MHz and applied reverse voltage of 4.0V DC
Note 3: Mount on Cu pad size 16mm x 16mm on PCB
Document Number: 1307006
Version: A13
S8GC thru S8MC
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
PACKING CODE
R7
R6
M6
Suffix "G"
GREEN
COMPOUND
S8xC
(Note 1)
SMC
SMC
SMC
850 / 7" Plastic reel
3,000 / 13" Paper reel
3,000 / 13" Plastic reel
PACKAGE
PACKING
Note 1: "xx" defines voltage from 400V (S8GC) to 1000V (S8MC)
EXAMPLE
PREFERRED P/N
S8MC R7
S8MC R7G
PART NO.
S8MC
S8MC
PACKING CODE
R7
R7
G
Green compound
GREEN COMPOUND
CODE
DESCRIPTION

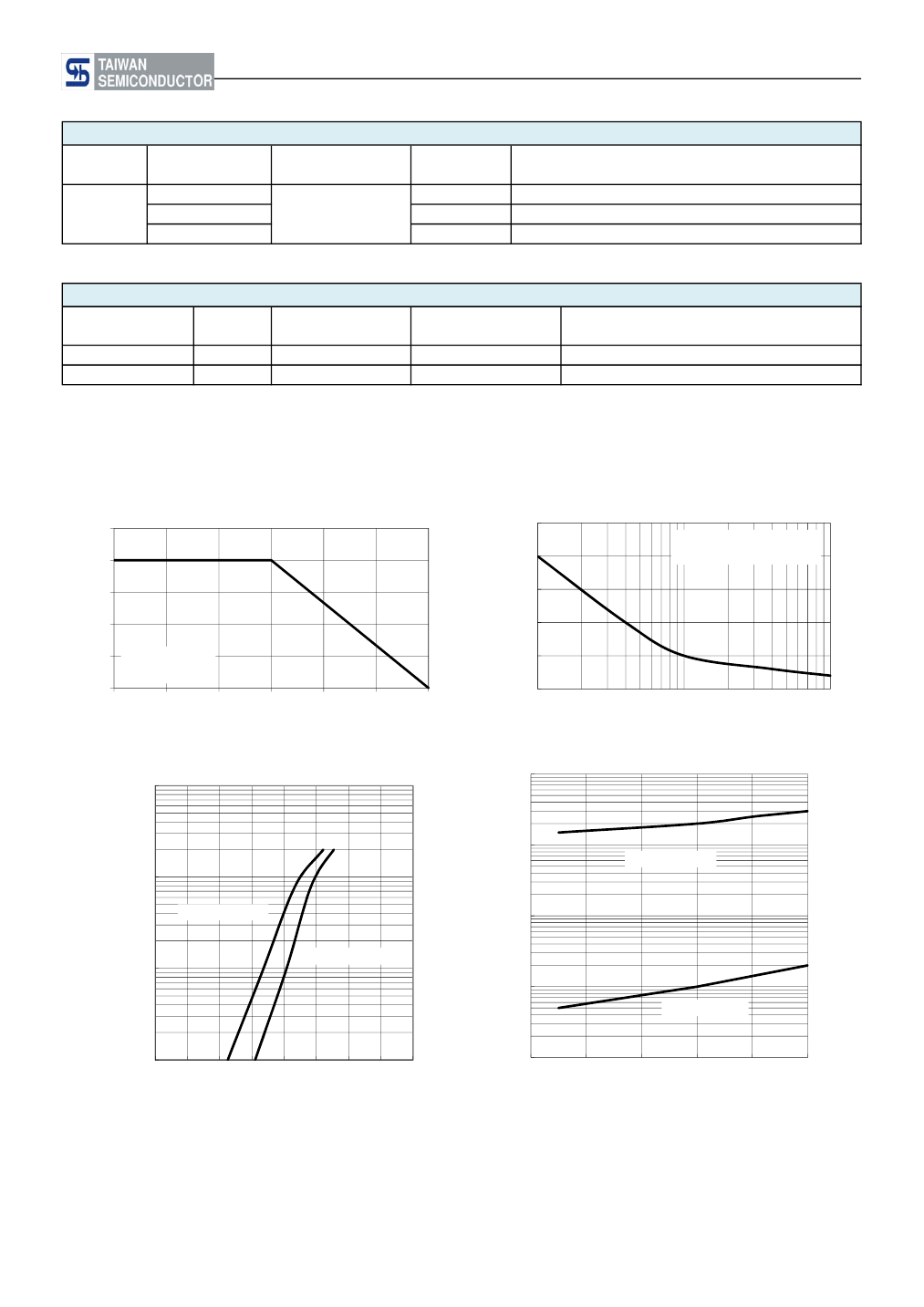

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG.1- MAXIMUM FORWARD CURRENT
DERATING CURVE
PEAK FORWARD SURGE CURRENT
(A)
10
AVERAGE FORWARD
A
CURRENT (A)
8
6
4
2
0
0
25
50
75
100
125
150
LEAD TEMPERATURE (
o
C)
RESISTIVEOR
INDUCTIVE LOAD
250
200
150
100
50
0
1
FIG. 2- MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
8.3ms Single Half Sine Wave
10
NUMBER OF CYCLES AT 60 HZ
FIG. 4- TYPICAL REVERSE CHARACTERISTICS
100
FIG. 3- TYPICAL FORWARD CHARACTERISTICS
100
INSTANTANEOUS REVERSE CURRENT (μA)
100
INSTANTANEOUS FORWARD CURRENT (A)
10
TJ=125℃
10
TJ=125℃
1
1
TJ=25℃
0.1
TJ=25℃
0.1
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
FORWARD VOLTAGE (V)
0.01
0
20
40
60
80
100
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
