KF66X-B44S-NVR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> KF66X-B44S-NVR

KF66X-B44S-NVR: DescriptionD Subminiature Connector, 44 Contact(s), Female, Solder Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size654KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric View All

KF66X-B44S-NVR Overview

D Subminiature Connector, 44 Contact(s), Female, Solder Terminal, Receptacle, ROHS COMPLIANT

KF66X-B44S-NVR Parametric

Parameter Name	Attribute value
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	GOLD FLASH
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	KF66X
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Housing size	3/B
Termination type	SOLDER
Total number of contacts	44
Base Number Matches	1

Preview

Download Datasheet

View All

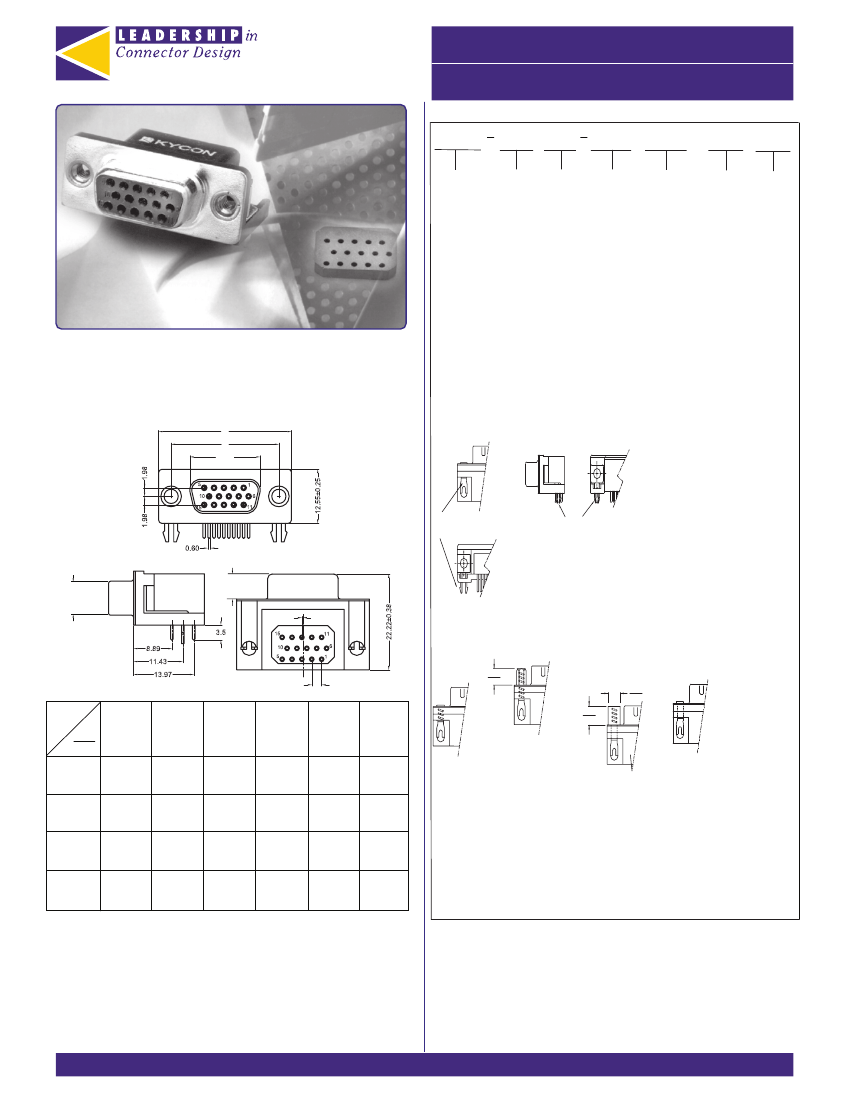

FERRITE D-SUBMINIATURE

KYCON

RoHS

KF66X Series

Ordering

Information

Series

Front Panel Plating VESA

Shell Contact

PCB

Mounting Mounting Option Option

Size

Type

Option

KF66X Series High Density

Right Angle PCB Mount with Ferrite

KF66X Series Dimensions

Pictured with Board Lock Option, Dimensions in mm

C, C1

Series

KF66X -

High Density D-Subminiature Connector, Right Angle

PCB Termination, .350” Footprint, with Ferrite

Shell Size-Contact Option

E - 15 Contacts

A - 26 Contacts

B - 44 Contacts

C - 62 Contacts

Contact Type

P - Pin Contact (Plug)

S - Socket Contact (Receptacle)

PC Board Mounting Option

N Option

NV Option

Grounding

Bracket

4 Prong

Grounding Bracket

8.36 Plug Interior

7.90 Socket Exterior

6.1 Plug

5.8 Socket

Front Panel Mounting Option

Standard

(4-40)Riveted

Threaded Insert

5.00

.197

J Option

(Not available w/

NV Option)

R Option

(Not available w/

NV Option)

T Option

(4-40) Round Jack Screws Riveted Non-Threaded

Insert 3.18/.125" Dia.

Riveted to Connector

Ø5.0

.197

6.00

.236

Shell

Size

.015

0.38

1.213

30.81

1.541

39.14

2.088

53.04

2.729

69.32

.005

0.13

.984

24.99

1.312

33.32

1.852

47.04

2.500

63.50

.010

0.25

.643

16.33

.971

24.66

1.511

38.38

2.159

54.84

.010

0.25

.666

16.92

.994

25.25

1.534

38.96

2.182

55.42

.005

0.13

.090

2.29

.090

2.29

.090

2.29

.095

2.41

.005

0.13

.010

0.25

.020

0.51

.020

0.51

.023

0.58

(E)

(A)

(B)

(C)

(4-40)Riveted Threaded

Insert with 4-40 Hex.

JS1000 Jack Screws Installed

to Connector

Plating Option

Blank - Gold Flash

15 - 15

” Gold

30 - 30

” Gold

VESA Option

Blank - Gold Flash

VESA - VESA Compliant Version (E15S Only)

Contact Kycon for other options

C = Exterior of Female Shell (S) C1 = Interior of Male Shell (P)

Note: Please check D and E dimensions on 62 contacts.

Electrical Characteristics

Rated Current:

1.5A

Rated Voltage:

29Vac

2013

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
