RK73H2BTDD8200F datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RK73H2BTDD8200F

RK73H2BTDD8200F: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.25W, 820ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP; CategoryPassive components The resistor; File Size102KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

RK73H2BTDD8200F Overview

Fixed Resistor, Metal Glaze/thick Film, 0.25W, 820ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP

RK73H2BTDD8200F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	KOA Speer
package instruction	, 1206
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PRECISION; STANDARD : MIL-R-55342F
JESD-609 code	e0
Manufacturer's serial number	RK73H
Installation features	SURFACE MOUNT
Number of terminals	2
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, PAPER, 10 INCH
Rated power dissipation(P)	0.25 W
Rated temperature	70 °C
resistance	820 Ω
Resistor type	FIXED RESISTOR
size code	1206
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	200 V
Base Number Matches	1

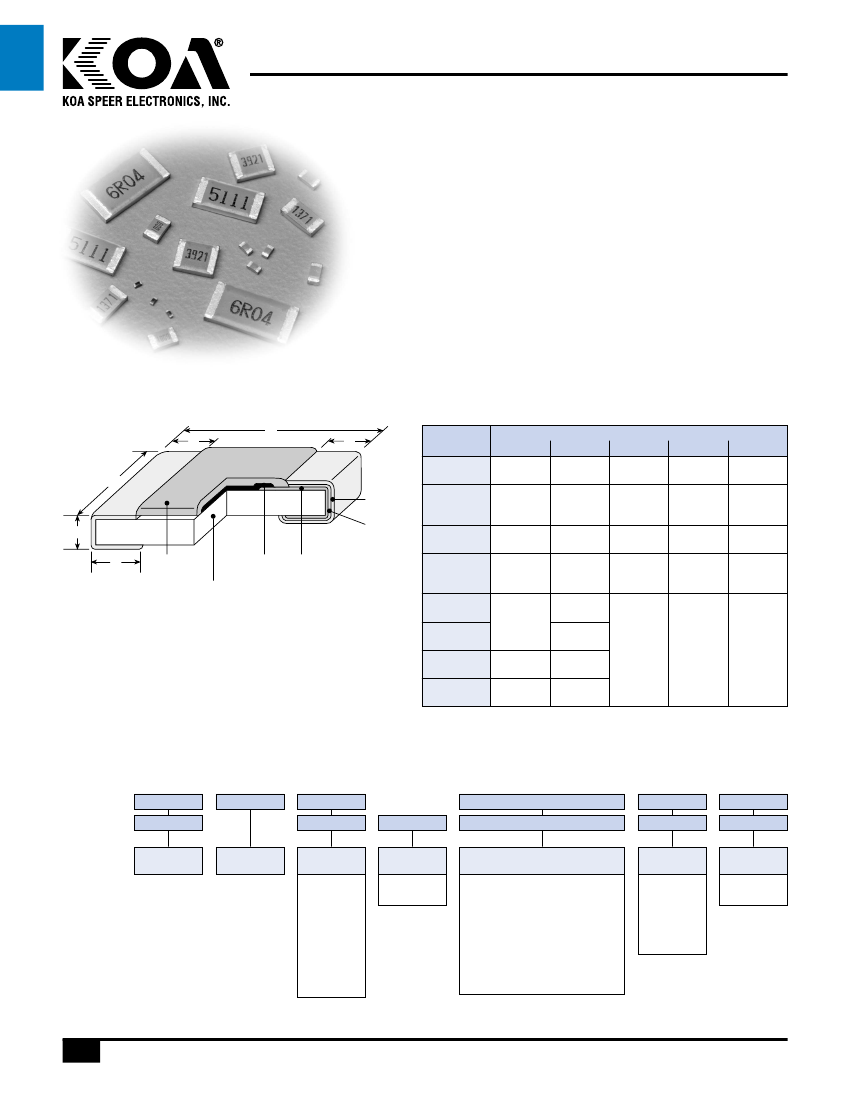

Preview

Download Datasheet

View All

surface

mount

resistors

RK73H

precision 0.5%, 1% tolerance

thick film chip resistor

features

RuO

thick film resistor element

Anti-leaching nickel barrier terminations

90/10 solder plated terminations, standard

Available in 100% tin terminations (no lead)

Also available with epoxy bondable palladium silver

terminations in 2A and 2B sizes

•

Meets or exceeds EIA 575, EIAJ RC 2690A,

EIA PDP-100, MIL-R-55342F

•

Marking: Four-digit black on blue protective coat

No marking on 1H or 1E sizes

Three-digit on 1J size, E-24 values only

dimensions and construction

Type

(Inch Size Code)

•

Dimensions

inches

(mm)

Solder

Plating

Protective

Coating

Resistive Inner

Film

Electrode

Plating

(0201)

(0402)

(0603)

(0805)

(1206)

(1210)

(2010)

(2512)

.024±.001 .012±.001 .004±.002 .006±.002 .009±.001

(0.6±0.03) (0.3±0.03) (0.1±0.05) (0.15±0.05) (0.23±0.03)

.039

(1.0

+.004

-.002

+0.1

)

-0.05

+.002

.02±.002 .008±.004 .01

-.004

.014±.002

(0.5±0.05) (0.2±0.1) (0.25

+0.05

) (0.35±0.05)

-0.1

.063±.008 .031±.004 .012±.004 .012±.004 .018±.004

(1.6±0.2)

(0.8±0.1)

(0.3±0.1) (0.45±0.1)

(0.3±0.1)

.079±.008 .049±.004 .016±.008

(2.0±0.2) (1.25±0.1) (0.4±0.2)

.063±.008

.126±.008

(1.6±0.2)

(3.2±0.2)

.102±.008

(2.6±0.2)

.197±.008 .098±.008

(5.0±0.2)

(2.5±0.2)

.248±.008 .122±.008

(6.3±0.2)

(3.1±0.2)

.012

(0.3

+.008

-.004

+0.2

-0.1

)

.02±.004

(0.5±0.1)

Ceramic

Substrate

.02±.012

(0.5±0.3)

.016

(0.4

+.008

-.004

+0.2

)

-0.1

.024±.004

(0.6±0.1)

ordering information

Old Part #

New Part #

RK73

RK73H

Type

Solderable

Size

Termination

Material

L: SnPb

T: Sn

Packaging

TB: 2mm pitch pressed paper

(0201 only)

TP: 2mm pitch punched paper

(0402 & 0603 only)

TD: 7" paper tape

TDD: 10" paper tape

TE: 7" embossed plastic

TED: 10" embossed plastic

1003

Nominal

Resistance

3 significant

figures + 1

multiplier

“R” indicates

decimal on

value <100Ω

Tolerance

D: ±0.5%

F: ±1%

For further information on packaging,

please refer to Appendix A.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

KOA Speer Electronics, Inc.

• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com

.O.
