ZX30-14-972HP+: DescriptionDirectional Coupler, 8300MHz Min, 9700MHz Max, 1.2dB Insertion Loss-Max, ROHS COMPLIANT, GW1052; CategoryWireless rf/communication Radio frequency and microwave; File Size405KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric View All

ZX30-14-972HP+ Overview

Directional Coupler, 8300MHz Min, 9700MHz Max, 1.2dB Insertion Loss-Max, ROHS COMPLIANT, GW1052

ZX30-14-972HP+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mini-Circuits
package instruction	ROHS COMPLIANT, GW1052
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SMA
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	43.01 dBm
Maximum insertion loss	1.2 dB
Maximum operating frequency	9700 MHz
Minimum operating frequency	8300 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER
Base Number Matches	1

Preview

Download Datasheet

View All

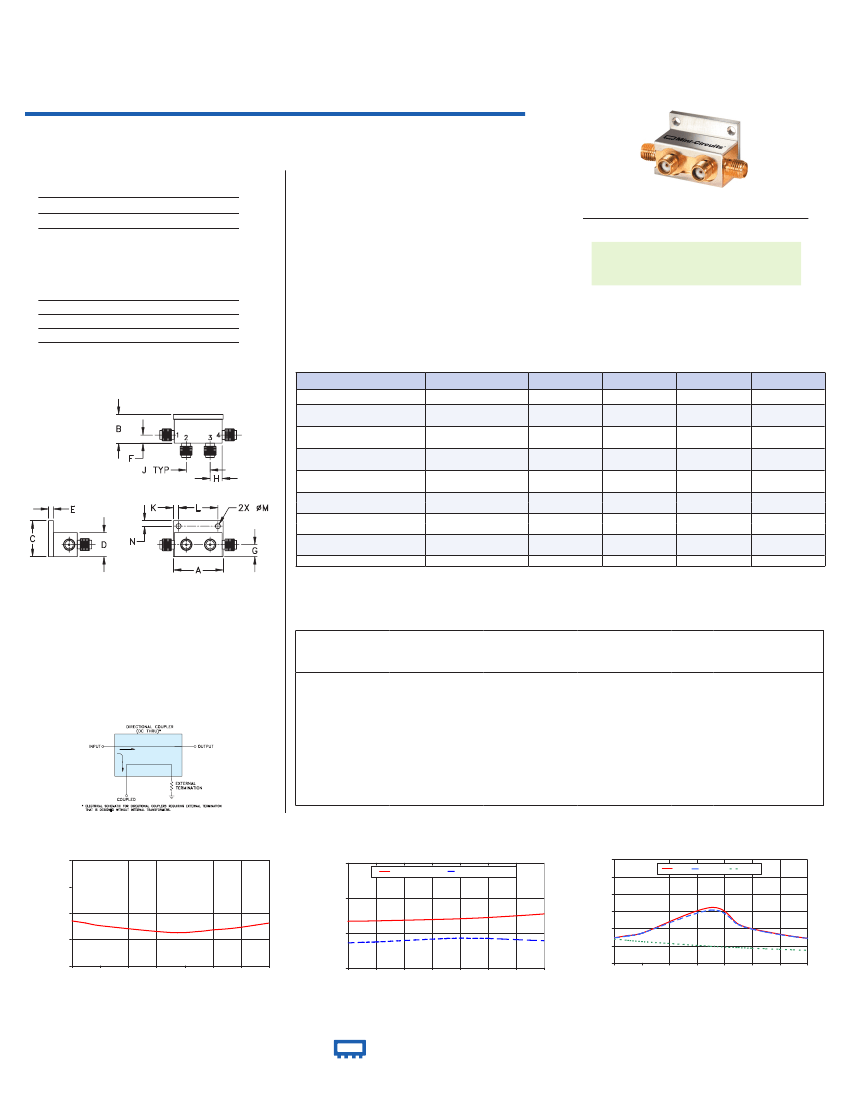

14 dB Directional Coupler

Ω

8300 to 9700 MHz

The Big Deal

ZX30-14-972HP+

• High Power, 20 Watt

• Low insertion loss 0.6 dB typ.

• Miniature case size 1.0 x 0.8 inch

• Pass DC current

CASE STYLE: GW1052

Product Overview

The ZX30-14-972HP+ is a 14 dB high power directional coupler that can pass up to 50mA DC from input

to output ports.

Internally, low loss dielectric material in a micro strip configuration utilizing ADS design software allow for

low insertion loss, 0.6 dB. Packaged in a miniature Unibody case allows for excellent grounding and heat

transfer.

Key Features

Feature

High Power Handling, 20W

Wide Frequency coverage,

8300 to 9700 MHz

Excellent insertion loss and port

matching

Very flat coupling

Miniature package

Advantages

Useful in applications for low power and high power requirements, including reliability

destructive testing

Useful in many applications

Provides signal sampling for high power transmitters with a minimum of signal loss

and disturbance

Allows for accurate monitoring of signal power level

Allows for compact system packaging and provides highest maximum power / volume

figure-of-merit

Notes

Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.

Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled

to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp

www.minicircuits.com

P.O. Box 35166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com

Mini-Circuits

Page 1 of 2
