1042-5-08-22 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1042-5-08-22

1042-5-08-22: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal; CategoryThe connector The connector; File Size204KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1042-5-08-22 Overview

Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal

1042-5-08-22 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
Board mount options	PEG
body width	0.122 inch
subject depth	0.075 inch
body length	0.165 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	1042
Plug contact pitch	0.039 inch
Match contact row spacing	0.039 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.6576 mm
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

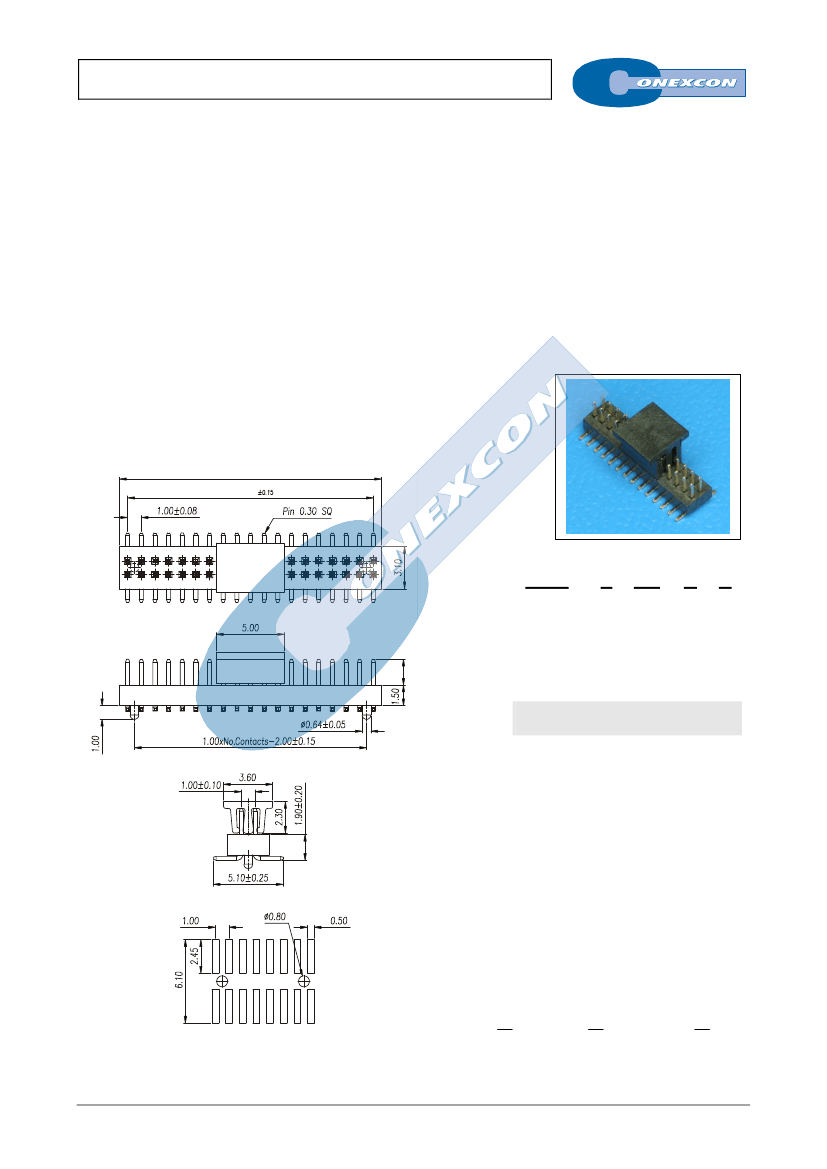

DUAL ROW VERTICAL SMT PIN HEADER

1042 SERIES.

1.00 X 1.00 mm. (0.039 X 0.039”) Pitch.

General Features

Electrical Features



Available in 4 through 80 circuits

Mates with sockets 1.00 mm pitch 1041 series

With/Without fixing pegs on PCB

Available with different pin length

For other dimensions contact sales office



Voltage rating: < 100V

Current rating: < 1 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Capacitance: < 2 pF at 1 KHz

Materials

Mechanical features

Pin retention force to insulator: > 0.10 Kg f

Durability: 50 cycles



Insulator: Polyester LCP UL 94 V-0

Contact: Phosphor bronze

Operating temperature: -40ºC to +105ºC

RoHS compliant

Dimension Information

1042 -

T- XX- P

1. Connector Serie

2. (T) Contacts Plating



T =

Tin-plated.

T =

Gold flash over Ni.

RECOMMENDED FINISH

T =

0.38 µ Gold over Ni.

T =

0.75 µ Gold over Ni.

3. (XX) Number of circuits

Available in 2 through 20 circuits

4. (P) Pegs Options



P =

Without locating pegs

P =

whit locating pegs

5. (E) Packing Options

E =

Pad + Tube

E =

Pad + Reel

DIMENSIONS

1.00















1.00











0.20







1.00















(XX) = Number of circuits

A-XX
