VRRAM-04-30-50-05-N Overview

Telecom and Datacom Connector, 120 Contact(s), Male, Right Angle, Solder Terminal, #2-56

VRRAM-04-30-50-05-N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AirBorn
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.438 inch
subject depth	0.798 inch
body length	2.125 inch
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Durability	2500 Cycles
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	VRRAM
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	#2-56
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	50u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	120
Base Number Matches	1

Preview

Download Datasheet

View All

CALL 512-863-5585

x6464

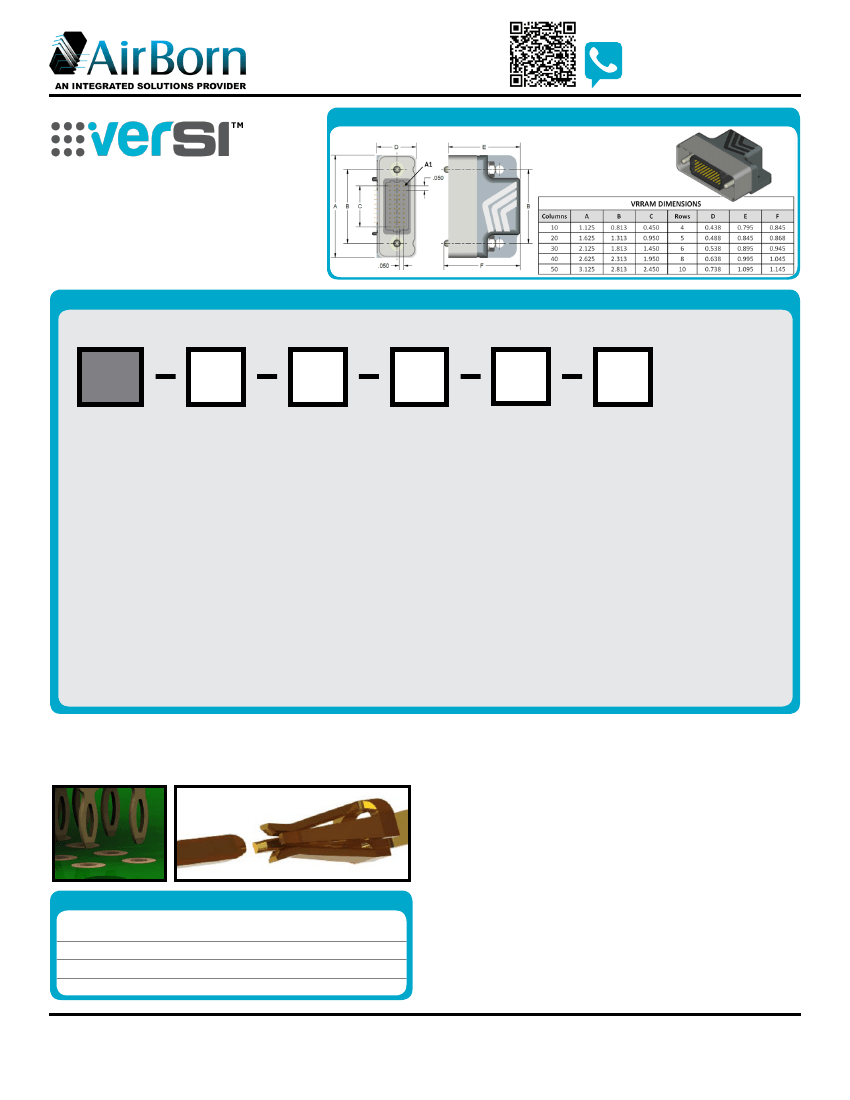

DIMENSIONS

VRRAM – Rugged Right Angle

(Male) 1.27 mm Pitch

VRRAM signal-integrity connectors are ruggedized

versions of the standard VSRAM male connectors.

These connectors can be used in extreme

environmental conditions while maintaining high

reliability and continuous performance.

CONTACT CUSTOMER SERVICE

ORDER FORM

ENTER

CODE

ENTER

CODE

Sample Part Number Format: VRRAM-04-10-50-02-N

ENTER

CODE

ENTER

CODE

ENTER

CODE

VRRAM

SERIES

Rugged

Right Angle

(Male)

1.27 mm

ROWS

04 – 4 Rows

05 – 5 Rows

06 – 6 Rows

08 – 8 Rows

10 – 10 Rows

COLUMNS

10 – 10 Columns

20 – 20 Columns

30 – 30 Columns

40 – 40 Columns

50 – 50 Columns

CONTACT

PLATING

30 – 30 µ” Au

50 – 50 µ” Au

TERMINATION

00 – Press-Fit

01 – Paste-In-Hole

02 – PTH 0.078”

03 – PTH 0.109”

04 – PTH 0.140”

05 – PTH 0.156”

06 – PTH 0.172”

OPTIONS

Blank – No Options

G – Guide Pin

N – #2-56 Locking Jacknut

NOTES

Connector potting is standard.

PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK½

FEATURES

verSI board-mount connectors feature low mating force / high-reliability contact system with

four points of contact. The open-pin field design allows for flexibility in termination schemes.

Single-ended, differential pair, power, and ground are all available in one connector design.

Guide hardware is optional.

MATERIALS and FINISHES

Shell: . . . . . . . . . . . . . . Aluminum alloy 6061-T6 per QQ-A-250/11 or 6061-T6511 per QQ-A-200/8

Finish: . . . . . . . . . . . . . . . . . . . . . . . . .Electroless nickel per SAE AMS-C-26074, Grade B, Class 3

Pin Contacts (Mating Face): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Phos bronze per ASTM B103

Pin Contacts (Termination): . . . .

BeCu ASTM B768 (press-fit contact) or brass alloy per ASTM B36

(PIH or PTH)

Contact Finish: . . . . . . . .

Localized gold finish per ASTM B488 over nickel per ASTM B689 Type I

Molded Insulators: . . . . . . . . . . . . . . . . .Glass-filled

liquid crystal polymer (LCP) per ASTM D5138

Hardware: . . . . . . . . . . . . . Stainless steel per ASTM A582/A582M, or ASTM A320; passivated per

ASTM A967, SAE AMS-QQ-P-35

NOTE: AirBorn can manufacture other configurations to your exact specifications.

SI DATA – Simulated (Connectors Only)

Diff. Insertion Loss

Diff. Return Loss

Diff. Impedance

Diff. Skew

22 GHz @ -2 db

7.5 GHz @ -20 db

100 ohm ±10%

< 2 psec

17.5 GHz @ -10 db

PERFORMANCE

Contact Rating: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ 2 amperes maximum

Operating Temperature:½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ -55° C to 125° C

Min½ Contact Wipe: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ 1½27 mm (0½050”)

Contact Normal Force: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½35–40 grams

Max Recommended Voltage: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ 200 V, RMS, 60 Hz

Insulation Resistance: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ 5,000 megaohms minimum @ 500 VDC

Durability:½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ 2500 connector mating cycles

Sinusoidal Vibration: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ 20 g (EIA-364-28, condition IV)

Shock: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ 50 g (EIA-364-27, condition E)

www.airborn.com

(512 ) 863-5585

VRRAM-PNB-1E
