42R45-3112-200: DescriptionMains Power Connector, 10A, 250VAC, Male, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size51KB，1 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/

Download Datasheet Parametric View All

42R45-3112-200 Overview

Mains Power Connector, 10A, 250VAC, Male, Solder Terminal, ROHS COMPLIANT

42R45-3112-200 Parametric

Parameter Name	Attribute value
Maker	Power Dynamics, Inc.
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARDS: IEC 60320; UL 94V-0; CSA; VDE, QUICK CONNECT
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	NICKEL
Contact point gender	MALE
Contact material	BRASS
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	10A, 250VAC
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

6

5

4

3

2

1

MATERIAL AND FINISH:

Insulator: PC (Polycarbonate), color black, UL-94V-0 rated

Contacts: Brass, Nickel plated

D

27.5+0.2

D

ELECTRICAL SPECIFICATIONS:

Current rating: 10 A

C

US

Voltage rating: 250 VAC

Dielectric withstanding voltage: 3000 VAC for one minute

D E

31.5+0.2

R2.5 TYP.

N L1

L2

250V 115V

CIRCUIT

RECOMMENDED

PANEL CUTOUT

C

RoHS

COMPLIANT

ORDERING CODE:

42R45-31__ __ - __ __ __

1 2

3

C

1) TERMINAL OPTIONS

1 = .187(4.8) WITH Ø1.4

2 = .250(6.3) WITH Ø1.65

2) ELECTRICAL CIRCUIT

CONFIGURATION

19

1 = 10A 250V 70°C

2+GROUND 2 FUSE

2 = 10A 250V 120°C

2+GROUND 2 FUSE

B

3) PANEL THICKNESS

10A

250V

30.5±0.2

27.0

250V

6.3A

3X 2.00±0.05

3.00

E

44R45

4.00 16.0+0.5

115V

SEE OPTOIN 1

SEE OPTION 1

N

L

34.0±0.2

31.0

B

3X 4.0±0.1

L2

230V

N

L1

CHNG CHCK APPR

14.0±0.2

24.0+0.5

A+0.2

30.0±0.3

TOLERANCE

UNLESS OTHERWISE SPECIFIED

X ± 1

X.X ± 0.4

X.XX ± 0.20

0.80 TYP.

10.0±0.5

REVISIONS

CHANGE

A

MAX. PANEL THICKNESS

P/N

A

1.5

42R45-31XX-150 1.5

2.0

42R45-31XX-200 2.0

2.5

42R45-31XX-250 2.5

ADDITIONAL PANEL THICKNESS

AVAILABLE ON REQUEST

6

5

4

Phone: 973 560-0019

Whippany, New Jersey

Fax: 973 560-0076

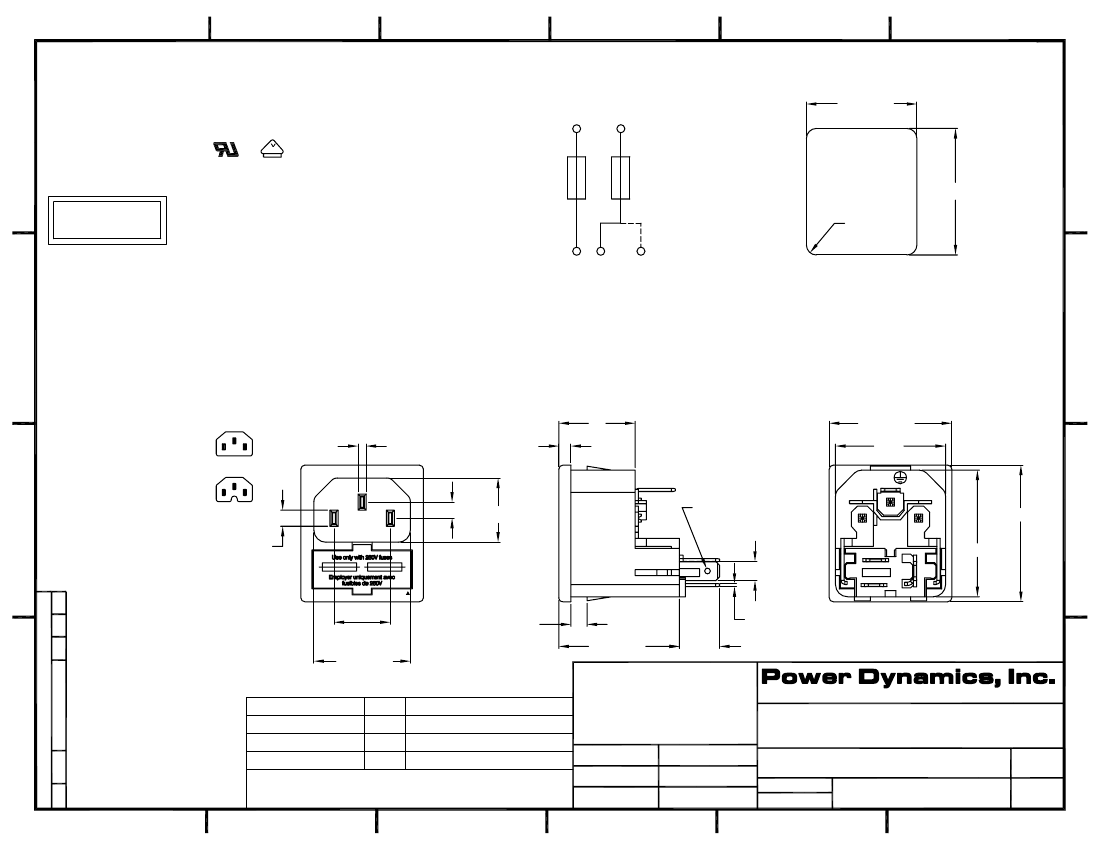

PART: IEC 60320 APPL. INLET, VOLTAGE SELECTOR

WITH FUSE HOLDER, QC TERMINALS; SNAP-IN

A

DRAWN

BY

CHECK

BY

APPR

BY

DATE

GQ

PB

TD

DATE:

11/26/01

12/04/01

PART #:

42R45-31XX-XXX

A

NTS

ALL DIMENSIONS FOR REFERENCE ONLY

DIMENSIONS ARE IN MILLIMETERS

SHEET

1 of 1

REV:

REV

SIZE:

SCALE:

3

2

1
