54F162A2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F162A2

54F162A2: DescriptionF/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP DECADE COUNTER, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size128KB，5 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F162A2 Overview

F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP DECADE COUNTER, CQCC20, CERAMIC, LCC-20

54F162A2 Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	20
Reach Compliance Code	unknown
Other features	TCO OUTPUT
Counting direction	UP
series	F/FAST
JESD-30 code	S-CQCC-N20
length	8.89 mm
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
propagation delay (tpd)	11.5 ns
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Trigger type	POSITIVE EDGE
width	8.89 mm
minfmax	120 MHz
Base Number Matches	1

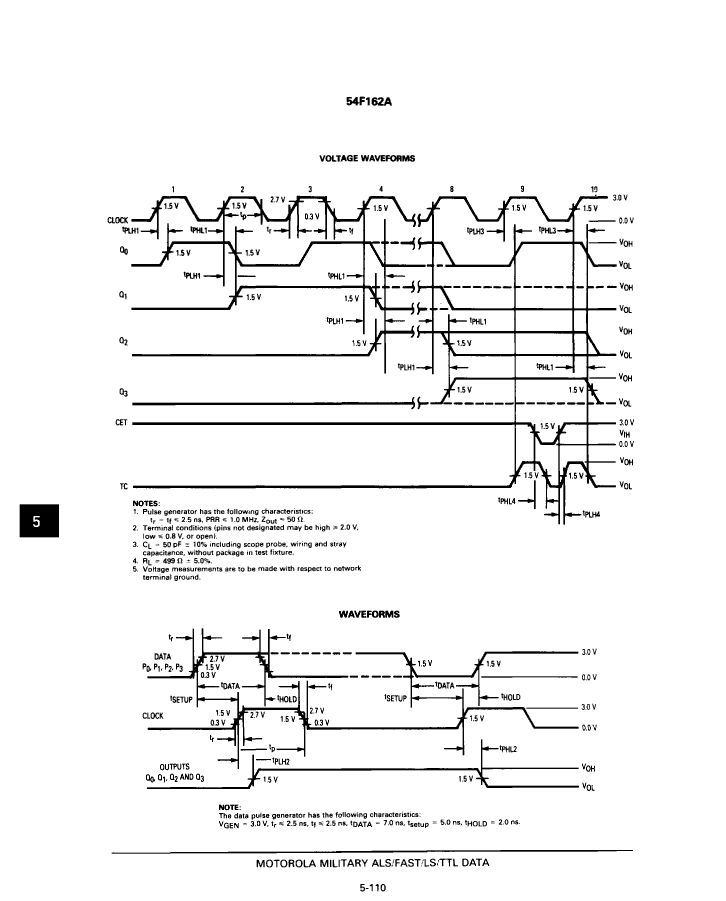

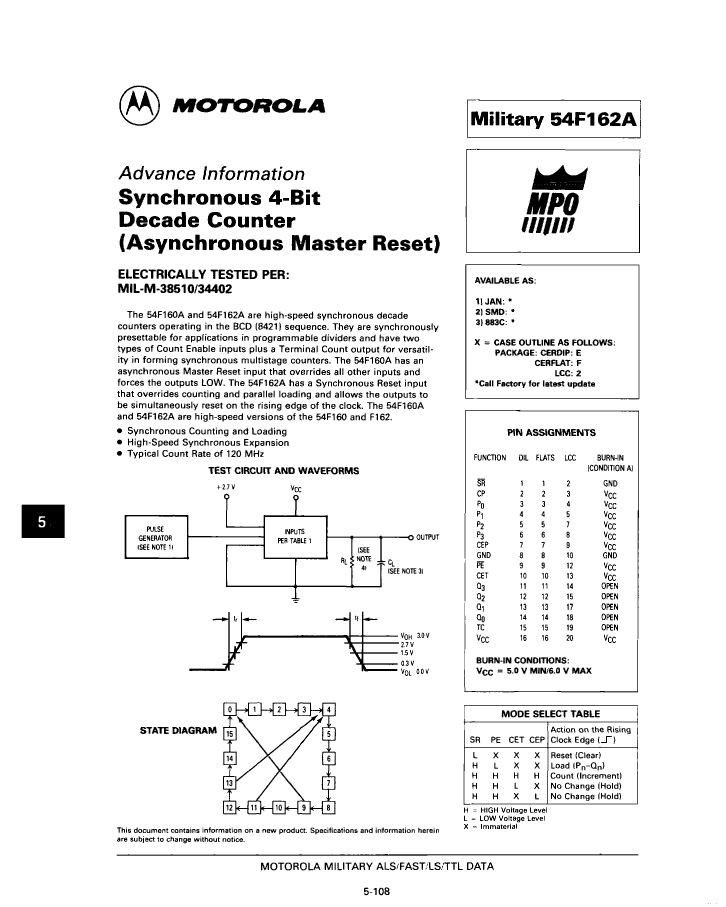

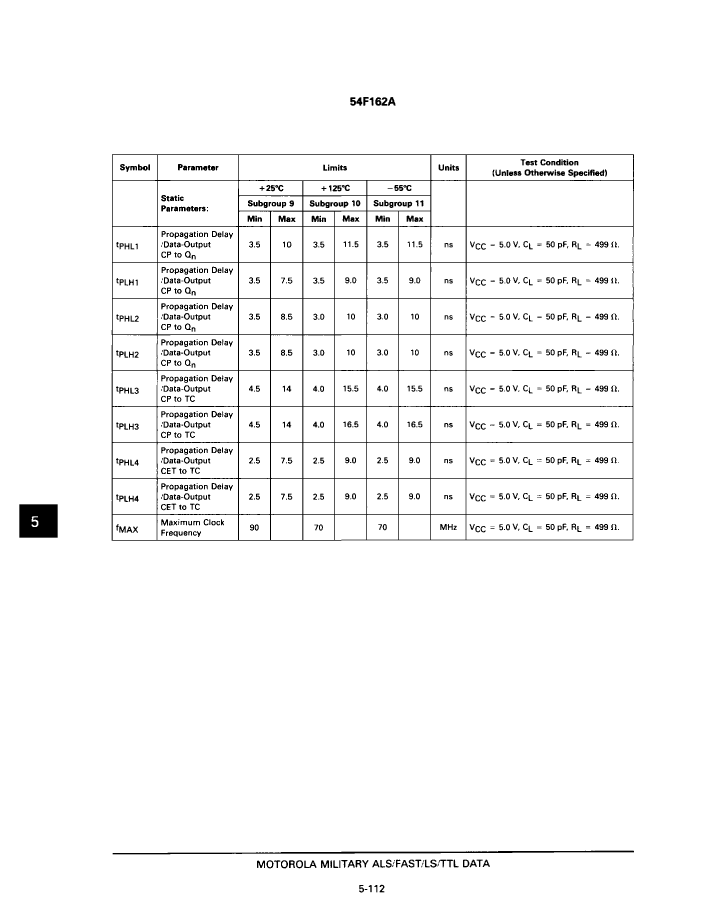

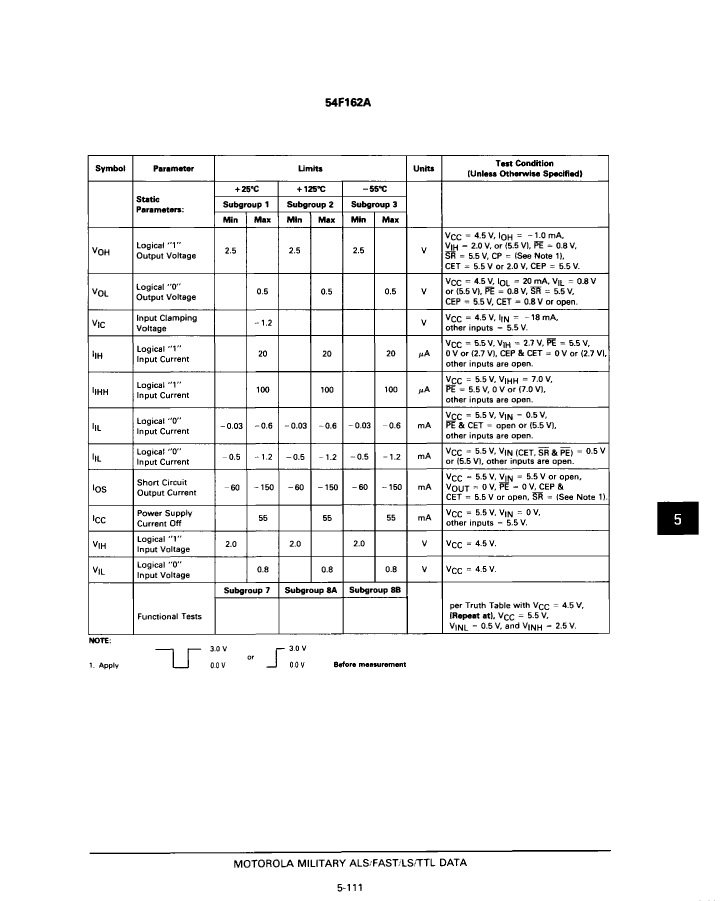

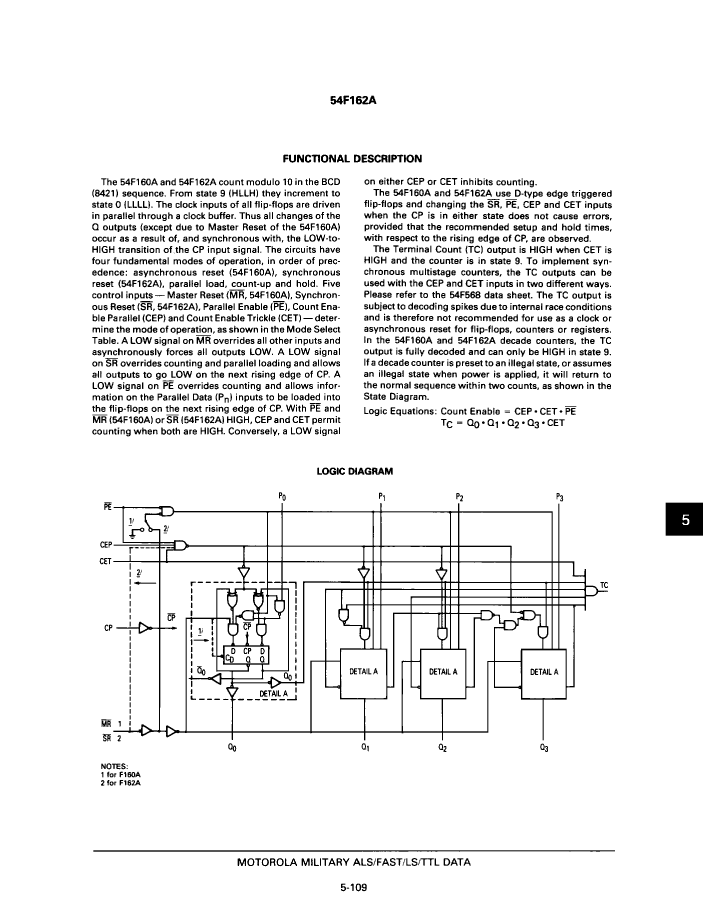

Preview

Download Datasheet

View All

54F162A2 Related Products

	54F162A2	54F162AF	54F162AE
Description	F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP DECADE COUNTER, CQCC20, CERAMIC, LCC-20	F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP DECADE COUNTER, CDFP16, CERAMIC, FP-16	F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP DECADE COUNTER, CDIP16, CERDIP-16
package instruction	QCCN,	DFP,	DIP,
Reach Compliance Code	unknown	unknown	unknown
Other features	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT
Counting direction	UP	UP	UP
series	F/FAST	F/FAST	F/FAST
JESD-30 code	S-CQCC-N20	R-GDFP-F16	R-GDIP-T16
length	8.89 mm	9.65 mm	19.3 mm
Load/preset input	YES	YES	YES
Logic integrated circuit type	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4	4
Number of functions	1	1	1
Number of terminals	20	16	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DFP	DIP
Package shape	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	IN-LINE
propagation delay (tpd)	11.5 ns	11.5 ns	11.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	2.15 mm	4.19 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	8.89 mm	6.415 mm	7.62 mm
minfmax	120 MHz	120 MHz	120 MHz
Base Number Matches	1	1	1
Maker	Motorola ( NXP )	-	Motorola ( NXP )
Parts packaging code	QLCC	DFP	-
Contacts	20	16	-
