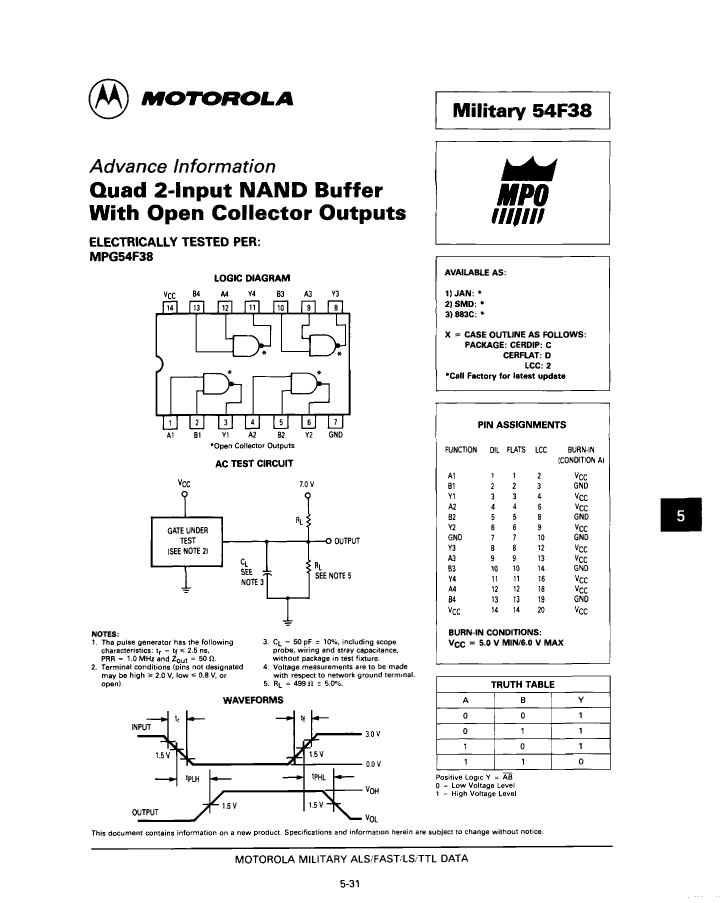

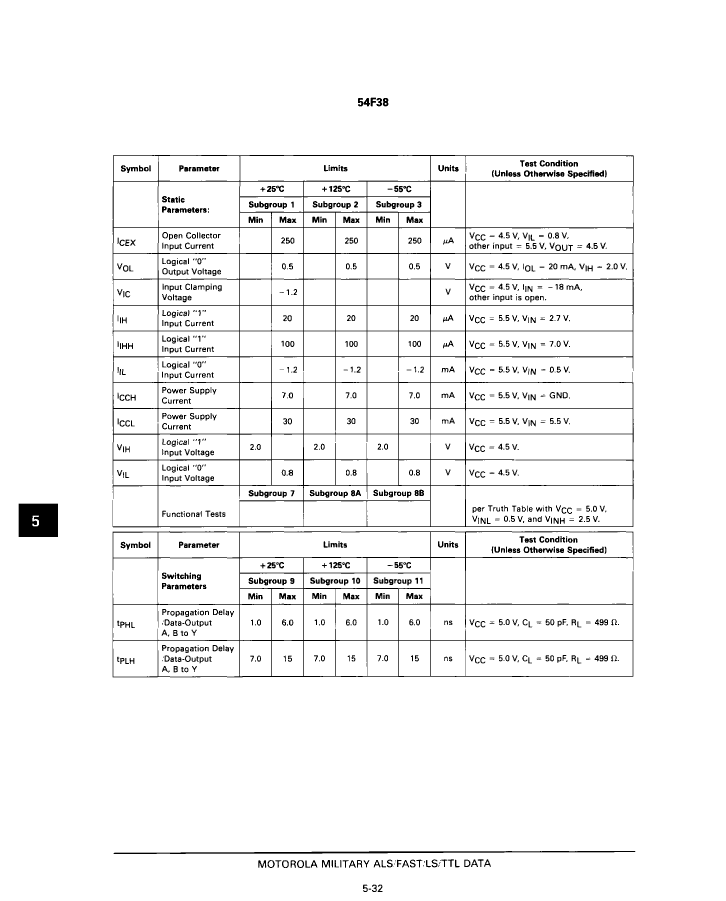

NAND Gate, F/FAST Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14
| Parameter Name | Attribute value |
| Maker | Motorola ( NXP ) |
| Parts packaging code | DFP |
| package instruction | DFP, |
| Contacts | 14 |
| Reach Compliance Code | unknown |
| series | F/FAST |
| JESD-30 code | R-GDFP-F14 |
| length | 9.65 mm |
| Logic integrated circuit type | NAND GATE |
| Number of functions | 4 |
| Number of entries | 2 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DFP |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| propagation delay (tpd) | 6 ns |
| Certification status | Not Qualified |
| Maximum seat height | 2.15 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | FLAT |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| width | 6.415 mm |
| Base Number Matches | 1 |
| 54F38D | 54F38C | 54F382 | |
|---|---|---|---|
| Description | NAND Gate, F/FAST Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14 | F/FAST SERIES, QUAD 2-INPUT NAND GATE, CDIP14, CERDIP-14 | NAND Gate, F/FAST Series, 4-Func, 2-Input, TTL, CQCC20, CERAMIC, LCC-20 |
| package instruction | DFP, | DIP, | QCCN, |
| Reach Compliance Code | unknown | unknown | unknown |
| series | F/FAST | F/FAST | F/FAST |
| JESD-30 code | R-GDFP-F14 | R-GDIP-T14 | S-CQCC-N20 |
| length | 9.65 mm | 19.495 mm | 8.885 mm |
| Logic integrated circuit type | NAND GATE | NAND GATE | NAND GATE |
| Number of functions | 4 | 4 | 4 |
| Number of entries | 2 | 2 | 2 |
| Number of terminals | 14 | 14 | 20 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DFP | DIP | QCCN |
| Package shape | RECTANGULAR | RECTANGULAR | SQUARE |
| Package form | FLATPACK | IN-LINE | CHIP CARRIER |
| propagation delay (tpd) | 6 ns | 6 ns | 6 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 2.15 mm | 5.08 mm | 1.9 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | YES | NO | YES |
| technology | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY |
| Terminal form | FLAT | THROUGH-HOLE | NO LEAD |
| Terminal pitch | 1.27 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | QUAD |
| width | 6.415 mm | 7.62 mm | 8.885 mm |
| Base Number Matches | 1 | 1 | 1 |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) | - |
| Parts packaging code | DFP | DIP | - |
| Contacts | 14 | 14 | - |
