54LS11/BDAJC

Description
LS SERIES, TRIPLE 3-INPUT AND GATE, CDFP14, CERAMIC, FP-14
Categorylogic    logic
File Size54KB,2 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com

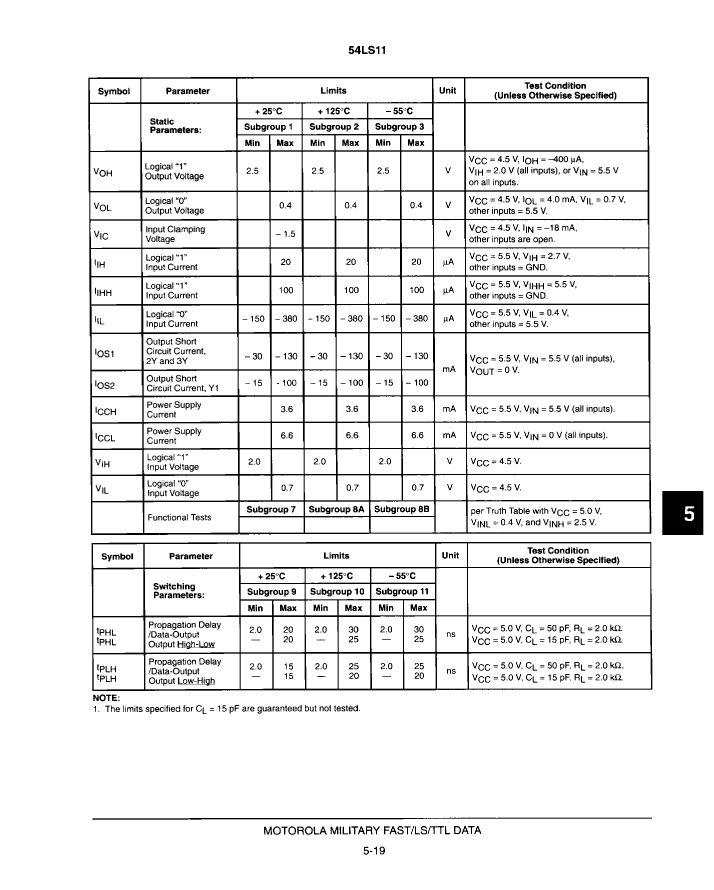

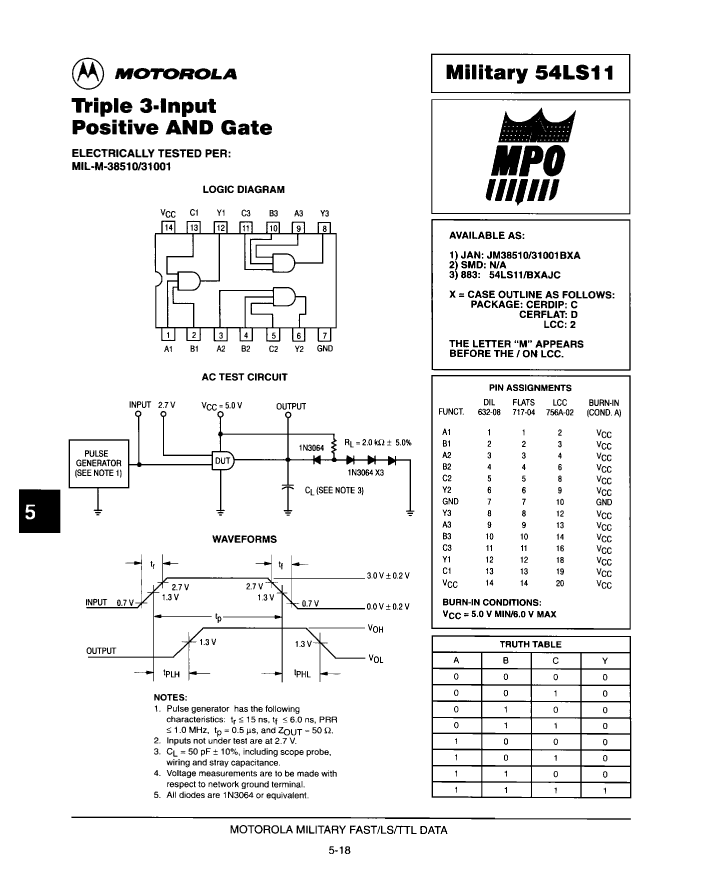

Download Datasheet Parametric Compare View All

54LS11/BDAJC Overview

LS SERIES, TRIPLE 3-INPUT AND GATE, CDFP14, CERAMIC, FP-14

54LS11/BDAJC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMotorola ( NXP )
Parts packaging codeDFP
package instructionDFP, FL14,.3
Contacts14
Reach Compliance Codeunknown
seriesLS
JESD-30 codeR-GDFP-F14
JESD-609 codee0
length9.65 mm
Load capacitance (CL)15 pF
Logic integrated circuit typeAND GATE
MaximumI(ol)0.004 A
Number of functions3
Number of entries3
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDFP
Encapsulate equivalent codeFL14,.3
Package shapeRECTANGULAR
Package formFLATPACK
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
Maximum supply current (ICC)6.6 mA
Prop。Delay @ Nom-Sup30 ns
propagation delay (tpd)25 ns
Certification statusNot Qualified
Schmitt triggerNO
Filter level38535Q/M;38534H;883B
Maximum seat height2.15 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formFLAT
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width6.415 mm
Base Number Matches1

54LS11/BDAJC Related Products

54LS11/BDAJC 54LS11M/B2AJC 54LS11/BCAJC
Description LS SERIES, TRIPLE 3-INPUT AND GATE, CDFP14, CERAMIC, FP-14 LS SERIES, TRIPLE 3-INPUT AND GATE, CQCC20, CERAMIC, LCC-20 LS SERIES, TRIPLE 3-INPUT AND GATE, CDIP14, CERDIP-14
Is it Rohs certified? incompatible incompatible incompatible
Parts packaging code DFP QLCC DIP
package instruction DFP, FL14,.3 QCCN, LCC20,.35SQ DIP, DIP14,.3
Contacts 14 20 14
Reach Compliance Code unknown unknown unknown
series LS LS LS
JESD-30 code R-GDFP-F14 S-CQCC-N20 R-GDIP-T14
JESD-609 code e0 e0 e0
length 9.65 mm 8.885 mm 19.495 mm
Load capacitance (CL) 15 pF 15 pF 15 pF
Logic integrated circuit type AND GATE AND GATE AND GATE
MaximumI(ol) 0.004 A 0.004 A 0.004 A
Number of functions 3 3 3
Number of entries 3 3 3
Number of terminals 14 20 14
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Package body material CERAMIC, GLASS-SEALED CERAMIC, METAL-SEALED COFIRED CERAMIC, GLASS-SEALED
encapsulated code DFP QCCN DIP
Encapsulate equivalent code FL14,.3 LCC20,.35SQ DIP14,.3
Package shape RECTANGULAR SQUARE RECTANGULAR
Package form FLATPACK CHIP CARRIER IN-LINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
power supply 5 V 5 V 5 V
Maximum supply current (ICC) 6.6 mA 6.6 mA 6.6 mA
Prop。Delay @ Nom-Sup 30 ns 20 ns 20 ns
propagation delay (tpd) 25 ns 25 ns 25 ns
Certification status Not Qualified Not Qualified Not Qualified
Schmitt trigger NO NO NO
Filter level 38535Q/M;38534H;883B 38535Q/M;38534H;883B 38535Q/M;38534H;883B
Maximum seat height 2.15 mm 1.9 mm 5.08 mm
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4.5 V 4.5 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V 5 V
surface mount YES YES NO
technology TTL TTL TTL
Temperature level MILITARY MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form FLAT NO LEAD THROUGH-HOLE
Terminal pitch 1.27 mm 1.27 mm 2.54 mm
Terminal location DUAL QUAD DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
width 6.415 mm 8.885 mm 7.62 mm
Base Number Matches 1 1 1
