54LS136DM

Description
XOR Gate, LS Series, 4-Func, 2-Input, TTL, DIP-14
Categorylogic    logic

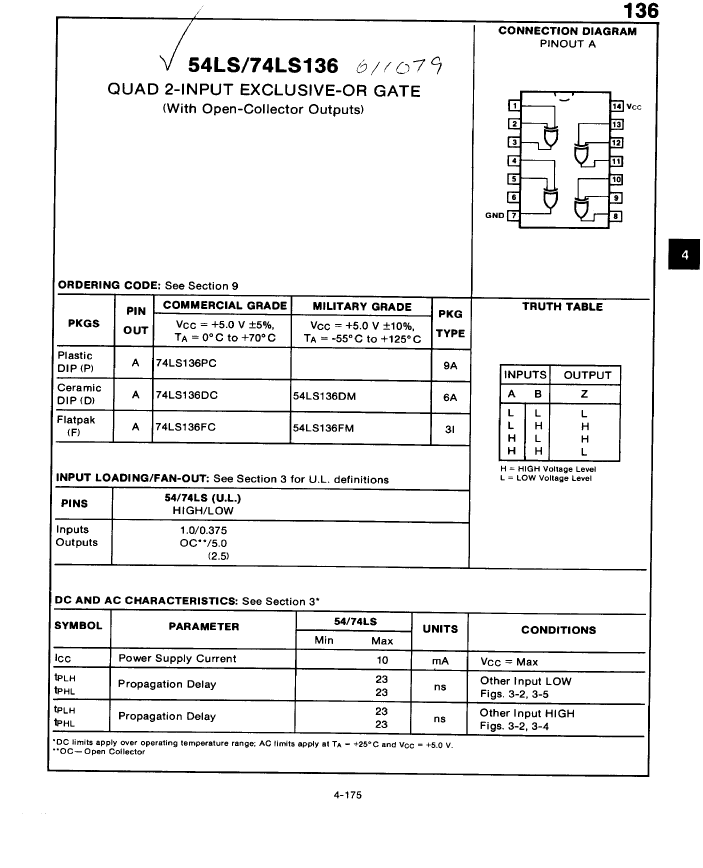

File Size26KB,1 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric Compare View All

54LS136DM Overview

XOR Gate, LS Series, 4-Func, 2-Input, TTL, DIP-14

54LS136DM Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerFairchild
Parts packaging codeDIP
package instructionDIP, DIP14,.3
Contacts14
Reach Compliance Codecompliant
seriesLS
JESD-30 codeR-XDIP-T14
JESD-609 codee0
length19.4945 mm
Logic integrated circuit typeXOR GATE
Number of functions4
Number of entries2
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristicsOPEN-COLLECTOR
Package body materialUNSPECIFIED
encapsulated codeDIP
Encapsulate equivalent codeDIP14,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply5 V
Certification statusNot Qualified
Schmitt triggerNO
Maximum seat height5.08 mm
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
width7.62 mm
Base Number Matches1
This Material Copyrighted By Its Respective Manufacturer

54LS136DM Related Products

54LS136DM 74LS136PC 74LS136DC 74LS136FC
Description XOR Gate, LS Series, 4-Func, 2-Input, TTL, DIP-14 XOR Gate, LS Series, 4-Func, 2-Input, TTL, PDIP14, PLASTIC, DIP-14 XOR Gate, TTL, CDIP14, XOR Gate, TTL, CDFP14,
Maker Fairchild Fairchild Fairchild Fairchild
Reach Compliance Code compliant unknown compliant compliant
JESD-30 code R-XDIP-T14 R-PDIP-T14 R-XDIP-T14 R-XDFP-F14
Logic integrated circuit type XOR GATE XOR GATE XOR GATE XOR GATE
Number of terminals 14 14 14 14
Maximum operating temperature 125 °C 70 °C 70 °C 70 °C
Output characteristics OPEN-COLLECTOR OPEN-COLLECTOR OPEN-COLLECTOR OPEN-COLLECTOR
Package body material UNSPECIFIED PLASTIC/EPOXY CERAMIC CERAMIC
encapsulated code DIP DIP DIP DFP
Encapsulate equivalent code DIP14,.3 DIP14,.3 DIP14,.3 FL14,.3
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE IN-LINE FLATPACK
power supply 5 V 5 V 5 V 5 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
Schmitt trigger NO NO NO NO
Nominal supply voltage (Vsup) 5 V 5 V 5 V 5 V
surface mount NO NO NO YES
technology TTL TTL TTL TTL
Temperature level MILITARY COMMERCIAL COMMERCIAL COMMERCIAL
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE FLAT
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 1.27 mm
Terminal location DUAL DUAL DUAL DUAL
Base Number Matches 1 1 1 1
Is it Rohs certified? incompatible - incompatible incompatible
JESD-609 code e0 - e0 e0
Terminal surface Tin/Lead (Sn/Pb) - Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
