TITLE:
SPECIFICATION CONTROL DRAWING
PART IDENTIFIER:
5653ALN
DESCRIPTION:
HIGH POWER LOAD, ALUMINUM NITRIDE
ASSEMBLY DWG:
1700464
1.0
SPECIFICATIONS:
1.1
ELECTRICAL:
1.1.1
RESISTANCE VALUE: 50Ω NOMINAL.
1.1.2
INPUT POWER: (@ 100°C HEAT SINK, DERATED LINEARLY TO ZERO POWER AT 150°C.).
1.1.2.1 AVERAGE: 100 WATTS.
1.1.2.2 PEAK: 1000 WATTS (BASED ON 100US PULSE WIDTH AND 1% DUTY CYCLE).
1.1.3
FREQUENCY RANGE: DC - 4.0 GHZ.
1.1.4
VSWR: 1.25 MAX.
MECHANICAL:
1.2.1

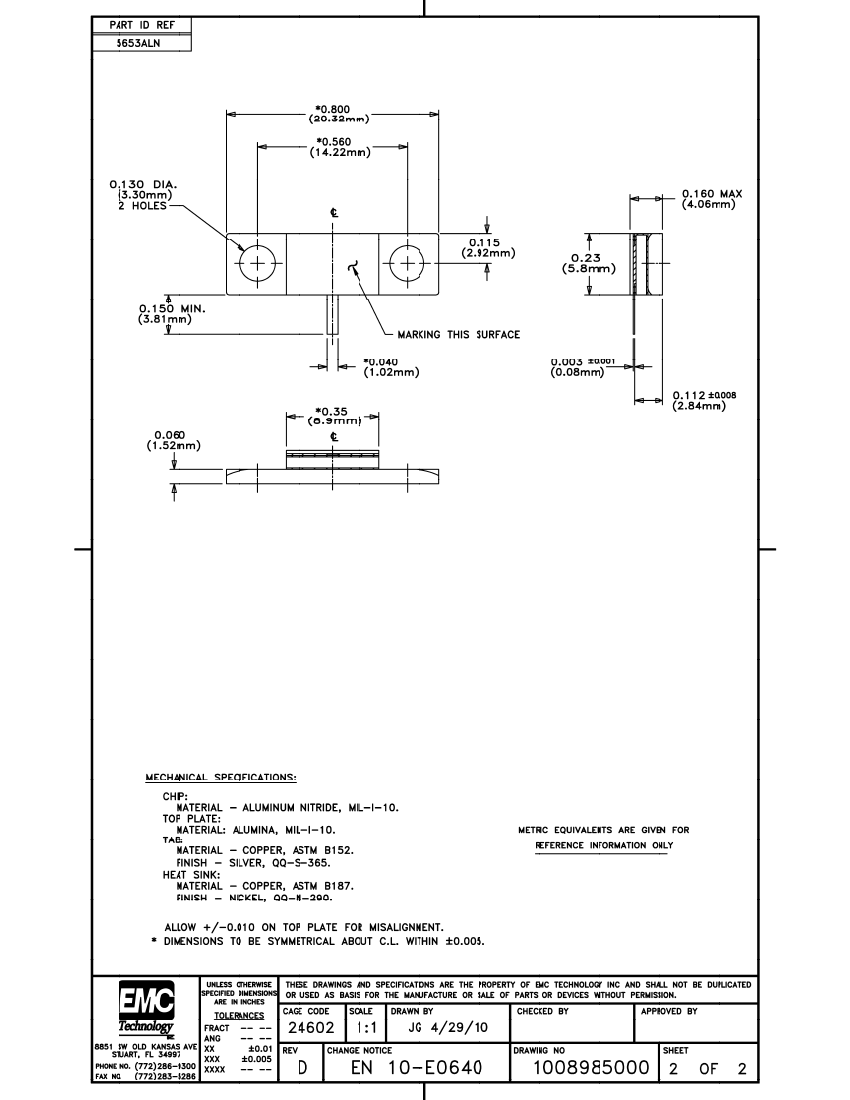

OUTLINE DWG: SEE SHEET 2.
1.2.2
WORKMANSHIP: PER MIL-STD-454, REQUIREMENT 9, AND MIL-R-55342.
ENVIRONMENTAL:
1.3.1
TEMPERATURE RANGE:
1.3.1.1 STORAGE: -65°C TO +150°C.
1.3.1.2 OPERATING: -55°C TO +150°C.
LOGOAND PART IDENTIFIER
LEGIBILITY AND PERMANENCY PER MIL-STD-130.
1.2
1.3
2.0
UNIT MARKING:
3.0
QUALITY ASSURANCE:
3.1
3.2
3.3
VISUAL AND MECHANICAL PER 824W155.
100% DC RESISTANCE CHECK (GO/NO GO): 50Ω
±
3%.
DATA REQUIREMENTS:
3.3.1
NO TEST DATA REQUIRED FOR CUSTOMER.
3.3.2
DATA RETENTION - STANDARD.
STANDARD PACKING PER 755W002.
4.0
PACKAGING:
EMC TECHNOLOGY
8851 SW OLD KANSAS AVE.
STUART, FL 34997
CAGE CODE # 24602
CHANGE NOTICE
EN 10-E0640
DWG #
REV LVL
SHEET
1008985000
D
OF
2
1
