5962F9562601QXX datasheet, PDF

Datasheet> All Categories > storage> storage> 5962F9562601QXX

5962F9562601QXX: Description8KX8 OTPROM, CDIP28, SIDE BRAZED, CERAMIC, DIP-28; Categorystorage storage; File Size134KB，5 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962F9562601QXX Overview

8KX8 OTPROM, CDIP28, SIDE BRAZED, CERAMIC, DIP-28

5962F9562601QXX Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	DIP,
Contacts	28
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-30 code	R-CDIP-T28
memory density	65536 bit
Memory IC Type	OTP ROM
memory width	8
Number of functions	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	8KX8
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class Q
Maximum seat height	5.92 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	300k Rad(Si) V
width	15.24 mm
Base Number Matches	1

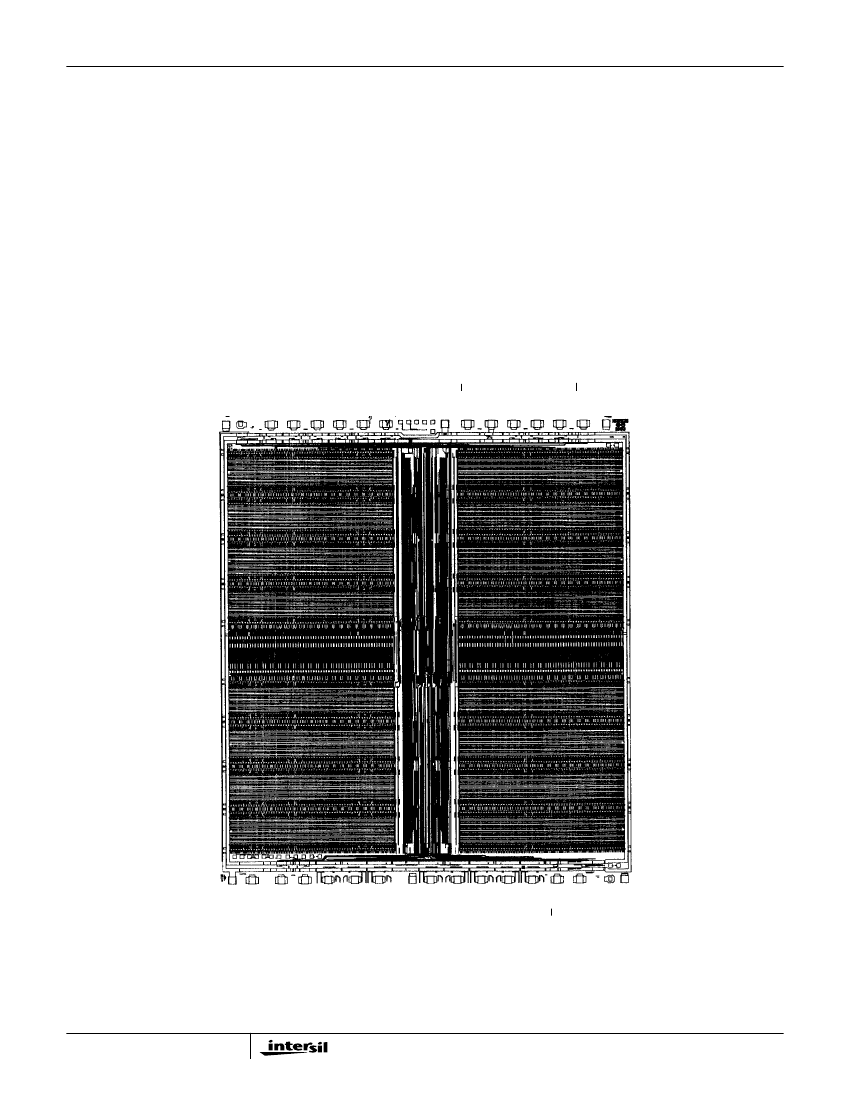

Preview

Download Datasheet

View All

HS-6664RH

Data Sheet

August 2000

File Number

3197.4

Radiation Hardened 8K x 8 CMOS PROM

The Intersil HS-6664RH is a radiation hardened 64K CMOS

PROM, organized in an 8K word by 8-bit format. The chip is

manufactured using a radiation hardened CMOS process,

and utilizes synchronous circuit design techniques to

achieve high speed performance with very low power

dissipation.

On-chip address latches are provided, allowing easy

interfacing with microprocessors that use a multiplexed

address/data bus structure. The output enable control (G)

simpliﬁes system interfacing by allowing output data bus

control in addition to the chip enable control (E). All bits are

manufactured storing a logical “0” and can be selectively

programmed for a logical “1” at any bit location.

Applications for the HS-6664RH CMOS PROM include low

power microprocessor based instrumentation and

communications systems, remote data acquisition and

processing systems, and processor control storage.

Speciﬁcations for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed here must be used when ordering.

Detailed Electrical Speciﬁcations for these devices are

contained in SMD 5962-95626. A “hot-link” is provided

on our homepage for downloading.

www.intersil.com/spacedefense/space.htm

Features

• Electrically Screened to SMD # 5962-95626

• QML Qualiﬁed per MIL-PRF-38535 Requirements

• 1.2 Micron Radiation Hardened Bulk CMOS

• Total Dose . . . . . . . . . . . . . . . . . . . . . . 300 krad(Si) (Max)

• Transient Output Upset. . . . . . . . . . . . . .>5 x 10

rad(Si)/s

• LET >100 MEV-cm

/mg

• Fast Access Time . . . . . . . . . . . . . . . . . . . . . . . 35ns (Typ)

• Single 5V Power Supply

• Single Pulse 10V Field Programmable

• Synchronous Operation

• On-Chip Address Latches

• Three-State Outputs

• NiCr Fuses

• Low Standby Current . . . . . . . . . . . . . . <500µA (Pre-Rad)

• Low Operating Current . . . . . . . . . . . . . . . . . . <15mA/MHz

• Military Temperature Range . . . . . . . . . . . -55

C to 125

Ordering Information

ORDERING NUMBER

5962F9562601QXC

5962F9562601QYC

5962F9562601VXC

5962F9562601VYC

HS1-6664RH/PROTO

HS9-6664RH/PROTO

INTERNAL

MKT. NUMBER

HS1-6664RH-8

HS9-6664RH-8

HS1-6664RH-Q

HS9-6664RH-Q

HS1-6664RH/PROTO

HS9-6664RH/PROTO

TEMP. RANGE

(

-55 to 125

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 321-724-7143

Intersil and Design is a trademark of Intersil Corporation.

5962F9562601QXX Related Products

	5962F9562601QXX	5962F9562601VYX	5962F9562601VXX	5962F9562601QYX
Description	8KX8 OTPROM, CDIP28, SIDE BRAZED, CERAMIC, DIP-28	8KX8 OTPROM, CDFP28, CERAMIC, DFP-28	8KX8 OTPROM, CDIP28, SIDE BRAZED, CERAMIC, DIP-28	8KX8 OTPROM, CDFP28, CERAMIC, DFP-28
Parts packaging code	DIP	DFP	DIP	DFP
package instruction	DIP,	DFP,	DIP,	DFP,
Contacts	28	28	28	28
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
JESD-30 code	R-CDIP-T28	R-CDFP-F28	R-CDIP-T28	R-CDFP-F28
memory density	65536 bit	65536 bit	65536 bit	65536 bit
Memory IC Type	OTP ROM	OTP ROM	OTP ROM	OTP ROM
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	28	28	28	28
word count	8192 words	8192 words	8192 words	8192 words
character code	8000	8000	8000	8000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
organize	8KX8	8KX8	8KX8	8KX8
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP	DIP	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	IN-LINE	FLATPACK
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	MIL-PRF-38535 Class Q
Maximum seat height	5.92 mm	2.92 mm	5.92 mm	2.92 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
total dose	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V
width	15.24 mm	12.445 mm	15.24 mm	12.445 mm
Maker	Renesas Electronics Corporation	-	Renesas Electronics Corporation	Renesas Electronics Corporation
Base Number Matches	1	1	1	-
