5962-9063401HXX datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> converter> 5962-9063401HXX

5962-9063401HXX: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, CERAMIC, DIP-24; CategoryAnalog mixed-signal IC converter; File Size227KB，6 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric Compare View All

5962-9063401HXX Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, CERAMIC, DIP-24

5962-9063401HXX Parametric

Parameter Name	Attribute value
Maker	Data Device Corporation
Parts packaging code	DIP
package instruction	CERAMIC, DIP-24
Contacts	24
Reach Compliance Code	compliant
ECCN code	3A001.A.2.C
Maximum analog output voltage	5 V
Minimum analog output voltage
Converter type	D/A CONVERTER
Enter bit code	COMPLEMENTARY BINARY, COMPLEMENTARY 2'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-CDIP-P24
Maximum linear error (EL)	0.0125%
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.08 mm
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
Base Number Matches	1

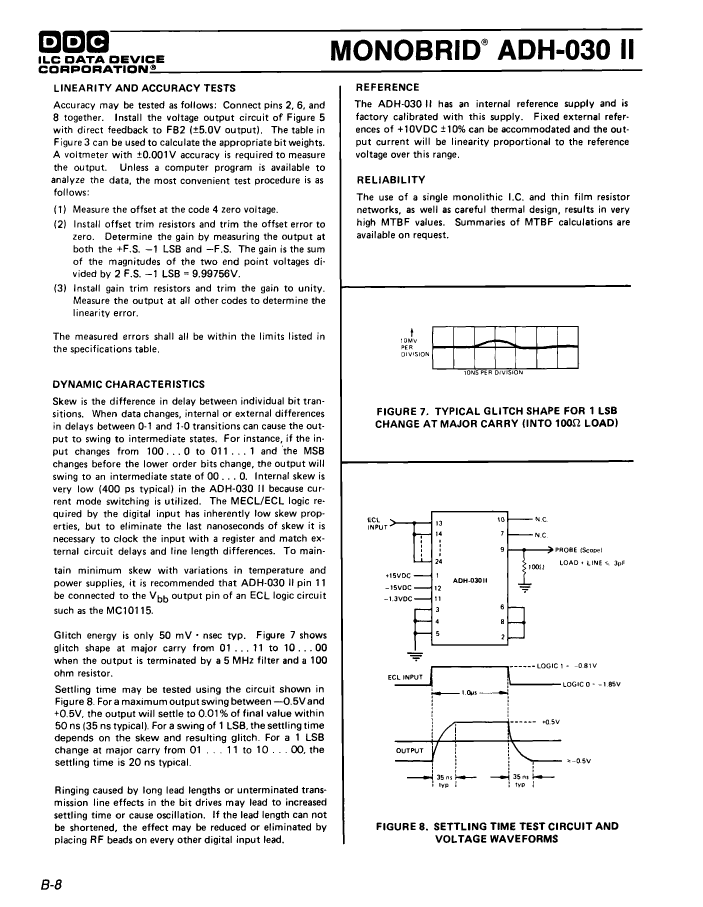

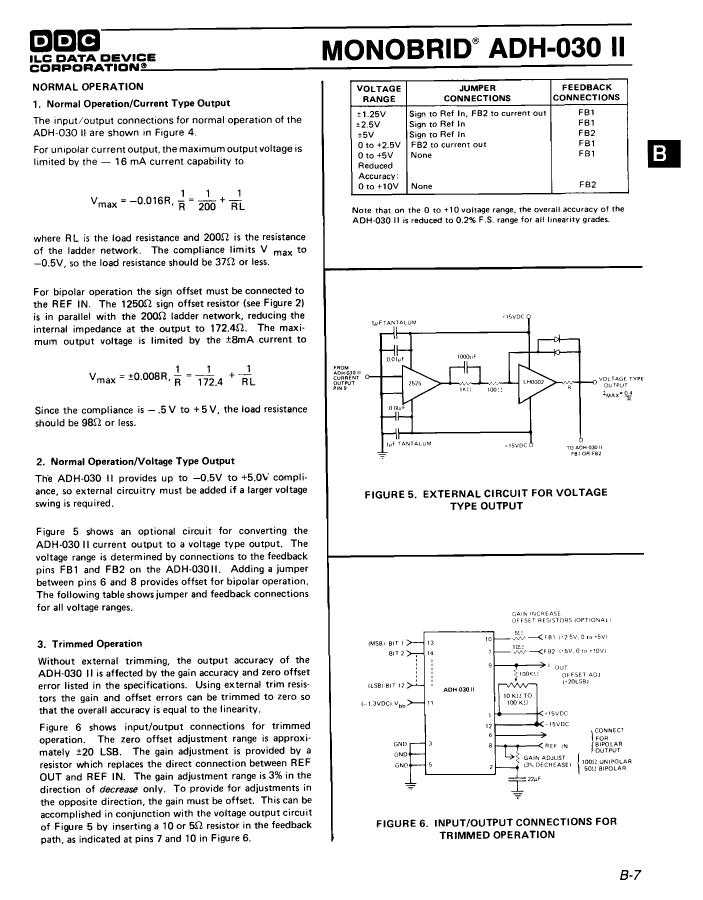

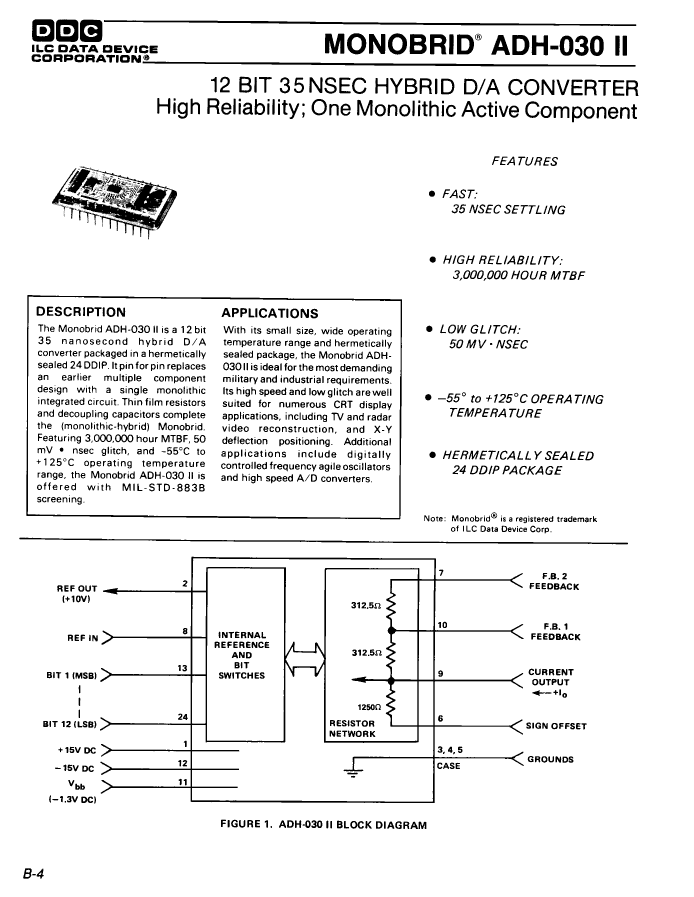

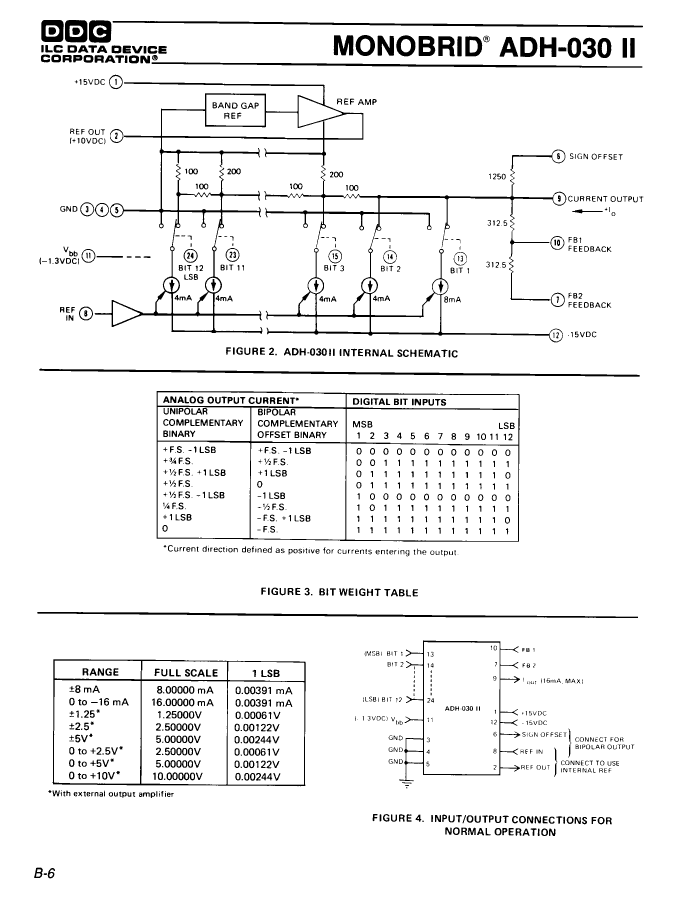

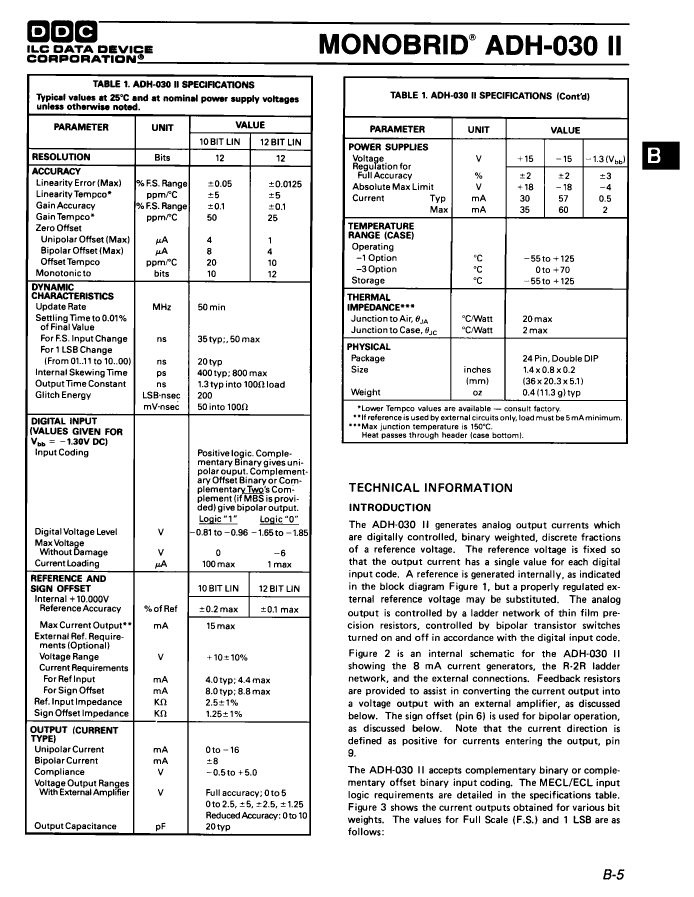

Preview

Download Datasheet

View All

5962-9063401HXX Related Products

	5962-9063401HXX	5962-9063401HXA	5962-9063401HXC	ADH-030II-10-1-3B	ADH-030II-12-3-B	ADH-030II-10-3-B
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 0.035us Settling Time, CDIP24, 1.400 X 0.800 INCH, 0.200 INCH HEIGHT, HERMETIC SEALED, DDIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 0.035us Settling Time, CDIP24, 1.400 X 0.800 INCH, 0.200 INCH HEIGHT, HERMETIC SEALED, DDIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 0.035us Settling Time, CDIP24, 1.400 X 0.800 INCH, 0.200 INCH HEIGHT, HERMETIC SEALED, DDIP-24
Maker	Data Device Corporation	Data Device Corporation	Data Device Corporation	Data Device Corporation	Data Device Corporation	Data Device Corporation
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	CERAMIC, DIP-24	CERAMIC, DIP-24	CERAMIC, DIP-24	1.400 X 0.800 INCH, 0.200 INCH HEIGHT, HERMETIC SEALED, DDIP-24	1.400 X 0.800 INCH, 0.200 INCH HEIGHT, HERMETIC SEALED, DDIP-24	1.400 X 0.800 INCH, 0.200 INCH HEIGHT, HERMETIC SEALED, DDIP-24
Contacts	24	24	24	24	24	24
Reach Compliance Code	compliant	compliant	compliant	unknown	compliant	compliant
Maximum analog output voltage	5 V	5 V	5 V	5 V	5 V	5 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	COMPLEMENTARY BINARY, COMPLEMENTARY 2'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY 2\'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY 2\'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY 2\'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY 2\'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY 2\'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-CDIP-P24	R-CDIP-P24	R-CDIP-P24	R-CDIP-P24	R-CDIP-P24	R-CDIP-P24
Maximum linear error (EL)	0.0125%	0.0125%	0.0125%	0.05%	0.0125%	0.05%
Nominal negative supply voltage	-15 V	-15 V	-15 V	-10 V	-10 V	-10 V
Number of digits	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	70 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Nominal supply voltage	15 V	15 V	15 V	10 V	10 V	10 V
surface mount	NO	NO	NO	NO	NO	NO
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	-	-
technology	HYBRID	HYBRID	HYBRID	-	HYBRID	HYBRID
JESD-609 code	-	e0	e4	-	e0	e0
Encapsulate equivalent code	-	DIP24,.6	DIP24,.6	-	DIP24,.6	DIP24,.6
power supply	-	-1.3,+-15 V	-1.3,+-15 V	-	-1.3,+-15 V	-1.3,+-15 V
Filter level	-	MIL-PRF-38534	MIL-PRF-38534	-	MIL-STD-883 Class B (Modified)	MIL-STD-883 Class B (Modified)
Maximum slew rate	-	97 mA	97 mA	60 mA	60 mA	60 mA
Terminal surface	-	TIN LEAD	GOLD	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
