5311-T004: DescriptionData Line Filter, 1 Function(s), ROHS COMPLIANT PACKAGE; CategoryAnalog mixed-signal IC filter; File Size80KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

5311-T004 Overview

Data Line Filter, 1 Function(s), ROHS COMPLIANT PACKAGE

5311-T004 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	180 µF
diameter	13.5 mm
filter type	DATA LINE FILTER
high	9.6 mm
Manufacturer's serial number	FB
Installation type	THROUGH HOLE MOUNT
Number of functions	1
Output impedance	3300 OHM Ω
physical size	D13.5XH9.6 (mm)/D0.531XH0.378 (inch)
Base Number Matches	1

Preview

Download Datasheet

View All

Filter Coils < Pin Type: FB Series>

Type:

FB-9

◆

Product Description

・φ9.6mm

Max.(L×W), 13.5mm Max. Height.

・Operating

frequency:250kHz Max.

・In

addition to the reference versions of parameters shown here,

custom designs are available to meet your exact requirements.

◆

Feature

・Variable

shielded type.

・One

capacitor can be internally mounted in one section.

・Ideally

used as Audio Filters(LPF, BPF, Delay Line)

・RoHS

Compliance

◆

Dimensions (mm)

φ0.7±0.1

φ9.6 M AX.

13.0 ±0.5

+1.0

4.0-0.5

2.5±0.2

＊

Dimension does not include solder used on coil.

＊

Pin pitch should be measured at the root of terminal.

◆

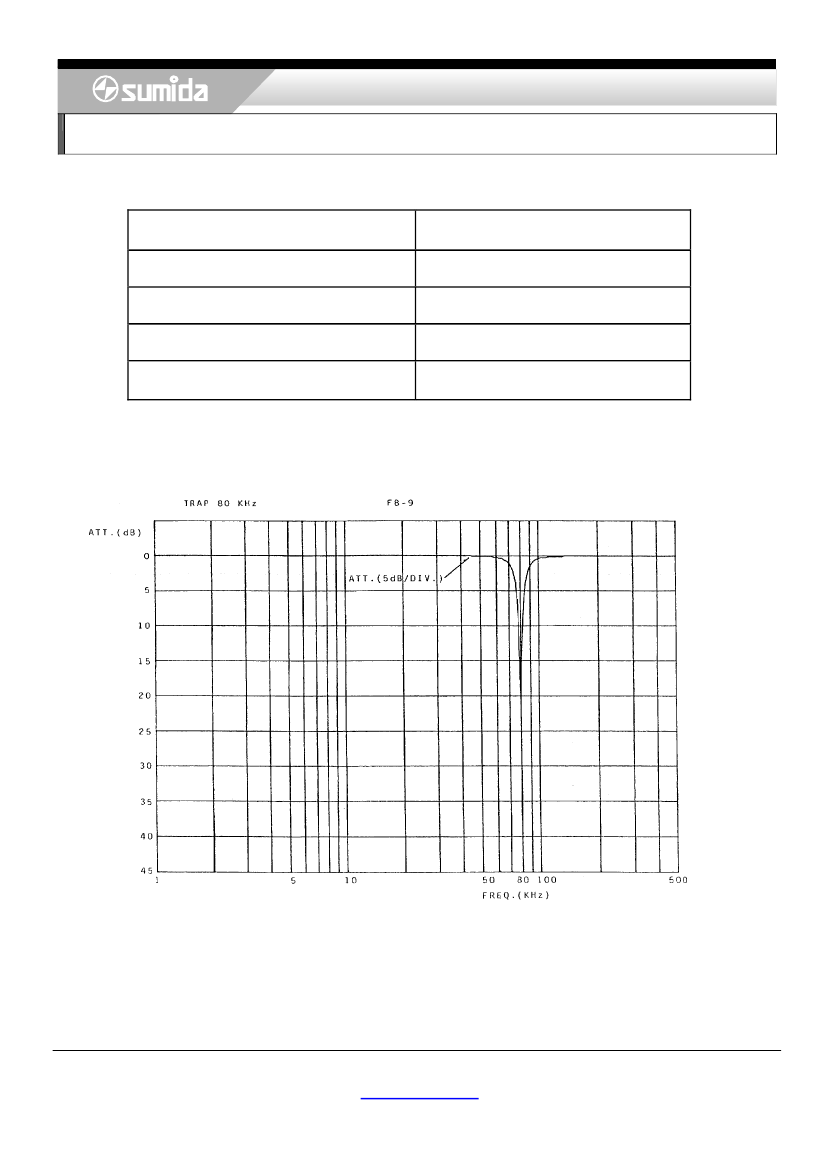

Testing Circuit

Rin＝3.3kΩ

Rout＝3.3kΩ

Rin

③

Rout

∼

S.G.

②①

Co

E.V.M.

E.V.M. Indicate Level 0.775V=0dB(at1KHz)

Please refer to the sales offices on our website for a representative near you

www.sumida.com

±0.2

5.0

1/1

½
