TECHNICAL DATA SHEET
FAKRA - HF
RIGHT ANGLE JACK
59K28A-1M4A4

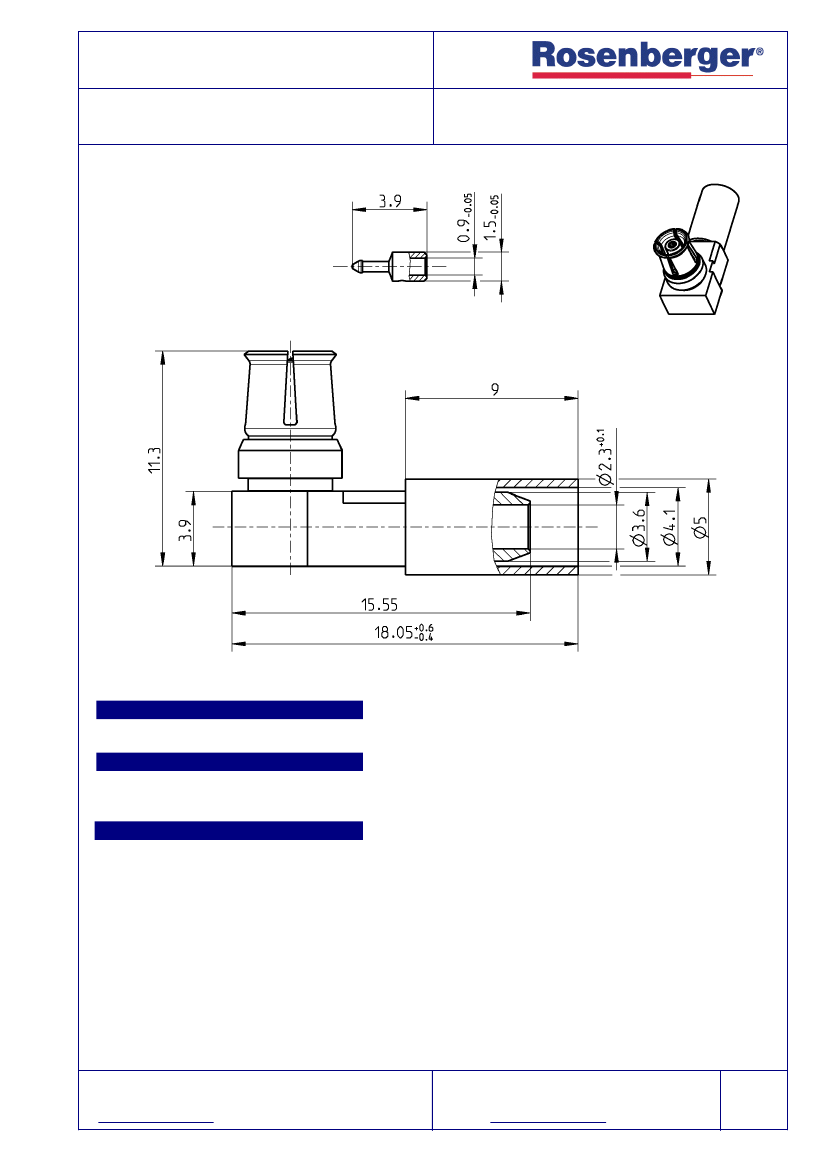

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
DIN 72594-1
Documents
Assembly instruction
MA_59V042
Material and plating
Connector parts
Center contact
Center contact 2
Outer contact
Dielectric
Crimping ferrule
Cover
Material
Spring bronze
Brass
Brass
PBT
Copper
Alpaca
Plating
Gold, min. 0.8 m, over chemical nickel
Gold, min. 0.15 m, over chemical nickel
Nickel, 2.5-5 m
Nickel, 2.5-5 m
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
FAKRA - HF
Electrical data
Impedance
Frequency
Return loss
50
Ω
DC to 6 GHz
≥
26 dB, DC to 1 GHz
≥
24 dB, DC to 3 GHz
≥
17 dB, DC to 6 GHz
≤
0.1
f(GHz)
dB @ 1 GHz
3
≥
1x10 MΩ
≤
5 mΩ
≤
5 mΩ
750 V rms
335 V rms
≤
1 A DC
≥
65 dB up to 1 GHz
RIGHT ANGLE JACK
59K28A-1M4A4
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power current
RF-leakage
- Limitations are possible due to the used cable type -
Mechanical data
Mating cycles
Engagement force
Disengagement force
min. 25
≤
25 N
≥
2N
Environmental data
Temperature range
Thermal shock
Temperature and humidity
Vibration and mechanical shock
Dry heat
- Limitations are possible due to the used cable type -
-40°C to +105°C
DIN 72594-2 clause
DIN 72594-2 clause
DIN 72594-2 clause
DIN 72594-2 clause
6.2
6.3
6.1
6.4
Tooling
Crimping tool
Crimp insert
11W150-000
11W150-504
Suitable cables
Cable type
RTK 031
Packing
Standard
Weight
1000 pcs in box
2.62 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
Martin Zebhauser
Date
20/10/04
Approved
Martin Zebhauser
Date
21/03/05
Rev.
c00
Engineering change number
04-0130
Name
Schichl Markus
Date
05/03/05
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
